Ferrari 456 M GT/M GTA Inside Gearbox Controls -Not for 456M GTA Parts Diagram

037 - Inside Gearbox Controls -Not for 456M GTA

Ferrari 456 M GT/M GTA Inside Gearbox Controls -Not for 456M GTA Parts Diagram

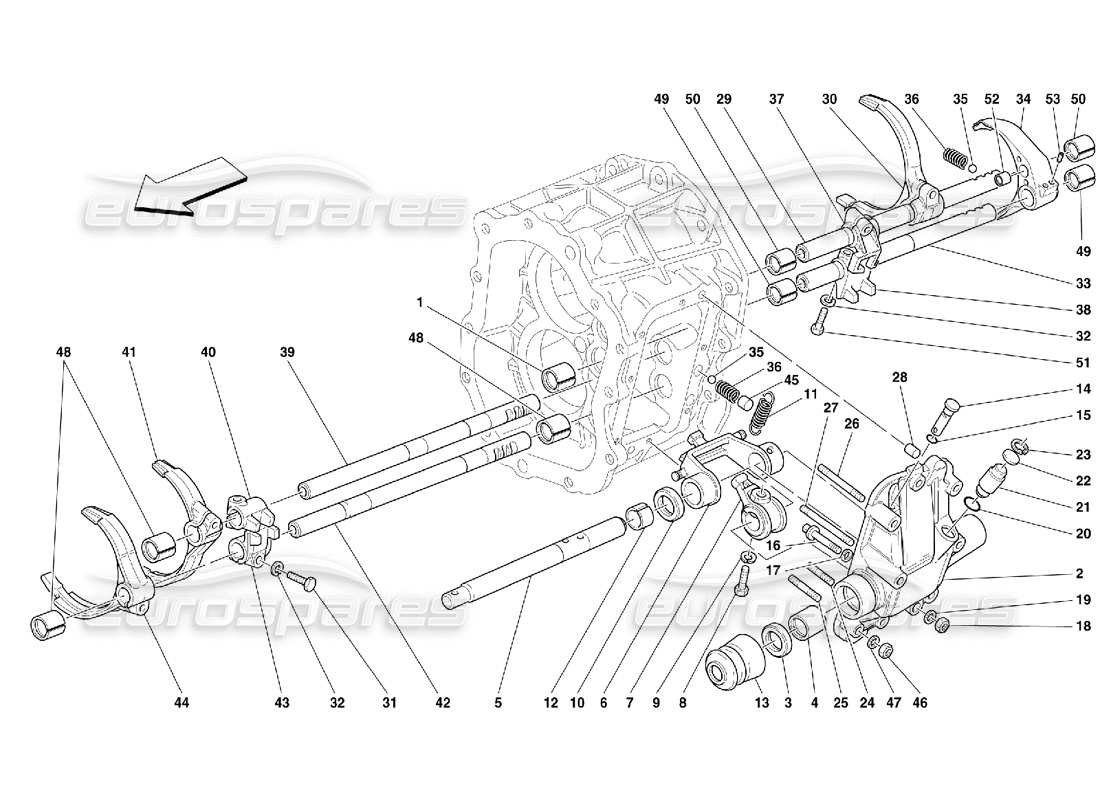

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                          #
                                                                                                          Part number
                                                                                                          Description
                                                                                                          Price
                                                                                                          # 002
                                                                                                          MPN: 153697
                                                                                                          INSIDE GEARBOX CONTROLS COVER
                                                                                                          from £423.28
                                                                                                          from £423.28
                                                                                                          # 003
                                                                                                          MPN: 146306
                                                                                                          GASKET
                                                                                                          from £1.61
                                                                                                          from £1.61
                                                                                                          # 004
                                                                                                          MPN: 149907
                                                                                                          BUSHING
                                                                                                          from £17.97
                                                                                                          from £17.97
                                                                                                          This part replaces part number 143775 - and 1 more. Click to view details
                                                                                                          # 005
                                                                                                          MPN: 146224
                                                                                                          CONTROL ROD FOR GEAR BOX
                                                                                                          from £47.81
                                                                                                          from £47.81
                                                                                                          # 006
                                                                                                          MPN: 157623
                                                                                                          ROCKER
                                                                                                          from £112.62
                                                                                                          from £112.62
                                                                                                          # 007
                                                                                                          MPN: 171832
                                                                                                          SMALL LEVER
                                                                                                          from £45.85
                                                                                                          from £45.85
                                                                                                          This part replaces part number 157624
                                                                                                          # 008
                                                                                                          MPN: 11306934
                                                                                                          SCREW
                                                                                                          from £0.81
                                                                                                          from £0.81
                                                                                                          This part replaces part number 11306921
                                                                                                          # 009
                                                                                                          MPN: 127497
                                                                                                          WASHER
                                                                                                          from £0.54
                                                                                                          from £0.54
                                                                                                          This part replaces part number 10516871 - and 2 more. Click to view details
                                                                                                          # 010
                                                                                                          MPN: 147346
                                                                                                          WASHER
                                                                                                          from £2.88
                                                                                                          from £2.88
                                                                                                          # 011
                                                                                                          MPN: 150737
                                                                                                          SPRING
                                                                                                          from £19.91
                                                                                                          from £19.91
                                                                                                          # 012
                                                                                                          MPN: 103226
                                                                                                          BUSHING
                                                                                                          from £2.35
                                                                                                          from £2.35
                                                                                                          # 013
                                                                                                          MPN: 147572
                                                                                                          RUBBER BOOT
                                                                                                          from £73.57
                                                                                                          from £73.57
                                                                                                          # 014
                                                                                                          MPN: 154714
                                                                                                          PIN
                                                                                                          from £46.70
                                                                                                          from £46.70
                                                                                                          # 015
                                                                                                          MPN: 132934
                                                                                                          O.R. GASKET
                                                                                                          from £0.47
                                                                                                          from £0.47
                                                                                                          # 016
                                                                                                          MPN: 150692
                                                                                                          PIN
                                                                                                          from £6.89
                                                                                                          from £6.89
                                                                                                          # 017
                                                                                                          MPN: 10297760
                                                                                                          GASKET
                                                                                                          from £0.53
                                                                                                          from £0.53
                                                                                                          # 018
                                                                                                          MPN: 10720114
                                                                                                          NUT
                                                                                                          from £0.54
                                                                                                          from £0.54
                                                                                                          # 019
                                                                                                          MPN: 12601274
                                                                                                          WASHER
                                                                                                          from £0.54
                                                                                                          from £0.54
                                                                                                          This part replaces part number 12601221 - and 5 more. Click to view details
                                                                                                          # 020
                                                                                                          MPN: 134232
                                                                                                          O.R. GASKET
                                                                                                          from £0.67
                                                                                                          from £0.67
                                                                                                          This part replaces part number 153718 which we have in stock
                                                                                                          # 021
                                                                                                          MPN: 153719
                                                                                                          PIN
                                                                                                          from £16.13
                                                                                                          from £16.13
                                                                                                          # 022
                                                                                                          MPN: 154698
                                                                                                          PIN CONTAINING PAD
                                                                                                          from £1.96
                                                                                                          from £1.96
                                                                                                          This part replaces part number 153709
                                                                                                          # 023
                                                                                                          MPN: 11057476
                                                                                                          STOP RING
                                                                                                          from £0.53
                                                                                                          from £0.53
                                                                                                          # 024
                                                                                                          MPN: 13541224
                                                                                                          STUD
                                                                                                          from £35.39
                                                                                                          from £35.39
                                                                                                          This part replaces part number 13541221
                                                                                                          # 025
                                                                                                          MPN: 13541524
                                                                                                          STUD
                                                                                                          from £0.51
                                                                                                          from £0.51
                                                                                                          This part replaces part number 13541521
                                                                                                          # 026
                                                                                                          MPN: 13541624
                                                                                                          STUD
                                                                                                          from £7.84
                                                                                                          from £7.84
                                                                                                          This part replaces part number 13541621
                                                                                                          # 027
                                                                                                          MPN: 13542024
                                                                                                          STUD
                                                                                                          from £15.69
                                                                                                          from £15.69
                                                                                                          This part replaces part number 13542021
                                                                                                          # 028
                                                                                                          MPN: 125717
                                                                                                          CENTERING DOWEL
                                                                                                          from £1.57
                                                                                                          from £1.57
                                                                                                          # 029
                                                                                                          MPN: 159676
                                                                                                          CONTROL ROD FOR REVERSE GEAR
                                                                                                          from £280.29
                                                                                                          from £280.29
                                                                                                          # 030
                                                                                                          MPN: 159854
                                                                                                          CONTROL FORK REVERSE GEAR
                                                                                                          from £73.00
                                                                                                          from £73.00
                                                                                                          # 031
                                                                                                          MPN: 16043634
                                                                                                          SCREW
                                                                                                          from £0.50
                                                                                                          from £0.50
                                                                                                          # 032
                                                                                                          MPN: 127496
                                                                                                          WASHER
                                                                                                          from £0.53
                                                                                                          from £0.53
                                                                                                          This part replaces part number 10516671 - and 2 more. Click to view details
                                                                                                          # 033
                                                                                                          MPN: 159530
                                                                                                          CONTROL ROD FOR 1ST/2ND GEAR
                                                                                                          from £38.37
                                                                                                          from £38.37
                                                                                                          # 034
                                                                                                          MPN: 181952
                                                                                                          CONTROL FORK FOR 1ST AND 2ND GEAR
                                                                                                          from £208.99
                                                                                                          from £208.99
                                                                                                          This part replaces part number 159110 - and 1 more. Click to view details
                                                                                                          # 034
                                                                                                          MPN: 181952
                                                                                                          CONTROL FORK FOR 1ST AND 2ND GEAR
                                                                                                          from £208.99
                                                                                                          from £208.99
                                                                                                          This part replaces part number 159110 - and 1 more. Click to view details
                                                                                                          # 035
                                                                                                          MPN: 101612
                                                                                                          BALL
                                                                                                          from £0.70
                                                                                                          from £0.70
                                                                                                          This part replaces part number 93309
                                                                                                          # 036
                                                                                                          MPN: 100750
                                                                                                          SPRING FOR BALL
                                                                                                          from £0.91
                                                                                                          from £0.91
                                                                                                          This part replaces part number 523899
                                                                                                          # 037
                                                                                                          MPN: 171827
                                                                                                          ROD FORK REVERSE GEAR
                                                                                                          from £48.96
                                                                                                          from £48.96
                                                                                                          This part replaces part number 157622
                                                                                                          # 038
                                                                                                          MPN: 171828
                                                                                                          ROD FORK FOR 1ST AND 2ND GEAR
                                                                                                          from £44.02
                                                                                                          from £44.02
                                                                                                          This part replaces part number 157268 - and 1 more. Click to view details
                                                                                                          # 039
                                                                                                          MPN: 158051
                                                                                                          ROD FOR 3RD AND 4TH GEAR
                                                                                                          from £60.59
                                                                                                          from £60.59
                                                                                                          This part replaces part number 159716 - and 1 more. Click to view details
                                                                                                          # 040
                                                                                                          MPN: 171829
                                                                                                          ROD FORK FOR 3RD AND 4TH GEAR
                                                                                                          from £43.69
                                                                                                          from £43.69
                                                                                                          This part replaces part number 145454 which we have in stock
                                                                                                          # 041
                                                                                                          MPN: 179304
                                                                                                          CONTROL FORK FOR 3RD AND 4TH GEAR
                                                                                                          - Valid after stock exhaustion of 159855
                                                                                                          Supersession
                                                                                                          Supersession
                                                                                                          This part replaces part number 159855
                                                                                                          # 041
                                                                                                          MPN: 189449
                                                                                                          CONTROL FORK FOR 3RD AND 4TH GEAR
                                                                                                          - Valid till stock exhaustion
                                                                                                          from £237.09
                                                                                                          from £237.09
                                                                                                          This part replaces part number 179304
                                                                                                          # 042
                                                                                                          MPN: 159582
                                                                                                          ROD FOR 5TH AND 6TH GEAR
                                                                                                          from £16.96
                                                                                                          from £16.96
                                                                                                          # 043
                                                                                                          MPN: 171830
                                                                                                          ROD FORK FOR 5TH AND 6TH GEAR
                                                                                                          from £24.32
                                                                                                          from £24.32
                                                                                                          This part replaces part number 145455 - and 1 more. Click to view details
                                                                                                          # 044
                                                                                                          MPN: 159856
                                                                                                          CONTROL FORK FOR 5TH AND 6TH GEAR
                                                                                                          from £73.00
                                                                                                          from £73.00
                                                                                                          # 045
                                                                                                          MPN: 150173
                                                                                                          SPACER
                                                                                                          from £2.58
                                                                                                          from £2.58
                                                                                                          # 046
                                                                                                          MPN: 15896214
                                                                                                          NUT
                                                                                                          from £0.53
                                                                                                          from £0.53
                                                                                                          This part replaces part number 15896211
                                                                                                          # 047
                                                                                                          MPN: 12601274
                                                                                                          WASHER
                                                                                                          from £0.51
                                                                                                          from £0.51
                                                                                                          This part replaces part number 12601221 - and 5 more. Click to view details
                                                                                                          # 048
                                                                                                          MPN: 106500
                                                                                                          BUSHING
                                                                                                          from £5.81
                                                                                                          from £5.81
                                                                                                          # 049
                                                                                                          MPN: 150093
                                                                                                          BUSHING
                                                                                                          from £4.23
                                                                                                          from £4.23
                                                                                                          This part replaces part number 150035
                                                                                                          # 051
                                                                                                          MPN: 176212
                                                                                                          SCREW
                                                                                                          from £0.64
                                                                                                          from £0.64
                                                                                                          # 053
                                                                                                          MPN: 142245
                                                                                                          SCREW
                                                                                                          from £0.63
                                                                                                          from £0.63
