Ferrari 456 M GT/M GTA Front Suspension - Wishbones and Stabilizer Bar Parts Diagram

061 - Front Suspension - Wishbones and Stabilizer Bar

Ferrari 456 M GT/M GTA Front Suspension - Wishbones and Stabilizer Bar Parts Diagram

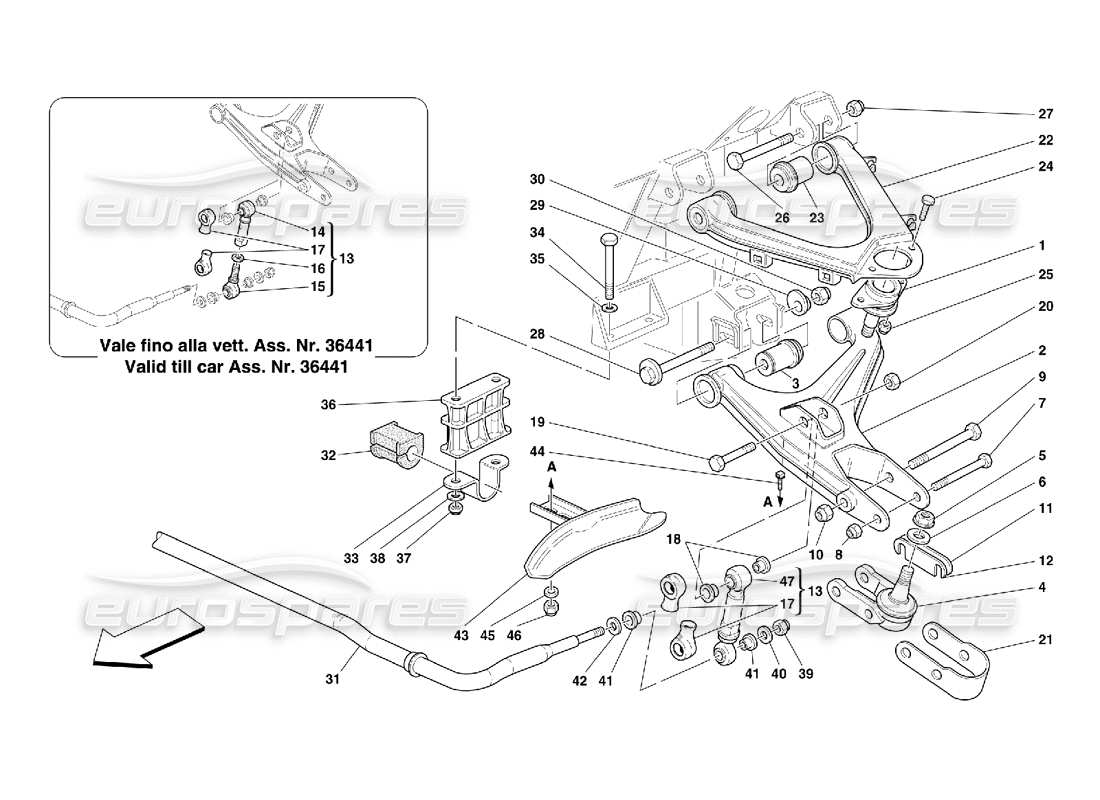

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                    #
                                                                                    Part number
                                                                                    Description
                                                                                    Price
                                                                                    # 001
                                                                                    MPN: 132776
                                                                                    UPPER BALL JOINT
                                                                                    from £53.17
                                                                                    from £53.17
                                                                                    # 002
                                                                                    MPN: 168388
                                                                                    RH LOWER LEVER
                                                                                    from £210.61
                                                                                    from £210.61
                                                                                    This part replaces part number 154624 - and 4 more. Click to view details
                                                                                    # 002
                                                                                    MPN: 168727
                                                                                    LH LOWER LEVER
                                                                                    from £267.51
                                                                                    from £267.51
                                                                                    This part replaces part number 154623 - and 4 more. Click to view details
                                                                                    # 003
                                                                                    MPN: 169326
                                                                                    FLANBLOC FOR LOWER FORK
                                                                                    from £72.95
                                                                                    from £72.95
                                                                                    # 004
                                                                                    MPN: 154396
                                                                                    LOWER BALL JOINT
                                                                                    from £50.00
                                                                                    from £50.00
                                                                                    # 005
                                                                                    MPN: 149807
                                                                                    NUT
                                                                                    from £0.61
                                                                                    from £0.61
                                                                                    # 006
                                                                                    MPN: 155002
                                                                                    WASHER
                                                                                    from £6.79
                                                                                    from £6.79
                                                                                    # 007
                                                                                    MPN: 15971734
                                                                                    SCREW
                                                                                    from £25.41
                                                                                    from £25.41
                                                                                    This part replaces part number 151308
                                                                                    # 008
                                                                                    MPN: 104114
                                                                                    NUT
                                                                                    Supersession
                                                                                    Supersession
                                                                                    This part replaces part number 15503711 - and 1 more. Click to view details
                                                                                    # 009
                                                                                    MPN: 153504
                                                                                    SCREW
                                                                                    from £14.88
                                                                                    from £14.88
                                                                                    # 010
                                                                                    MPN: 102825
                                                                                    NUT
                                                                                    from £0.53
                                                                                    from £0.53
                                                                                    This part replaces part number 95900617
                                                                                    # 011
                                                                                    MPN: 101022
                                                                                    SETTING PLATE
                                                                                    from £0.67
                                                                                    from £0.67
                                                                                    This part replaces part number 153963 - and 1 more. Click to view details
                                                                                    # 012
                                                                                    MPN: 101022
                                                                                    SETTING PLATE -MM.1.50-
                                                                                    - Possible fitting
                                                                                    from £0.67
                                                                                    from £0.67
                                                                                    This part replaces part number 153963 - and 1 more. Click to view details
                                                                                    # 012
                                                                                    MPN: 115073
                                                                                    SETTING PLATE -MM.1.20-
                                                                                    - Possible fitting
                                                                                    from £1.10
                                                                                    from £1.10
                                                                                    This part replaces part number 153964
                                                                                    # 012
                                                                                    MPN: 164484
                                                                                    SETTING PLATE -MM.1-
                                                                                    - Possible fitting
                                                                                    from £18.94
                                                                                    from £18.94
                                                                                    # 012
                                                                                    MPN: 164485
                                                                                    SETTING PLATE -MM.2-
                                                                                    - Possible fitting
                                                                                    from £2.18
                                                                                    from £2.18
                                                                                    # 013
                                                                                    MPN: 152868
                                                                                    RH COMPLETE TIE ROD
                                                                                    - Valid till car Ass. Nr. 36441
                                                                                    from £154.86
                                                                                    from £154.86
                                                                                    # 013
                                                                                    MPN: 152869
                                                                                    LH COMPLETE TIE ROD
                                                                                    - Valid till car Ass. Nr. 36441
                                                                                    from £223.29
                                                                                    from £223.29
                                                                                    # 013
                                                                                    MPN: 183711
                                                                                    RH COMPLETE TIE ROD
                                                                                    - Valid from car Ass. Nr. 36442
                                                                                    from £128.39
                                                                                    from £128.39
                                                                                    # 013
                                                                                    MPN: 183712
                                                                                    LH COMPLETE TIE ROD
                                                                                    - Valid from car Ass. Nr. 36442
                                                                                    from £128.39
                                                                                    from £128.39
                                                                                    # 014
                                                                                    MPN: 152871
                                                                                    FEMALE BALL JOINT TIE ROD
                                                                                    - Valid till car Ass. Nr. 36441
                                                                                    from £215.58
                                                                                    from £215.58
                                                                                    # 015
                                                                                    MPN: 152870
                                                                                    MALE BALL JOINT TIE ROD
                                                                                    - Valid till car Ass. Nr. 36441
                                                                                    from £215.58
                                                                                    from £215.58
                                                                                    # 016
                                                                                    MPN: 10717311
                                                                                    NUT
                                                                                    - Valid till car Ass. Nr. 36441
                                                                                    from £0.53
                                                                                    from £0.53
                                                                                    # 017
                                                                                    MPN: 148772
                                                                                    PROTECTION
                                                                                    from £7.80
                                                                                    from £7.80
                                                                                    # 018
                                                                                    MPN: 148773
                                                                                    SPACER
                                                                                    from £5.40
                                                                                    from £5.40
                                                                                    # 019
                                                                                    MPN: 15540921
                                                                                    SCREW
                                                                                    Supersession
                                                                                    Supersession
                                                                                    # 020
                                                                                    MPN: 102825
                                                                                    NUT
                                                                                    from £0.53
                                                                                    from £0.53
                                                                                    This part replaces part number 95900617
                                                                                    # 021
                                                                                    MPN: 157812
                                                                                    BALL JOINT PROTECTION
                                                                                    from £44.67
                                                                                    from £44.67
                                                                                    # 022
                                                                                    MPN: 175800
                                                                                    RH UPPER LEVER
                                                                                    from £227.75
                                                                                    from £227.75
                                                                                    # 022
                                                                                    MPN: 175801
                                                                                    LH UPPER LEVER
                                                                                    from £227.75
                                                                                    from £227.75
                                                                                    # 024
                                                                                    MPN: 16043624
                                                                                    SCREW
                                                                                    from £0.51
                                                                                    from £0.51
                                                                                    This part replaces part number 16043621
                                                                                    # 025
                                                                                    MPN: 104030
                                                                                    NUT
                                                                                    from £0.53
                                                                                    from £0.53
                                                                                    This part replaces part number 16104125
                                                                                    # 026
                                                                                    MPN: 106419
                                                                                    SCREW
                                                                                    from £8.11
                                                                                    from £8.11
                                                                                    This part replaces part number 100808 - and 9 more. Click to view details
                                                                                    # 027
                                                                                    MPN: 102825
                                                                                    NUT
                                                                                    from £0.51
                                                                                    from £0.51
                                                                                    This part replaces part number 95900617
                                                                                    # 028
                                                                                    MPN: 150789
                                                                                    SPECIAL SCREW
                                                                                    from £40.63
                                                                                    from £40.63
                                                                                    # 029
                                                                                    MPN: 175077
                                                                                    SPECIAL WASHER
                                                                                    from £7.43
                                                                                    from £7.43
                                                                                    This part replaces part number 150790 which we have in stock - and 2 more. Click to view details
                                                                                    # 030
                                                                                    MPN: 150238
                                                                                    NUT
                                                                                    from £0.47
                                                                                    from £0.47
                                                                                    This part replaces part number 12575821 - and 2 more. Click to view details
                                                                                    # 031
                                                                                    MPN: 174559
                                                                                    FRONT ANTI-ROLL BAR - Ø 26-
                                                                                    from £135.18
                                                                                    from £135.18
                                                                                    # 032
                                                                                    MPN: 155624

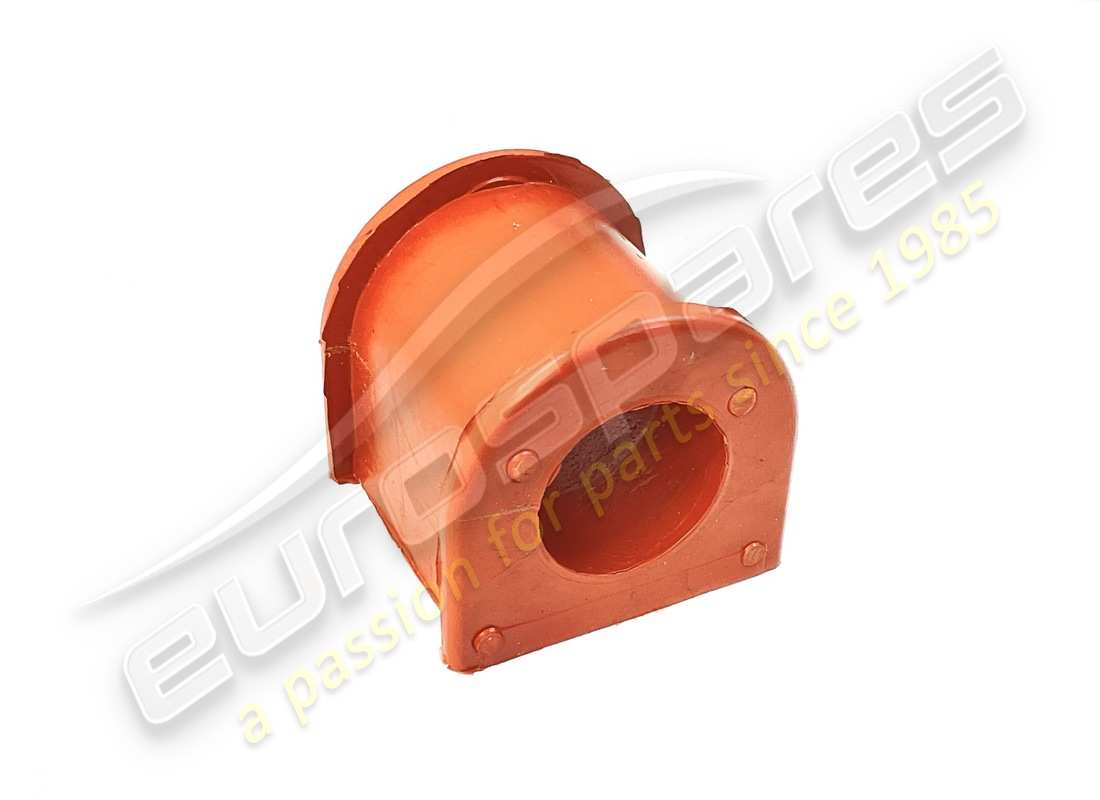

                                                                                    BAR BUFFER - Ø 26-
                                                                                    from £17.52
                                                                                    from £17.52
                                                                                    # 034
                                                                                    MPN: 16045121
                                                                                    SCREW
                                                                                    from £10.73
                                                                                    from £10.73
                                                                                    # 035
                                                                                    MPN: 14496524
                                                                                    WASHER
                                                                                    from £0.53
                                                                                    from £0.53
                                                                                    This part replaces part number 14496525 - and 1 more. Click to view details
                                                                                    # 036
                                                                                    MPN: 158048
                                                                                    SPACER FOR BAR
                                                                                    from £4.44
                                                                                    from £4.44
                                                                                    This part replaces part number 157526 - and 3 more. Click to view details
                                                                                    # 037
                                                                                    MPN: 104030
                                                                                    NUT
                                                                                    from £0.53
                                                                                    from £0.53
                                                                                    This part replaces part number 16104125
                                                                                    # 038
                                                                                    MPN: 14496524
                                                                                    WASHER
                                                                                    from £0.53
                                                                                    from £0.53
                                                                                    This part replaces part number 14496525 - and 1 more. Click to view details
                                                                                    # 039
                                                                                    MPN: 102825
                                                                                    NUT
                                                                                    from £0.53
                                                                                    from £0.53
                                                                                    This part replaces part number 95900617
                                                                                    # 040
                                                                                    MPN: 152249
                                                                                    WASHER
                                                                                    from £0.53
                                                                                    from £0.53
                                                                                    # 041
                                                                                    MPN: 148773
                                                                                    SPACER BUSHING
                                                                                    from £5.40
                                                                                    from £5.40
                                                                                    # 042
                                                                                    MPN: 149063
                                                                                    WASHER
                                                                                    from £1.12
                                                                                    from £1.12
                                                                                    # 043
                                                                                    MPN: 169861

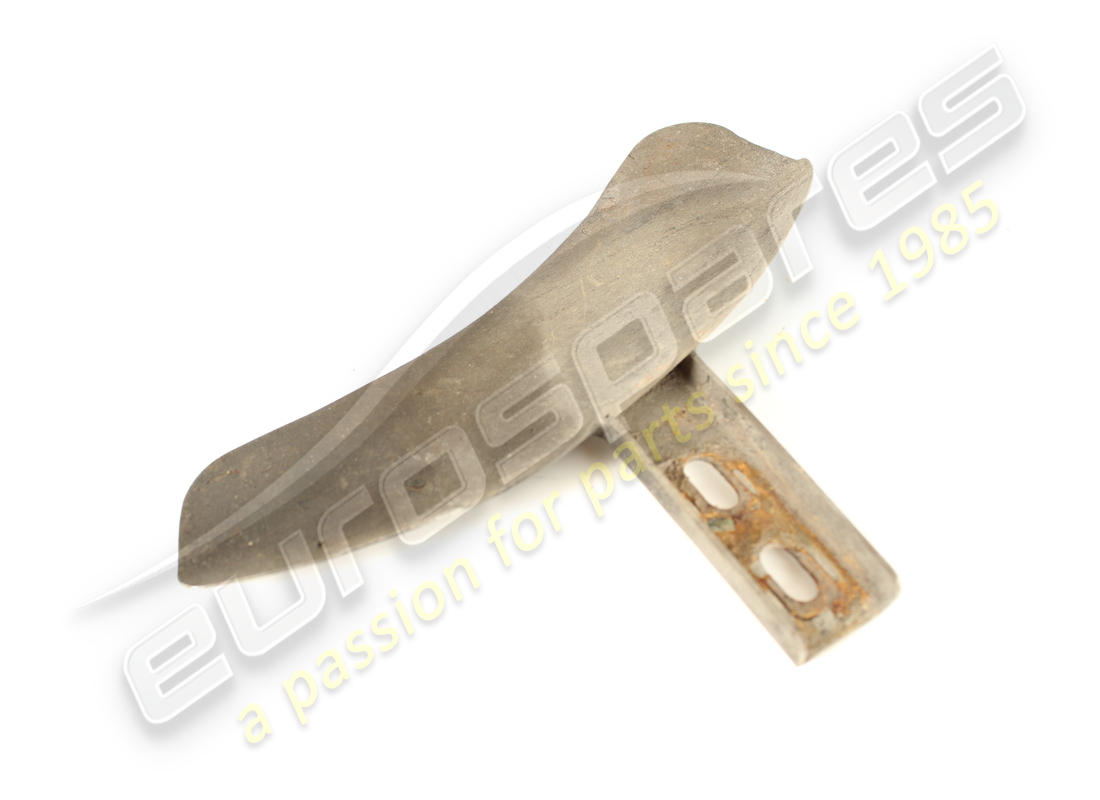

                                                                                    RH AIR DEFLECTOR
                                                                                    from £193.59
                                                                                    from £193.59
                                                                                    # 043
                                                                                    MPN: 169862
                                                                                    LH AIR DEFLECTOR
                                                                                    from £106.47
                                                                                    from £106.47
                                                                                    # 044
                                                                                    MPN: 14662495
                                                                                    SCREW
                                                                                    from £0.53
                                                                                    from £0.53
                                                                                    # 045
                                                                                    MPN: 12646601
                                                                                    WASHER
                                                                                    from £0.49
                                                                                    from £0.49
                                                                                    # 046
                                                                                    MPN: 102741
                                                                                    NUT
                                                                                    from £0.51
                                                                                    from £0.51
                                                                                    This part replaces part number 12575411 - and 1 more. Click to view details
                                                                                    # 047
                                                                                    MPN: 183831
                                                                                    RH BALL JOINT TIE ROD
                                                                                    - Valid from car Ass. Nr. 36442
                                                                                    from £100.00
                                                                                    from £100.00
                                                                                    # 047
                                                                                    MPN: 183832
                                                                                    LH BALL JOINT TIE ROD
                                                                                    - Valid from car Ass. Nr. 36442
                                                                                    from £100.00
                                                                                    from £100.00
