Ferrari 456 M GT/M GTA Rear Suspension - Shock Absorber and Brake Disc Parts Diagram

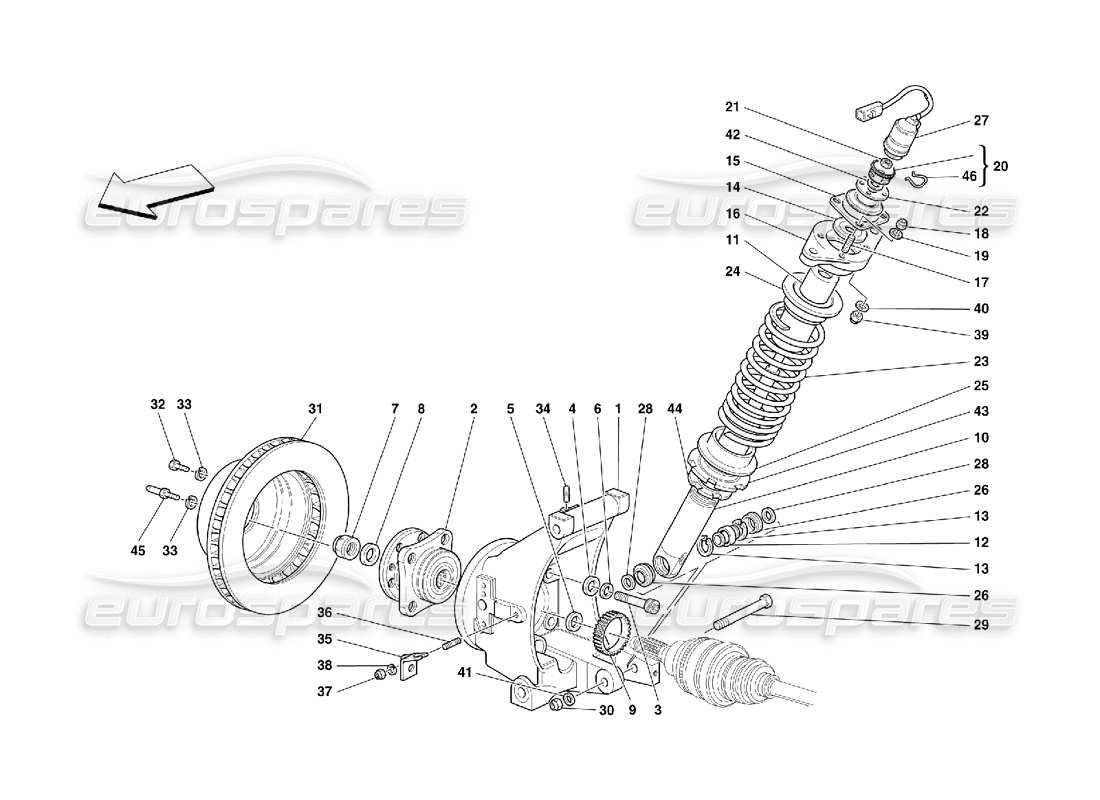

062 - Rear Suspension - Shock Absorber and Brake Disc

Ferrari 456 M GT/M GTA Rear Suspension - Shock Absorber and Brake Disc Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                        #
                                                                                        Part number
                                                                                        Description
                                                                                        Price
                                                                                        # 001
                                                                                        MPN: 178370

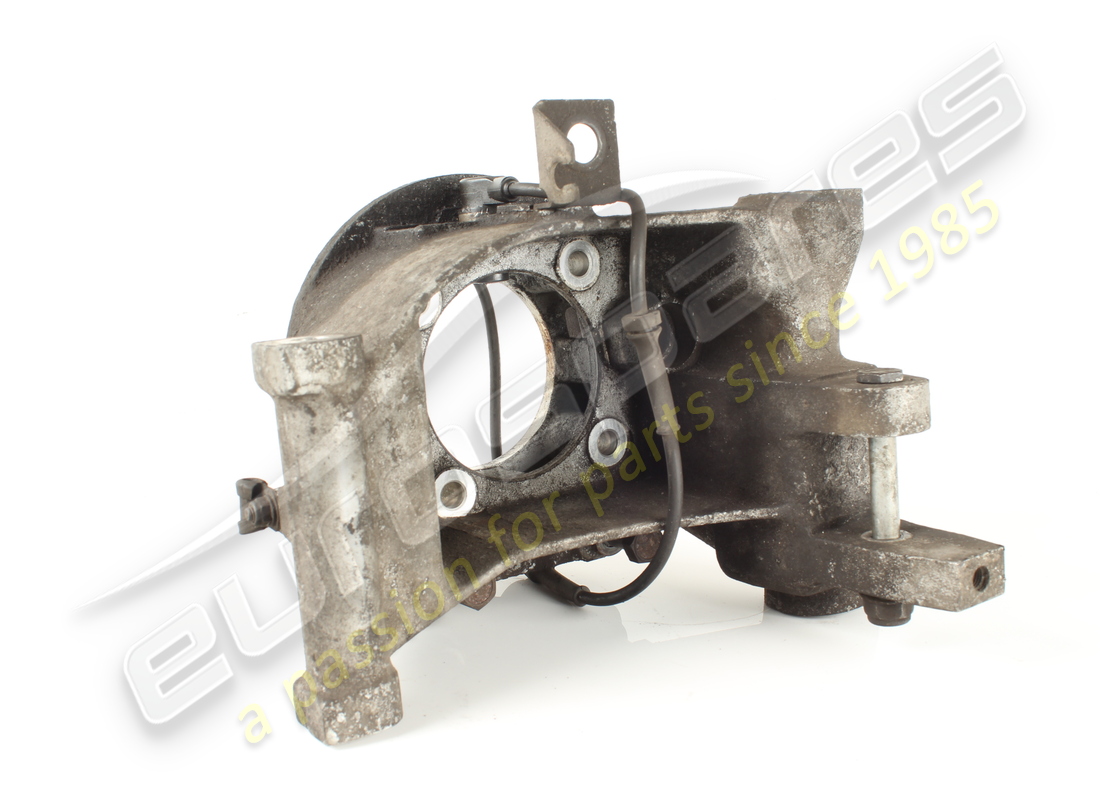

                                                                                        RH REAR HUB HOLDER
                                                                                        from £333.68
                                                                                        from £333.68
                                                                                        This part replaces part number 178888 which we have in stock - and 3 more. Click to view details
                                                                                        # 001
                                                                                        MPN: 178371
                                                                                        LH REAR HUB HOLDER
                                                                                        from £381.88
                                                                                        from £381.88
                                                                                        This part replaces part number 178889 - and 7 more. Click to view details
                                                                                        # 001
                                                                                        MPN: 178888
                                                                                        COMPLETE RH REAR HUB HOLDER
                                                                                        from £320.10
                                                                                        from £320.10
                                                                                        This part replaces part number 178370 which we have in stock - and 1 more. Click to view details
                                                                                        # 001
                                                                                        MPN: 178889
                                                                                        COMPLETE LH REAR HUB HOLDER
                                                                                        Supersession
                                                                                        Supersession
                                                                                        This part replaces part number 178371 which we have in stock
                                                                                        # 002
                                                                                        MPN: 157901
                                                                                        HUB COMPLETE BEARING
                                                                                        from £481.10
                                                                                        from £481.10
                                                                                        This part replaces part number 137105 - and 3 more. Click to view details
                                                                                        # 003
                                                                                        MPN: 14331974
                                                                                        SCREW
                                                                                        from £1.09
                                                                                        from £1.09
                                                                                        # 004
                                                                                        MPN: 10732531
                                                                                        WASHER
                                                                                        from £0.52
                                                                                        from £0.52
                                                                                        # 005
                                                                                        MPN: 153355
                                                                                        WASHER
                                                                                        from £3.18
                                                                                        from £3.18
                                                                                        # 006
                                                                                        MPN: 152250
                                                                                        WASHER
                                                                                        from £0.51
                                                                                        from £0.51
                                                                                        # 007
                                                                                        MPN: 209184
                                                                                        NUT
                                                                                        from £25.74
                                                                                        from £25.74
                                                                                        This part replaces part number 167259 - and 1 more. Click to view details
                                                                                        # 008
                                                                                        MPN: 143332
                                                                                        WASHER
                                                                                        from £39.08
                                                                                        from £39.08
                                                                                        # 009
                                                                                        MPN: 165101
                                                                                        REAR TOOTHED WHEEL
                                                                                        from £424.98
                                                                                        from £424.98
                                                                                        # 010
                                                                                        MPN: 183636

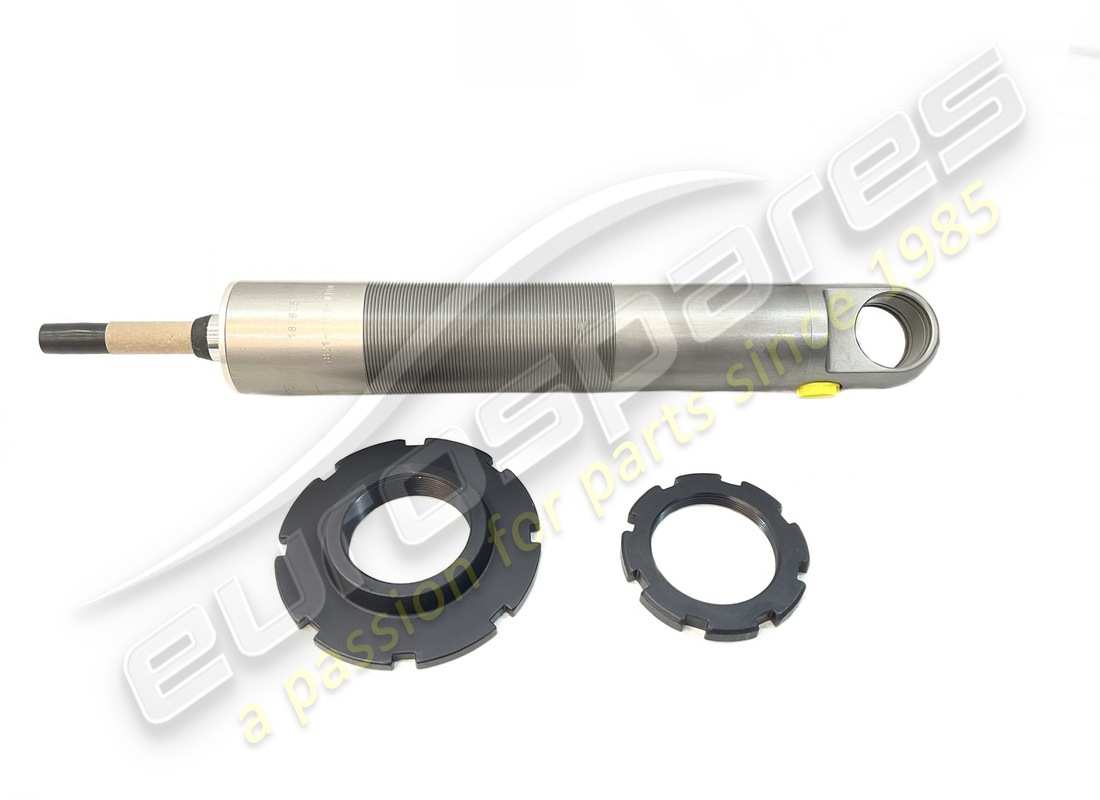

                                                                                        REAR SHOCK ABSORBER
                                                                                        from £1,295.00
                                                                                        from £1,295.00
                                                                                        This part replaces part number 177563
                                                                                        # 011
                                                                                        MPN: 155278
                                                                                        SHOCK ABSORBER PAD
                                                                                        from £4.24
                                                                                        from £4.24

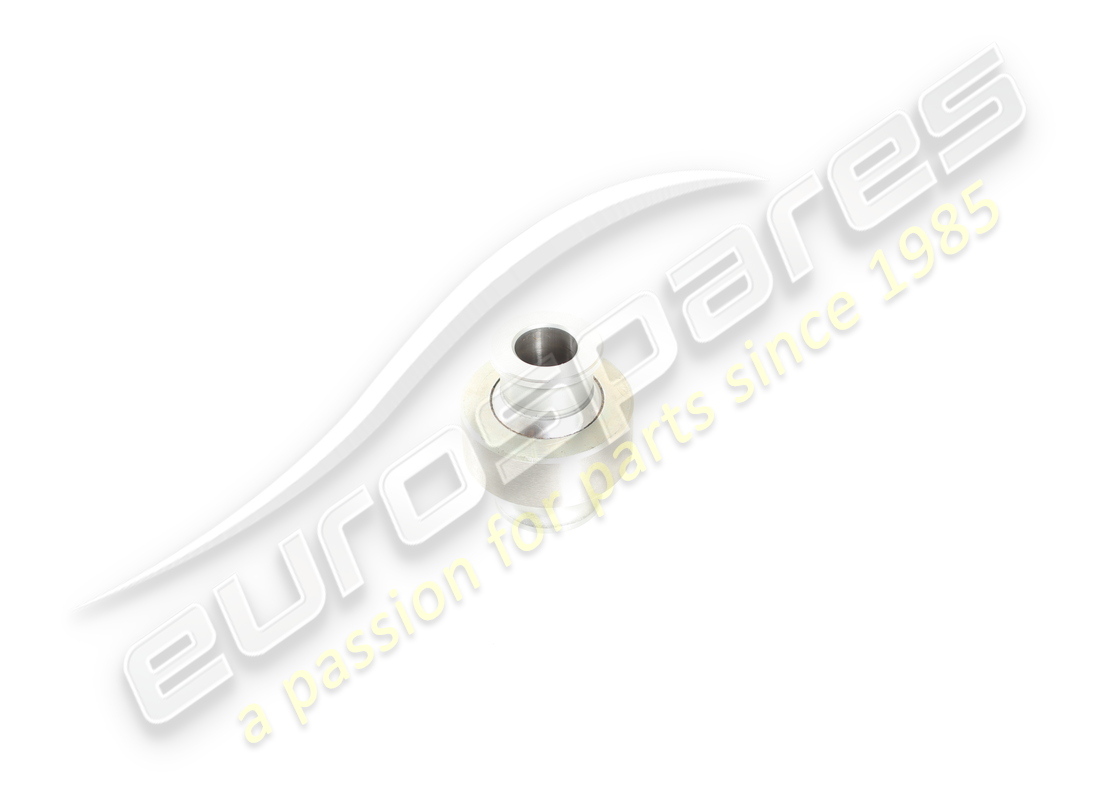

                                                                                        # 012
                                                                                        MPN: 153285
                                                                                        BALL JOINT
                                                                                        from £302.61
                                                                                        from £302.61
                                                                                        # 013
                                                                                        MPN: 145478
                                                                                        SEEGER RING
                                                                                        from £2.42
                                                                                        from £2.42
                                                                                        This part replaces part number 11059370
                                                                                        # 014
                                                                                        MPN: 152654
                                                                                        WASHER
                                                                                        from £22.76
                                                                                        from £22.76
                                                                                        # 016
                                                                                        MPN: 144712
                                                                                        CUP
                                                                                        from £52.50
                                                                                        from £52.50
                                                                                        # 017
                                                                                        MPN: 13543324
                                                                                        STUD
                                                                                        from £0.83
                                                                                        from £0.83
                                                                                        This part replaces part number 13543321
                                                                                        # 018
                                                                                        MPN: 104030
                                                                                        NUT
                                                                                        from £0.51
                                                                                        from £0.51
                                                                                        This part replaces part number 16104125
                                                                                        # 019
                                                                                        MPN: 10519624
                                                                                        WASHER
                                                                                        from £0.53
                                                                                        from £0.53
                                                                                        This part replaces part number 10519601 - and 3 more. Click to view details
                                                                                        # 021
                                                                                        MPN: 137826
                                                                                        NUT
                                                                                        from £2.33
                                                                                        from £2.33
                                                                                        # 022
                                                                                        MPN: 152653
                                                                                        WASHER
                                                                                        from £54.04
                                                                                        from £54.04
                                                                                        # 023
                                                                                        MPN: 156945
                                                                                        SPRING
                                                                                        - Sold in pair
                                                                                        from £80.71
                                                                                        from £80.71
                                                                                        This part replaces part number 168399 - and 2 more. Click to view details
                                                                                        # 023
                                                                                        MPN: 168399
                                                                                        SPRING
                                                                                        - Sold in pair - As an alternatives
                                                                                        Supersession
                                                                                        Supersession
                                                                                        # 025
                                                                                        MPN: 113581
                                                                                        LOWER SPACER
                                                                                        from £6.28
                                                                                        from £6.28
                                                                                        This part replaces part number 387000338 - and 2 more. Click to view details
                                                                                        # 026
                                                                                        MPN: 153286
                                                                                        RUBBER
                                                                                        from £1.29
                                                                                        from £1.29
                                                                                        # 027
                                                                                        MPN: 158732
                                                                                        ACTUATOR ON THE SHOCK ABSORBER
                                                                                        from £829.12
                                                                                        from £829.12
                                                                                        This part replaces part number 154449
                                                                                        # 028
                                                                                        MPN: 153495
                                                                                        SPACER WASHER MM.3.00
                                                                                        from £2.40
                                                                                        from £2.40
                                                                                        # 028
                                                                                        MPN: 153496
                                                                                        SPACER WASHER MM.2.90
                                                                                        - As an alternative of 153495
                                                                                        from £1.68
                                                                                        from £1.68
                                                                                        # 028
                                                                                        MPN: 153497
                                                                                        SPACER WASHER MM.3.10
                                                                                        - As an alternative of 153495
                                                                                        from £2.42
                                                                                        from £2.42
                                                                                        # 029
                                                                                        MPN: 159309
                                                                                        SCREW
                                                                                        from £37.44
                                                                                        from £37.44
                                                                                        # 030
                                                                                        MPN: 102825
                                                                                        NUT
                                                                                        from £0.53
                                                                                        from £0.53
                                                                                        This part replaces part number 95900617
                                                                                        # 031
                                                                                        MPN: 144061

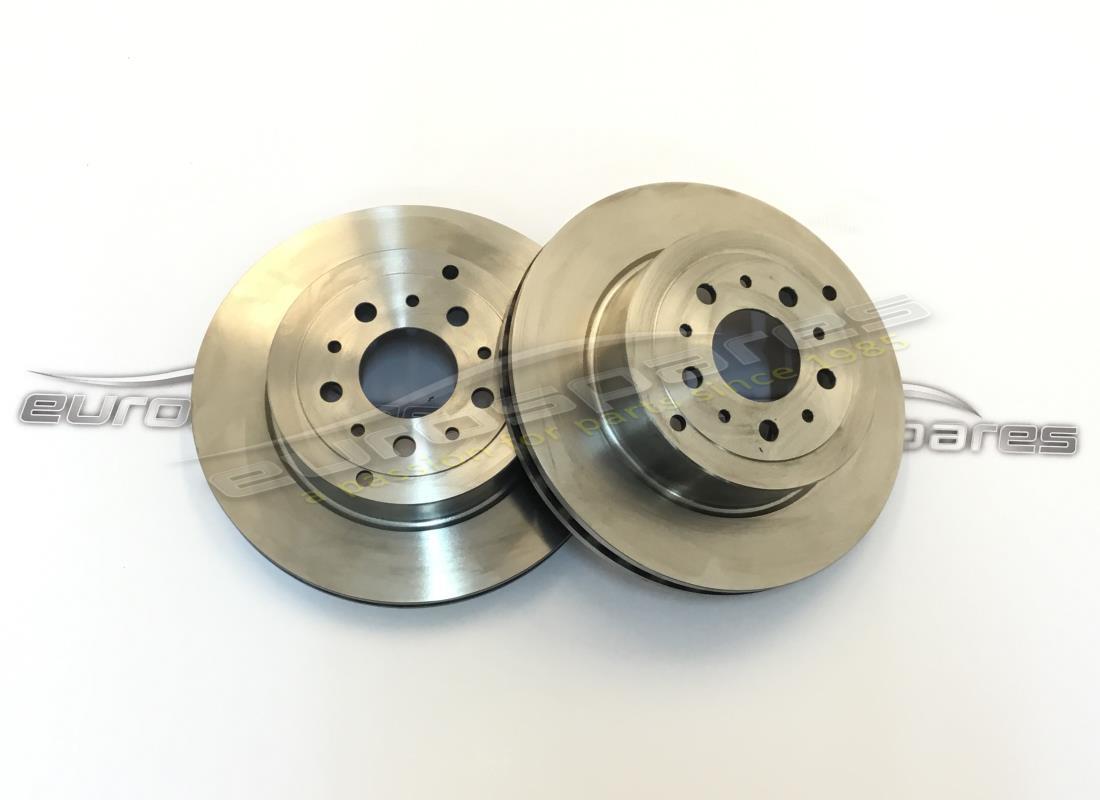

                                                                                        REAR BRAKE DISC
                                                                                        Untill car 45785
                                                                                        from £188.37
                                                                                        from £188.37
                                                                                        # 031
                                                                                        MPN: 193152
                                                                                        REAR BRAKE DISC
                                                                                        From Car 45786 (cross drilled)
                                                                                        from £200.31
                                                                                        from £200.31
                                                                                        # 032
                                                                                        MPN: 16043424
                                                                                        SCREW
                                                                                        from £0.53
                                                                                        from £0.53
                                                                                        This part replaces part number 16043421
                                                                                        # 033
                                                                                        MPN: 127496
                                                                                        WASHER
                                                                                        from £0.53
                                                                                        from £0.53
                                                                                        This part replaces part number 10516671 - and 2 more. Click to view details
                                                                                        # 034
                                                                                        MPN: 11500124
                                                                                        STUD
                                                                                        from £0.70
                                                                                        from £0.70
                                                                                        This part replaces part number 11500121
                                                                                        # 035
                                                                                        MPN: 168383
                                                                                        RH SUPPORT
                                                                                        from £2.38
                                                                                        from £2.38
                                                                                        # 035
                                                                                        MPN: 168384
                                                                                        LH SUPPORT
                                                                                        from £2.38
                                                                                        from £2.38
                                                                                        # 036
                                                                                        MPN: 11500124
                                                                                        STUD
                                                                                        from £0.70
                                                                                        from £0.70
                                                                                        This part replaces part number 11500121
                                                                                        # 037
                                                                                        MPN: 102741
                                                                                        NUT
                                                                                        from £0.53
                                                                                        from £0.53
                                                                                        This part replaces part number 12575411 - and 1 more. Click to view details
                                                                                        # 038
                                                                                        MPN: 10519424
                                                                                        WASHER
                                                                                        from £0.54
                                                                                        from £0.54
                                                                                        This part replaces part number 10519401 - and 3 more. Click to view details
                                                                                        # 039
                                                                                        MPN: 104114
                                                                                        NUT
                                                                                        Supersession
                                                                                        Supersession
                                                                                        This part replaces part number 15503711 - and 1 more. Click to view details
                                                                                        # 040
                                                                                        MPN: 12601474
                                                                                        WASHER
                                                                                        from £0.53
                                                                                        from £0.53
                                                                                        This part replaces part number 12601471 which we have in stock - and 2 more. Click to view details
                                                                                        # 041
                                                                                        MPN: 12601574
                                                                                        WASHER
                                                                                        from £0.54
                                                                                        from £0.54
                                                                                        This part replaces part number 12601579 - and 1 more. Click to view details
                                                                                        # 042
                                                                                        MPN: 160461
                                                                                        WASHER
                                                                                        from £0.52
                                                                                        from £0.52
                                                                                        # 043
                                                                                        MPN: 155086
                                                                                        SPACER
                                                                                        from £46.56
                                                                                        from £46.56
                                                                                        # 044
                                                                                        MPN: 141860
                                                                                        RING NUT
                                                                                        from £63.87
                                                                                        from £63.87
                                                                                        # 045
                                                                                        MPN: 104370
                                                                                        BRAKE DISC FIXING AND CENTERING SCREW
                                                                                        from £5.74
                                                                                        from £5.74
                                                                                        This part replaces part number 139981
                                                                                        # 046
                                                                                        MPN: 142079
                                                                                        CLIP
                                                                                        from £5.90
                                                                                        from £5.90
