ferrari 456 m gt/m gta front seats and seat belts parts diagram

120 - Front Seats and Seat Belts

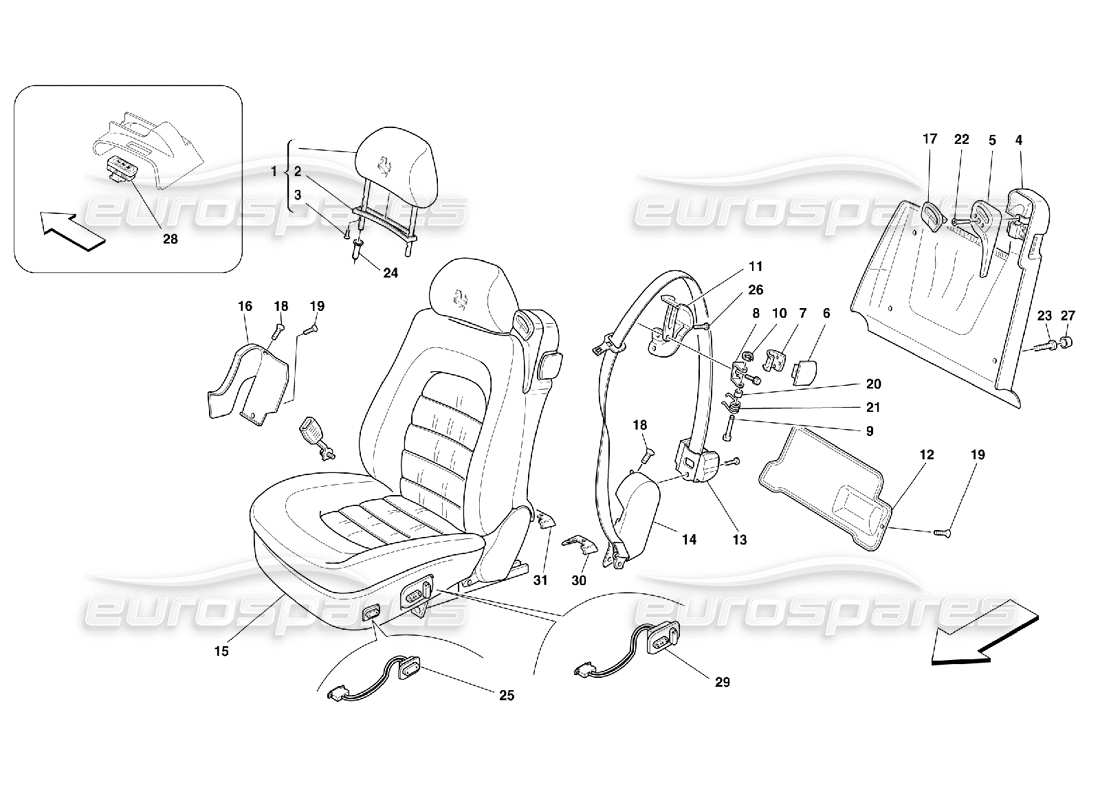

Ferrari 456 M GT/M GTA Front Seats and Seat Belts Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                          #
                                          Part number
                                          Description
                                          Price
                                          # 000
                                          MPN: 658321..
                                          LH SEAT COMPLETE WITH GUIDES
                                          - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                          Supersession
                                          Supersession
                                          # 000
                                          MPN: 658322..
                                          RH SEAT COMPLETE WITH GUIDES
                                          - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                          Supersession
                                          Supersession
                                          # 000
                                          MPN: 663737..
                                          FRONT CENTRAL CUSHION UPHOLSTERY
                                          - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                          Supersession
                                          Supersession
                                          # 000
                                          MPN: 663739..
                                          RH FRONT CUSHION OUTER UPHOLSTERY
                                          - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                          Supersession
                                          Supersession
                                          # 000
                                          MPN: 663740..
                                          LH FRONT CUSHION OUTER UPHOLSTERY
                                          - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                          Supersession
                                          Supersession
                                          # 000
                                          MPN: 663741..
                                          RH FRONT BACK-SEAT OUTER UPHOLSTERY
                                          - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                          Supersession
                                          Supersession
                                          # 000
                                          MPN: 663742..
                                          LH FRONT BACK-SEAT OUTER UPHOLSTERY
                                          - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                          Supersession
                                          Supersession
                                          # 000
                                          MPN: FINT456
                                          RHD 456 M/GTA MANUAL INTERIOR
                                          in red
                                          from £2,835.00
                                          from £2,835.00
                                          # 001
                                          MPN: 663946..
                                          COVERED HEAD-REST SUPPORT
                                          - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                          Supersession
                                          Supersession
                                          # 001
                                          MPN: 663947..
                                          HEAD-REST LINING
                                          - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                          Supersession
                                          Supersession
                                          # 002
                                          MPN: 64432100
                                          COVER FOR TRIM
                                          from £82.16
                                          from £82.16
                                          This part replaces part number 63910000
                                          # 003
                                          MPN: 15691401
                                          SCREW
                                          from £0.53
                                          from £0.53
                                          # 004
                                          MPN: 643947..
                                          LH LINING
                                          - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                          Supersession
                                          Supersession
                                          # 004
                                          MPN: 643948..
                                          RH LINING
                                          - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                          Supersession
                                          Supersession
                                          # 004
                                          MPN: 654807..
                                          COVERED RH SEAT BACK COVERING
                                          - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                          Supersession
                                          Supersession
                                          # 004
                                          MPN: 654808..
                                          COVERED LH SEAT BACK COVERING
                                          - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                          Supersession
                                          Supersession
                                          # 005
                                          MPN: 643949..
                                          LH LINING
                                          - Valid till car Ass. Nr. 33450 - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                          Supersession
                                          Supersession
                                          # 005
                                          MPN: 643950..
                                          RH LINING
                                          - Valid till car Ass. Nr. 33450 - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                          Supersession
                                          Supersession
                                          # 005
                                          MPN: 644238..
                                          LH SEAT BACK BELT-SLIDING
                                          - Valid till car Ass. Nr. 33450 - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                          Supersession
                                          Supersession
                                          # 005
                                          MPN: 644246..
                                          RH SEAT BACK BELT-SLIDING
                                          - Valid till car Ass. Nr. 33450 - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                          Supersession
                                          Supersession
                                          # 005
                                          MPN: 658916..
                                          RH SEAT BACK BELT-SLIDING
                                          - Valid from car Ass. Nr. 33451 - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                          Supersession
                                          Supersession
                                          # 005
                                          MPN: 658918..
                                          RH LINING
                                          - Valid from car Ass. Nr. 33451 - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                          Supersession
                                          Supersession
                                          # 005
                                          MPN: 658919..
                                          LH SEAT BACK BELT-SLIDING
                                          - Valid from car Ass. Nr. 33451 - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                          Supersession
                                          Supersession
                                          # 005
                                          MPN: 658921..
                                          LH LINING
                                          - Valid from car Ass. Nr. 33451 - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                          Supersession
                                          Supersession
                                          # 006
                                          MPN: 63907500
                                          HANDLE FOR SEAT RELEASE
                                          from £163.18
                                          from £163.18
                                          # 007
                                          MPN: 65261800
                                          CONTROL LEVER FOR SEAT RELASE
                                          from £34.21
                                          from £34.21
                                          # 008
                                          MPN: 65261600
                                          LH BRACKET
                                          from £51.36
                                          from £51.36
                                          # 008
                                          MPN: 65261700
                                          RH BRACKET
                                          from £51.36
                                          from £51.36
                                          # 009
                                          MPN: 63907400
                                          PIN
                                          from £7.54
                                          from £7.54
                                          # 010
                                          MPN: 11087476
                                          SEEGER RING
                                          from £3.00
                                          from £3.00
                                          # 011
                                          MPN: 63906900
                                          LH BRACKET FOR BELTS SUPPORT
                                          from £85.58
                                          from £85.58
                                          # 011
                                          MPN: 63907000
                                          RH BRACKET FOR BELTS SUPPORT
                                          from £85.58
                                          from £85.58
                                          # 012
                                          MPN: 654813..
                                          COVERED RH LOWER SEAT BACK COVERING
                                          - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                          Supersession
                                          Supersession
                                          # 012
                                          MPN: 654814..
                                          COVERED LH LOWER SEAT BACK COVERING
                                          - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                          Supersession
                                          Supersession
                                          # 012
                                          MPN: 654817..
                                          RH LINING
                                          - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                          Supersession
                                          Supersession
                                          # 012
                                          MPN: 654818..
                                          LH LINING
                                          - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                          Supersession
                                          Supersession
                                          # 013
                                          MPN: 63960200
                                          FRONT SAFETY BELTS SET
                                          - Not for USA and CDN
                                          from £217.26
                                          from £217.26
                                          # 013
                                          MPN: 64928500
                                          FRONT SAFETY BELTS SET
                                          - Valid for USA and CDN
                                          from £336.95
                                          from £336.95
                                          This part replaces part number 64399600
                                          # 014
                                          MPN: 643959..
                                          RH LINING
                                          - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                          Supersession
                                          Supersession
                                          # 014
                                          MPN: 643960..
                                          LH LINING
                                          - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                          Supersession
                                          Supersession
                                          # 014
                                          MPN: 644240..
                                          COVERED LH SEAT BACK OUTER JOINT
                                          - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                          Supersession
                                          Supersession
                                          # 014
                                          MPN: 644249..
                                          COVERED RH SEAT BACK OUTER JOINT
                                          - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                          Supersession
                                          Supersession
                                          # 015
                                          MPN: 654819..
                                          COVERED RH CUSHION OUTER COVER
                                          - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                          Supersession
                                          Supersession
                                          # 015
                                          MPN: 654820..
                                          COVERED LH CUSHION OUTER COVER
                                          - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                          Supersession
                                          Supersession
                                          # 016
                                          MPN: 643958..
                                          RH LINING
                                          - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                          Supersession
                                          Supersession
                                          # 016
                                          MPN: 643961..
                                          LH LINING
                                          - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                          Supersession
                                          Supersession
                                          # 016
                                          MPN: 644241..
                                          COVERED LH SEAT BACK INNER JOINT COVER
                                          - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                          Supersession
                                          Supersession
                                          # 016
                                          MPN: 644248..
                                          COVERED RH SEAT BACK INNER JOINT COVER
                                          - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                          Supersession
                                          Supersession
                                          # 017
                                          MPN: 63915300
                                          LH PLATE FOR SAFETY BELT
                                          - Valid till car Ass. Nr. 33450
                                          from £15.51
                                          from £15.51
                                          # 017
                                          MPN: 64461900
                                          RH PLATE FOR SAFETY BELT
                                          - Valid till car Ass. Nr. 33450
                                          from £21.14
                                          from £21.14
                                          # 017
                                          MPN: 65892200
                                          RH PLATE FOR SAFETY BELT
                                          - Valid from car Ass. Nr. 33451
                                          from £34.66
                                          from £34.66
                                          # 017
                                          MPN: 65892300
                                          LH PLATE FOR SAFETY BELT
                                          - Valid from car Ass. Nr. 33451
                                          from £34.66
                                          from £34.66
                                          # 018
                                          MPN: 13309877
                                          SCREW
                                          from £0.47
                                          from £0.47
                                          # 019
                                          MPN: 13309277
                                          SCREW
                                          from £0.47
                                          from £0.47
                                          This part replaces part number 13309211
                                          # 020
                                          MPN: 63915500
                                          BUSHING
                                          from £0.92
                                          from £0.92
                                          # 021
                                          MPN: 63915200
                                          SPRING
                                          from £2.77
                                          from £2.77
                                          # 022
                                          MPN: 15917177
                                          SCREW
                                          from £0.61
                                          from £0.61
                                          # 023
                                          MPN: 15932311
                                          SCREW
                                          from £0.47
                                          from £0.47
                                          # 024
                                          MPN: 20058905
                                          HEADREST PLASTIC INSERT
                                          from £25.71
                                          from £25.71
                                          # 025
                                          MPN: 65838300
                                          RH SWITCH PANEL
                                          from £297.24
                                          from £297.24
                                          # 025
                                          MPN: 65838400
                                          LH SWITCH PANEL
                                          from £297.24
                                          from £297.24
                                          # 026
                                          MPN: 102939
                                          SCREW
                                          from £0.47
                                          from £0.47
                                          # 027
                                          MPN: 64462400
                                          CAP FOR SCREW
                                          from £11.48
                                          from £11.48
                                          # 028
                                          MPN: 174766
                                          SEAT MEMORIES CONTROL SWITCH PANEL
                                          from £67.78
                                          from £67.78
                                          # 029
                                          MPN: 65842300
                                          RH SEAT CONTROLS JOYSTICK
                                          from £200.87
                                          from £200.87
                                          # 029
                                          MPN: 65842400
                                          LH SEAT CONTROLS JOYSTICK
                                          from £267.15
                                          from £267.15
                                          # 030
                                          MPN: 65890000
                                          OUTER GUIDES SUPPORT COVER
                                          - Valid from car Ass. Nr. 33451
                                          from £9.99
                                          from £9.99
                                          # 031
                                          MPN: 65890100
                                          RH INNER GUIDES SUPPORT COVER
                                          - Valid from car Ass. Nr. 33451
                                          from £9.99
                                          from £9.99
                                          # 031
                                          MPN: 65890300
                                          LH INNER GUIDES SUPPORT COVER
                                          - Valid from car Ass. Nr. 33451
                                          from £9.99
                                          from £9.99
