ferrari 456 m gt/m gta fuel pump parts diagram

011 - fuel pump

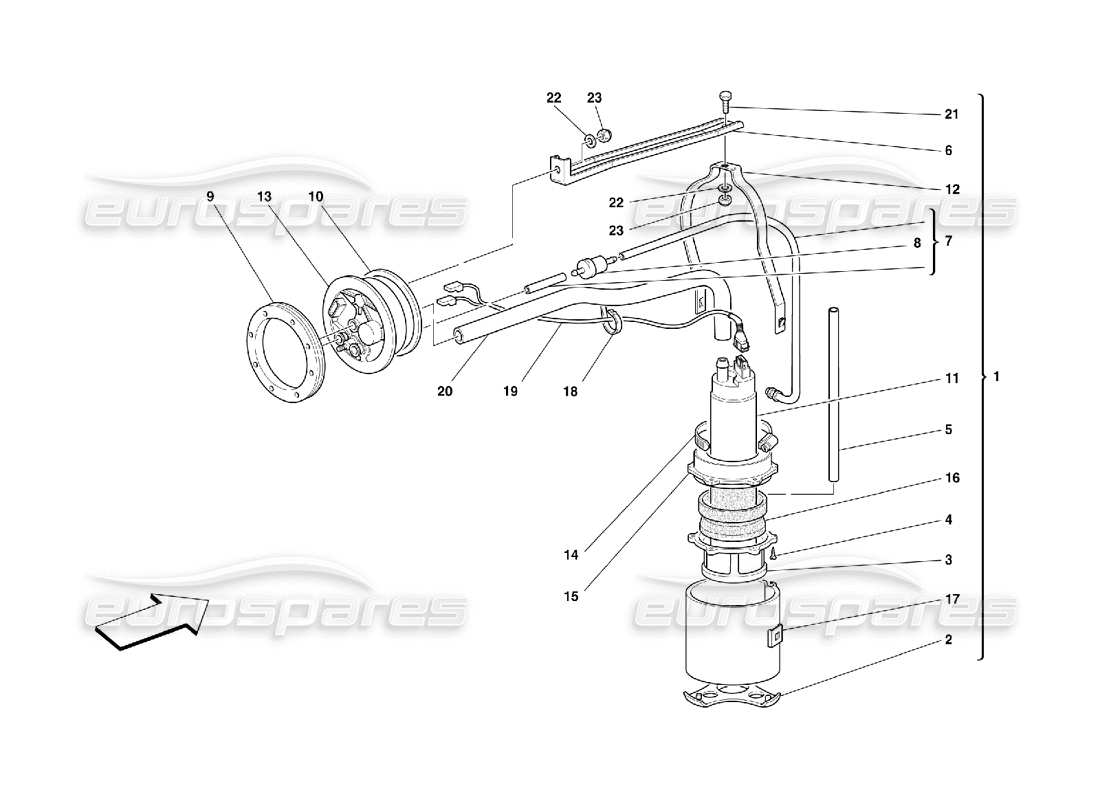

Ferrari 456 M GT/M GTA Fuel Pump Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                              #
                                              Part number
                                              Description
                                              Price
                                              # 001
                                              MPN: 175332
                                              COMPLETE FUEL PUMP
                                              from £1,023.75
                                              from £1,023.75
                                              # 002
                                              MPN: 126807
                                              ANTI VIBRATION PAD
                                              from £20.98
                                              from £20.98
                                              # 003
                                              MPN: 126808
                                              FILTER INSIDE CHAMBER
                                              Supersession
                                              Supersession
                                              # 004
                                              MPN: 15671101
                                              SCREW
                                              from £1.37
                                              from £1.37
                                              # 005
                                              MPN: 126827
                                              VENT PIPE
                                              from £49.67
                                              from £49.67
                                              # 006
                                              MPN: 151661
                                              BRACKET
                                              # 007
                                              MPN: 175350
                                              COMPLETE FUEL FLOWING BACK PIPE
                                              from £121.43
                                              from £121.43
                                              # 008
                                              MPN: 166540
                                              UNION
                                              from £17.68
                                              from £17.68
                                              This part replaces part number 170503
                                              # 009
                                              MPN: 126838
                                              RING NUT
                                              from £47.29
                                              from £47.29
                                              # 010
                                              MPN: 897696
                                              GASKET
                                              alternative 126835
                                              from £47.37
                                              from £47.37
                                              This part replaces part number 126835

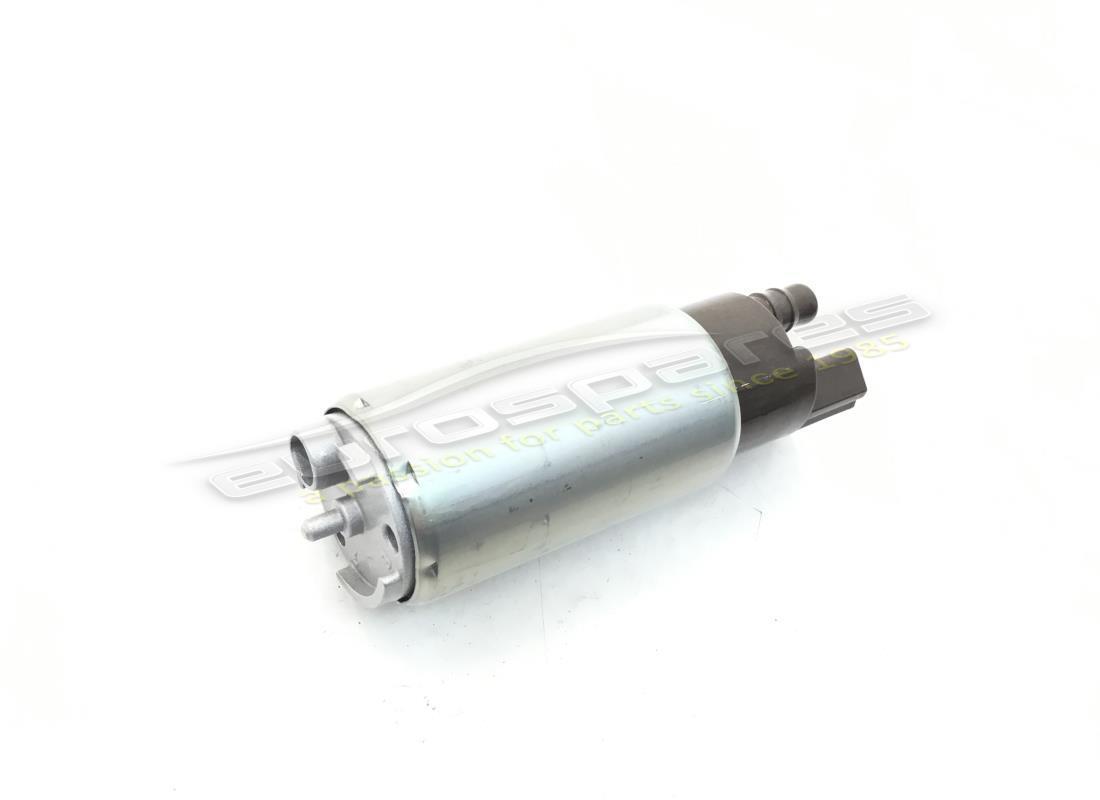

                                              # 011
                                              MPN: 173891
                                              fuel pump
                                              from £275.04
                                              from £275.04
                                              This part replaces part number 170427 - and 1 more. Click to view details
                                              # 012
                                              MPN: 153184
                                              SPRING
                                              from £36.27
                                              from £36.27
                                              # 013
                                              MPN: 173890
                                              COVER
                                              from £139.83
                                              from £139.83
                                              # 014
                                              MPN: 13000890
                                              SCREW COLLAR
                                              from £0.63
                                              from £0.63
                                              This part replaces part number 12173290 - and 2 more. Click to view details
                                              # 015
                                              MPN: 170512
                                              FUEL FILTER COVER
                                              from £12.17
                                              from £12.17
                                              # 016
                                              MPN: 170511
                                              GASKET
                                              from £84.76
                                              from £84.76

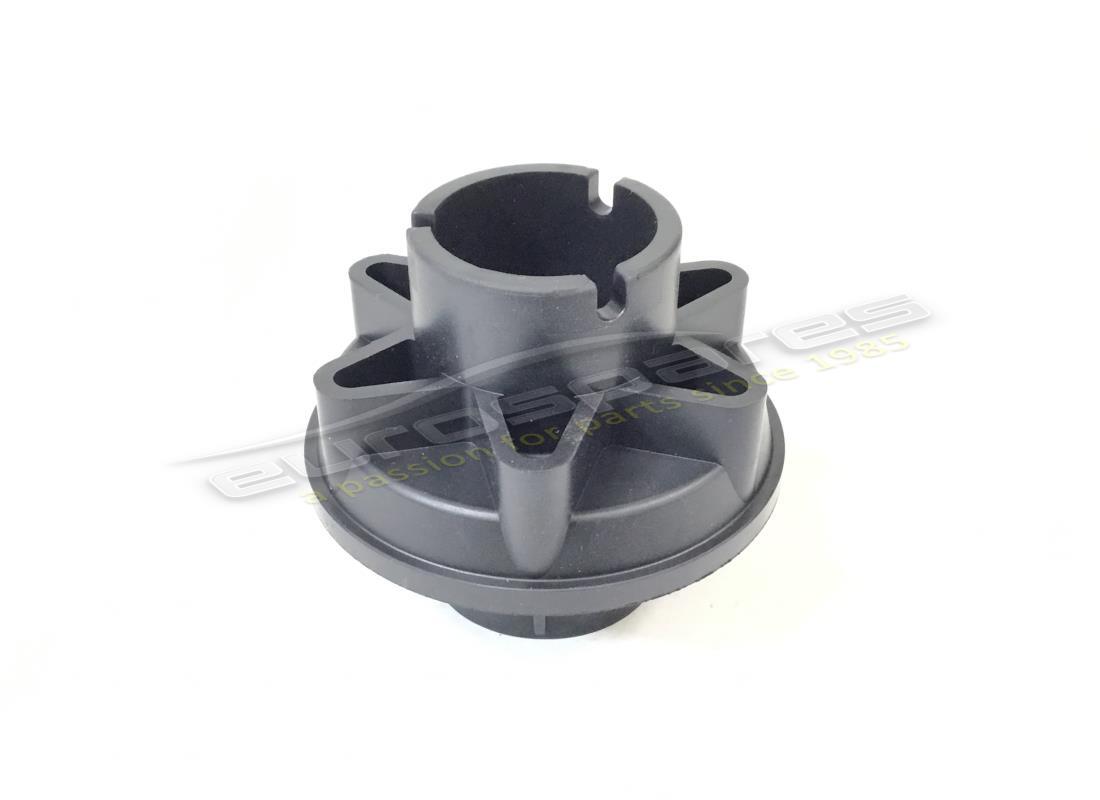

                                              # 017
                                              MPN: 153189
                                              PAN
                                              from £56.88
                                              from £56.88
                                              # 018
                                              MPN: 14560480
                                              CLAMP
                                              from £4.62
                                              from £4.62
                                              # 019
                                              MPN: 177354
                                              FUEL PUMP CABLES ASSY
                                              from £12.17
                                              from £12.17
                                              # 020
                                              MPN: 175331
                                              FEEDING PIPE
                                              from £24.27
                                              from £24.27
                                              # 021
                                              MPN: 10977524
                                              SCREW
                                              from £0.53
                                              from £0.53
                                              # 022
                                              MPN: 10519424
                                              WASHER
                                              from £0.53
                                              from £0.53
                                              This part replaces part number 10519401 which we have in stock - and 3 more. Click to view details
                                              # 023
                                              MPN: 15896214
                                              NUT
                                              from £0.53
                                              from £0.53
                                              This part replaces part number 15896211
