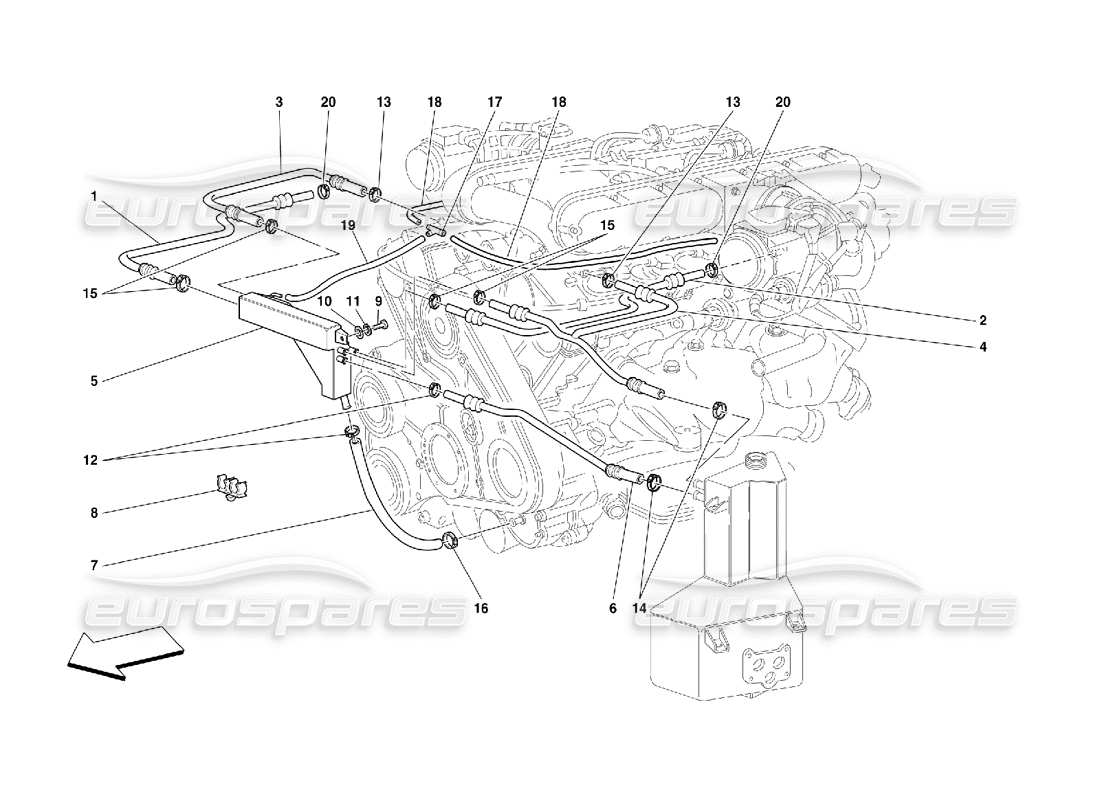

Ferrari 456 M GT/M GTA Blow - By System Parts Diagram

023 - Blow - By System

Ferrari 456 M GT/M GTA Blow - By System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                      #
                                      Part number
                                      Description
                                      Price
                                      # 001
                                      MPN: 159832
                                      PIPE FROM OIL VENT BODY TO RH SLEEVE
                                      from £9.45
                                      from £9.45
                                      # 002
                                      MPN: 159833
                                      PIPE FROM OIL VENT BODY TO LH SLEEVE
                                      from £30.82
                                      from £30.82
                                      # 003
                                      MPN: 155264
                                      PIPE FROM RH HEAD TO VENT BODY
                                      from £63.63
                                      from £63.63
                                      # 004
                                      MPN: 155265
                                      PIPE FROM LH HEAD TO VENT BODY
                                      from £170.02
                                      from £170.02
                                      # 005
                                      MPN: 158018
                                      ENGINE OIL VENT BODY
                                      from £281.92
                                      from £281.92
                                      This part replaces part number 155261 - and 2 more. Click to view details
                                      # 006
                                      MPN: 155263
                                      PIPE FROM VENT BODY TO OIL TANK
                                      - Valid till stock exhaustion
                                      Supersession
                                      Supersession
                                      # 006
                                      MPN: 178593
                                      PIPE FROM VENT BODY TO OIL TANK
                                      - Valid after stock exhaustion of 155263
                                      from £5.16
                                      from £5.16
                                      This part replaces part number 155263 - and 2 more. Click to view details
                                      # 007
                                      MPN: 156270
                                      RUBBER HOSE
                                      from £33.50
                                      from £33.50
                                      # 008
                                      MPN: 145543
                                      CLIP
                                      from £0.53
                                      from £0.53
                                      # 009
                                      MPN: 10977524
                                      SCREW
                                      from £0.53
                                      from £0.53
                                      # 010
                                      MPN: 14499324
                                      WASHER
                                      from £0.47
                                      from £0.47
                                      This part replaces part number 14499301 which we have in stock
                                      # 011
                                      MPN: 12601274
                                      WASHER
                                      from £0.53
                                      from £0.53
                                      This part replaces part number 12601221 - and 5 more. Click to view details
                                      # 012
                                      MPN: 13000390
                                      SCREW COLLAR
                                      from £0.53
                                      from £0.53
                                      This part replaces part number 12179590 - and 1 more. Click to view details
                                      # 013
                                      MPN: 13000190
                                      SCREW COLLAR
                                      from £0.53
                                      from £0.53
                                      This part replaces part number 12178990 - and 1 more. Click to view details
                                      # 014
                                      MPN: 161490
                                      SCREW COLLAR
                                      from £1.40
                                      from £1.40
                                      # 015
                                      MPN: 13000190
                                      SCREW COLLAR
                                      from £0.53
                                      from £0.53
                                      This part replaces part number 12178990 - and 1 more. Click to view details
                                      # 016
                                      MPN: 161490
                                      SCREW COLLAR
                                      from £1.42
                                      from £1.42
                                      # 017
                                      MPN: 121793
                                      3-WAY UNION
                                      from £0.54
                                      from £0.54
                                      # 018
                                      MPN: 124790
                                      RUBBER HOSE
                                      Replaced by 159542
                                      from £3.14
                                      from £3.14
                                      # 019
                                      MPN: 118502
                                      RUBBER HOSE
                                      from £18.37
                                      from £18.37
                                      This part replaces part number 115148 - and 3 more. Click to view details
                                      # 020
                                      MPN: 161490
                                      SCREW COLLAR
                                      from £1.40
                                      from £1.40
