Ferrari 456 M GT/M GTA WATER PUMP Parts Diagram

028 - WATER PUMP

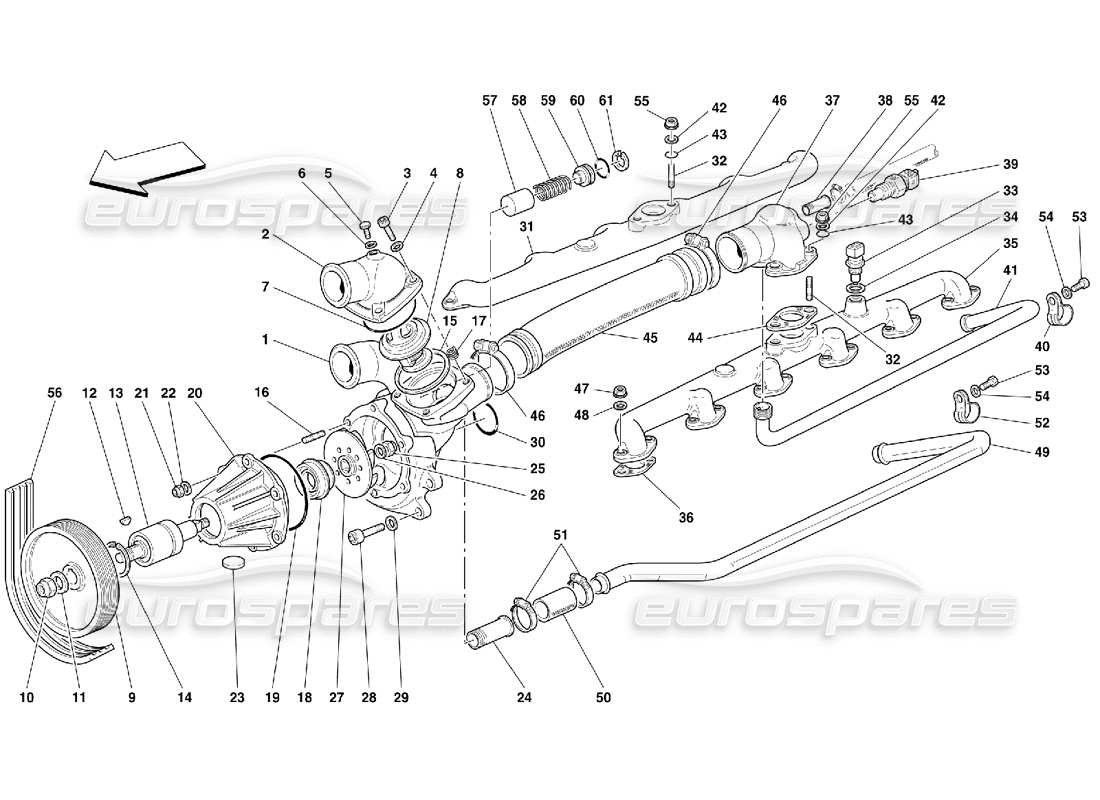

Ferrari 456 M GT/M GTA Water Pump Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                        #
                                                                                        Part number
                                                                                        Description
                                                                                        Price
                                                                                        # 000
                                                                                        MPN: 163875/A
                                                                                        WATER PUMP ASSY 456 M GTA (UP TO ENGINE N.54331)
                                                                                        Supersession
                                                                                        Supersession
                                                                                        # 000
                                                                                        MPN: 163875/A
                                                                                        WATER PUMP ASSY 456 M GT (UP TO ENGINE N.53762)
                                                                                        Supersession
                                                                                        Supersession
                                                                                        # 000
                                                                                        MPN: 181841/A
                                                                                        WATER PUMP ASSY 456 M GT (FROM ENGINE N.53763)
                                                                                        Supersession
                                                                                        Supersession
                                                                                        This part replaces part number 183760
                                                                                        # 000
                                                                                        MPN: 181841/A
                                                                                        WATER PUMP ASSY 456 M GTA (from engine n.54332)
                                                                                        Supersession
                                                                                        Supersession
                                                                                        This part replaces part number 183760
                                                                                        # 000
                                                                                        MPN: 183760
                                                                                        COMPLETE WATER PUMP
                                                                                        (thermostat housing included) - Not for 456M GTA
                                                                                        Supersession
                                                                                        Supersession
                                                                                        This part replaces part number 176103
                                                                                        # 000
                                                                                        MPN: 184038
                                                                                        COMPLETE WATER PUMP
                                                                                        - Valid for 456M GTA - Valid till engine Nr. 54331
                                                                                        from £1,287.89
                                                                                        from £1,287.89
                                                                                        This part replaces part number 177925
                                                                                        # 001
                                                                                        MPN: 153199
                                                                                        WATER PUMP BODY COMPLETED WITH STUDS
                                                                                        - Valid till engine Nr. 53762 for GT and till engine Nr. 54331 for GTA
                                                                                        from £595.00
                                                                                        from £595.00
                                                                                        This part replaces part number 156081 - and 5 more. Click to view details
                                                                                        # 001
                                                                                        MPN: 156081
                                                                                        WATER PUMP BODY
                                                                                        - Not as spare part - With complete pump body - Valid till engine Nr. 53762 for GT and till engine Nr. 54331 for GTA
                                                                                        Supersession
                                                                                        Supersession
                                                                                        # 001
                                                                                        MPN: 174668
                                                                                        WATER PUMP BODY
                                                                                        - Not as spare part - With complete pump body - Valid from engine Nr. 53763 for GT and from engine Nr. 54332 for GTA
                                                                                        Supersession
                                                                                        Supersession
                                                                                        # 001
                                                                                        MPN: 182693
                                                                                        WATER PUMP BODY COMPLETED WITH STUDS
                                                                                        - Valid from engine Nr. 53763 for GT and from engine Nr. 54332 for GTA
                                                                                        # 002
                                                                                        MPN: 163952
                                                                                        THERMOSTATIC VALVE COVER
                                                                                        from £42.58
                                                                                        from £42.58
                                                                                        This part replaces part number 157565 which we have in stock - and 1 more. Click to view details
                                                                                        # 003
                                                                                        MPN: 14432224
                                                                                        SCREW
                                                                                        - Not for 456M GTA - Valid till engine Nr. 53762
                                                                                        from £0.51
                                                                                        from £0.51
                                                                                        This part replaces part number 14432221
                                                                                        # 003
                                                                                        MPN: 14432224
                                                                                        SCREW
                                                                                        - Valid for 456M GTA
                                                                                        from £0.51
                                                                                        from £0.51
                                                                                        This part replaces part number 14432221
                                                                                        # 003
                                                                                        MPN: 14433124
                                                                                        SCREW
                                                                                        - Not for 456M GTA - Valid from engine Nr. 53763
                                                                                        from £0.51
                                                                                        from £0.51
                                                                                        This part replaces part number 14433121
                                                                                        # 004
                                                                                        MPN: 12601274
                                                                                        WASHER
                                                                                        from £0.53
                                                                                        from £0.53
                                                                                        This part replaces part number 12601221 - and 5 more. Click to view details
                                                                                        # 005
                                                                                        MPN: 130282
                                                                                        UNION
                                                                                        Supersession
                                                                                        Supersession
                                                                                        # 006
                                                                                        MPN: 10297760
                                                                                        GASKET
                                                                                        from £0.53
                                                                                        from £0.53
                                                                                        # 007
                                                                                        MPN: 149279
                                                                                        O.R. GASKET
                                                                                        from £2.52
                                                                                        from £2.52
                                                                                        # 008
                                                                                        MPN: 183758
                                                                                        THERMOSTAT
                                                                                        from £50.59
                                                                                        from £50.59
                                                                                        This part replaces part number 167473
                                                                                        # 008
                                                                                        MPN: 183758
                                                                                        THERMOSTAT
                                                                                        from £50.59
                                                                                        from £50.59
                                                                                        This part replaces part number 167473
                                                                                        # 009
                                                                                        MPN: 166454
                                                                                        PULLEY
                                                                                        - Not for 456M GTA
                                                                                        from £114.94
                                                                                        from £114.94
                                                                                        This part replaces part number 154526
                                                                                        # 009
                                                                                        MPN: 169924
                                                                                        PULLEY 93 MM
                                                                                        - Valid for 456M GTA
                                                                                        from £134.61
                                                                                        from £134.61
                                                                                        # 010
                                                                                        MPN: 102742
                                                                                        NUT
                                                                                        from £0.54
                                                                                        from £0.54
                                                                                        This part replaces part number 12557621 - and 2 more. Click to view details
                                                                                        # 011
                                                                                        MPN: 12646824
                                                                                        WASHER
                                                                                        from £0.53
                                                                                        from £0.53
                                                                                        # 012
                                                                                        MPN: 10202320
                                                                                        DISC KEY
                                                                                        from £0.68
                                                                                        from £0.68
                                                                                        # 013
                                                                                        MPN: 143742
                                                                                        BEARING WITH SHAFT
                                                                                        from £143.12
                                                                                        from £143.12
                                                                                        # 014
                                                                                        MPN: 11059976
                                                                                        SEEGER RING
                                                                                        from £0.64
                                                                                        from £0.64
                                                                                        This part replaces part number 11059975
                                                                                        # 015
                                                                                        MPN: 137873
                                                                                        GASKET
                                                                                        from £2.95
                                                                                        from £2.95
                                                                                        # 016
                                                                                        MPN: 13540924
                                                                                        STUD
                                                                                        from £0.70
                                                                                        from £0.70
                                                                                        This part replaces part number 13540921
                                                                                        # 017
                                                                                        MPN: 13525470
                                                                                        THREADED INSERT
                                                                                        from £0.48
                                                                                        from £0.48
                                                                                        This part replaces part number 107333
                                                                                        # 018
                                                                                        MPN: 183759
                                                                                        SEAL RING
                                                                                        from £23.06
                                                                                        from £23.06
                                                                                        This part replaces part number 130932 - and 1 more. Click to view details
                                                                                        # 019
                                                                                        MPN: 137868
                                                                                        O.R. GASKET
                                                                                        from £8.16
                                                                                        from £8.16
                                                                                        # 020
                                                                                        MPN: 176173
                                                                                        WATER PUMP COVER
                                                                                        use part number: 163875/A (till ass. 53762) or 176173/A (from ass. 53763) for complete pump (change pulley)
                                                                                        from £269.18
                                                                                        from £269.18
                                                                                        This part replaces part number 154546
                                                                                        # 021
                                                                                        MPN: 102741
                                                                                        NUT
                                                                                        from £0.50
                                                                                        from £0.50
                                                                                        This part replaces part number 12575411 - and 1 more. Click to view details
                                                                                        # 022
                                                                                        MPN: 12601274
                                                                                        WASHER PLUG
                                                                                        from £0.52
                                                                                        from £0.52
                                                                                        This part replaces part number 12601221 - and 5 more. Click to view details
                                                                                        # 023
                                                                                        MPN: 10158801
                                                                                        PLUG
                                                                                        from £0.83
                                                                                        from £0.83
                                                                                        This part replaces part number 10158800
                                                                                        # 024
                                                                                        MPN: 141068
                                                                                        UNION
                                                                                        from £123.19
                                                                                        from £123.19
                                                                                        # 025
                                                                                        MPN: 100436
                                                                                        CAP NUT
                                                                                        from £7.74
                                                                                        from £7.74
                                                                                        This part replaces part number 92896
                                                                                        # 026
                                                                                        MPN: 11194074
                                                                                        WASHER
                                                                                        from £0.54
                                                                                        from £0.54
                                                                                        This part replaces part number 11194077 - and 1 more. Click to view details

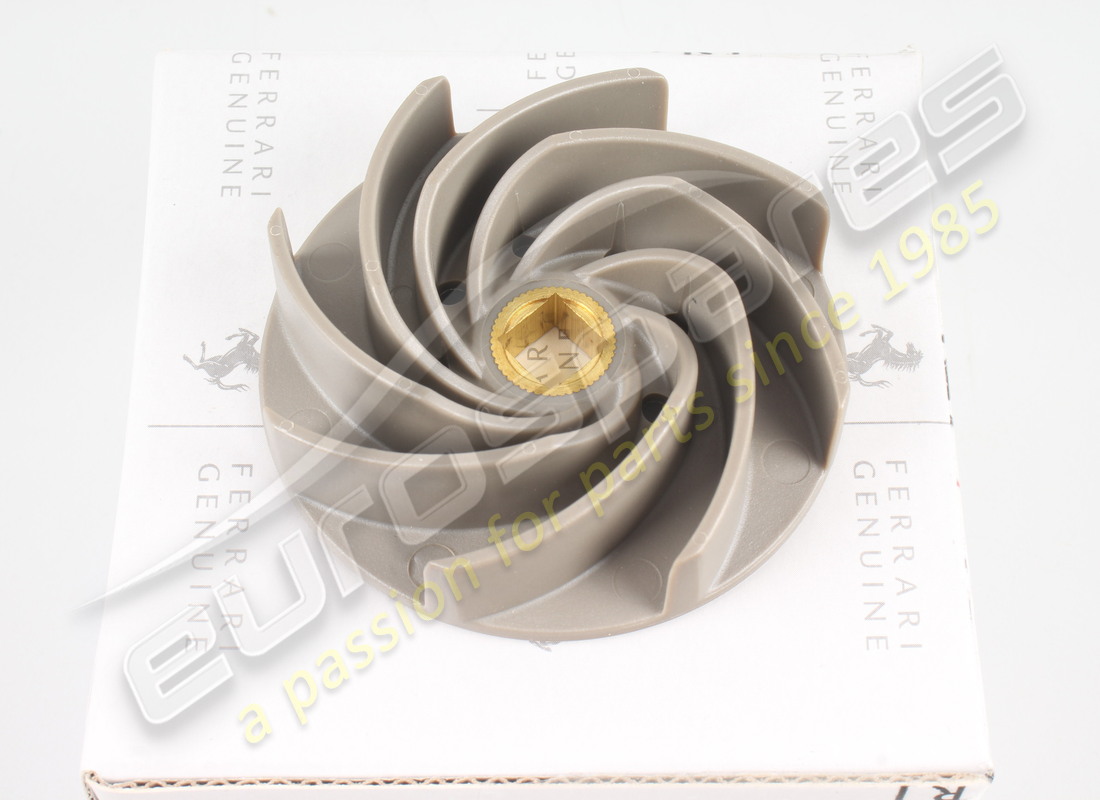

                                                                                        # 027
                                                                                        MPN: 154542
                                                                                        WATER PUMP IMPELLER
                                                                                        - Valid till engine Nr. 53762 for GT and till engine Nr. 54331 for GTA
                                                                                        from £68.84
                                                                                        from £68.84
                                                                                        # 027
                                                                                        MPN: 176045
                                                                                        WATER PUMP IMPELLER
                                                                                        - Valid from engine Nr. 53763 for GT and from engine Nr. 54332 for GTA
                                                                                        from £83.42
                                                                                        from £83.42
                                                                                        # 028
                                                                                        MPN: 14306424
                                                                                        SCREW
                                                                                        from £0.51
                                                                                        from £0.51
                                                                                        This part replaces part number 14306324 - and 2 more. Click to view details
                                                                                        # 029
                                                                                        MPN: 11193874
                                                                                        WASHER
                                                                                        from £0.53
                                                                                        from £0.53
                                                                                        This part replaces part number 11193879 which we have in stock
                                                                                        # 030
                                                                                        MPN: 141250
                                                                                        O.R. GASKET
                                                                                        from £0.54
                                                                                        from £0.54
                                                                                        This part replaces part number 227203
                                                                                        # 031
                                                                                        MPN: 162609
                                                                                        RH HEAD WATER MANIFOLD
                                                                                        from £180.27
                                                                                        from £180.27
                                                                                        # 032
                                                                                        MPN: 13516724
                                                                                        STUD
                                                                                        from £1.62
                                                                                        from £1.62
                                                                                        # 033
                                                                                        MPN: 125769
                                                                                        WATER TEMPERATURE SENSOR
                                                                                        from £18.81
                                                                                        from £18.81
                                                                                        # 034
                                                                                        MPN: 10298460
                                                                                        GASKET
                                                                                        from £0.53
                                                                                        from £0.53
                                                                                        This part replaces part number 93353
                                                                                        # 035
                                                                                        MPN: 142088
                                                                                        LH HEAD WATER MANIFOLD
                                                                                        from £212.99
                                                                                        from £212.99
                                                                                        # 035
                                                                                        MPN: 143323
                                                                                        LH HEAD WATER MANIFOLD
                                                                                        - Not as spare part now - Replaced by 142088
                                                                                        from £196.60
                                                                                        from £196.60
                                                                                        # 036
                                                                                        MPN: 141332
                                                                                        GASKET WATER OUTLET MANIFOLD
                                                                                        (minimum order quantity = 8)
                                                                                        from £0.84
                                                                                        from £0.84
                                                                                        # 037
                                                                                        MPN: 154198
                                                                                        CONNECTION DUCT
                                                                                        from £187.72
                                                                                        from £187.72
                                                                                        # 039
                                                                                        MPN: 148677
                                                                                        WATER TEMPERATURE TRASMITTER
                                                                                        from £358.83
                                                                                        from £358.83
                                                                                        # 040
                                                                                        MPN: 145661
                                                                                        BRACKET
                                                                                        from £3.11
                                                                                        from £3.11
                                                                                        # 041
                                                                                        MPN: 160554
                                                                                        PIPE FROM DUCT
                                                                                        - Not for GD
                                                                                        from £29.48
                                                                                        from £29.48
                                                                                        This part replaces part number 154200
                                                                                        # 041
                                                                                        MPN: 160831
                                                                                        PIPE FROM DUCT
                                                                                        - Valid for GD
                                                                                        from £33.16
                                                                                        from £33.16
                                                                                        # 042
                                                                                        MPN: 12601374
                                                                                        WASHER
                                                                                        from £0.53
                                                                                        from £0.53
                                                                                        This part replaces part number 10615474 - and 6 more. Click to view details
                                                                                        # 043
                                                                                        MPN: 103039
                                                                                        O.R. GASKET
                                                                                        (minimum order quantity = 10)
                                                                                        from £0.85
                                                                                        from £0.85
                                                                                        This part replaces part number 95860041
                                                                                        # 044
                                                                                        MPN: 142103
                                                                                        GASKET
                                                                                        from £2.00
                                                                                        from £2.00
                                                                                        # 045
                                                                                        MPN: 181599
                                                                                        CONNECTION SLEEVE BETWEEN MANIFOLD AND WATER PUMP
                                                                                        from £180.89
                                                                                        from £180.89
                                                                                        This part replaces part number 154480
                                                                                        # 045
                                                                                        MPN: 181599
                                                                                        CONNECTION SLEEVE BETWEEN MANIFOLD AND WATER PUMP
                                                                                        - Valid after stock exhaustion of 154480
                                                                                        from £180.89
                                                                                        from £180.89
                                                                                        This part replaces part number 154480
                                                                                        # 046
                                                                                        MPN: 134109
                                                                                        SCREW COLLAR
                                                                                        from £2.92
                                                                                        from £2.92
                                                                                        This part replaces part number 178203 - and 2 more. Click to view details
                                                                                        # 046
                                                                                        MPN: 178203
                                                                                        SCREW COLLAR
                                                                                        - Not as spare part now - Replaced by 134109
                                                                                        Supersession
                                                                                        Supersession
                                                                                        # 047
                                                                                        MPN: 132877
                                                                                        NUT
                                                                                        from £1.63
                                                                                        from £1.63
                                                                                        This part replaces part number 67190100
                                                                                        # 048
                                                                                        MPN: 12604274
                                                                                        WASHER
                                                                                        from £0.51
                                                                                        from £0.51
                                                                                        This part replaces part number 12604271 - and 1 more. Click to view details
                                                                                        # 049
                                                                                        MPN: 154716
                                                                                        PIPE CONNECTING WATER PUMP AND NUORICE
                                                                                        - Not for GD
                                                                                        from £184.33
                                                                                        from £184.33
                                                                                        # 049
                                                                                        MPN: 160833
                                                                                        PIPE CONNECTING WATER PUMP AND NUORICE
                                                                                        - Valid for GD
                                                                                        from £19.85
                                                                                        from £19.85
                                                                                        # 050
                                                                                        MPN: 175223
                                                                                        SLEEVE
                                                                                        from £4.99
                                                                                        from £4.99
                                                                                        This part replaces part number 122842
                                                                                        # 050
                                                                                        MPN: 175223
                                                                                        RUBBER PIPE
                                                                                        from £4.99
                                                                                        from £4.99
                                                                                        This part replaces part number 122842
                                                                                        # 051
                                                                                        MPN: 13000490
                                                                                        SCREW COLLAR
                                                                                        from £0.53
                                                                                        from £0.53
                                                                                        This part replaces part number 10169090 - and 3 more. Click to view details
                                                                                        # 052
                                                                                        MPN: 10450490
                                                                                        BRACKET WITH SHEATH - D. 16
                                                                                        from £0.54
                                                                                        from £0.54
                                                                                        # 052
                                                                                        MPN: 10450690
                                                                                        BRACKET WITH SHEATH - D. 20
                                                                                        from £0.53
                                                                                        from £0.53
                                                                                        # 053
                                                                                        MPN: 16043224
                                                                                        SCREW
                                                                                        from £0.53
                                                                                        from £0.53
                                                                                        # 054
                                                                                        MPN: 127496
                                                                                        WASHER
                                                                                        from £0.54
                                                                                        from £0.54
                                                                                        This part replaces part number 10516671 - and 2 more. Click to view details
                                                                                        # 055
                                                                                        MPN: 101139
                                                                                        NUT
                                                                                        from £0.53
                                                                                        from £0.53
                                                                                        This part replaces part number 16104425

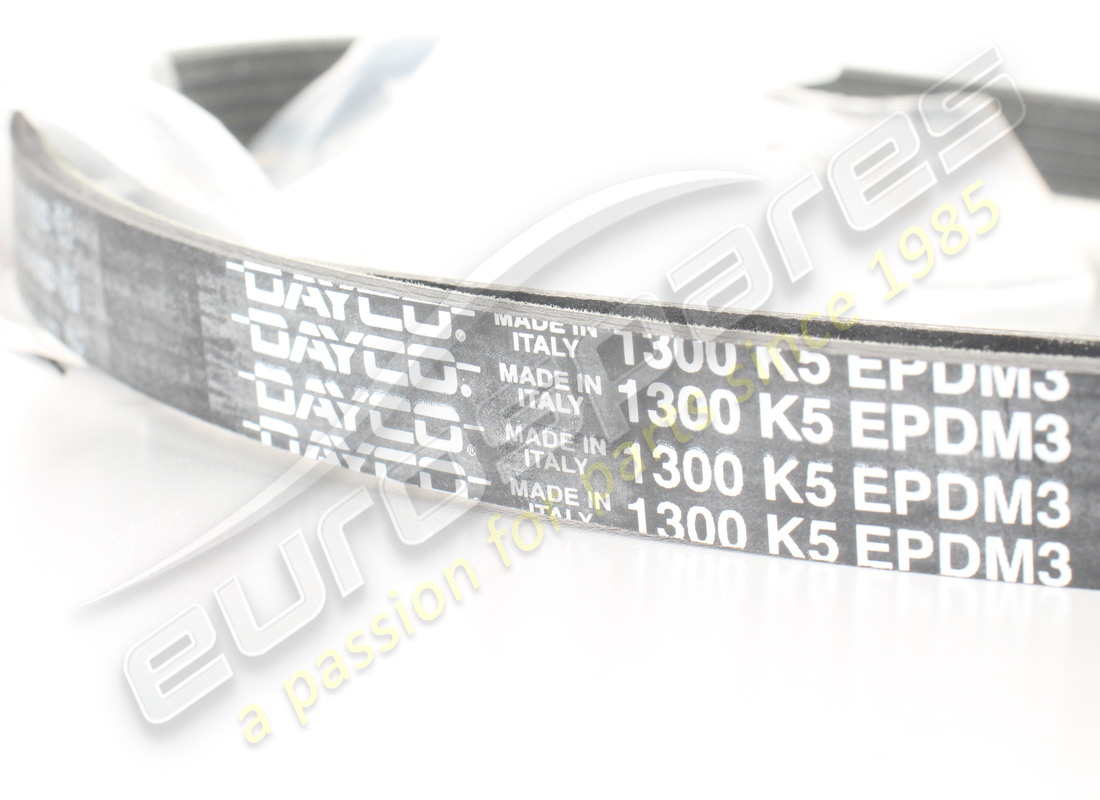

                                                                                        # 056
                                                                                        MPN: 169926
                                                                                        WATER AND HYDR. STEERING PUMP BELT
                                                                                        - Valid for 456M GTA - Valid till car Ass. Nr. 31523
                                                                                        Supersession
                                                                                        Supersession
                                                                                        # 056
                                                                                        MPN: 171094
                                                                                        WATER AND HYDR. STEERING PUMP BELT
                                                                                        - Valid for 456M GTA - Valid from car Ass. Nr. 31524 - PASS - Valid from engine Nr. 53763 for GT and from engine Nr. 54332 for GTA
                                                                                        Supersession
                                                                                        Supersession
                                                                                        This part replaces part number 169926
                                                                                        # 056
                                                                                        MPN: 199834
                                                                                        WATER & POWER STEERING BELT
                                                                                        Use on Exhaustion of 171093
                                                                                        from £15.58
                                                                                        from £15.58
                                                                                        This part replaces part number 171093
                                                                                        # 056
                                                                                        MPN: 199834
                                                                                        WATER AND HYDR. STEERING PUMP BELT
                                                                                        - Not for 456M GTA - Valid till car Ass. Nr. 31662
                                                                                        from £15.58
                                                                                        from £15.58
                                                                                        This part replaces part number 171093
                                                                                        # 056
                                                                                        MPN: 199834
                                                                                        WATER AND HYDR. STEERING PUMP BELT
                                                                                        - Not for 456M GTA - Valid from car Ass. Nr. 31663
                                                                                        from £15.58
                                                                                        from £15.58
                                                                                        This part replaces part number 171093
                                                                                        # 056
                                                                                        MPN: 199836
                                                                                        WATER & POWER STEERING BELT
                                                                                        Use on Exhaustion of 171094
                                                                                        from £16.44
                                                                                        from £16.44
                                                                                        This part replaces part number 171094
                                                                                        # 057
                                                                                        MPN: 176046
                                                                                        BUSHING FOR BY-PASS
                                                                                        - Valid from engine Nr. 53763 for GT and from engine Nr. 54332 for GTA
                                                                                        from £17.06
                                                                                        from £17.06
                                                                                        # 058
                                                                                        MPN: 176047
                                                                                        SPRING FOR BY-PASS
                                                                                        - Valid from engine Nr. 53763 for GT and from engine Nr. 54332 for GTA
                                                                                        from £8.12
                                                                                        from £8.12
                                                                                        # 059
                                                                                        MPN: 176048
                                                                                        PLUG FOR BY-PASS SPRING
                                                                                        - Valid from engine Nr. 53763 for GT and from engine Nr. 54332 for GTA
                                                                                        from £8.73
                                                                                        from £8.73
                                                                                        # 060
                                                                                        MPN: 147278
                                                                                        O.R. GASKET
                                                                                        - Valid from engine Nr. 53763 for GT and from engine Nr. 54332 for GTA
                                                                                        from £0.98
                                                                                        from £0.98
                                                                                        # 061
                                                                                        MPN: 11058376
                                                                                        SEEGER RING
                                                                                        - Valid from engine Nr. 53763 for GT and from engine Nr. 54332 for GTA
                                                                                        from £1.00
                                                                                        from £1.00
                                                                                        Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
