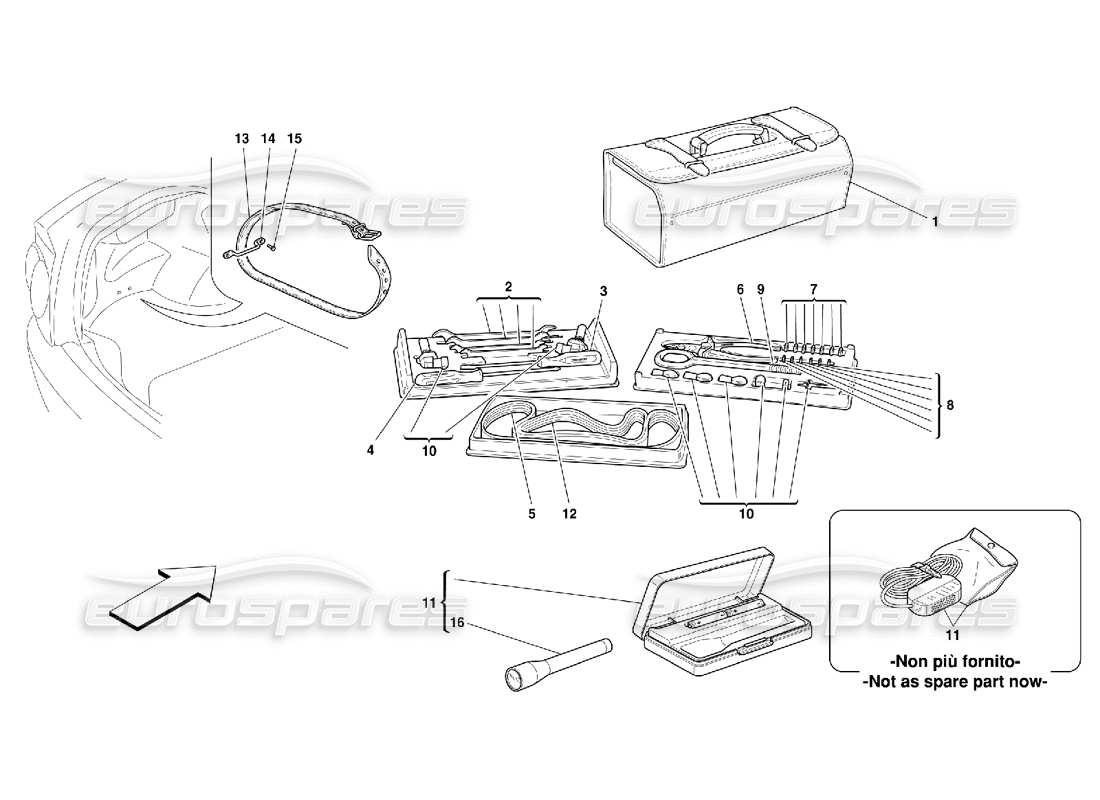

Ferrari 456 M GT/M GTA Equipment and Fixing Parts Diagram

069 - Equipment and Fixing

Ferrari 456 M GT/M GTA Equipment and Fixing Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
              #
              Part number
              Description
              Price
              # 001
              MPN: 166447
              TOOL KIT BAG
              (USA & Canada)
              from £601.76
              from £601.76
              This part replaces part number 160723
              # 001
              MPN: 177738
              COMPLETE TOOL KIT BAG
              - Not for 456M GTA - Not for USA and CDN -
              from £1,995.00
              from £1,995.00
              # 001
              MPN: 177739
              COMPLETE TOOL KIT BAG
              - Not for 456M GTA - Valid for USA and CDN
              from £790.65
              from £790.65
              # 001
              MPN: 177740
              COMPLETE TOOL KIT BAG
              - Valid for 456M GTA - Valid for USA and CDN
              from £657.85
              from £657.85
              # 001
              MPN: 179814
              COMPLETE TOOL KIT BAG
              - Valid for 456M GTA - Not for USA and CDN
              from £620.20
              from £620.20
              # 001
              MPN: 179836
              COMPLETE TOOL KIT BAG
              - Not for 456M GTA - Not for USA and CDN -
              from £614.08
              from £614.08
              # 001
              MPN: 179837
              COMPLETE TOOL KIT BAG
              - Not for 456M GTA - Valid for USA and CDN -
              from £626.84
              from £626.84
              # 001
              MPN: 182317
              COMPLETE TOOL KIT BAG
              from £615.24
              from £615.24
              # 002
              -
              WRENCH SET
              # 003
              -
              MM. 120 SCREWDRIVER FOR SLOT SCREW
              # 004
              -
              MM. 120 SCREWDRIVER FOR CROSS SLOT SCREWS
              # 005
              MPN: 167884
              BELT FOR ALTERNATOR AND COMPRESSORE
              - See Tab. 63 Pos. 34 - Valid for 456M GTA - Valid till car Ass. Nr. 31523
              Supersession
              Supersession
              # 005
              MPN: 201444
              BELT FOR ALTERNATOR AND COMPRESSOR
              - See Tab. 63 Pos. 34 - Not for 456M GTA - Valid from car Ass. Nr. 31663
              from £11.58
              from £11.58
              This part replaces part number 171092
              # 005
              MPN: 201447
              ALTERNATOR & AIR CON BELT
              Use on Exhaustion of 177509
              from £16.56
              from £16.56
              This part replaces part number 177509 - and 1 more. Click to view details
              # 005
              MPN: 201447
              BELT FOR ALTERNATOR AND COMPRESSORE
              from £16.56
              from £16.56
              This part replaces part number 177509 - and 1 more. Click to view details
              # 006
              -
              MM. 190 CUTTING PLIERS
              # 007
              MPN: 11054790
              FUSE 5 AMP.
              from £0.47
              from £0.47
              # 007
              MPN: 125240
              FUSE 7,5 AMP.
              from £0.47
              from £0.47
              This part replaces part number 11054890 - and 1 more. Click to view details
              # 007
              MPN: 125241
              FUSE 10 AMP.
              from £0.54
              from £0.54
              This part replaces part number 11054990 - and 1 more. Click to view details
              # 007
              MPN: 125242
              FUSE 15 AMP.
              from £0.54
              from £0.54
              This part replaces part number 11055090 - and 1 more. Click to view details
              # 007
              MPN: 125243
              FUSE 20 AMP.
              from £0.47
              from £0.47
              This part replaces part number 11055190 - and 1 more. Click to view details
              # 007
              MPN: 126031
              FUSE 25 AMP.
              from £0.47
              from £0.47
              This part replaces part number MC3742/5
              # 007
              MPN: 131941
              FUSE 30 AMP.
              from £0.54
              from £0.54
              This part replaces part number MC3742/6
              # 008
              MPN: 172874
              LITTLE FUSE 3 A.
              from £2.28
              from £2.28
              # 008
              MPN: 172876
              LITTLE FUSE 7,5 A.
              from £5.74
              from £5.74
              # 008
              MPN: 172877
              LITTLE FUSE 10 A.
              from £5.71
              from £5.71
              # 008
              MPN: 172879
              LITTLE FUSE 20 A.
              from £5.74
              from £5.74
              # 008
              MPN: 172880
              LITTLE FUSE 25 A.
              from £5.76
              from £5.76
              # 008
              MPN: 172881
              LITTLE FUSE 30 A.
              from £7.04
              from £7.04
              # 009
              MPN: 155838
              TOW HOOK
              from £41.00
              from £41.00
              # 010
              MPN: 101525
              BULB
              from £2.13
              from £2.13
              This part replaces part number 101528
              # 010
              MPN: 10857790
              BULB 12V-5W
              from £1.31
              from £1.31
              This part replaces part number 101524
              # 010
              MPN: 14144190
              12V-5W BULB
              - Not for USA and CDN
              from £0.60
              from £0.60
              # 010
              MPN: 14144690
              BULB 12V-5/21W
              from £2.83
              from £2.83
              # 010
              MPN: 14145890
              BULB 12V-4W SIDE-MARKER
              - Valid for USA and CDN
              from £0.58
              from £0.58
              # 010
              MPN: 14148190
              BULB 12V-21W
              from £2.03
              from £2.03
              # 010
              MPN: 14151095
              H1 12V-55W BULB
              from £9.77
              from £9.77
              # 010
              MPN: 143165
              HB4 12V-55W BULB LOW BEAM
              - Valid for USA and CDN
              from £44.09
              from £44.09
              # 010
              MPN: 143166
              HB3 12V-65W BULB HIGH BEAM
              - Valid for USA and CDN
              from £33.66
              from £33.66
              # 010
              MPN: 152567
              ORANGE 12V-21W BULB
              - Not for USA and CDN
              from £2.49
              from £2.49
              # 011
              MPN: 182261
              BOX COMPLETE EMERGENCY LIGHT
              - Valid from car Ass. Nr. 33566
              from £129.69
              from £129.69
              This part replaces part number 142397
              # 011
              MPN: 40179202
              EMERGENCY LIGHT
              from £309.75
              from £309.75
              # 012
              MPN: 169926
              WATER AND HYDR. STEERING PUMP BELT
              - See Tab. 25 Pos. 56 and Tab. 54 Pos. 21 - Valid for 456M GTA - Valid till car Ass. Nr. 31523
              Supersession
              Supersession
              # 012
              MPN: 171094
              WATER AND HYDR. STEERING PUMP BELT
              - See Tab. 25 Pos. 56 and Tab. 54 Pos. 21 - Valid for 456M GTA - Valid from car Ass. Nr. 31524
              Supersession
              Supersession
              This part replaces part number 169926
              # 012
              MPN: 199834
              WATER & POWER STEERING BELT
              Use on Exhaustion of 171093
              from £15.58
              from £15.58
              This part replaces part number 171093
              # 012
              MPN: 199834
              WATER AND HYDR. STEERING PUMP BELT
              - See Tab. 25 Pos. 56 and Tab. 54 Pos. 21 - Not for 456M GTA - Valid till car Ass. Nr. 31662
              from £15.58
              from £15.58
              This part replaces part number 171093
              # 012
              MPN: 199834
              WATER AND HYDR. STEERING PUMP BELT
              - See Tab. 25 Pos. 56 and Tab. 54 Pos. 21 - Not for 456M GTA - Valid from car Ass. Nr. 31663
              from £15.58
              from £15.58
              This part replaces part number 171093
              # 012
              MPN: 199836
              WATER & POWER STEERING BELT
              Use on Exhaustion of 171094
              from £16.44
              from £16.44
              This part replaces part number 171094
              # 013
              MPN: 65809000
              BELT FOR TOOL BAG
              from £26.69
              from £26.69
              # 014
              MPN: 65021700
              BRACKET
              from £20.41
              from £20.41
              # 015
              MPN: 63615500

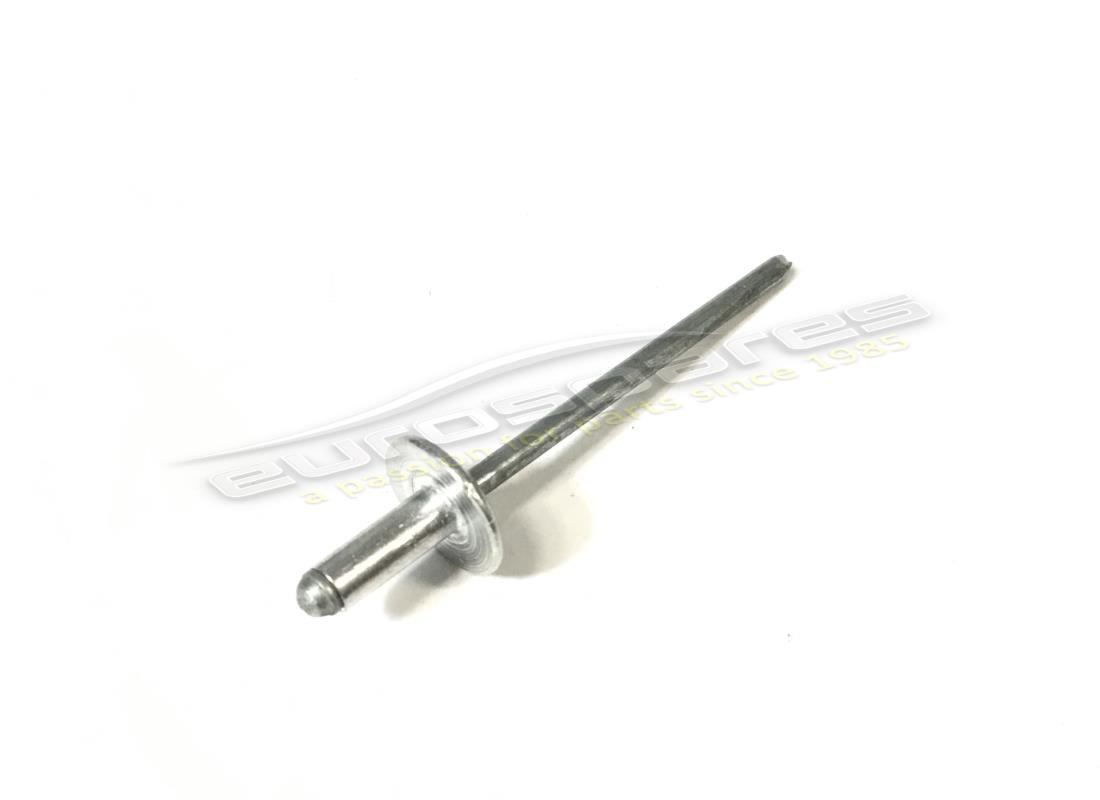

              RIVET
              from £0.47
              from £0.47
              # 016
              MPN: 180720
              EMERGENCY LIGHT
              - Valid from car Ass. Nr. 33566
              from £915.00
              from £915.00
              Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
