Ferrari 456 M GT/M GTA Doors - Framework and Coverings Parts Diagram

116 - Doors - Framework and Coverings

Ferrari 456 M GT/M GTA Doors - Framework and Coverings Parts Diagram

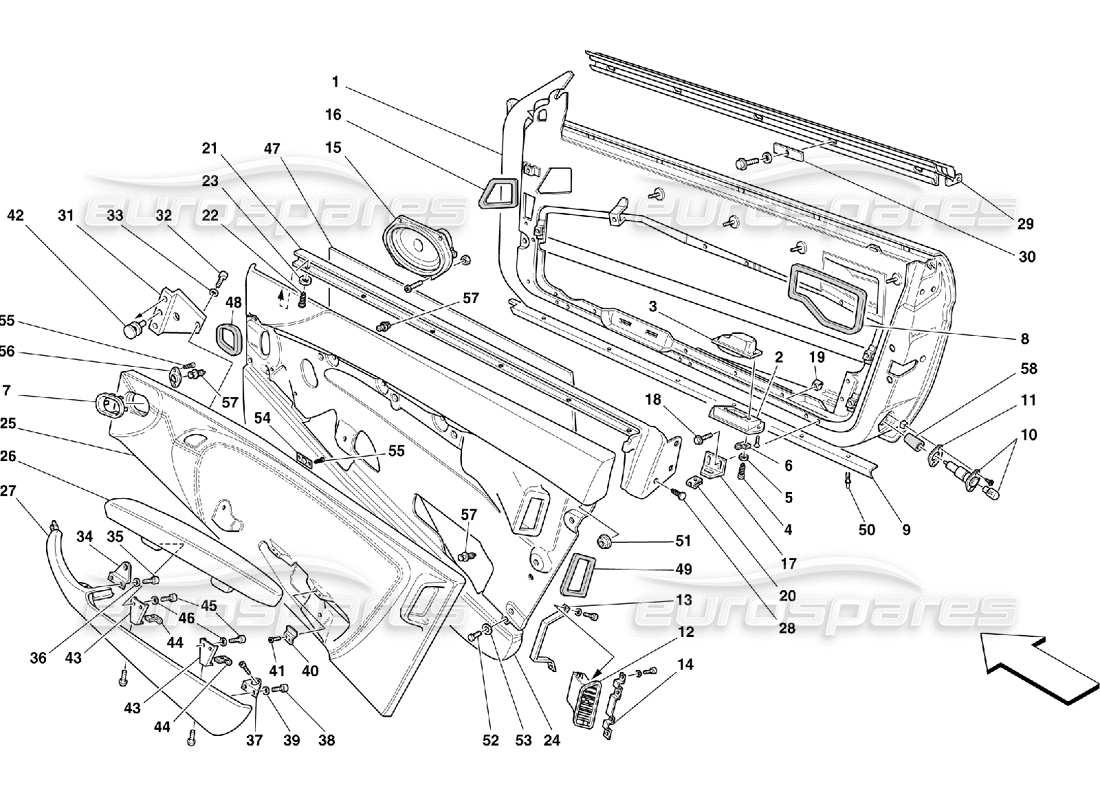

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                            #
                                                                                                            Part number
                                                                                                            Description
                                                                                                            Price
                                                                                                            # 001
                                                                                                            MPN: 65439811

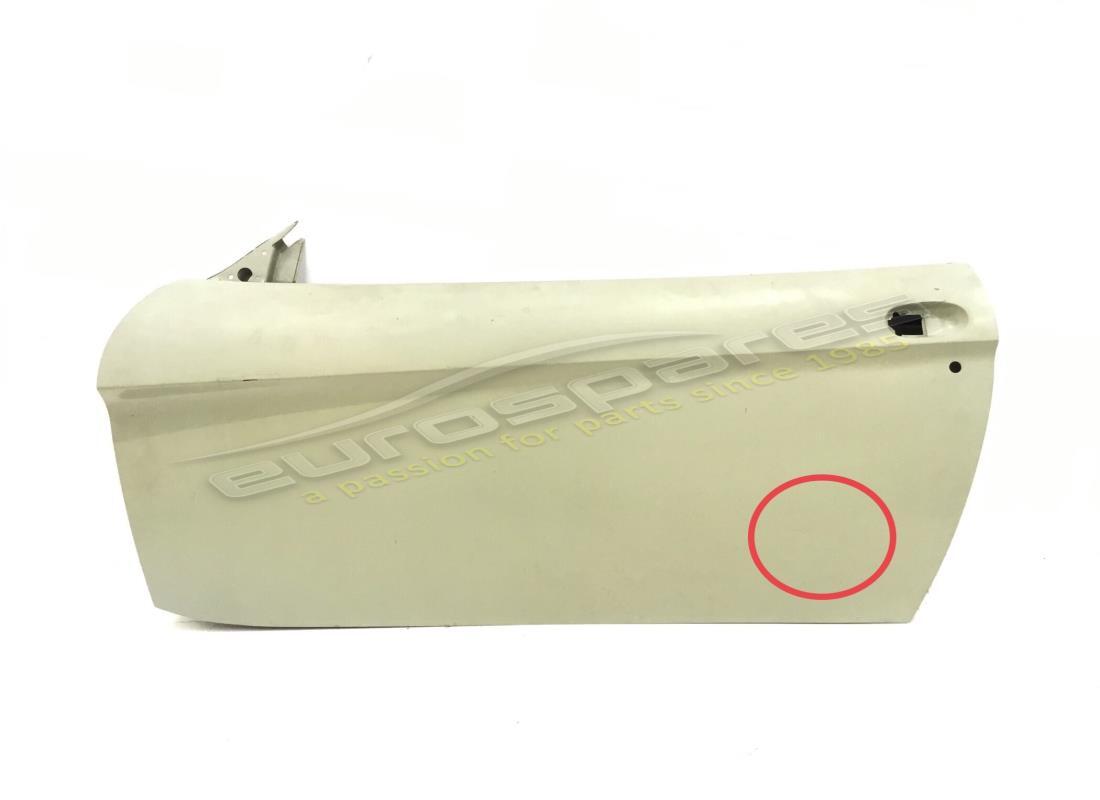

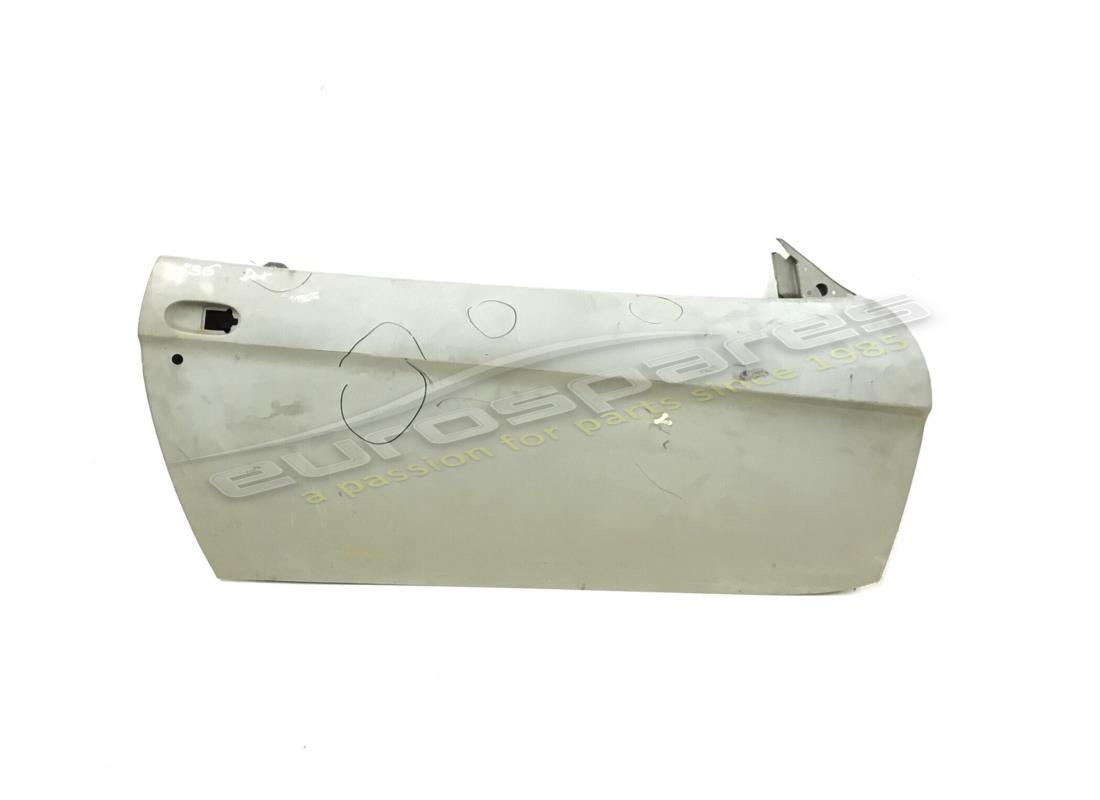

                                                                                                            RH DOOR FRAME
                                                                                                            - Not for USA, CDN and AUS
                                                                                                            from £1,044.75
                                                                                                            from £1,044.75
                                                                                                            This part replaces part number 65439800 - and 2 more. Click to view details
                                                                                                            # 001
                                                                                                            MPN: 65439911

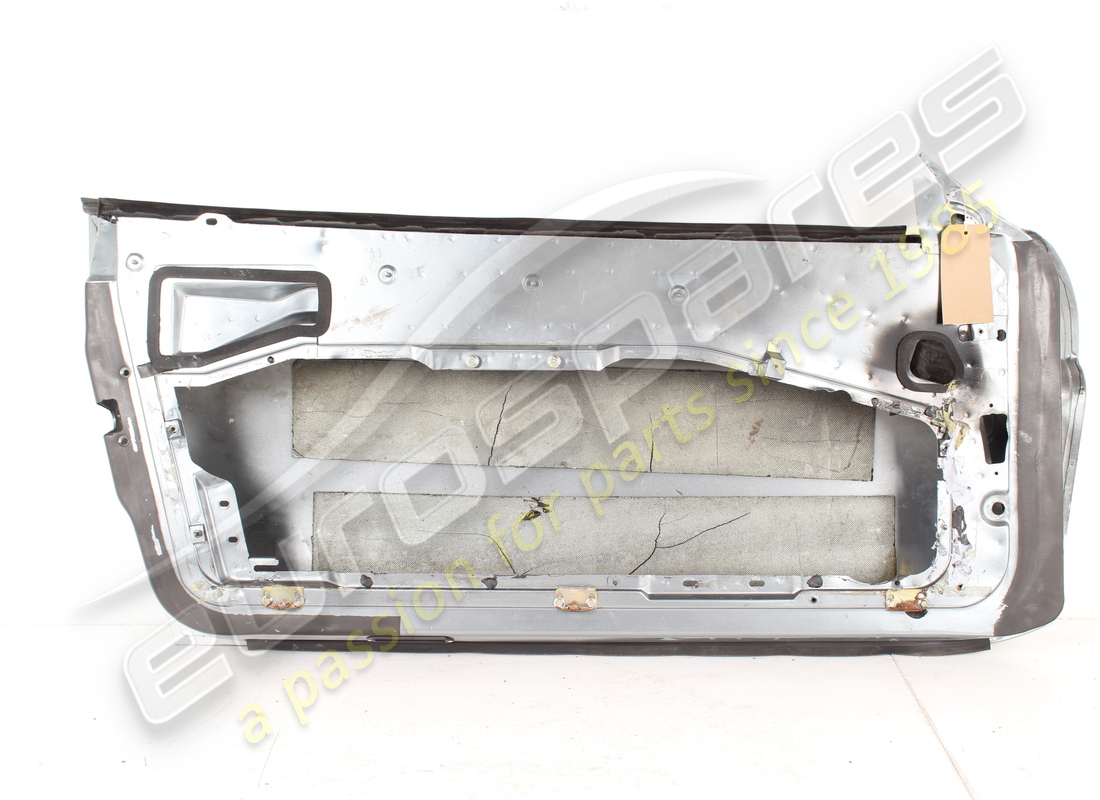

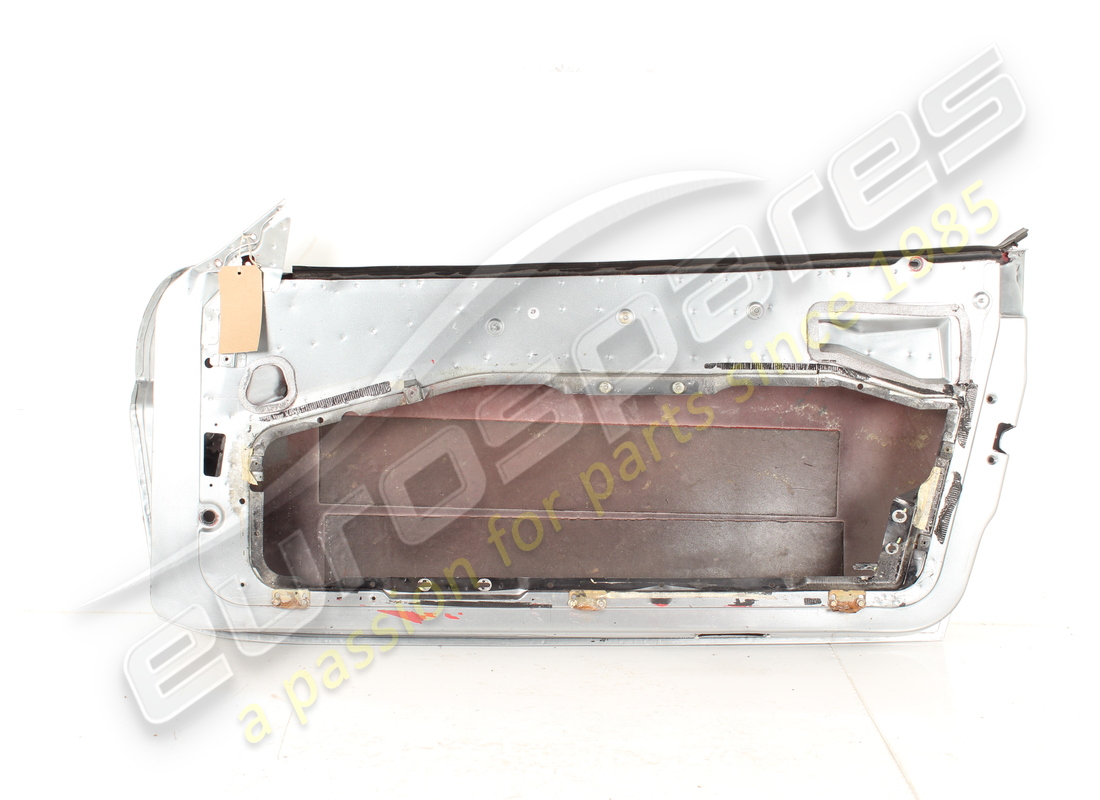

                                                                                                            LH DOOR FRAME
                                                                                                            - Not for USA, CDN and AUS
                                                                                                            from £1,076.25
                                                                                                            from £1,076.25
                                                                                                            This part replaces part number 65439900 - and 3 more. Click to view details
                                                                                                            # 001
                                                                                                            MPN: 65563700
                                                                                                            RH DOOR FRAME
                                                                                                            - Valid for USA, CDN and AUS
                                                                                                            from £1,443.75
                                                                                                            from £1,443.75
                                                                                                            # 001
                                                                                                            MPN: 65563800
                                                                                                            LH DOOR FRAME
                                                                                                            - Valid for USA, CDN and AUS
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            # 002
                                                                                                            MPN: 60842000
                                                                                                            DOOR LAMP BOX
                                                                                                            from £1.64
                                                                                                            from £1.64
                                                                                                            This part replaces part number 63871300 - and 1 more. Click to view details
                                                                                                            # 003
                                                                                                            MPN: 65088400
                                                                                                            UNDER DOOR LAMP
                                                                                                            from £47.08
                                                                                                            from £47.08
                                                                                                            This part replaces part number 60842100 - and 5 more. Click to view details
                                                                                                            # 004
                                                                                                            MPN: 15901575
                                                                                                            SCREW
                                                                                                            from £0.53
                                                                                                            from £0.53
                                                                                                            This part replaces part number 15901570
                                                                                                            # 005
                                                                                                            MPN: 12639477
                                                                                                            WASHER
                                                                                                            from £1.62
                                                                                                            from £1.62

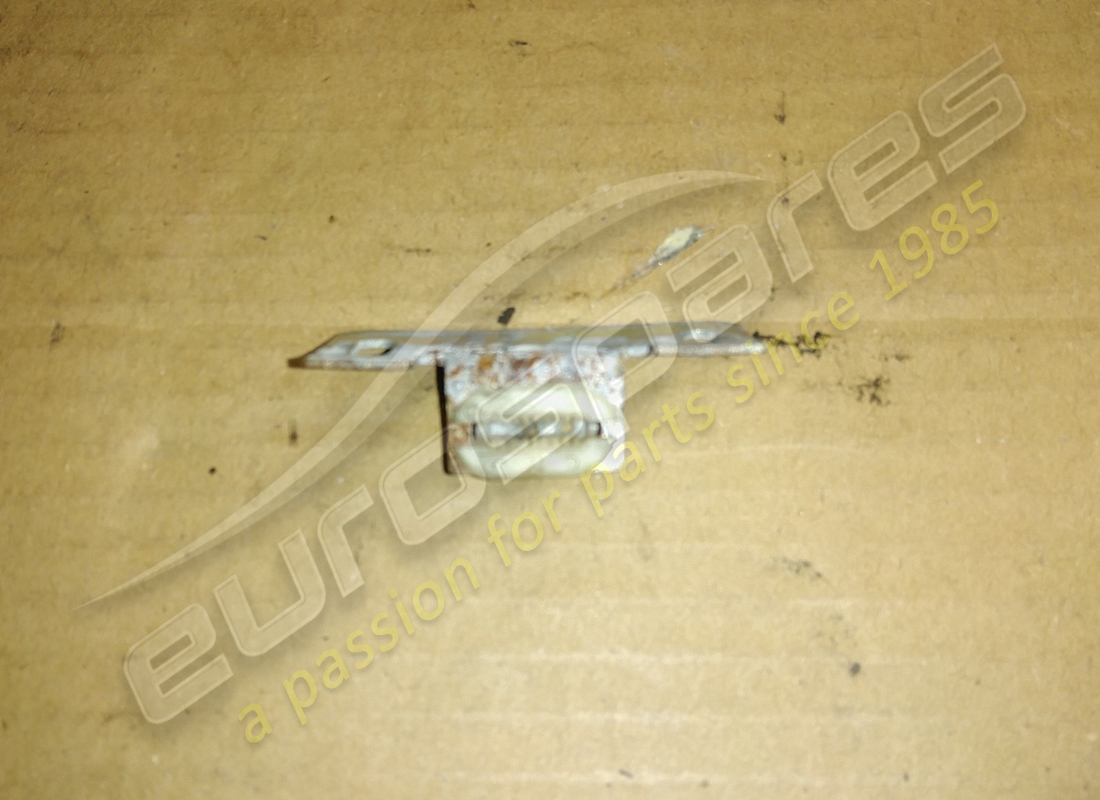

                                                                                                            # 006
                                                                                                            MPN: 62767500
                                                                                                            CLIP
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            # 007
                                                                                                            MPN: 63723800
                                                                                                            Frame
                                                                                                            from £31.17
                                                                                                            from £31.17
                                                                                                            # 008
                                                                                                            MPN: 65449200
                                                                                                            RH GASKET
                                                                                                            from £3.47
                                                                                                            from £3.47
                                                                                                            # 008
                                                                                                            MPN: 65689800
                                                                                                            LH GASKET
                                                                                                            from £3.30
                                                                                                            from £3.30
                                                                                                            # 009
                                                                                                            MPN: 63488300
                                                                                                            LH LOWER GASKET
                                                                                                            from £14.41
                                                                                                            from £14.41
                                                                                                            # 009
                                                                                                            MPN: 63758200
                                                                                                            RH LOWER GASKET
                                                                                                            from £13.45
                                                                                                            from £13.45
                                                                                                            # 010
                                                                                                            MPN: 178262
                                                                                                            OPENING DOOR LAMP
                                                                                                            from £9.79
                                                                                                            from £9.79
                                                                                                            # 011
                                                                                                            MPN: 140576
                                                                                                            GASKET
                                                                                                            from £8.06
                                                                                                            from £8.06
                                                                                                            This part replaces part number 61647000
                                                                                                            # 012
                                                                                                            MPN: 63850400
                                                                                                            RH AIR DIFFUSOR OPENING
                                                                                                            from £36.07
                                                                                                            from £36.07
                                                                                                            # 012
                                                                                                            MPN: 63850500
                                                                                                            LH AIR DIFFUSOR OPENING
                                                                                                            from £53.87
                                                                                                            from £53.87
                                                                                                            # 013
                                                                                                            MPN: 65286400
                                                                                                            RH BRACKET
                                                                                                            from £32.21
                                                                                                            from £32.21
                                                                                                            # 013
                                                                                                            MPN: 65430400
                                                                                                            LH BRACKET
                                                                                                            from £16.98
                                                                                                            from £16.98
                                                                                                            # 014
                                                                                                            MPN: 65286700
                                                                                                            BRACKET
                                                                                                            from £19.46
                                                                                                            from £19.46
                                                                                                            # 015
                                                                                                            MPN: 174806
                                                                                                            LOUD SPEAKER WOOFER
                                                                                                            from £72.77
                                                                                                            from £72.77
                                                                                                            # 016
                                                                                                            MPN: 65449100
                                                                                                            RH GASKET
                                                                                                            from £1.56
                                                                                                            from £1.56
                                                                                                            # 016
                                                                                                            MPN: 65689700
                                                                                                            LH GASKET
                                                                                                            from £1.56
                                                                                                            from £1.56
                                                                                                            # 017
                                                                                                            MPN: 65297600
                                                                                                            BRACKET
                                                                                                            from £1.77
                                                                                                            from £1.77
                                                                                                            # 018
                                                                                                            MPN: 13833171
                                                                                                            SCREW
                                                                                                            from £0.50
                                                                                                            from £0.50
                                                                                                            # 019
                                                                                                            MPN: 14647490
                                                                                                            NUT
                                                                                                            from £0.50
                                                                                                            from £0.50
                                                                                                            # 020
                                                                                                            MPN: 62764200
                                                                                                            SPRING
                                                                                                            from £0.52
                                                                                                            from £0.52
                                                                                                            This part replaces part number 14369871
                                                                                                            # 021
                                                                                                            MPN: 65432200
                                                                                                            RH GLASS SCRAPER
                                                                                                            from £260.90
                                                                                                            from £260.90
                                                                                                            # 021
                                                                                                            MPN: 65432300
                                                                                                            LH GLASS SCRAPER
                                                                                                            from £260.90
                                                                                                            from £260.90
                                                                                                            # 022
                                                                                                            MPN: 15901475
                                                                                                            SCREW
                                                                                                            from £1.18
                                                                                                            from £1.18
                                                                                                            This part replaces part number 15641175 which we have in stock
                                                                                                            # 023
                                                                                                            MPN: 14498501
                                                                                                            WASHER
                                                                                                            from £0.50
                                                                                                            from £0.50
                                                                                                            This part replaces part number 14498521 which we have in stock
                                                                                                            # 024
                                                                                                            -
                                                                                                            RH COMPLETE INNER DOOR PANEL DOOR PANEL TRIMS CODES
                                                                                                            # 024
                                                                                                            -
                                                                                                            LH COMPLETE INNER DOOR PANEL DOOR PANEL TRIMS CODES
                                                                                                            # 025
                                                                                                            MPN: 654474..
                                                                                                            LINING
                                                                                                            - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            # 025
                                                                                                            MPN: 654475..
                                                                                                            LINING
                                                                                                            - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            # 025
                                                                                                            MPN: 654702..
                                                                                                            RH COVERED CENTRAL PANEL MOULDING
                                                                                                            - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            # 025
                                                                                                            MPN: 654703..
                                                                                                            LH COVERED CENTRAL PANEL MOULDING
                                                                                                            - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            # 026
                                                                                                            MPN: 654498..
                                                                                                            LINING
                                                                                                            - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            # 026
                                                                                                            MPN: 654499..
                                                                                                            LINING
                                                                                                            - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            # 026
                                                                                                            MPN: 654706..
                                                                                                            RH DOOR ARM-REST
                                                                                                            - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            # 026
                                                                                                            MPN: 654707..
                                                                                                            LH DOOR ARM-REST
                                                                                                            - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            # 027
                                                                                                            MPN: 654620..
                                                                                                            LINING
                                                                                                            - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            # 027
                                                                                                            MPN: 654621..
                                                                                                            LINING
                                                                                                            - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            # 027
                                                                                                            MPN: 654710..
                                                                                                            RH HANDLE MOULDING
                                                                                                            - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            # 027
                                                                                                            MPN: 654711..
                                                                                                            LH HANDLE MOULDING
                                                                                                            - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            # 028
                                                                                                            MPN: 178949
                                                                                                            CLIP
                                                                                                            from £0.50
                                                                                                            from £0.50
                                                                                                            # 029
                                                                                                            MPN: 65432400
                                                                                                            RH OUTER GLASS SCRAPER
                                                                                                            from £248.34
                                                                                                            from £248.34
                                                                                                            # 029
                                                                                                            MPN: 65432500
                                                                                                            LH OUTER GLASS SCRAPER
                                                                                                            from £307.77
                                                                                                            from £307.77
                                                                                                            # 030
                                                                                                            MPN: 65655000
                                                                                                            THICKNESS
                                                                                                            from £30.95
                                                                                                            from £30.95
                                                                                                            # 031
                                                                                                            MPN: 65431500
                                                                                                            PANEL FIXING BRACKET
                                                                                                            from £35.26
                                                                                                            from £35.26
                                                                                                            # 032
                                                                                                            MPN: 13273872
                                                                                                            SCREW
                                                                                                            from £0.50
                                                                                                            from £0.50
                                                                                                            # 033
                                                                                                            MPN: 12637824
                                                                                                            WASHER
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            This part replaces part number 12637801 - and 1 more. Click to view details
                                                                                                            # 034
                                                                                                            MPN: 65286500
                                                                                                            RH FRONT BRACKET
                                                                                                            from £35.38
                                                                                                            from £35.38
                                                                                                            # 034
                                                                                                            MPN: 65286600
                                                                                                            LH FRONT BRACKET
                                                                                                            from £34.63
                                                                                                            from £34.63
                                                                                                            # 035
                                                                                                            MPN: 13273872
                                                                                                            SCREW
                                                                                                            from £0.51
                                                                                                            from £0.51
                                                                                                            # 036
                                                                                                            MPN: 12637824
                                                                                                            WASHER
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            This part replaces part number 12637801 - and 1 more. Click to view details
                                                                                                            # 037
                                                                                                            MPN: 65286900
                                                                                                            REAR BRACKET
                                                                                                            from £8.85
                                                                                                            from £8.85
                                                                                                            # 038
                                                                                                            MPN: 13273872
                                                                                                            SCREW
                                                                                                            from £0.51
                                                                                                            from £0.51
                                                                                                            # 039
                                                                                                            MPN: 12637824
                                                                                                            WASHER
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            This part replaces part number 12637801 - and 1 more. Click to view details
                                                                                                            # 040
                                                                                                            MPN: 65286000
                                                                                                            BRACKET
                                                                                                            from £8.85
                                                                                                            from £8.85
                                                                                                            # 041
                                                                                                            MPN: 15901475
                                                                                                            SCREW
                                                                                                            from £1.18
                                                                                                            from £1.18
                                                                                                            This part replaces part number 15641175 which we have in stock
                                                                                                            # 042
                                                                                                            MPN: 64580400
                                                                                                            BLOCK
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            This part replaces part number 64300600
                                                                                                            # 043
                                                                                                            MPN: 65285900
                                                                                                            BRACKET
                                                                                                            from £29.43
                                                                                                            from £29.43
                                                                                                            # 044
                                                                                                            MPN: 62764200
                                                                                                            SPRINGS
                                                                                                            from £0.53
                                                                                                            from £0.53
                                                                                                            This part replaces part number 14369871
                                                                                                            # 045
                                                                                                            MPN: 13273872
                                                                                                            SCREW
                                                                                                            from £0.48
                                                                                                            from £0.48
                                                                                                            # 046
                                                                                                            MPN: 12637824
                                                                                                            WASHER
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            This part replaces part number 12637801 - and 1 more. Click to view details
                                                                                                            # 047
                                                                                                            MPN: 65059500
                                                                                                            WATER PROTECTION CLOTH FOR MICRO-SWITCH
                                                                                                            from £1.25
                                                                                                            from £1.25
                                                                                                            # 047
                                                                                                            MPN: 65557600
                                                                                                            RH WATER PROTECTION CLOTH
                                                                                                            from £2.88
                                                                                                            from £2.88
                                                                                                            # 047
                                                                                                            MPN: 65557700
                                                                                                            LH WATER PROTECTION CLOTH
                                                                                                            from £2.88
                                                                                                            from £2.88
                                                                                                            # 048
                                                                                                            MPN: 65448500
                                                                                                            RH GASKET
                                                                                                            from £9.89
                                                                                                            from £9.89
                                                                                                            # 048
                                                                                                            MPN: 65690000
                                                                                                            LH GASKET
                                                                                                            from £7.08
                                                                                                            from £7.08
                                                                                                            # 049
                                                                                                            MPN: 65449300
                                                                                                            RH GASKET
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            # 049
                                                                                                            MPN: 65689900
                                                                                                            LH GASKET
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            # 050
                                                                                                            MPN: 62764000
                                                                                                            RIVET
                                                                                                            from £0.50
                                                                                                            from £0.50
                                                                                                            # 051
                                                                                                            MPN: 13832101
                                                                                                            NUT
                                                                                                            from £0.51
                                                                                                            from £0.51
                                                                                                            # 052
                                                                                                            MPN: 10977524
                                                                                                            SCREW
                                                                                                            from £0.48
                                                                                                            from £0.48
                                                                                                            # 053
                                                                                                            MPN: 12624177
                                                                                                            WASHER
                                                                                                            from £1.42
                                                                                                            from £1.42
                                                                                                            # 053
                                                                                                            MPN: 12637824
                                                                                                            WASHER
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            This part replaces part number 12637801 - and 1 more. Click to view details
                                                                                                            # 054
                                                                                                            MPN: 64758500
                                                                                                            PLATE
                                                                                                            from £7.35
                                                                                                            from £7.35
                                                                                                            # 055
                                                                                                            MPN: 15914877
                                                                                                            SCREW
                                                                                                            from £0.49
                                                                                                            from £0.49
                                                                                                            This part replaces part number 15914806
                                                                                                            # 056
                                                                                                            MPN: 64712800
                                                                                                            PLATE
                                                                                                            from £1.16
                                                                                                            from £1.16
                                                                                                            # 057
                                                                                                            MPN: 14188181
                                                                                                            RETAINER
                                                                                                            from £0.48
                                                                                                            from £0.48
                                                                                                            This part replaces part number 14188282
                                                                                                            # 058
                                                                                                            MPN: 65910600
                                                                                                            BOOT
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
