Ferrari 456 M GT/M GTA RH Cylinder Head Parts Diagram

004 - RH cylinder head

Ferrari 456 M GT/M GTA R.H. Cylinder Head Parts Diagram

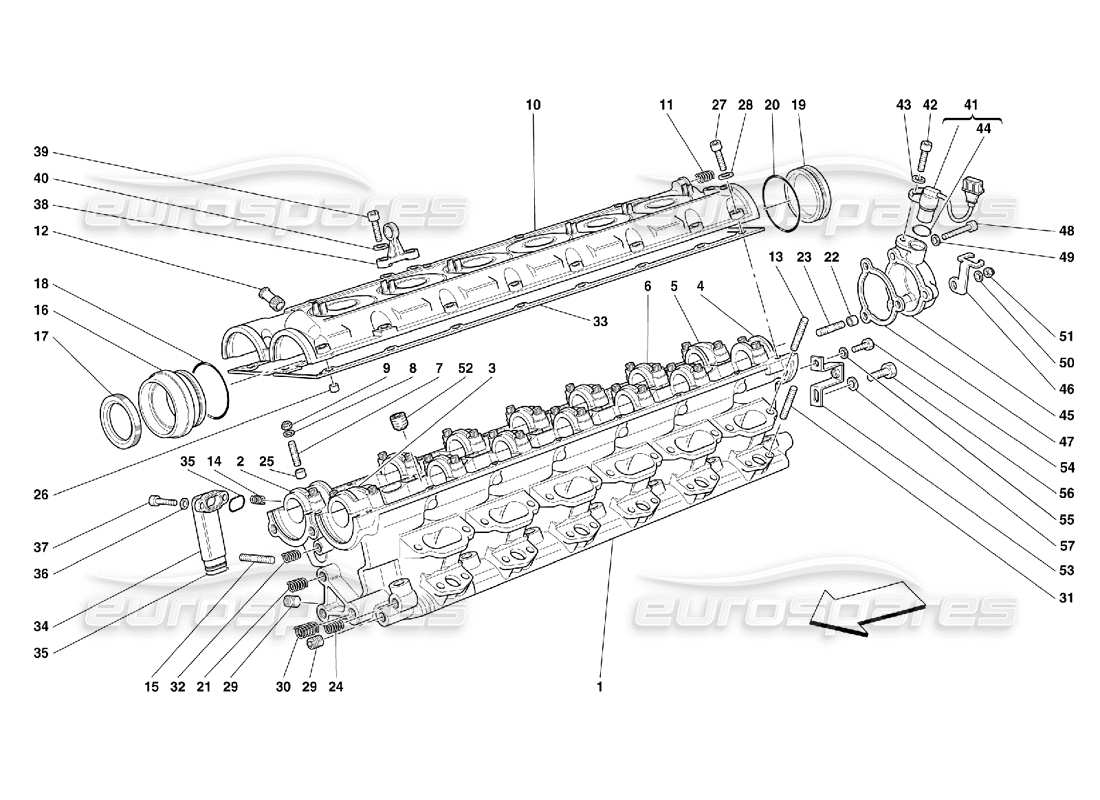

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                  #
                                                                                                  Part number
                                                                                                  Description
                                                                                                  Price
                                                                                                  # 000
                                                                                                  MPN: 178848
                                                                                                  COMPLETE RH CYLINDERS HEAD
                                                                                                  Supersession
                                                                                                  Supersession
                                                                                                  This part replaces part number 178793
                                                                                                  # 001
                                                                                                  MPN: 178793
                                                                                                  right cylinder head
                                                                                                  - Not as spare part - With complete cylinder head
                                                                                                  Supersession
                                                                                                  Supersession
                                                                                                  # 002
                                                                                                  MPN: 149844
                                                                                                  RIGHT FRONT CAP
                                                                                                  - Not as spare part - With complete cylinder head
                                                                                                  # 003
                                                                                                  MPN: 149829
                                                                                                  LEFT FRONT CAP
                                                                                                  - Not as spare part - With complete cylinder head
                                                                                                  # 004
                                                                                                  MPN: 149864
                                                                                                  LEFT REAR CAP
                                                                                                  - Not as spare part - With complete cylinder head
                                                                                                  # 005
                                                                                                  MPN: 149862
                                                                                                  RIGHT REAR CAP
                                                                                                  - Not as spare part - With complete cylinder head
                                                                                                  # 006
                                                                                                  MPN: 152505
                                                                                                  INTERMEDIATE CAP
                                                                                                  - Not as spare part - With complete cylinder head
                                                                                                  # 007
                                                                                                  MPN: 13541424
                                                                                                  STUD
                                                                                                  from £0.47
                                                                                                  from £0.47
                                                                                                  This part replaces part number 13541421
                                                                                                  # 008
                                                                                                  MPN: 11197774
                                                                                                  WASHER
                                                                                                  from £0.50
                                                                                                  from £0.50
                                                                                                  This part replaces part number 11197770 - and 3 more. Click to view details
                                                                                                  # 009
                                                                                                  MPN: 15896214
                                                                                                  NUT
                                                                                                  from £0.50
                                                                                                  from £0.50
                                                                                                  This part replaces part number 15896211
                                                                                                  # 010
                                                                                                  MPN: 151675

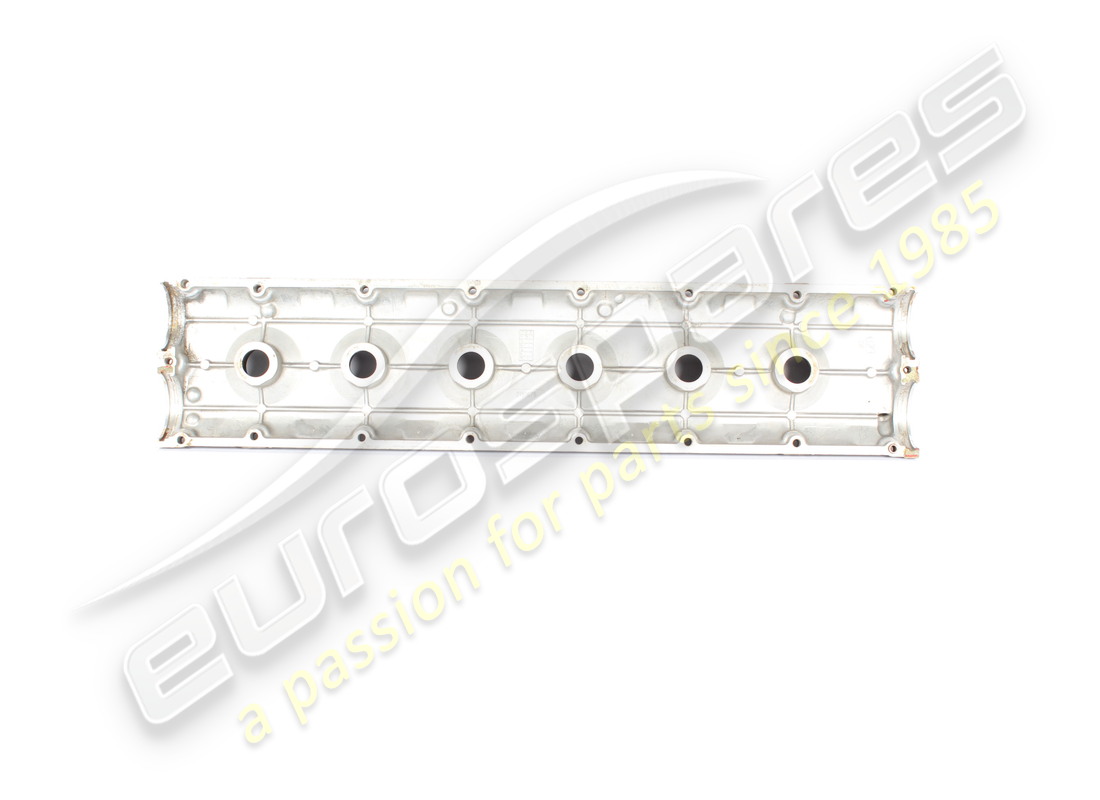

                                                                                                  RH CYLINDERS HEAD COVER
                                                                                                  - Not as spare part - With complete cylinder head
                                                                                                  from £595.00
                                                                                                  from £595.00
                                                                                                  # 011
                                                                                                  MPN: 13525470
                                                                                                  THREADED INSERT
                                                                                                  from £0.53
                                                                                                  from £0.53
                                                                                                  This part replaces part number 107333
                                                                                                  # 012
                                                                                                  MPN: 154525
                                                                                                  UNION
                                                                                                  from £25.26
                                                                                                  from £25.26
                                                                                                  # 013
                                                                                                  MPN: 13541124
                                                                                                  STUD
                                                                                                  from £11.78
                                                                                                  from £11.78
                                                                                                  This part replaces part number 13541121
                                                                                                  # 014
                                                                                                  MPN: 13525170
                                                                                                  THREADED INSERT
                                                                                                  from £0.51
                                                                                                  from £0.51
                                                                                                  # 015
                                                                                                  MPN: 13516824
                                                                                                  STUD
                                                                                                  from £0.48
                                                                                                  from £0.48
                                                                                                  This part replaces part number 13516821
                                                                                                  # 016
                                                                                                  MPN: 148022
                                                                                                  FRONT COVER
                                                                                                  from £24.78
                                                                                                  from £24.78
                                                                                                  # 017
                                                                                                  MPN: 163987
                                                                                                  SEALING RING
                                                                                                  from £9.95
                                                                                                  from £9.95
                                                                                                  This part replaces part number 136526
                                                                                                  # 018
                                                                                                  MPN: 117275

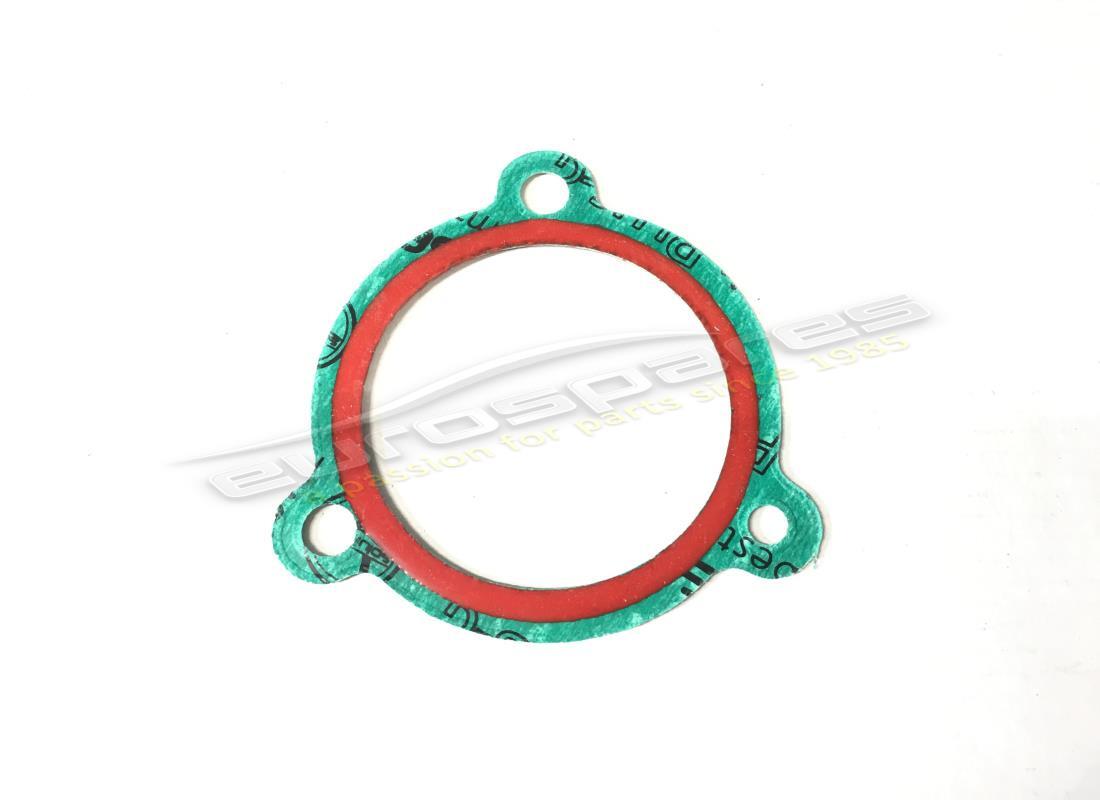

                                                                                                  O.R. GASKET
                                                                                                  from £2.93
                                                                                                  from £2.93
                                                                                                  # 019
                                                                                                  MPN: 148023
                                                                                                  REAR SMALL COVER
                                                                                                  from £6.82
                                                                                                  from £6.82
                                                                                                  REAR COVER Genuine Ferrari Part - Used In stock
                                                                                                  from a 355 5.2 Engine number 48537
                                                                                                  # 020
                                                                                                  MPN: 117275
                                                                                                  O.R. GASKET
                                                                                                  from £2.93
                                                                                                  from £2.93
                                                                                                  # 021
                                                                                                  MPN: 13525770
                                                                                                  THREADED INSERT
                                                                                                  from £1.57
                                                                                                  from £1.57
                                                                                                  This part replaces part number 103830
                                                                                                  # 022
                                                                                                  MPN: 102725
                                                                                                  DOWEL
                                                                                                  from £0.65
                                                                                                  from £0.65
                                                                                                  # 023
                                                                                                  MPN: 13541324
                                                                                                  STUD
                                                                                                  from £1.02
                                                                                                  from £1.02
                                                                                                  This part replaces part number 13541321
                                                                                                  # 024
                                                                                                  MPN: 13525870
                                                                                                  THREADED INSERT
                                                                                                  from £1.96
                                                                                                  from £1.96
                                                                                                  This part replaces part number 105510
                                                                                                  # 025
                                                                                                  MPN: 102725
                                                                                                  DOWEL
                                                                                                  from £0.60
                                                                                                  from £0.60
                                                                                                  # 026
                                                                                                  MPN: 102725
                                                                                                  DOWEL
                                                                                                  from £0.65
                                                                                                  from £0.65
                                                                                                  # 027
                                                                                                  MPN: 156834
                                                                                                  SCREW
                                                                                                  from £1.57
                                                                                                  from £1.57
                                                                                                  # 028
                                                                                                  MPN: 12601274
                                                                                                  WASHER
                                                                                                  from £0.48
                                                                                                  from £0.48
                                                                                                  This part replaces part number 12601221 - and 5 more. Click to view details
                                                                                                  # 029
                                                                                                  MPN: 14326150
                                                                                                  PLUG
                                                                                                  from £0.51
                                                                                                  from £0.51
                                                                                                  This part replaces part number 12326150
                                                                                                  # 030
                                                                                                  MPN: 13524670
                                                                                                  THREADED INSERT
                                                                                                  from £0.47
                                                                                                  from £0.47
                                                                                                  # 031
                                                                                                  MPN: 11500224
                                                                                                  STUD
                                                                                                  from £0.48
                                                                                                  from £0.48
                                                                                                  This part replaces part number 11500221 - and 1 more. Click to view details
                                                                                                  # 032
                                                                                                  MPN: 13525570
                                                                                                  THREADED INSERT
                                                                                                  from £2.28
                                                                                                  from £2.28
                                                                                                  This part replaces part number 109668
                                                                                                  # 033
                                                                                                  MPN: 140753

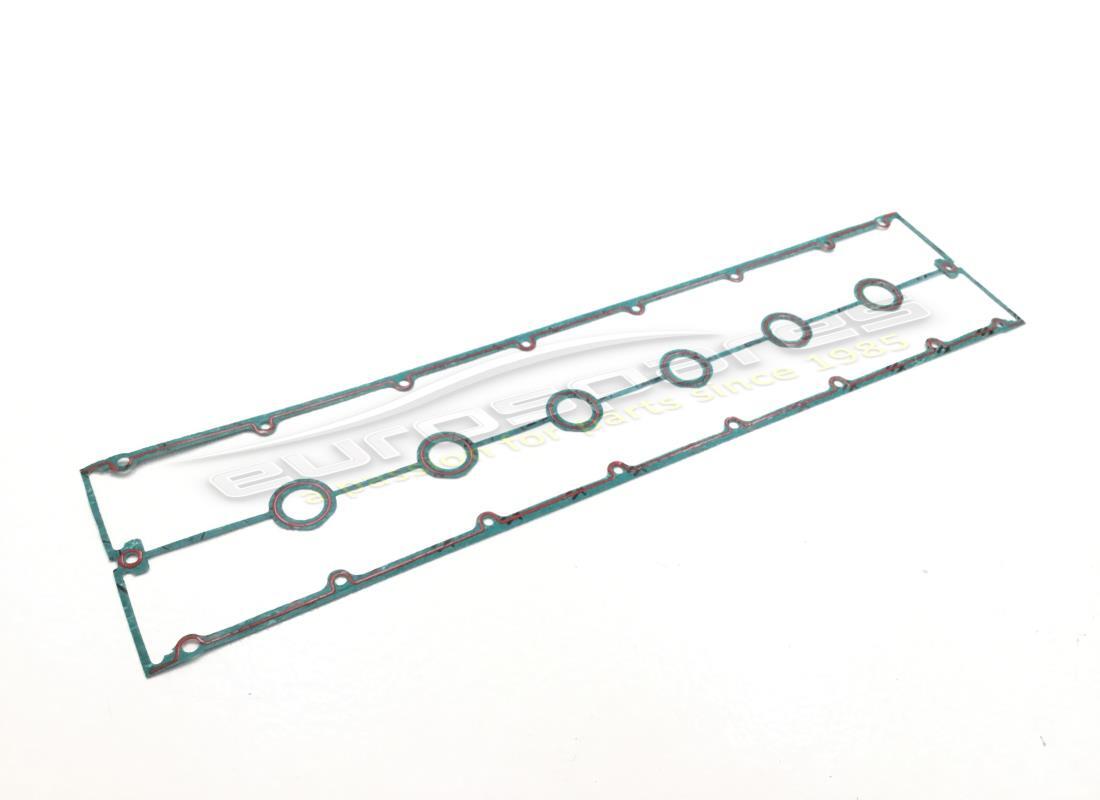

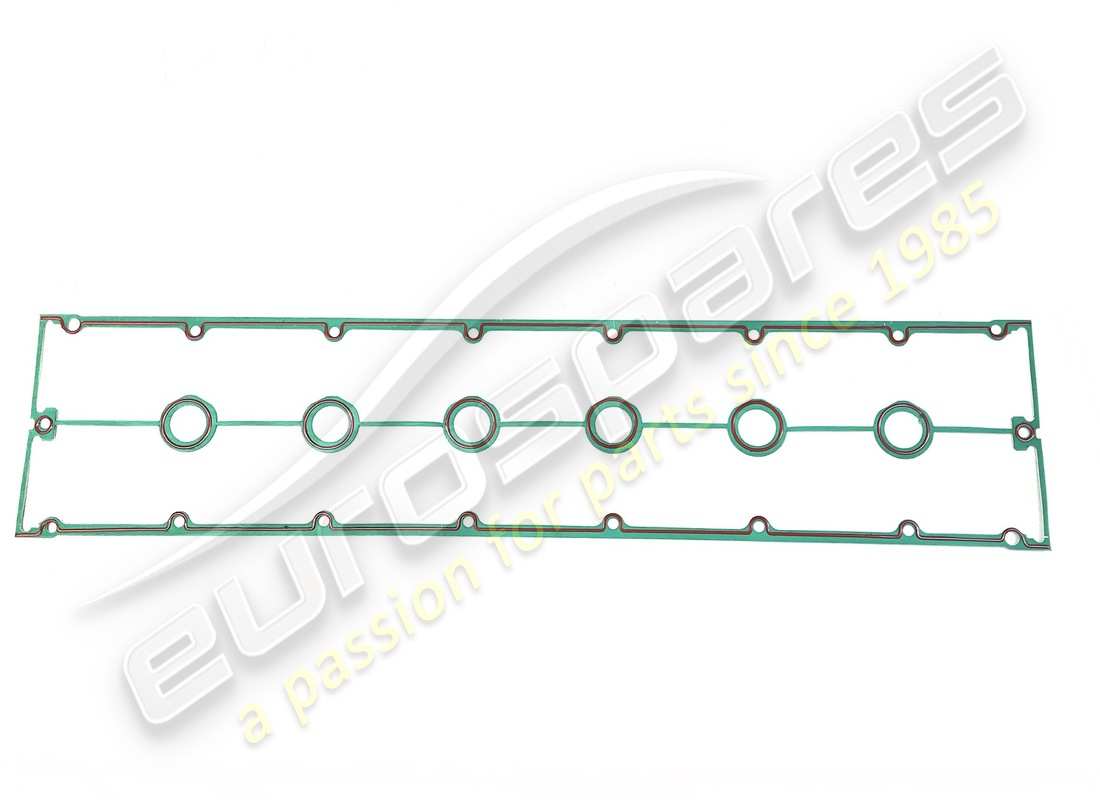

                                                                                                  COVER GASKET
                                                                                                  from £23.82
                                                                                                  from £23.82
                                                                                                  # 033
                                                                                                  MPN: FCCG016

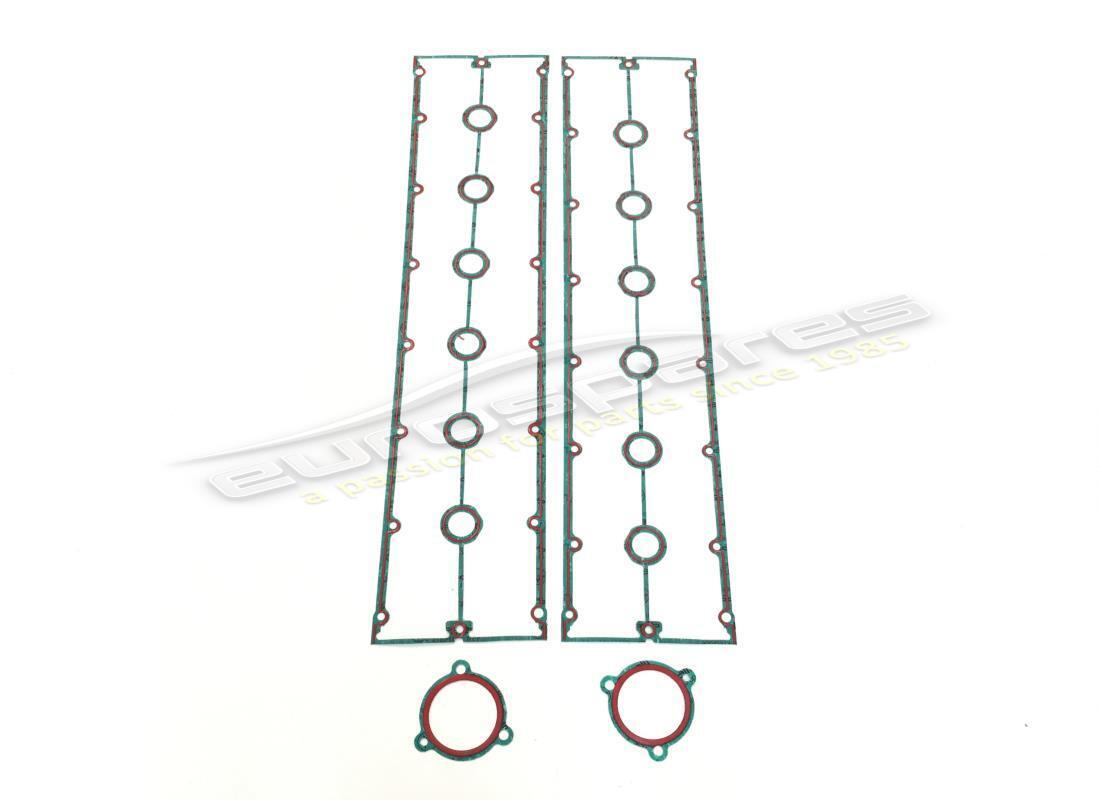

                                                                                                  CAM COVER GASKET SET
                                                                                                  (140753 x2 - 140787 x2)
                                                                                                  from £75.00
                                                                                                  from £75.00
                                                                                                  # 034
                                                                                                  MPN: 154647
                                                                                                  OIL EXHAUST DUCTING
                                                                                                  from £19.55
                                                                                                  from £19.55
                                                                                                  # 035
                                                                                                  MPN: 142599
                                                                                                  O.R. GASKET
                                                                                                  from £0.68
                                                                                                  from £0.68
                                                                                                  # 036
                                                                                                  MPN: 12601174
                                                                                                  WASHER
                                                                                                  from £0.54
                                                                                                  from £0.54
                                                                                                  This part replaces part number 12601173 - and 5 more. Click to view details
                                                                                                  # 037
                                                                                                  MPN: 14304224
                                                                                                  SCREW
                                                                                                  from £0.53
                                                                                                  from £0.53
                                                                                                  # 038
                                                                                                  MPN: 151688
                                                                                                  SUPPORT FOR ACCELERATOR CABLE
                                                                                                  from £23.43
                                                                                                  from £23.43
                                                                                                  # 039
                                                                                                  MPN: 14305224
                                                                                                  SCREW
                                                                                                  from £0.53
                                                                                                  from £0.53
                                                                                                  # 040
                                                                                                  MPN: 12604274
                                                                                                  WASHER
                                                                                                  from £0.54
                                                                                                  from £0.54
                                                                                                  This part replaces part number 12604271 - and 1 more. Click to view details
                                                                                                  # 041
                                                                                                  MPN: 150866
                                                                                                  PHASE SENSOR
                                                                                                  from £135.82
                                                                                                  from £135.82
                                                                                                  # 042
                                                                                                  MPN: 14305224
                                                                                                  SCREW
                                                                                                  from £0.53
                                                                                                  from £0.53
                                                                                                  # 043
                                                                                                  MPN: 12601274
                                                                                                  WASHER
                                                                                                  from £0.53
                                                                                                  from £0.53
                                                                                                  This part replaces part number 12601221 - and 5 more. Click to view details
                                                                                                  # 044
                                                                                                  MPN: 150867
                                                                                                  SEAL RING
                                                                                                  from £1.22
                                                                                                  from £1.22
                                                                                                  # 045
                                                                                                  MPN: 151275
                                                                                                  RH PHASE SENSOR SUPPORT
                                                                                                  from £240.81
                                                                                                  from £240.81
                                                                                                  # 046
                                                                                                  MPN: 178717
                                                                                                  BRACKET
                                                                                                  Supersession
                                                                                                  Supersession
                                                                                                  # 047
                                                                                                  MPN: 140787
                                                                                                  GASKET
                                                                                                  (minimum order quantity = 4)
                                                                                                  from £6.44
                                                                                                  from £6.44
                                                                                                  # 049
                                                                                                  MPN: 12604274
                                                                                                  WASHER
                                                                                                  from £0.54
                                                                                                  from £0.54
                                                                                                  This part replaces part number 12604271 - and 1 more. Click to view details
                                                                                                  # 050
                                                                                                  MPN: 12601274
                                                                                                  WASHER
                                                                                                  from £0.54
                                                                                                  from £0.54
                                                                                                  This part replaces part number 12601221 - and 5 more. Click to view details
                                                                                                  # 051
                                                                                                  MPN: 102741
                                                                                                  NUT
                                                                                                  from £0.53
                                                                                                  from £0.53
                                                                                                  This part replaces part number 12575411 - and 1 more. Click to view details
                                                                                                  # 052
                                                                                                  MPN: 127635
                                                                                                  THREADED PLUG
                                                                                                  from £1.50
                                                                                                  from £1.50
                                                                                                  This part replaces part number 183447
                                                                                                  # 053
                                                                                                  MPN: 157910
                                                                                                  BRACKET
                                                                                                  from £19.64
                                                                                                  from £19.64
                                                                                                  # 054
                                                                                                  MPN: 10977524
                                                                                                  SCREW
                                                                                                  from £0.53
                                                                                                  from £0.53
                                                                                                  # 055
                                                                                                  MPN: 127494
                                                                                                  WASHER
                                                                                                  (minimum order quantity = 20)
                                                                                                  from £0.54
                                                                                                  from £0.54
                                                                                                  This part replaces part number 10516470 - and 4 more. Click to view details
                                                                                                  # 056
                                                                                                  MPN: 16043124
                                                                                                  SCREW
                                                                                                  from £0.30
                                                                                                  from £0.30
                                                                                                  This part replaces part number 16043121 which we have in stock - and 1 more. Click to view details
                                                                                                  SCREW Genuine Ferrari Part - Used In stock
                                                                                                  Removed from 458 engine 178999
                                                                                                  # 057
                                                                                                  MPN: 127496
                                                                                                  WASHER
                                                                                                  from £0.54
                                                                                                  from £0.54
                                                                                                  This part replaces part number 10516671 - and 2 more. Click to view details
