Ferrari 456 M GT/M GTA Lay Shaft Gears -Not for 456M GTA Parts Diagram

036 - Lay Shaft Gears -Not for 456M GTA

Ferrari 456 M GT/M GTA Lay Shaft Gears -Not for 456M GTA Parts Diagram

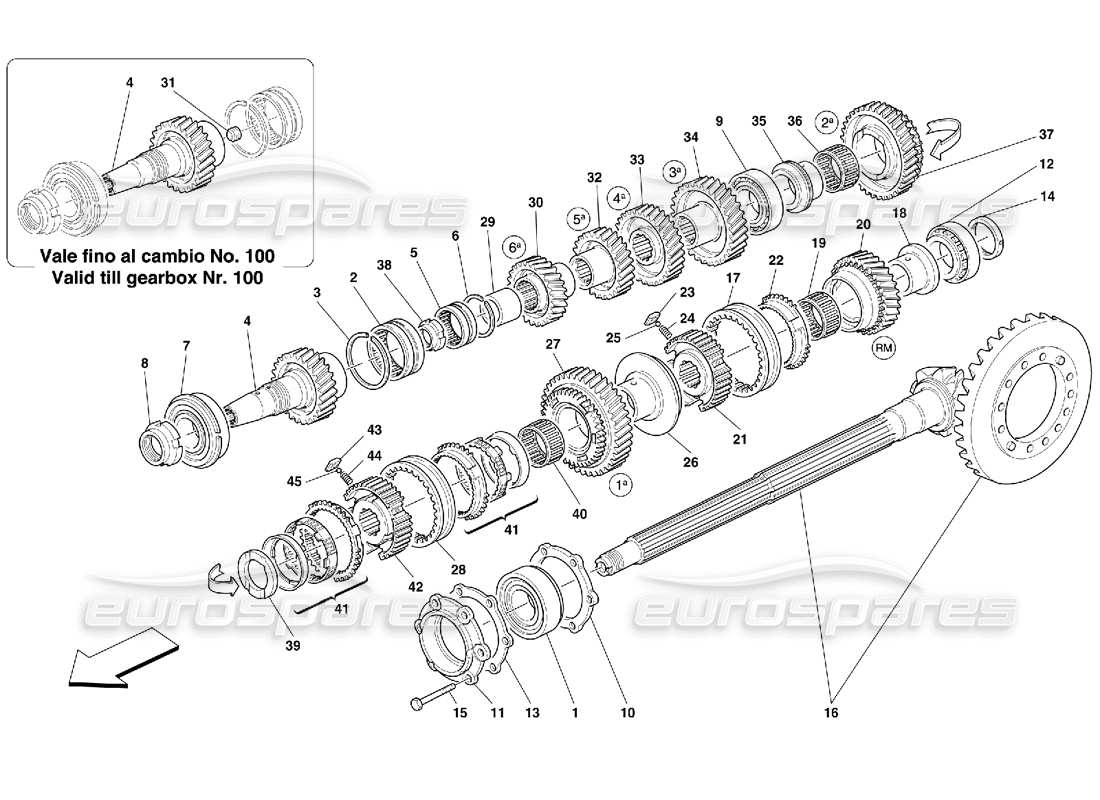

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                    #
                                                                                    Part number
                                                                                    Description
                                                                                    Price
                                                                                    # 001
                                                                                    MPN: 144498
                                                                                    BEARING FOR DRIVEN SHAFT DIFFERENTIAL SIDE
                                                                                    from £152.07
                                                                                    from £152.07
                                                                                    # 002
                                                                                    MPN: 144486
                                                                                    ROLLER BEARING
                                                                                    from £37.04
                                                                                    from £37.04
                                                                                    # 003
                                                                                    MPN: 144511
                                                                                    STOP RING
                                                                                    from £1.57
                                                                                    from £1.57
                                                                                    # 004
                                                                                    MPN: 154749
                                                                                    DRIVING GEAR - Z 31
                                                                                    - Valid till gearbox Nr. 100
                                                                                    Supersession
                                                                                    Supersession
                                                                                    # 004
                                                                                    MPN: 177885
                                                                                    DRIVING GEAR - Z 31
                                                                                    - Valid from gearbox Nr. 101
                                                                                    from £1,117.14
                                                                                    from £1,117.14
                                                                                    # 005
                                                                                    MPN: 144476
                                                                                    ROLLER BEARING
                                                                                    from £31.09
                                                                                    from £31.09
                                                                                    # 006
                                                                                    MPN: 144520
                                                                                    STOP RING
                                                                                    from £0.47
                                                                                    from £0.47
                                                                                    # 007
                                                                                    MPN: 148188
                                                                                    BALL BEARING
                                                                                    from £112.76
                                                                                    from £112.76
                                                                                    # 008
                                                                                    MPN: 148137
                                                                                    RING NUT
                                                                                    from £13.51
                                                                                    from £13.51
                                                                                    # 009
                                                                                    MPN: 228055
                                                                                    ROLLER BEARING
                                                                                    from £47.98
                                                                                    from £47.98
                                                                                    This part replaces part number 131056 - and 1 more. Click to view details
                                                                                    # 010
                                                                                    MPN: 143924
                                                                                    RING
                                                                                    from £31.90
                                                                                    from £31.90
                                                                                    # 011
                                                                                    MPN: 143923
                                                                                    BUSHING
                                                                                    from £40.31
                                                                                    from £40.31
                                                                                    # 012
                                                                                    MPN: 121822
                                                                                    ROLLER BEARING
                                                                                    from £212.28
                                                                                    from £212.28
                                                                                    # 013
                                                                                    MPN: 155718
                                                                                    SPACER THICK. MM. 2.0
                                                                                    from £24.01
                                                                                    from £24.01
                                                                                    # 013
                                                                                    MPN: 155719
                                                                                    SPACER THICK. MM. 1.6
                                                                                    from £40.51
                                                                                    from £40.51
                                                                                    # 013
                                                                                    MPN: 155720
                                                                                    SPACER THICK. MM. 1.8
                                                                                    from £23.67
                                                                                    from £23.67
                                                                                    # 013
                                                                                    MPN: 155721
                                                                                    SPACER THICK. MM. 2.2
                                                                                    from £16.31
                                                                                    from £16.31
                                                                                    # 013
                                                                                    MPN: 155722
                                                                                    SPACER THICK. MM. 2.4
                                                                                    from £10.49
                                                                                    from £10.49
                                                                                    # 013
                                                                                    MPN: 175375
                                                                                    SPACER THICK. MM. 1.85
                                                                                    from £22.48
                                                                                    from £22.48
                                                                                    # 013
                                                                                    MPN: 175376
                                                                                    SPACER THICK. MM. 1.9
                                                                                    from £25.60
                                                                                    from £25.60
                                                                                    # 013
                                                                                    MPN: 175377
                                                                                    SPACER THICK. MM. 1.95
                                                                                    from £9.06
                                                                                    from £9.06
                                                                                    # 014
                                                                                    MPN: 122152
                                                                                    SPACER
                                                                                    from £92.38
                                                                                    from £92.38
                                                                                    # 014
                                                                                    MPN: 157668
                                                                                    SPACER
                                                                                    - As an alternative of 122152
                                                                                    from £56.58
                                                                                    from £56.58
                                                                                    # 015
                                                                                    MPN: 16321434
                                                                                    SCREW
                                                                                    from £4.54
                                                                                    from £4.54
                                                                                    # 016
                                                                                    MPN: 150876
                                                                                    CROWN WHEEL AND PINION COMPLETE R.11/40
                                                                                    - Valid till car Ass. Nr. 30093
                                                                                    from £1,037.97
                                                                                    from £1,037.97
                                                                                    # 016
                                                                                    MPN: 175727
                                                                                    CROWN WHEEL AND PINION COMPLETE R.11/40
                                                                                    - Valid from car Ass. Nr. 30094
                                                                                    from £726.41
                                                                                    from £726.41
                                                                                    # 017
                                                                                    MPN: 152198
                                                                                    SLEEVE
                                                                                    from £138.80
                                                                                    from £138.80
                                                                                    # 018
                                                                                    MPN: 152090
                                                                                    BUSHING
                                                                                    from £180.98
                                                                                    from £180.98
                                                                                    # 019
                                                                                    MPN: 150004
                                                                                    ROLLER CAGE
                                                                                    from £6.18
                                                                                    from £6.18
                                                                                    # 020
                                                                                    MPN: 155880
                                                                                    REVERSE GEAR - Z 34
                                                                                    Supersession
                                                                                    Supersession
                                                                                    # 021
                                                                                    MPN: 152203
                                                                                    SYNCHRONIZER BODY
                                                                                    from £101.98
                                                                                    from £101.98
                                                                                    # 022
                                                                                    MPN: 152205
                                                                                    SYNCHRONIZER RING
                                                                                    from £182.66
                                                                                    from £182.66
                                                                                    # 023
                                                                                    MPN: 152195
                                                                                    SMALL BLOCK
                                                                                    from £0.47
                                                                                    from £0.47
                                                                                    # 024
                                                                                    MPN: 152196
                                                                                    SPRING
                                                                                    from £0.47
                                                                                    from £0.47
                                                                                    # 025
                                                                                    MPN: 152197
                                                                                    BALL
                                                                                    from £2.09
                                                                                    from £2.09
                                                                                    # 026
                                                                                    MPN: 152091
                                                                                    BUSHING
                                                                                    from £115.02
                                                                                    from £115.02
                                                                                    # 027
                                                                                    MPN: 157251
                                                                                    COMPLETE PINION FOR 1ST GEAR - Z 45
                                                                                    Supersession
                                                                                    Supersession
                                                                                    # 028
                                                                                    MPN: 156931
                                                                                    SLEEVE
                                                                                    from £129.01
                                                                                    from £129.01
                                                                                    # 029
                                                                                    MPN: 143889
                                                                                    BUSHING
                                                                                    from £6.79
                                                                                    from £6.79
                                                                                    # 030
                                                                                    MPN: 155852
                                                                                    PINION FOR 6TH GEAR - Z 33
                                                                                    Supersession
                                                                                    Supersession
                                                                                    # 031
                                                                                    MPN: 155577
                                                                                    PLUG
                                                                                    - Valid till gearbox Nr. 100
                                                                                    from £3.57
                                                                                    from £3.57
                                                                                    # 032
                                                                                    MPN: 155851
                                                                                    PINION FOR 5TH GEAR - Z 30
                                                                                    Supersession
                                                                                    Supersession
                                                                                    # 033
                                                                                    MPN: 155771
                                                                                    PINION FOR 4TH GEAR - Z 32
                                                                                    Supersession
                                                                                    Supersession
                                                                                    # 034
                                                                                    MPN: 155769
                                                                                    PINION FOR 3RD GEAR - Z 35
                                                                                    Supersession
                                                                                    Supersession
                                                                                    # 035
                                                                                    MPN: 143892
                                                                                    BUSHING
                                                                                    from £26.19
                                                                                    from £26.19
                                                                                    # 036
                                                                                    MPN: 104254
                                                                                    ROLLER CAGE
                                                                                    from £30.36
                                                                                    from £30.36
                                                                                    # 037
                                                                                    MPN: 157253
                                                                                    COMPLETE PINION FOR 2ND GEAR - Z 40
                                                                                    Supersession
                                                                                    Supersession
                                                                                    # 038
                                                                                    MPN: 144048
                                                                                    RING NUT
                                                                                    from £19.14
                                                                                    from £19.14
                                                                                    # 039
                                                                                    MPN: 157375
                                                                                    SPACER
                                                                                    from £4.12
                                                                                    from £4.12
                                                                                    # 040
                                                                                    MPN: 104254
                                                                                    ROLLER CAGE
                                                                                    from £30.36
                                                                                    from £30.36
                                                                                    # 041
                                                                                    MPN: 159088
                                                                                    SYNCHRONIZER RINGS SERIES
                                                                                    from £514.98
                                                                                    from £514.98
                                                                                    This part replaces part number 159095
                                                                                    # 042
                                                                                    MPN: 157255
                                                                                    SYNCHRONIZER BODY
                                                                                    from £172.03
                                                                                    from £172.03
                                                                                    # 043
                                                                                    MPN: 157051
                                                                                    SMALL BLOCK
                                                                                    from £5.85
                                                                                    from £5.85
                                                                                    # 044
                                                                                    MPN: 157049
                                                                                    SPRING
                                                                                    from £0.88
                                                                                    from £0.88
                                                                                    # 045
                                                                                    MPN: 157050
                                                                                    BALL
                                                                                    from £0.52
                                                                                    from £0.52
