Ferrari 456 M GT/M GTA Lights Lifting Device and Headlights Parts Diagram

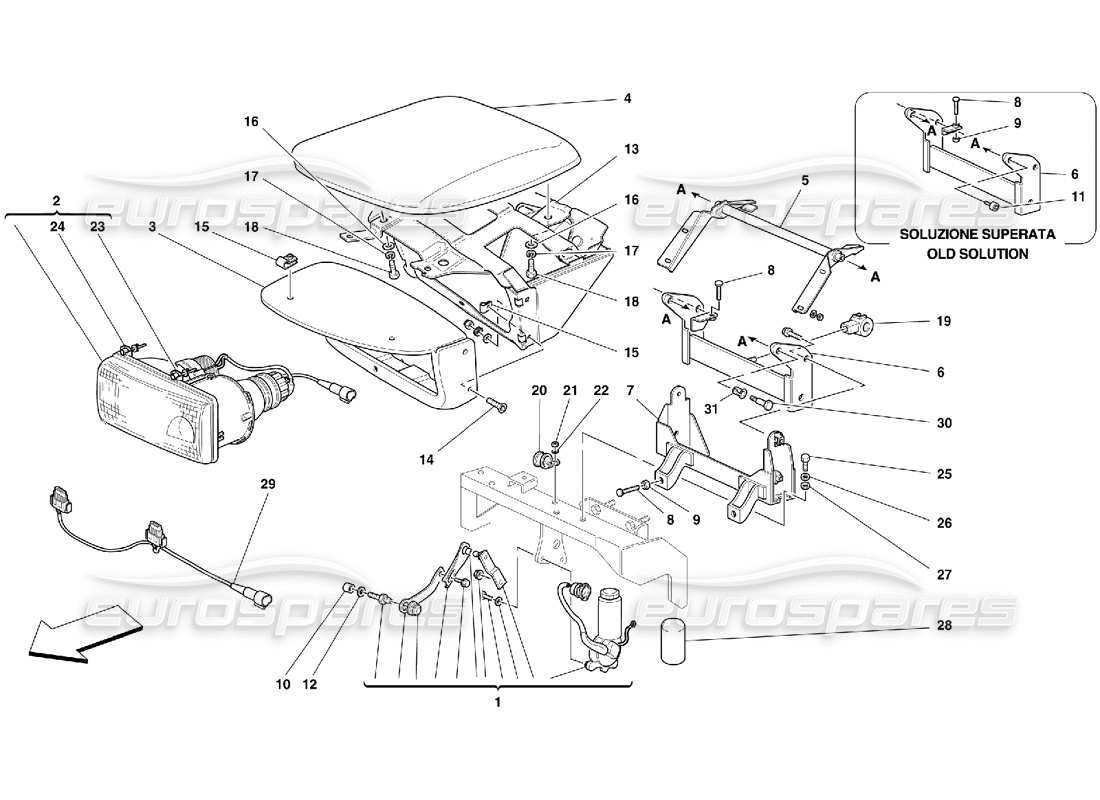

128 - Lights Lifting Device and Headlights

Ferrari 456 M GT/M GTA Lights Lifting Device and Headlights Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                        #
                                                        Part number
                                                        Description
                                                        Price
                                                        # 001
                                                        MPN: 173965
                                                        COMPLETE RH LIGHT LIFTING MOTOR
                                                        from £4,545.60
                                                        from £4,545.60
                                                        This part replaces part number 153093
                                                        # 001
                                                        MPN: 174159
                                                        LHS HEADLIGHT MOTOR
                                                        from £4,329.12
                                                        from £4,329.12
                                                        This part replaces part number 153094
                                                        # 002
                                                        MPN: 133080

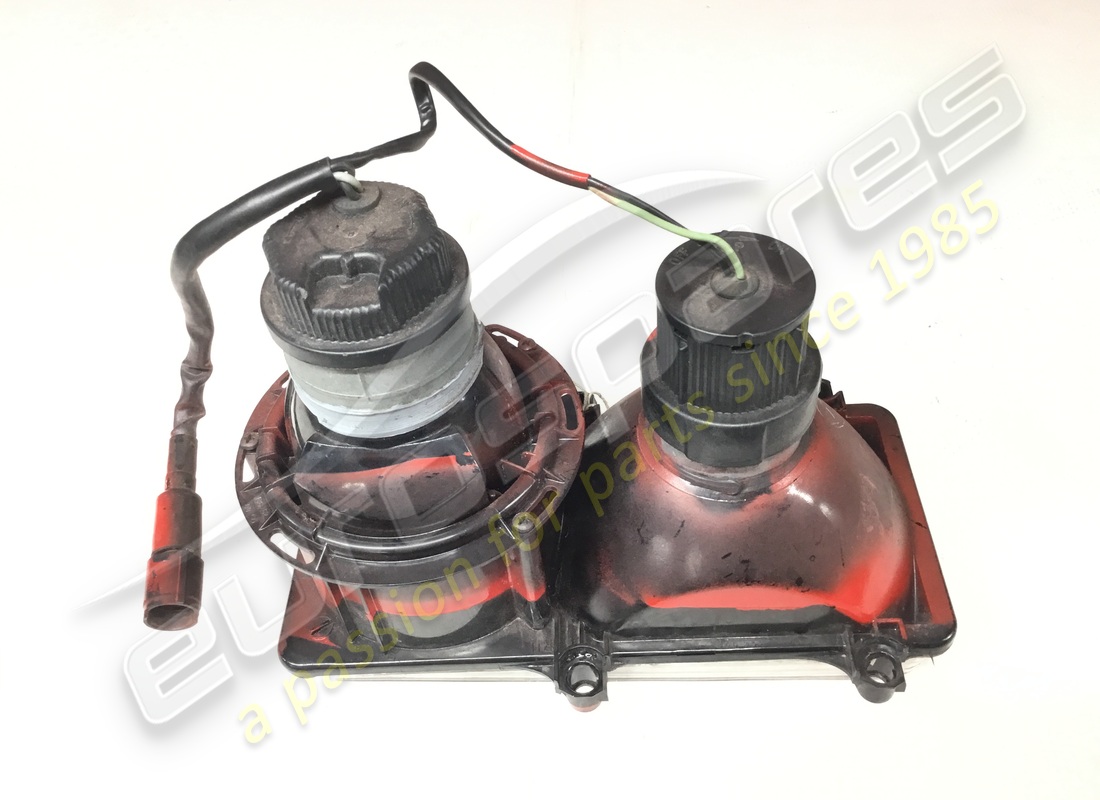

                                                        RH HEADLIGHT LOW/HIGH BEAM
                                                        - Not for USA, CDN, GD and J
                                                        from £447.30
                                                        from £447.30
                                                        This part replaces part number 63187800
                                                        # 002
                                                        MPN: 133081
                                                        LH HEADLIGHT LOW/HIGH BEAM
                                                        - Not for USA, CDN, GD and J
                                                        from £526.31
                                                        from £526.31
                                                        This part replaces part number 133085 - and 1 more. Click to view details
                                                        # 002
                                                        MPN: 133084
                                                        RH HEADLIGHT LOW/HIGH BEAM
                                                        - Valid for GD
                                                        from £253.21
                                                        from £253.21
                                                        # 002
                                                        MPN: 133085
                                                        LH HEADLIGHT LOW/HIGH BEAM
                                                        - Valid for GD
                                                        Supersession
                                                        Supersession
                                                        # 002
                                                        MPN: 146157
                                                        RH HEADLIGHT LOW/HIGH BEAM
                                                        - Valid for J
                                                        from £458.73
                                                        from £458.73
                                                        # 002
                                                        MPN: 146158
                                                        LH HEADLIGHT LOW/HIGH BEAM
                                                        - Vale for J
                                                        from £458.73
                                                        from £458.73
                                                        # 002
                                                        MPN: 179520
                                                        RH HEADLIGHT LOW/HIGH BEAM
                                                        - Valid for USA and CDN
                                                        from £460.38
                                                        from £460.38
                                                        # 002
                                                        MPN: 179521
                                                        LH HEADLIGHT LOW/HIGH BEAM
                                                        - Valid for USA e CDN
                                                        from £253.21
                                                        from £253.21
                                                        # 003
                                                        MPN: 65412010

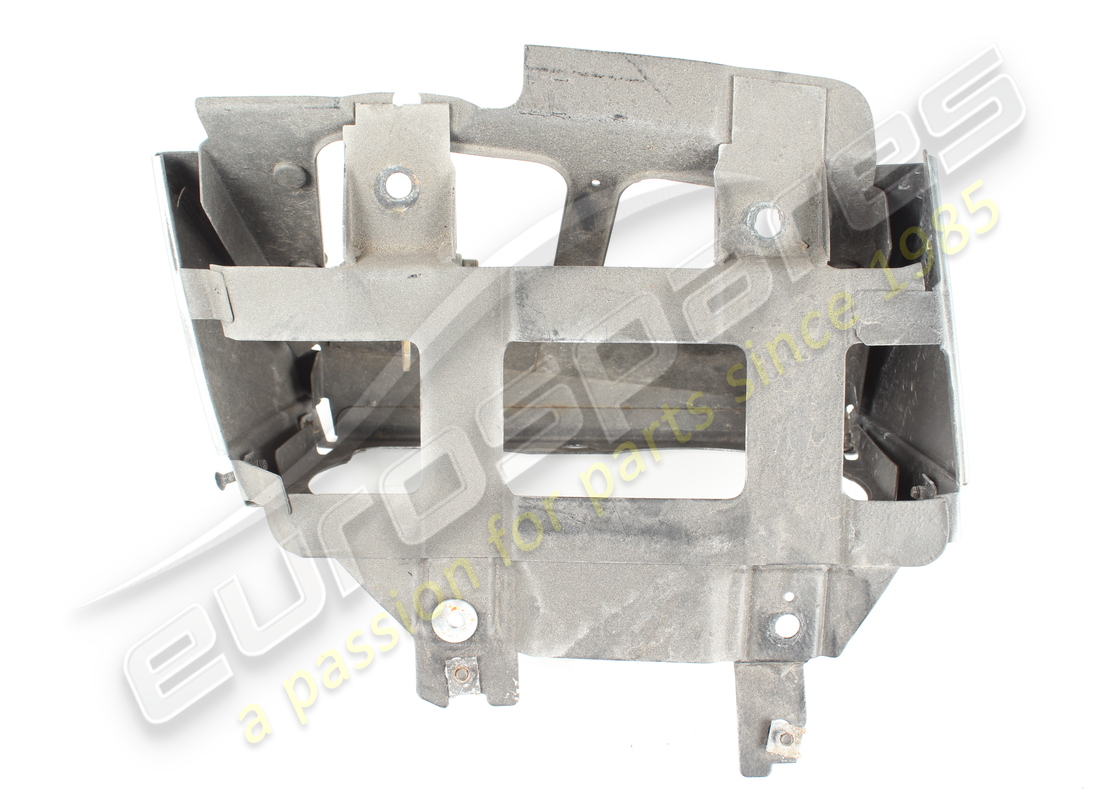

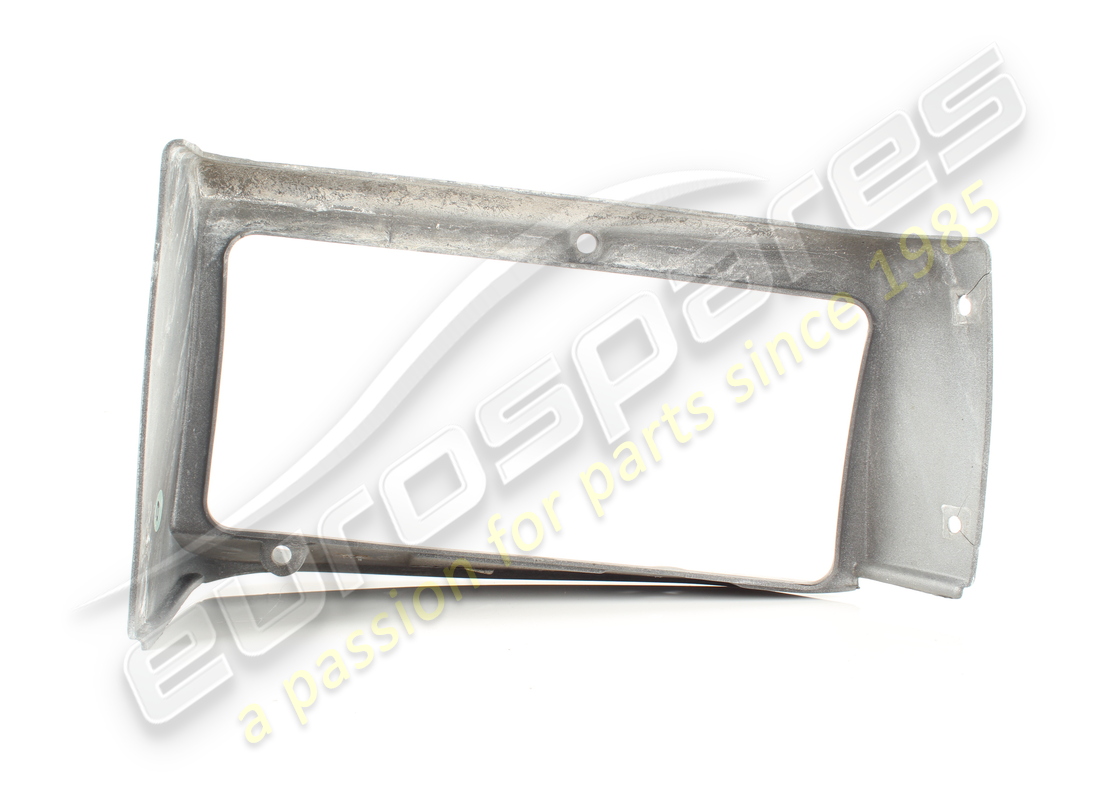

                                                        RH LIGHT FRAME
                                                        from £16.53
                                                        from £16.53
                                                        # 003
                                                        MPN: 65412110
                                                        LH LIGHT FRAME
                                                        from £16.53
                                                        from £16.53
                                                        # 004
                                                        MPN: 65412200
                                                        RH EXTERNAL PANEL
                                                        Supersession
                                                        Supersession
                                                        # 004
                                                        MPN: 65412210
                                                        RH EXTERNAL PANEL
                                                        See also 65412200
                                                        from £59.27
                                                        from £59.27
                                                        This part replaces part number 65412200 - and 4 more. Click to view details
                                                        # 004
                                                        MPN: 65412210
                                                        RH EXTERNAL PANEL
                                                        See also 65412200
                                                        from £59.27
                                                        from £59.27
                                                        This part replaces part number 65412200 - and 4 more. Click to view details
                                                        # 004
                                                        MPN: 65412210
                                                        RH EXTERNAL PANEL
                                                        See also 65412200
                                                        from £59.27
                                                        from £59.27
                                                        This part replaces part number 65412200 - and 4 more. Click to view details
                                                        # 004
                                                        MPN: 65412300
                                                        LH EXTERNAL PANEL
                                                        Supersession
                                                        Supersession
                                                        # 004
                                                        MPN: 65412310
                                                        LH EXTERNAL PANEL
                                                        See also 65412300
                                                        from £89.25
                                                        from £89.25
                                                        This part replaces part number 65412300 - and 3 more. Click to view details
                                                        # 004
                                                        MPN: 65412310
                                                        LH EXTERNAL PANEL
                                                        See also 65412300
                                                        from £89.25
                                                        from £89.25
                                                        This part replaces part number 65412300 - and 3 more. Click to view details
                                                        # 005
                                                        MPN: 65412600
                                                        RH ROTATION TUBE
                                                        from £45.78
                                                        from £45.78
                                                        # 005
                                                        MPN: 65412700
                                                        LH ROTATION TUBE
                                                        from £53.56
                                                        from £53.56
                                                        # 006
                                                        MPN: 65413300

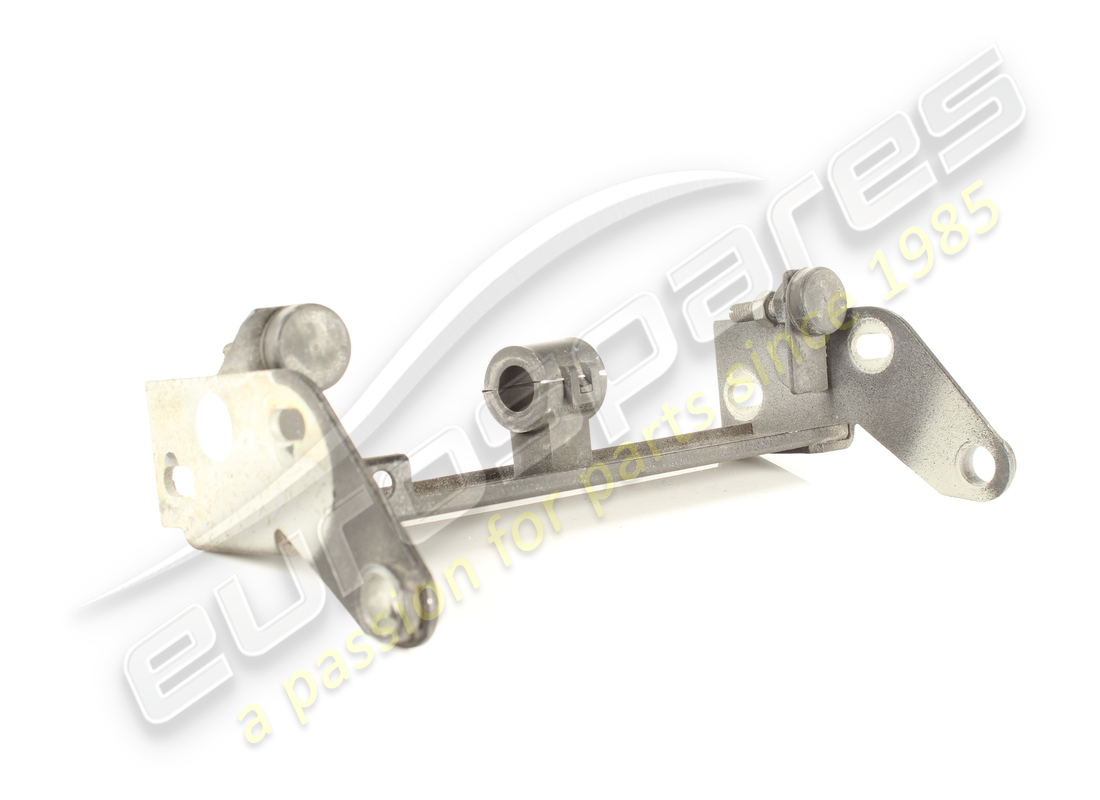

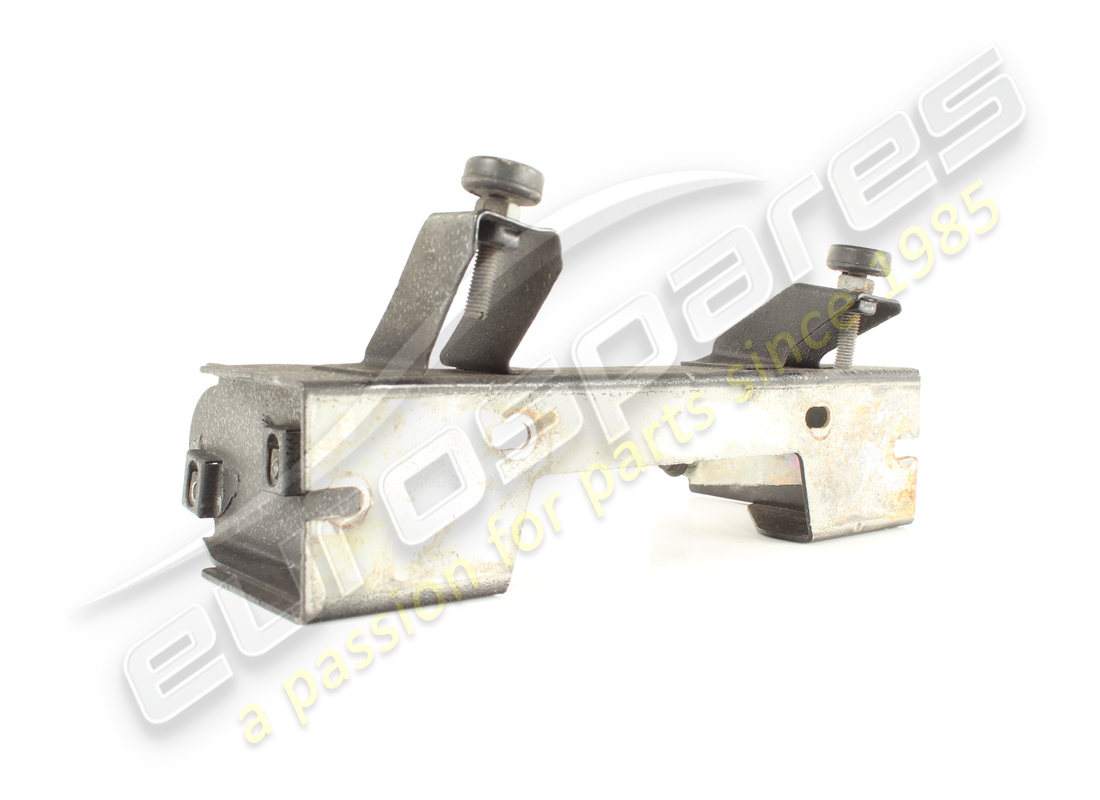

                                                        RH HEADLIGHT ADJUSTING BRACKET
                                                        from £82.11
                                                        from £82.11
                                                        # 006
                                                        MPN: 65898000
                                                        LH HEADLIGHT ADJUSTING BRACKET
                                                        from £45.02
                                                        from £45.02
                                                        # 007
                                                        MPN: 65445900
                                                        RH BRACKET JOINTS CONNECTION
                                                        from £65.32
                                                        from £65.32
                                                        # 007
                                                        MPN: 65446000
                                                        LH BRACKET JOINTS CONNECTION
                                                        from £120.02
                                                        from £120.02
                                                        # 008
                                                        MPN: 63346800

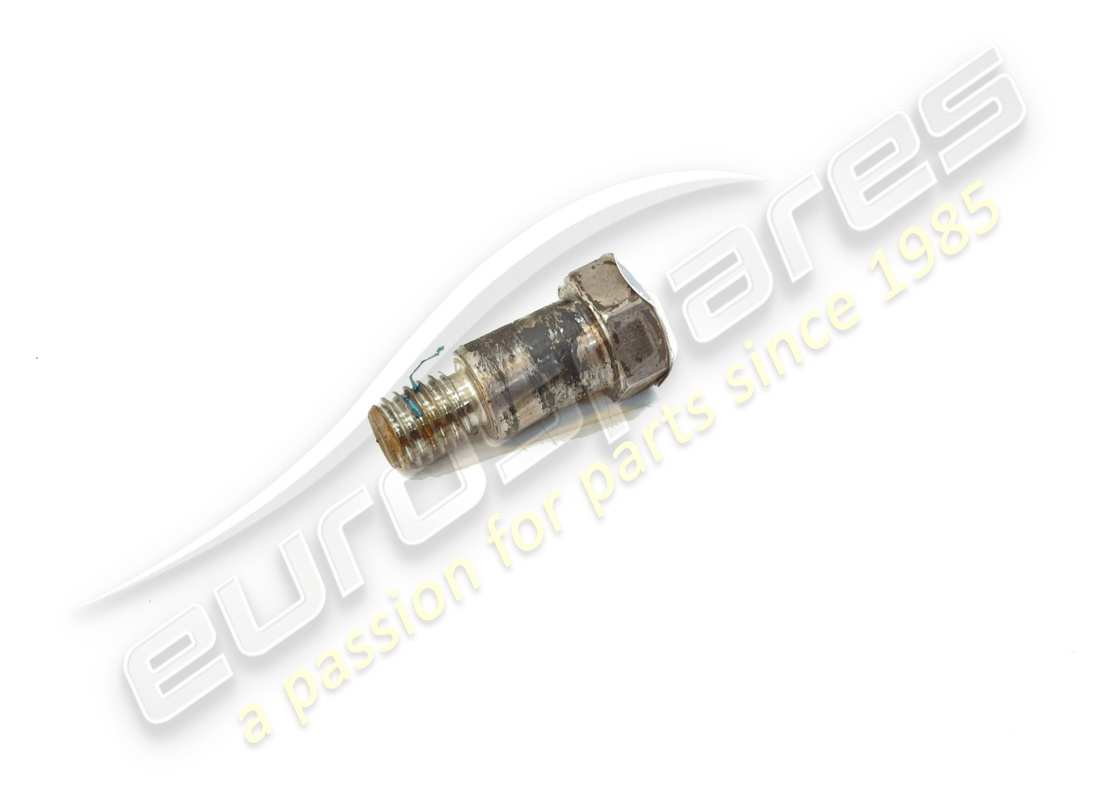

                                                        PIN
                                                        from £4.11
                                                        from £4.11
                                                        This part replaces part number 62054900 - and 1 more. Click to view details
                                                        # 009
                                                        MPN: 15896214
                                                        NUT
                                                        from £0.53
                                                        from £0.53
                                                        This part replaces part number 15896211
                                                        # 010
                                                        MPN: 63186100
                                                        SPACER
                                                        from £0.93
                                                        from £0.93
                                                        # 011
                                                        MPN: 65679600
                                                        SCREW
                                                        from £2.63
                                                        from £2.63
                                                        # 012
                                                        MPN: 62796200
                                                        WASHER
                                                        from £0.53
                                                        from £0.53
                                                        # 013
                                                        MPN: 65412400
                                                        RH LIGHT CONTAINER
                                                        Supersession
                                                        Supersession
                                                        # 013
                                                        MPN: 65412411
                                                        RH LIGHT CONTAINER
                                                        See also 65412400
                                                        from £1,062.03
                                                        from £1,062.03
                                                        This part replaces part number 65412400 - and 2 more. Click to view details
                                                        # 013
                                                        MPN: 65412500
                                                        LH LIGHT CONTAINER
                                                        from £647.47
                                                        from £647.47
                                                        # 013
                                                        MPN: 65412511
                                                        LH LIGHT CONTAINER
                                                        See also 65412500
                                                        from £1,062.03
                                                        from £1,062.03
                                                        This part replaces part number 65412500 which we have in stock
                                                        # 013
                                                        MPN: 65412511
                                                        LH LIGHT CONTAINER
                                                        See also 65412500
                                                        from £1,062.03
                                                        from £1,062.03
                                                        This part replaces part number 65412500 which we have in stock
                                                        # 014
                                                        MPN: 13299477
                                                        SCREW
                                                        from £0.48
                                                        from £0.48
                                                        This part replaces part number 15937618
                                                        # 015
                                                        MPN: 62764200

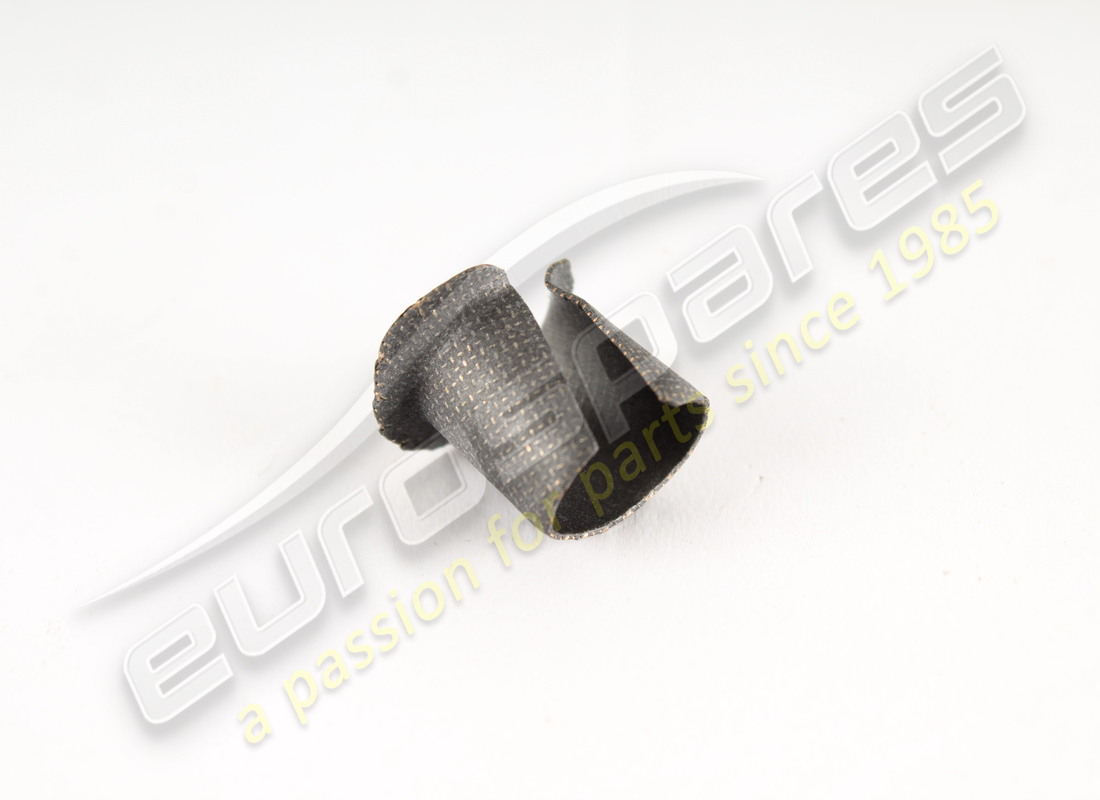

                                                        CLIP
                                                        from £0.51
                                                        from £0.51
                                                        This part replaces part number 14369871
                                                        # 016
                                                        MPN: 12637824
                                                        WASHER
                                                        from £0.47
                                                        from £0.47
                                                        This part replaces part number 12637801 - and 1 more. Click to view details
                                                        # 017
                                                        MPN: 127493
                                                        WASHER
                                                        from £0.48
                                                        from £0.48
                                                        This part replaces part number 106849 - and 1 more. Click to view details
                                                        # 018
                                                        MPN: 10977624
                                                        SCREW
                                                        from £0.48
                                                        from £0.48
                                                        This part replaces part number 10977611 - and 1 more. Click to view details
                                                        # 019
                                                        MPN: 139637
                                                        BRACKET FOR CABLES FIXING
                                                        from £14.57
                                                        from £14.57
                                                        # 020
                                                        MPN: 143119
                                                        FIXING CLIP
                                                        from £0.53
                                                        from £0.53
                                                        # 021
                                                        MPN: 102741

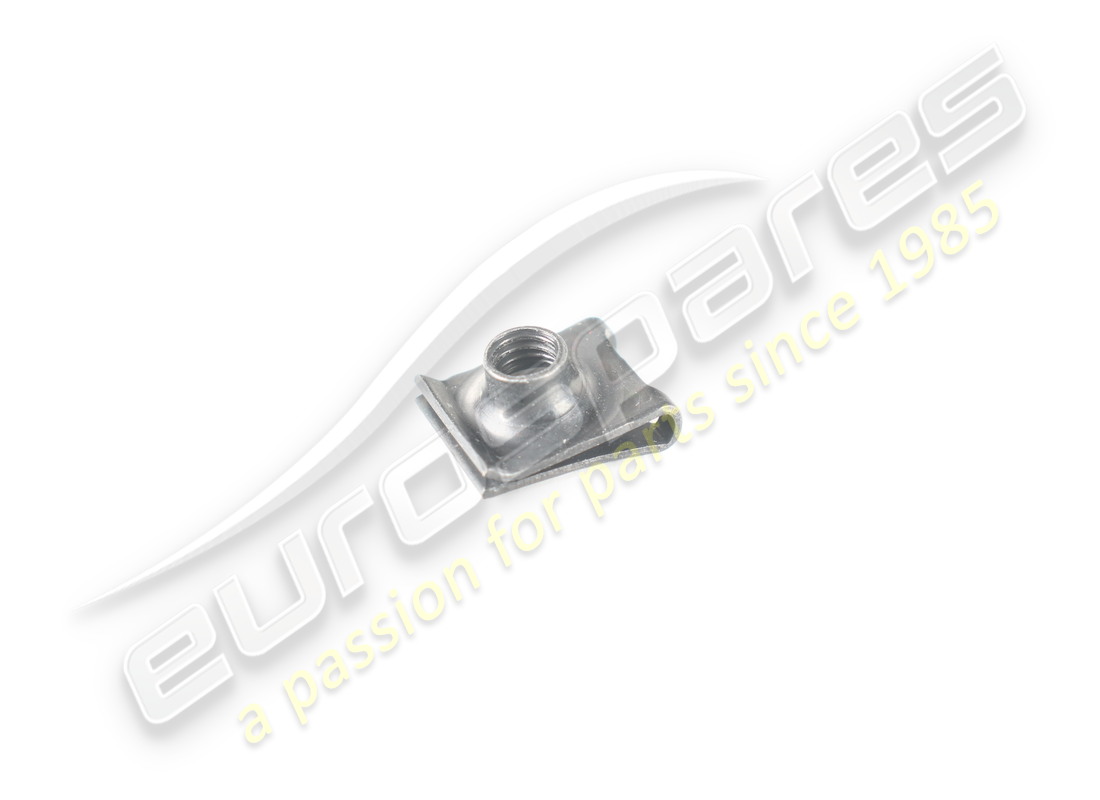

                                                        NUT
                                                        from £0.53
                                                        from £0.53
                                                        This part replaces part number 12575411 - and 1 more. Click to view details
                                                        # 022
                                                        MPN: 10519424
                                                        WASHER
                                                        from £0.54
                                                        from £0.54
                                                        This part replaces part number 10519401 - and 3 more. Click to view details
                                                        # 023
                                                        MPN: 148086
                                                        FIXED POINT PIN
                                                        from £12.40
                                                        from £12.40
                                                        # 024
                                                        MPN: 148088
                                                        HEADLIGHT ADJSTING SCREW
                                                        from £12.54
                                                        from £12.54
                                                        # 025
                                                        MPN: 10902421
                                                        SCREW
                                                        from £0.53
                                                        from £0.53
                                                        # 026
                                                        MPN: 10569274
                                                        WASHER
                                                        from £0.86
                                                        from £0.86
                                                        # 027
                                                        MPN: 12639724
                                                        WASHER
                                                        from £0.52
                                                        from £0.52
                                                        This part replaces part number 12639725 - and 1 more. Click to view details
                                                        # 028
                                                        MPN: 64064700

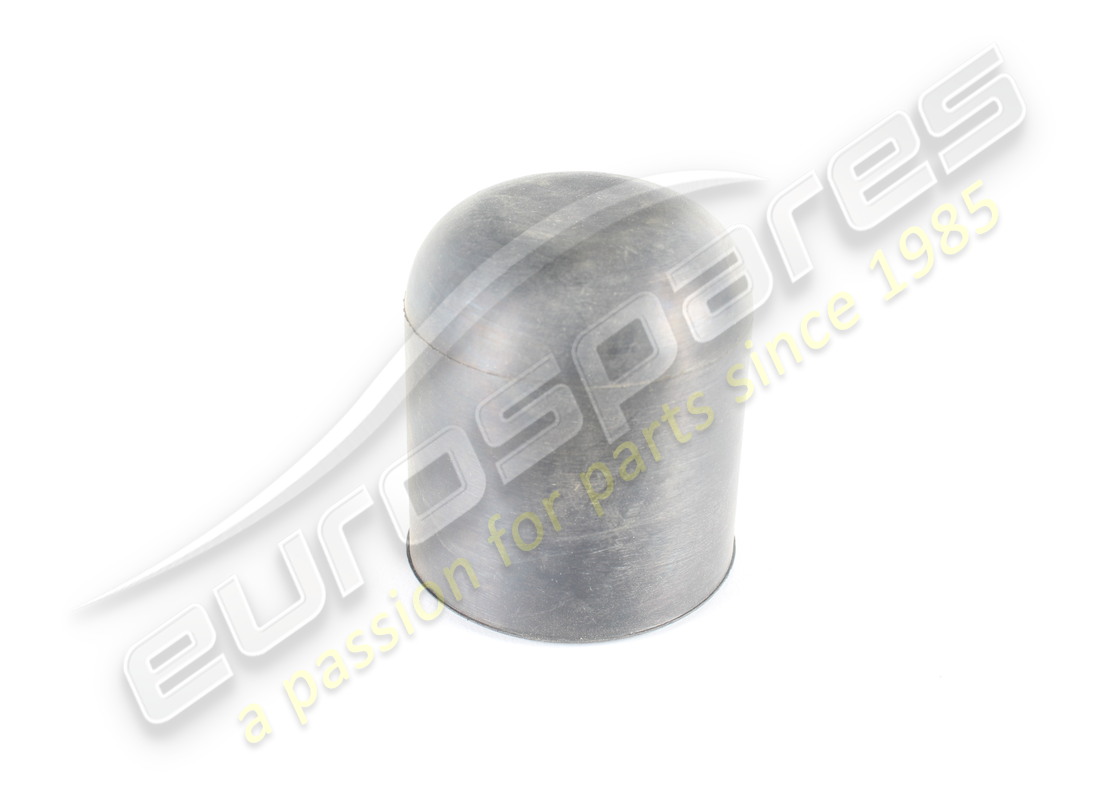

                                                        PROTECTION BOOT
                                                        from £10.57
                                                        from £10.57
                                                        # 029
                                                        MPN: 138914
                                                        LIGHTS CONTROL CABLES
                                                        - Valid for USA and CDN
                                                        from £55.56
                                                        from £55.56
                                                        # 030
                                                        MPN: 63346400
                                                        PIN
                                                        from £25.17
                                                        from £25.17
                                                        # 031
                                                        MPN: 62998000
                                                        BUSHING
                                                        from £1.84
                                                        from £1.84
                                                        Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
