ferrari 456 m gt/m gta engine bonnet parts diagram

114 - Engine Bonnet

Ferrari 456 M GT/M GTA Engine Bonnet Parts Diagram

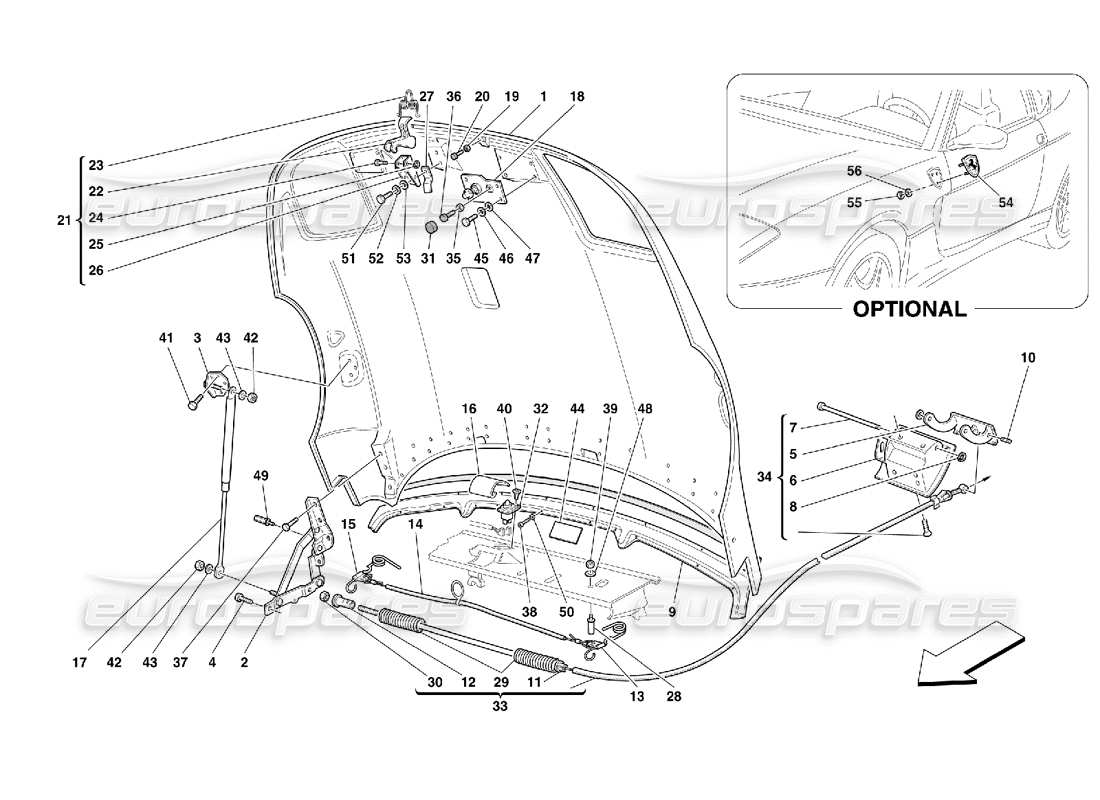

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                  #
                                                                                                  Part number
                                                                                                  Description
                                                                                                  Price
                                                                                                  # 001
                                                                                                  MPN: 65285000
                                                                                                  FRONT HOOD BONNET
                                                                                                  - Not for version with ornament plate
                                                                                                  from £12,481.89
                                                                                                  from £12,481.89
                                                                                                  # 001
                                                                                                  MPN: 65831000
                                                                                                  FRONT HOOD BONNET
                                                                                                  - Valid for version with ornament plate - Optional
                                                                                                  from £13,553.57
                                                                                                  from £13,553.57
                                                                                                  # 002
                                                                                                  MPN: 63853800

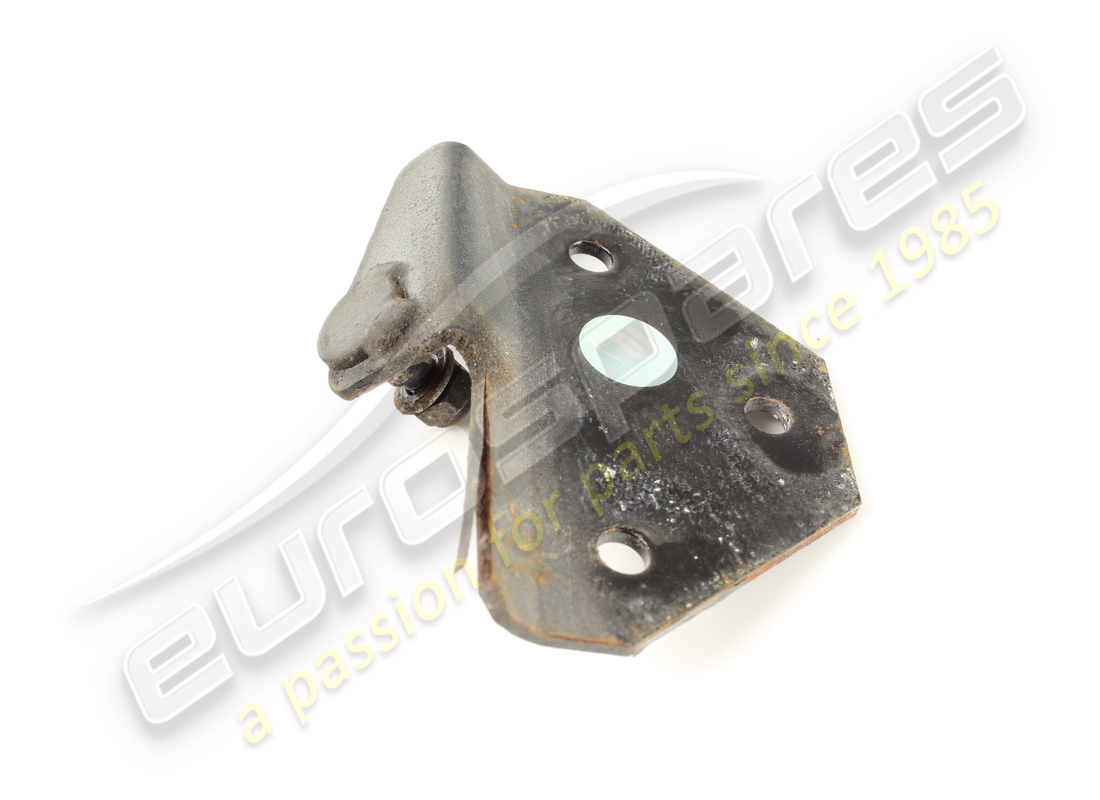

                                                                                                  RH FRONT HOOD BONNET HINGE
                                                                                                  from £118.65
                                                                                                  from £118.65
                                                                                                  # 002
                                                                                                  MPN: 63853900
                                                                                                  LH FRONT HOOD BONNET HINGE
                                                                                                  from £363.42
                                                                                                  from £363.42
                                                                                                  # 003
                                                                                                  MPN: 65655500
                                                                                                  RH PLATE
                                                                                                  from £6.09
                                                                                                  from £6.09
                                                                                                  # 003
                                                                                                  MPN: 65655700
                                                                                                  LH PLATE
                                                                                                  from £5.59
                                                                                                  from £5.59
                                                                                                  # 004
                                                                                                  MPN: 13839224
                                                                                                  SCREW
                                                                                                  (minimum order quantity = 25)
                                                                                                  from £1.69
                                                                                                  from £1.69
                                                                                                  # 005
                                                                                                  MPN: 65278000
                                                                                                  HOOD HANDLE ASSEMBLY
                                                                                                  use : 66089000
                                                                                                  from £203.28
                                                                                                  from £203.28
                                                                                                  This part replaces part number 65278100
                                                                                                  # 006
                                                                                                  MPN: 65278200
                                                                                                  HANDLE HOUSING FOR FRONT HOOD OPENING
                                                                                                  from £82.25
                                                                                                  from £82.25
                                                                                                  # 007
                                                                                                  MPN: 63726200
                                                                                                  PIN
                                                                                                  from £2.60
                                                                                                  from £2.60
                                                                                                  # 008
                                                                                                  MPN: 11087576
                                                                                                  SEEGER RING
                                                                                                  from £2.59
                                                                                                  from £2.59
                                                                                                  This part replaces part number 11087571
                                                                                                  # 009
                                                                                                  MPN: 65555400
                                                                                                  MOULDING
                                                                                                  from £198.75
                                                                                                  from £198.75
                                                                                                  # 010
                                                                                                  MPN: 14163570
                                                                                                  FLEXIBLE PIN
                                                                                                  from £0.47
                                                                                                  from £0.47
                                                                                                  # 011
                                                                                                  MPN: 63206400
                                                                                                  STOP PIN
                                                                                                  from £112.16
                                                                                                  from £112.16
                                                                                                  # 012
                                                                                                  MPN: 63206500
                                                                                                  KNOB
                                                                                                  from £8.22
                                                                                                  from £8.22
                                                                                                  # 013
                                                                                                  MPN: 63883700

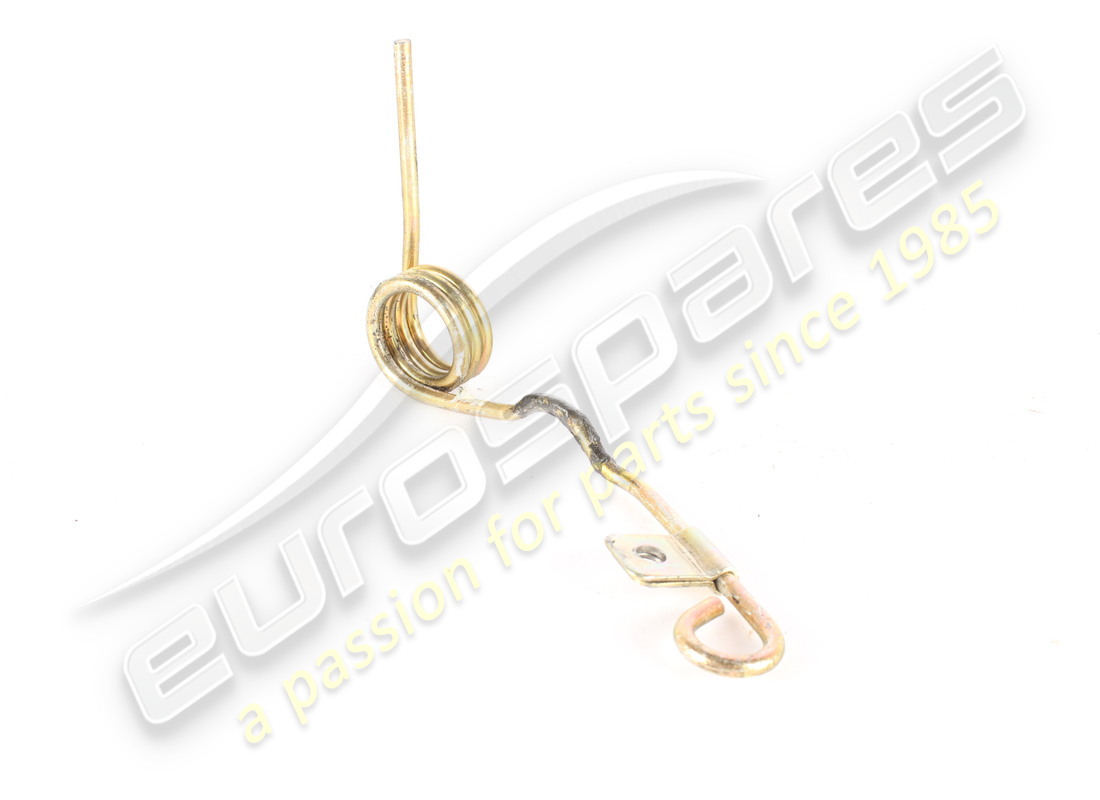

                                                                                                  LH SPRING
                                                                                                  from £43.41
                                                                                                  from £43.41
                                                                                                  This part replaces part number 63218300 - and 1 more. Click to view details
                                                                                                  # 014
                                                                                                  MPN: 63883500
                                                                                                  SAFETY CABLE
                                                                                                  from £68.97
                                                                                                  from £68.97
                                                                                                  # 015
                                                                                                  MPN: 63883600

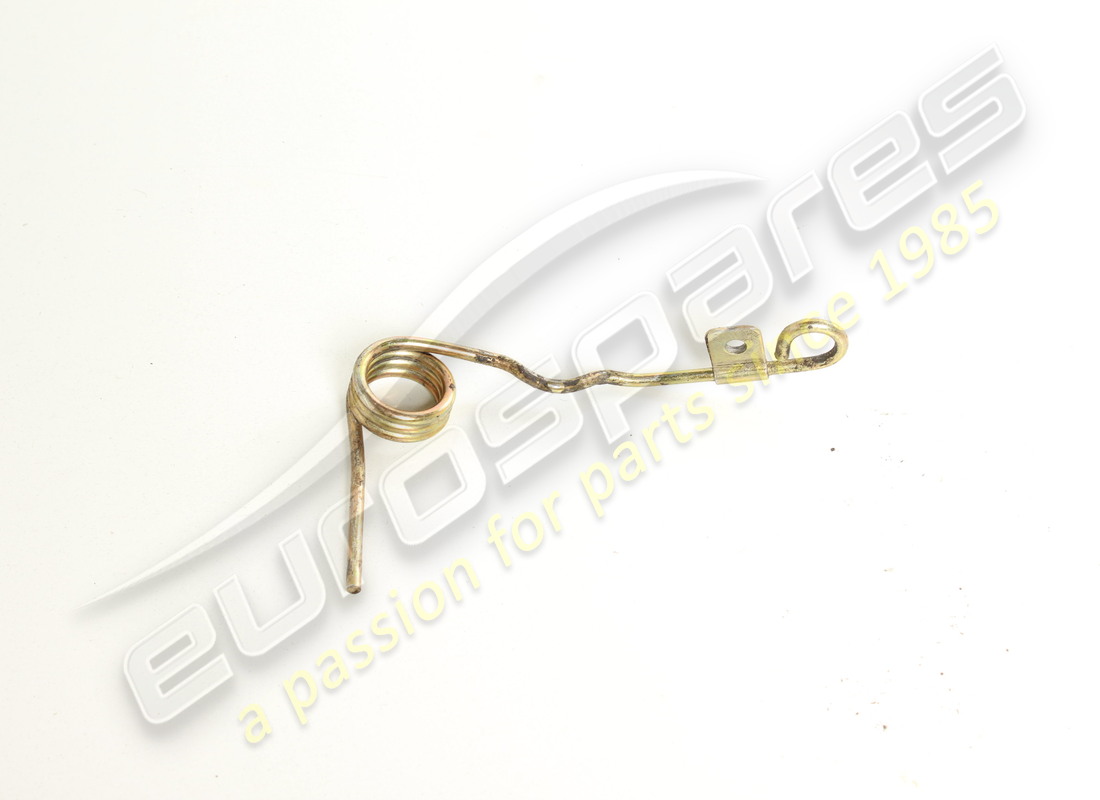

                                                                                                  RH SPRING
                                                                                                  from £43.41
                                                                                                  from £43.41
                                                                                                  This part replaces part number 63218200 - and 1 more. Click to view details
                                                                                                  # 016
                                                                                                  MPN: 63883200
                                                                                                  PLATE
                                                                                                  from £5.45
                                                                                                  from £5.45
                                                                                                  This part replaces part number 63762500
                                                                                                  # 017
                                                                                                  MPN: 65507700

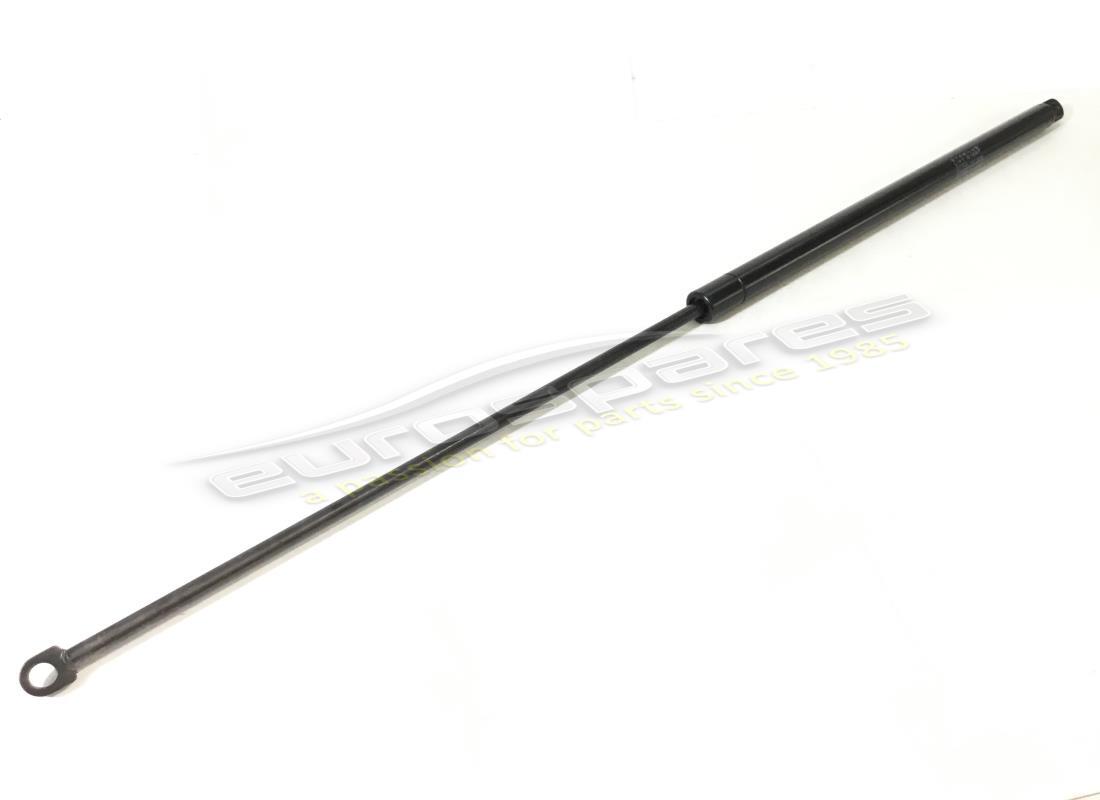

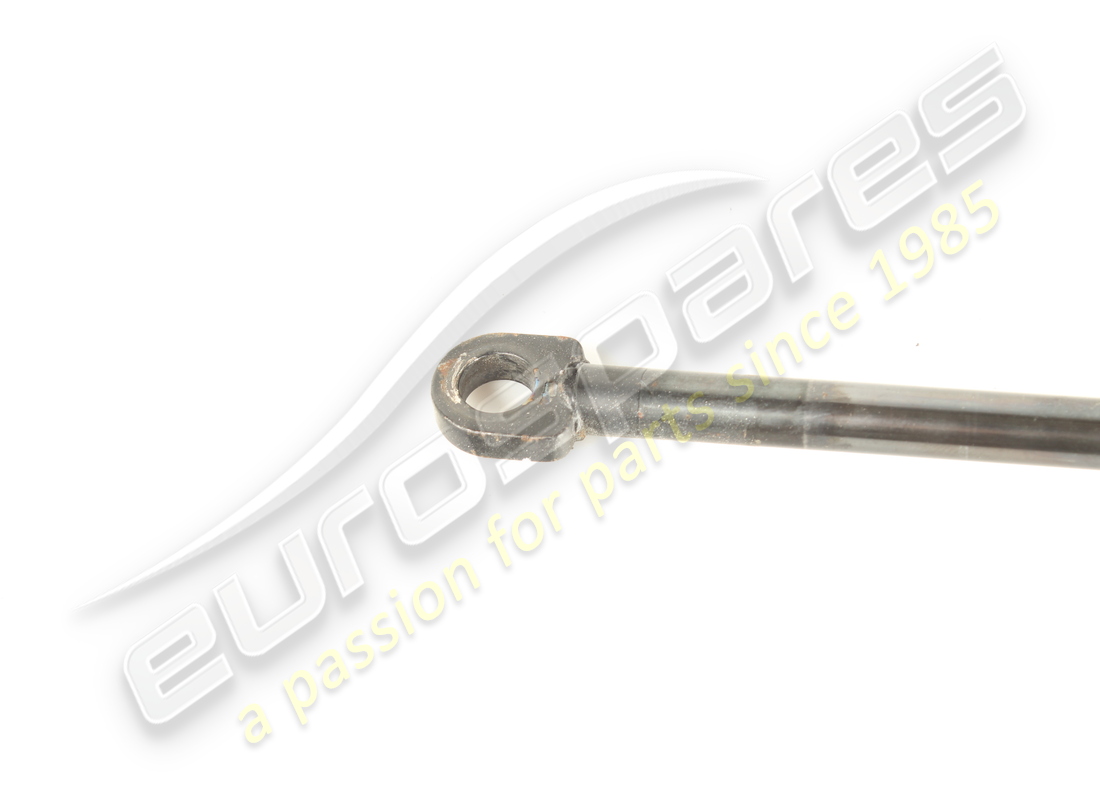

                                                                                                  ENGINE COVER STRUT
                                                                                                  from £19.67
                                                                                                  from £19.67
                                                                                                  # 018
                                                                                                  MPN: 63789500

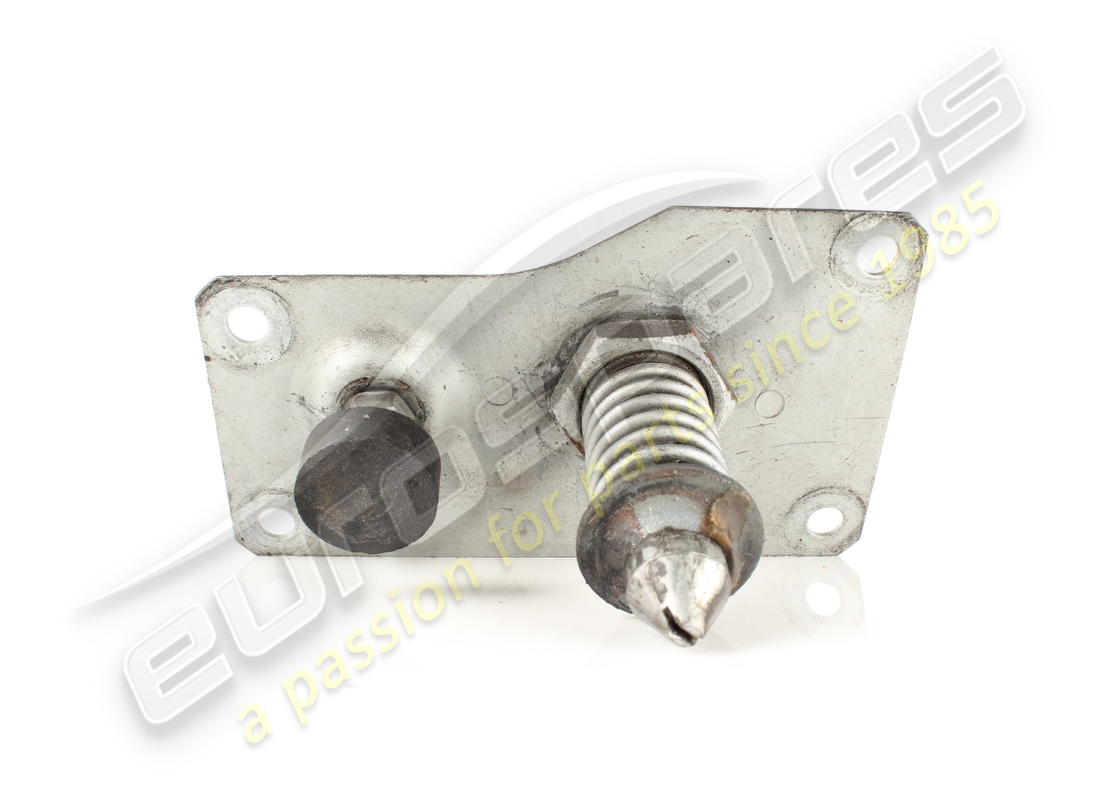

                                                                                                  RH HOOD LOCK DEVICE
                                                                                                  from £44.62
                                                                                                  from £44.62
                                                                                                  # 018
                                                                                                  MPN: 63789600
                                                                                                  LH HOOD LOCK DEVICE
                                                                                                  from £44.62
                                                                                                  from £44.62
                                                                                                  # 019
                                                                                                  MPN: 16102377
                                                                                                  NUT
                                                                                                  from £0.82
                                                                                                  from £0.82
                                                                                                  # 020
                                                                                                  MPN: 62794600
                                                                                                  PAD
                                                                                                  from £1.72
                                                                                                  from £1.72
                                                                                                  # 021
                                                                                                  MPN: 65616500

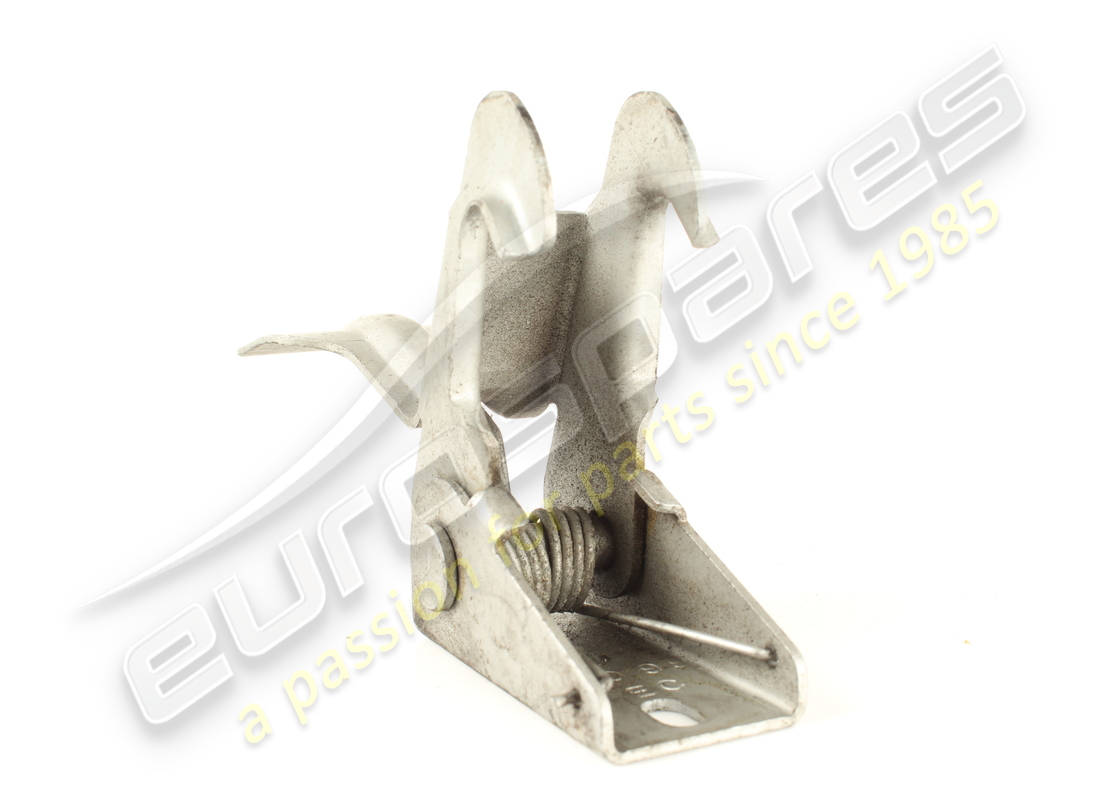

                                                                                                  COMPLETE SAFETY HOOK FOR BONNET
                                                                                                  from £108.23
                                                                                                  from £108.23
                                                                                                  # 022
                                                                                                  MPN: 65616400
                                                                                                  SAFETY HOOK FOR BONNET
                                                                                                  from £27.67
                                                                                                  from £27.67
                                                                                                  # 023
                                                                                                  MPN: 63219200
                                                                                                  SPRING
                                                                                                  from £2.41
                                                                                                  from £2.41
                                                                                                  # 024
                                                                                                  MPN: 63219100
                                                                                                  PIN
                                                                                                  from £4.27
                                                                                                  from £4.27
                                                                                                  # 025
                                                                                                  MPN: 11088074
                                                                                                  SEEGER RING
                                                                                                  from £1.17
                                                                                                  from £1.17
                                                                                                  # 026
                                                                                                  MPN: 63218000
                                                                                                  RETAINER
                                                                                                  from £5.15
                                                                                                  from £5.15
                                                                                                  # 027
                                                                                                  MPN: 63885000
                                                                                                  BRACKET
                                                                                                  from £1.40
                                                                                                  from £1.40
                                                                                                  # 028
                                                                                                  MPN: 63882800

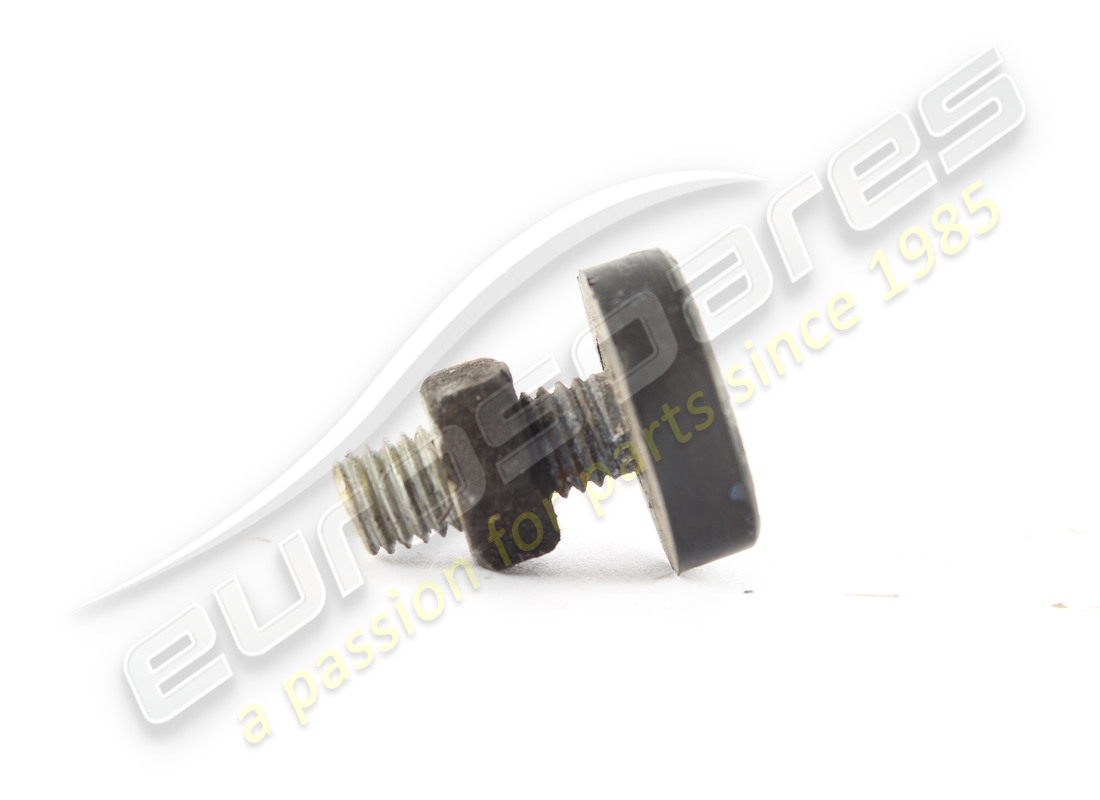

                                                                                                  END OF STROKE
                                                                                                  from £3.42
                                                                                                  from £3.42
                                                                                                  # 029
                                                                                                  MPN: 63895000
                                                                                                  RUBBER BOOT
                                                                                                  from £20.95
                                                                                                  from £20.95
                                                                                                  This part replaces part number 63708200
                                                                                                  # 030
                                                                                                  MPN: 15896470
                                                                                                  NUT
                                                                                                  (minimum order quantity = 20)
                                                                                                  from £0.79
                                                                                                  from £0.79
                                                                                                  This part replaces part number 15896415 which we have in stock - and 1 more. Click to view details
                                                                                                  # 031
                                                                                                  MPN: 61564700
                                                                                                  RUBBER PAD
                                                                                                  from £0.86
                                                                                                  from £0.86
                                                                                                  # 032
                                                                                                  MPN: 153069
                                                                                                  SWITCH
                                                                                                  from £2.11
                                                                                                  from £2.11
                                                                                                  # 033
                                                                                                  MPN: 65832600
                                                                                                  COMPLETE SYSTEM FOR FRONT HOOD OPENING
                                                                                                  from £298.58
                                                                                                  from £298.58
                                                                                                  This part replaces part number 65668700
                                                                                                  # 034
                                                                                                  MPN: 65278000
                                                                                                  HOOD HANDLE ASSEMBLY
                                                                                                  use : 66089000
                                                                                                  from £203.28
                                                                                                  from £203.28
                                                                                                  This part replaces part number 65278100
                                                                                                  # 035
                                                                                                  MPN: 16102377
                                                                                                  NUT
                                                                                                  from £0.82
                                                                                                  from £0.82
                                                                                                  # 036
                                                                                                  MPN: 62766500
                                                                                                  SCREW
                                                                                                  from £1.86
                                                                                                  from £1.86
                                                                                                  # 037
                                                                                                  MPN: 13838911
                                                                                                  SCREW
                                                                                                  from £2.07
                                                                                                  from £2.07
                                                                                                  This part replaces part number 13838971
                                                                                                  # 038
                                                                                                  MPN: 13272017
                                                                                                  SCREW
                                                                                                  from £0.47
                                                                                                  from £0.47
                                                                                                  # 039
                                                                                                  MPN: 15896277
                                                                                                  NUT
                                                                                                  from £1.11
                                                                                                  from £1.11
                                                                                                  # 040
                                                                                                  MPN: 15687375
                                                                                                  SCREW
                                                                                                  from £0.47
                                                                                                  from £0.47
                                                                                                  This part replaces part number 15687370 - and 1 more. Click to view details
                                                                                                  # 041
                                                                                                  MPN: 13836324
                                                                                                  SCREW
                                                                                                  Supersession
                                                                                                  Supersession
                                                                                                  # 042
                                                                                                  MPN: 102741
                                                                                                  NUT
                                                                                                  from £0.47
                                                                                                  from £0.47
                                                                                                  This part replaces part number 12575411 - and 1 more. Click to view details
                                                                                                  # 043
                                                                                                  MPN: 10519424
                                                                                                  WASHER
                                                                                                  from £0.47
                                                                                                  from £0.47
                                                                                                  This part replaces part number 10519401 - and 3 more. Click to view details
                                                                                                  # 044
                                                                                                  MPN: 12856780
                                                                                                  AIR-BAG AUTO-ADHESIVE PLATE
                                                                                                  from £17.05
                                                                                                  from £17.05
                                                                                                  # 045
                                                                                                  MPN: 10902124
                                                                                                  SCREW
                                                                                                  from £0.48
                                                                                                  from £0.48
                                                                                                  This part replaces part number 10902111 - and 1 more. Click to view details
                                                                                                  # 046
                                                                                                  MPN: 12643724
                                                                                                  WASHER
                                                                                                  from £0.47
                                                                                                  from £0.47
                                                                                                  This part replaces part number 109684 - and 4 more. Click to view details
                                                                                                  # 047
                                                                                                  MPN: 10571570
                                                                                                  WASHER
                                                                                                  from £0.87
                                                                                                  from £0.87
                                                                                                  # 048
                                                                                                  MPN: 12643724
                                                                                                  WASHER
                                                                                                  from £0.47
                                                                                                  from £0.47
                                                                                                  This part replaces part number 109684 - and 4 more. Click to view details
                                                                                                  # 049
                                                                                                  MPN: 63218100
                                                                                                  END OF STROKE
                                                                                                  from £12.57
                                                                                                  from £12.57
                                                                                                  # 050
                                                                                                  MPN: 10519278
                                                                                                  WASHER
                                                                                                  from £0.47
                                                                                                  from £0.47
                                                                                                  This part replaces part number 10519206 - and 1 more. Click to view details
                                                                                                  # 051
                                                                                                  MPN: 10902124
                                                                                                  SCREW
                                                                                                  from £0.53
                                                                                                  from £0.53
                                                                                                  This part replaces part number 10902111 - and 1 more. Click to view details
                                                                                                  # 052
                                                                                                  MPN: 12643724
                                                                                                  WASHER
                                                                                                  from £0.47
                                                                                                  from £0.47
                                                                                                  This part replaces part number 109684 - and 4 more. Click to view details
                                                                                                  # 053
                                                                                                  MPN: 10571674
                                                                                                  WASHER
                                                                                                  from £0.50
                                                                                                  from £0.50
                                                                                                  # 054
                                                                                                  MPN: 64174200

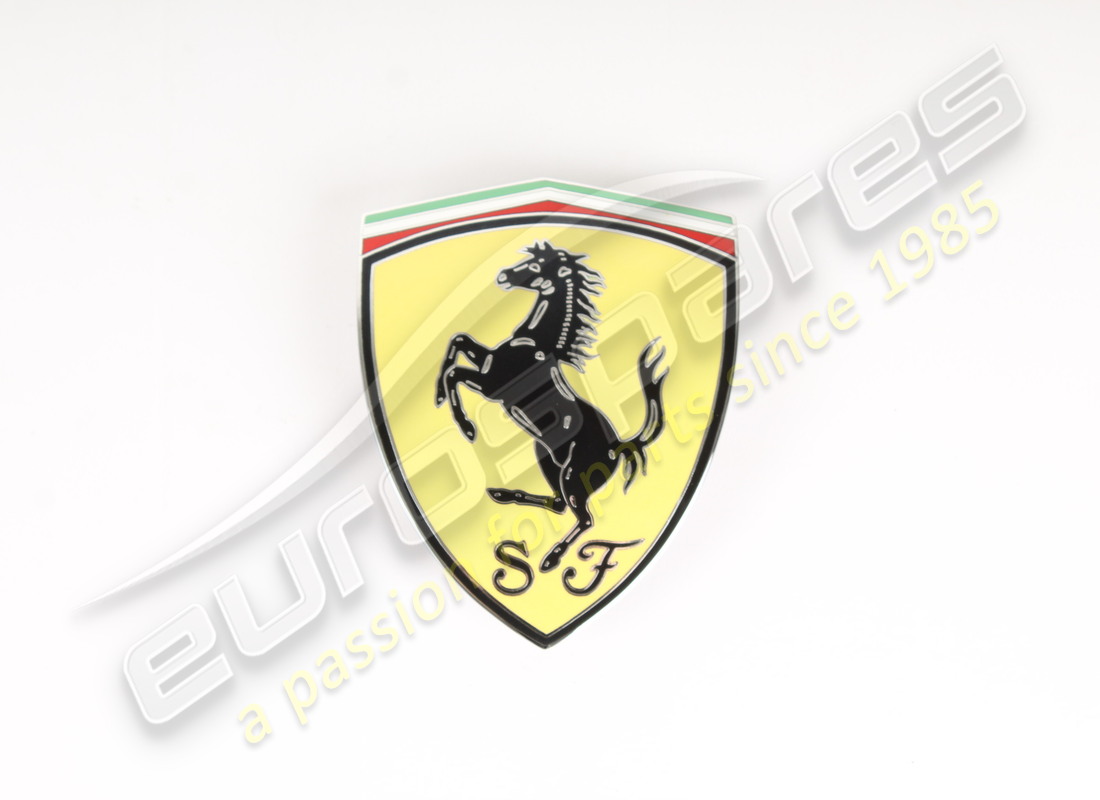

                                                                                                  RH HOOD ORNAMENT
                                                                                                  - optional
                                                                                                  from £378.73
                                                                                                  from £378.73
                                                                                                  # 054
                                                                                                  MPN: 64174300
                                                                                                  LH HOOD ORNAMENT
                                                                                                  - optional
                                                                                                  from £378.73
                                                                                                  from £378.73
                                                                                                  # 055
                                                                                                  MPN: 61002200
                                                                                                  NUT
                                                                                                  - optional
                                                                                                  from £1.11
                                                                                                  from £1.11
                                                                                                  # 056
                                                                                                  MPN: 14496204
                                                                                                  WASHER
                                                                                                  - optional
                                                                                                  from £0.47
                                                                                                  from £0.47
                                                                                                  This part replaces part number 14496201
