Ferrari 456 M GT/M GTA Exhaust System Parts Diagram

022 - Exhaust System

Ferrari 456 M GT/M GTA Exhaust System Parts Diagram

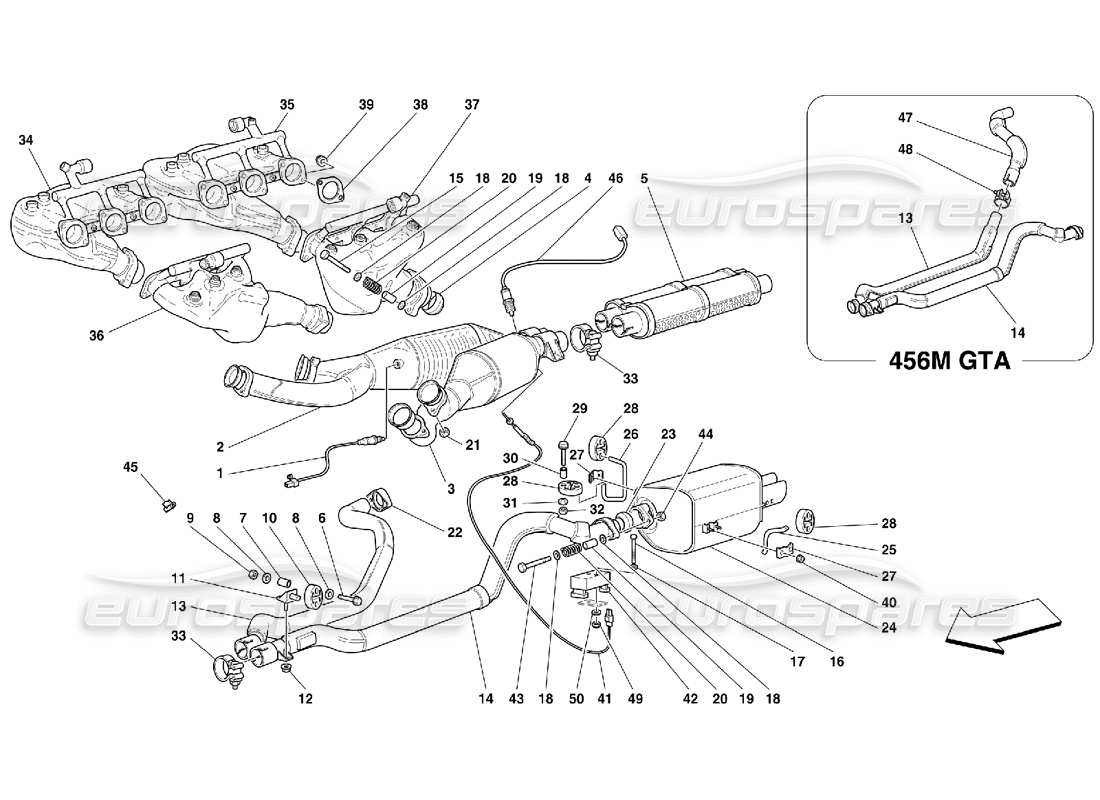

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                          #
                                                                          Part number
                                                                          Description
                                                                          Price
                                                                          # 001
                                                                          MPN: 162462

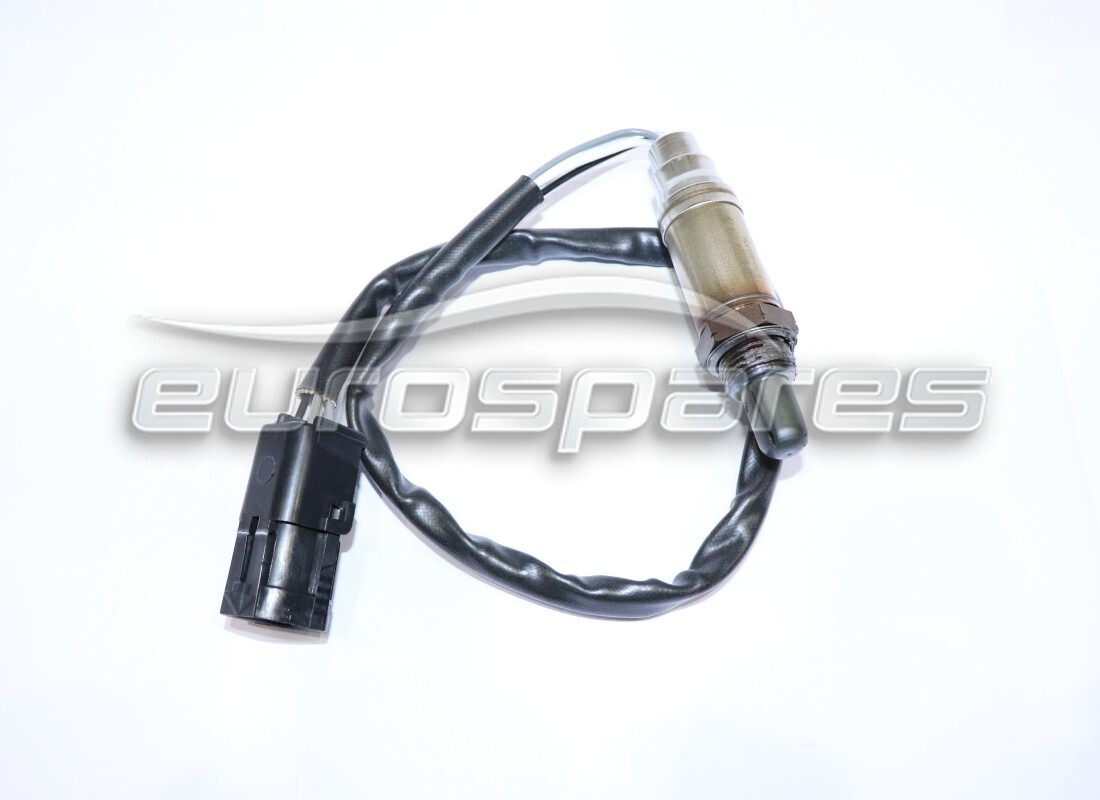

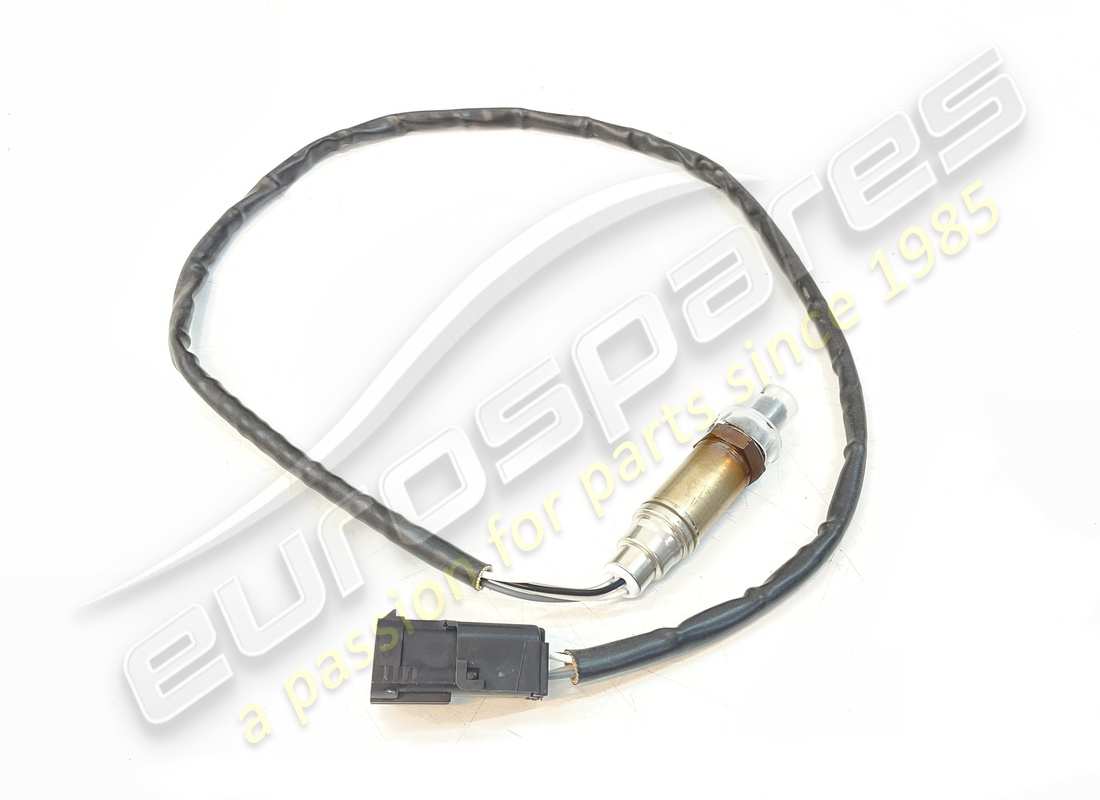

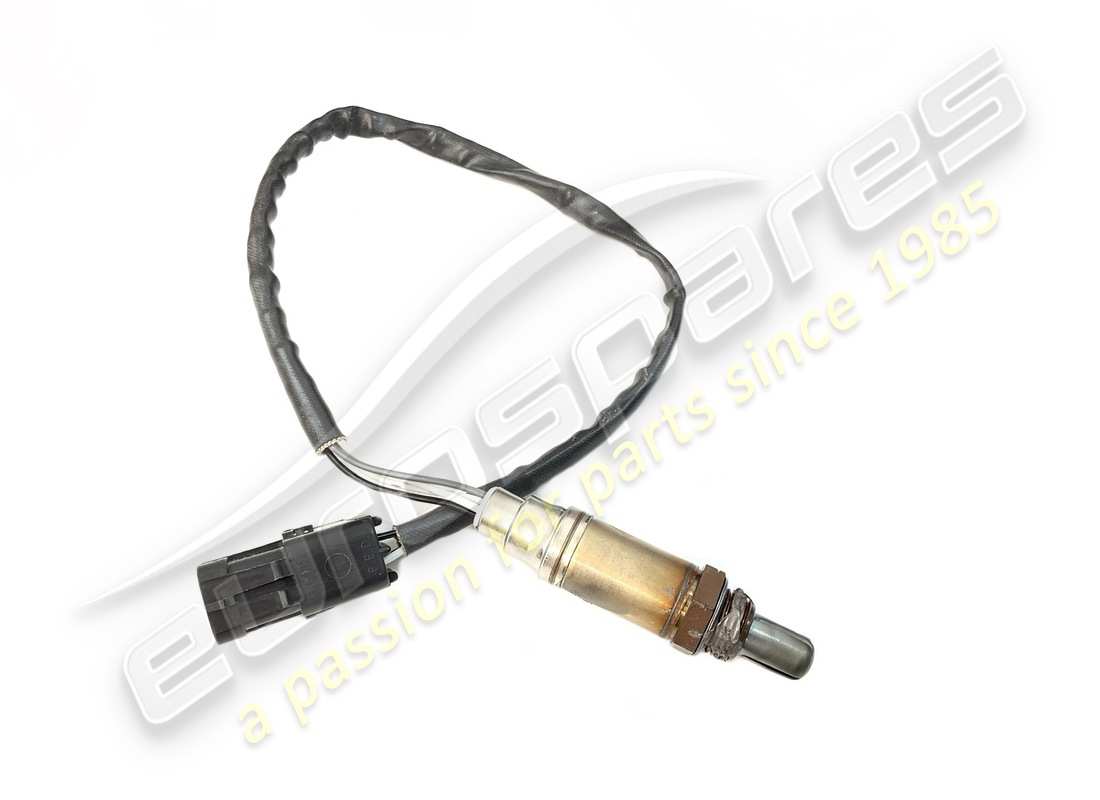

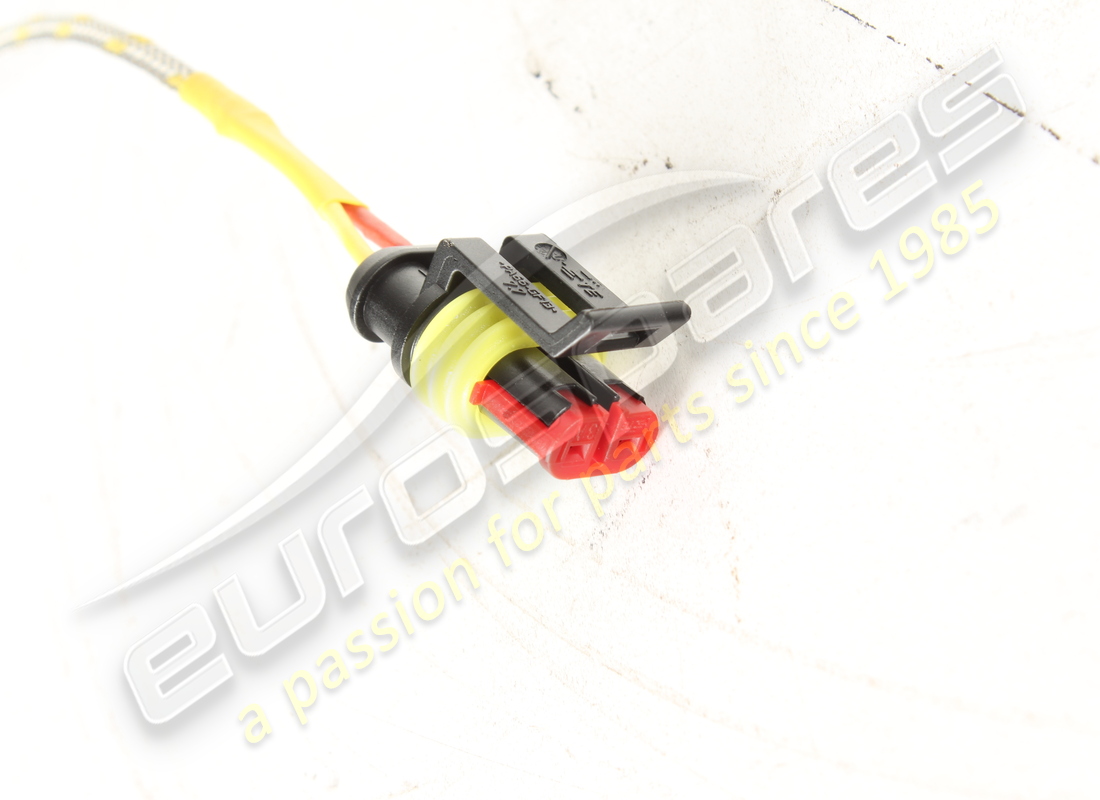

                                                                          RH FRONT LAMBDA FEELER
                                                                          - Valid for catalyzed cars
                                                                          from £226.42
                                                                          from £226.42
                                                                          # 001
                                                                          MPN: 165170
                                                                          RH FRONT LAMBDA FEELER
                                                                          - Valid for catalyzed cars
                                                                          from £60.00
                                                                          from £60.00
                                                                          # 001
                                                                          MPN: 168928
                                                                          LH FRONT LAMBDA FEELER
                                                                          - Valid for not catalyzed cars
                                                                          from £117.01
                                                                          from £117.01
                                                                          # 001
                                                                          MPN: 169953
                                                                          LH FRONT LAMBDA FEELER
                                                                          - Valid for catalyzed cars (can use part number: 383700107)
                                                                          from £87.80
                                                                          from £87.80
                                                                          # 002
                                                                          MPN: 159222
                                                                          RH EXHAUST PRE
                                                                          from £1,644.07
                                                                          from £1,644.07
                                                                          # 002
                                                                          MPN: 167830

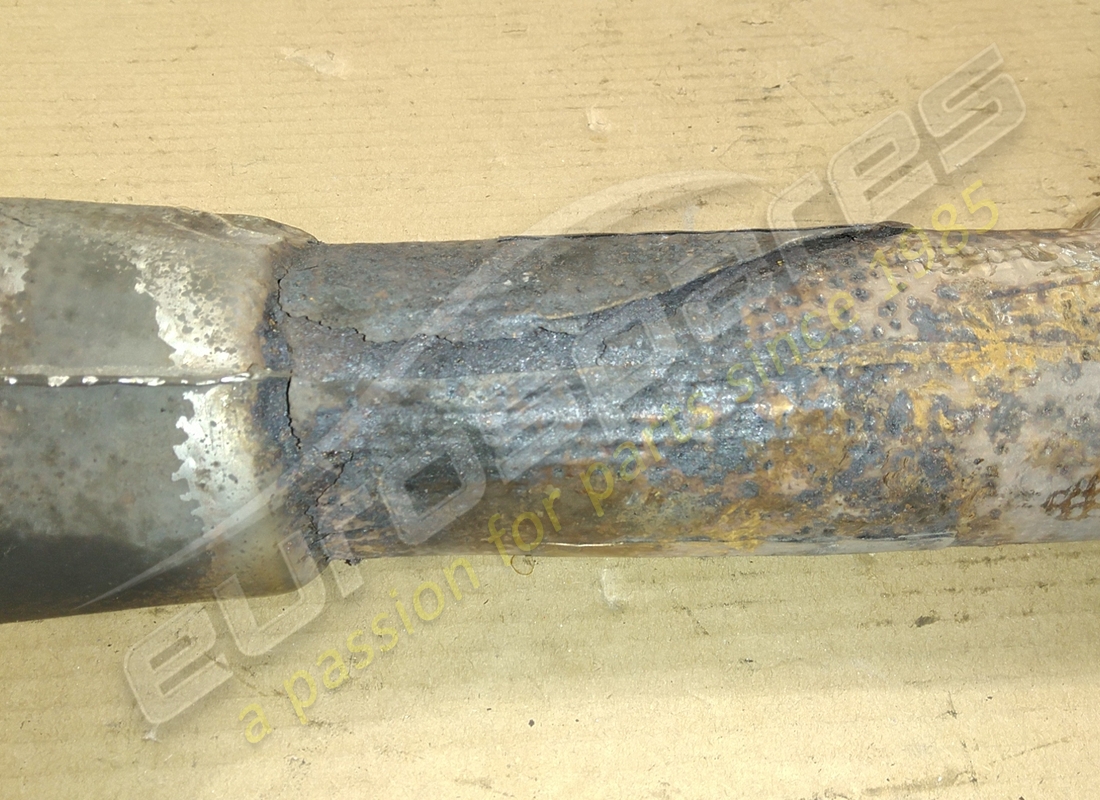

                                                                          RH CATALYST
                                                                          - Valid for catalyzed cars - Not for USA, CDN and AUS - Valid till stock exhaustion
                                                                          from £535.00
                                                                          from £535.00
                                                                          # 002
                                                                          MPN: 167853
                                                                          RH CATALYST
                                                                          - Valid for catalyzed cars - Valid for USA, CDN and AUS - MUFFLER - Valid for not catalyzed cars
                                                                          from £1,707.38
                                                                          from £1,707.38
                                                                          # 002
                                                                          MPN: 178414
                                                                          RH CATALYST
                                                                          - Valid for catalyzed cars - Not for USA, CDN and AUS - Valid after stock exhaustion of 167830
                                                                          from £1,343.78
                                                                          from £1,343.78
                                                                          This part replaces part number 167830 which we have in stock
                                                                          # 003
                                                                          MPN: 159223
                                                                          LH EXHAUST PRE-MUFFLER
                                                                          - Valid for not catalyzed cars
                                                                          from £1,644.07
                                                                          from £1,644.07
                                                                          # 003
                                                                          MPN: 167854

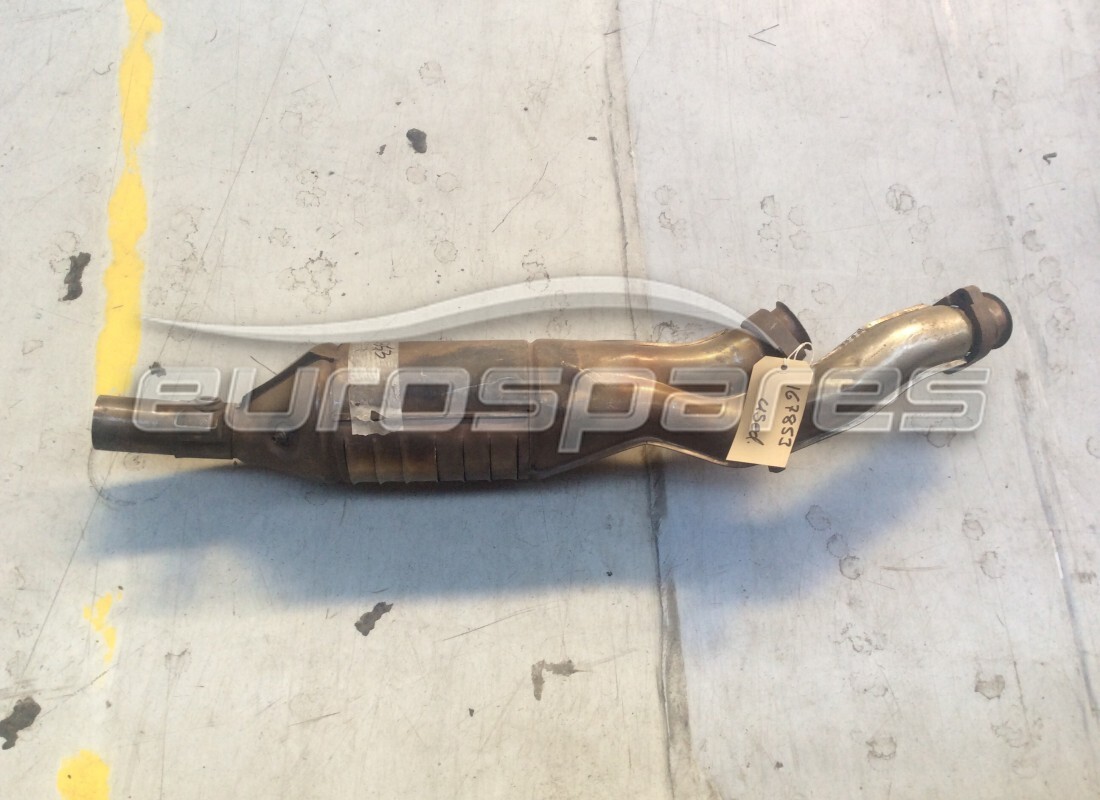

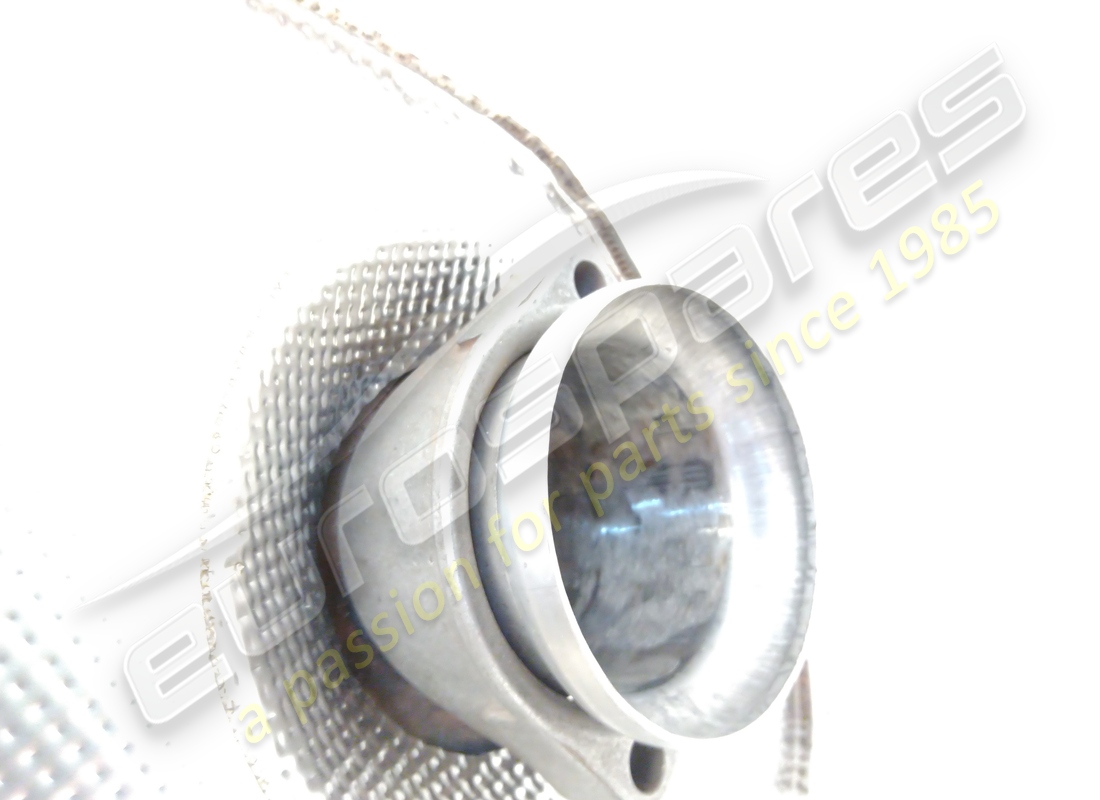

                                                                          LH CATALYST
                                                                          - Valid for catalyzed cars - Valid for USA, CDN and AUS
                                                                          from £3,030.31
                                                                          from £3,030.31
                                                                          # 003
                                                                          MPN: 178415
                                                                          LH CATALYST
                                                                          - Valid for catalyzed cars - Not for USA, CDN and AUS - Valid till stock exhaustion
                                                                          from £1,343.78
                                                                          from £1,343.78
                                                                          This part replaces part number 167831 which we have in stock
                                                                          # 003
                                                                          MPN: 178415
                                                                          LH CATALYST
                                                                          - Valid for catalyzed cars - Not for USA, CDN and AUS - Valid after stock exhaustion of 167831
                                                                          from £1,343.78
                                                                          from £1,343.78
                                                                          This part replaces part number 167831 which we have in stock
                                                                          # 004
                                                                          MPN: 154981
                                                                          GASKET
                                                                          Supersession
                                                                          Supersession
                                                                          This part replaces part number 125917 - and 1 more. Click to view details
                                                                          # 005
                                                                          MPN: 175762
                                                                          CENTRAL MUFFLER
                                                                          from £375.61
                                                                          from £375.61
                                                                          # 006
                                                                          MPN: 16287524
                                                                          SCREW
                                                                          from £0.81
                                                                          from £0.81
                                                                          This part replaces part number 16287521
                                                                          # 007
                                                                          MPN: 154016
                                                                          SPACER
                                                                          from £8.99
                                                                          from £8.99
                                                                          # 008
                                                                          MPN: 12642078
                                                                          WASHER
                                                                          from £0.51
                                                                          from £0.51
                                                                          This part replaces part number 12642006
                                                                          # 009
                                                                          MPN: 14058519
                                                                          NUT
                                                                          from £0.53
                                                                          from £0.53
                                                                          # 010
                                                                          MPN: 156967

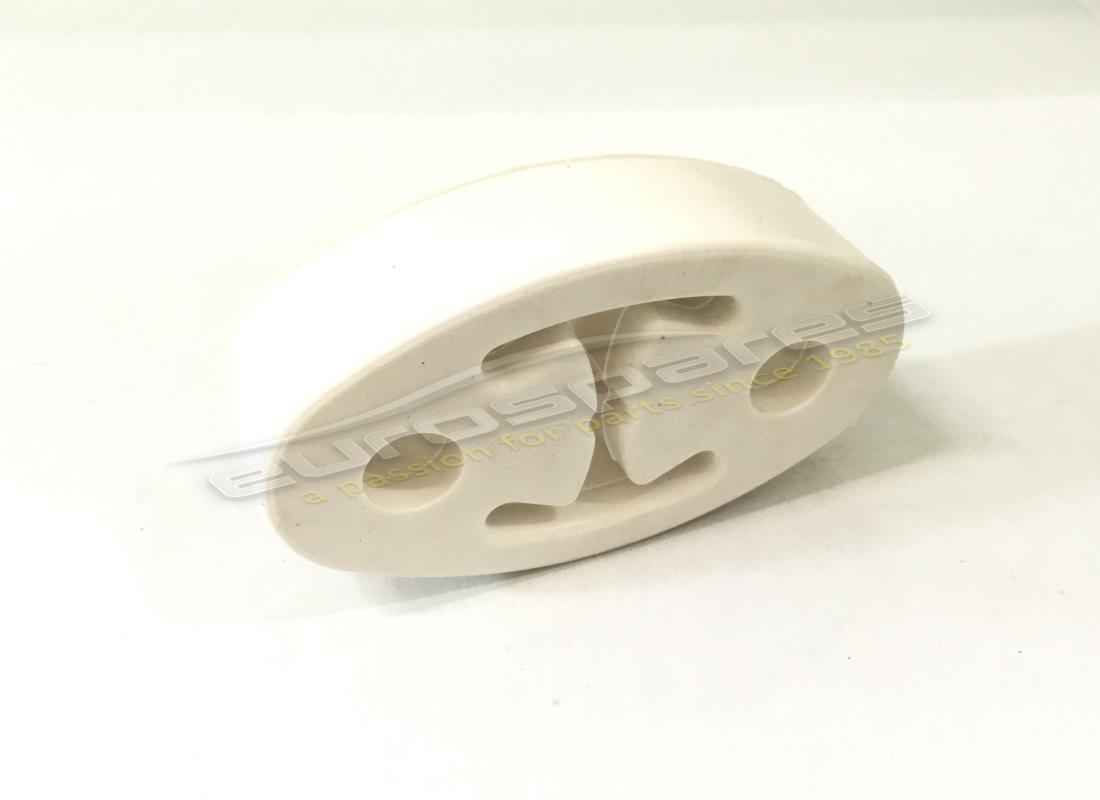

                                                                          PAD
                                                                          from £20.32
                                                                          from £20.32
                                                                          This part replaces part number 187804 - and 1 more. Click to view details
                                                                          # 011
                                                                          MPN: 154299
                                                                          SUPPORT
                                                                          from £135.45
                                                                          from £135.45
                                                                          # 012
                                                                          MPN: 14058519
                                                                          NUT
                                                                          from £0.53
                                                                          from £0.53
                                                                          # 013
                                                                          MPN: 175811
                                                                          RH EXHAUST EXTENSION
                                                                          - Not for 456M GTA
                                                                          from £605.53
                                                                          from £605.53
                                                                          # 013
                                                                          MPN: 175813
                                                                          RH FRONT EXHAUST EXTENSION
                                                                          - Valid for 456M GTA
                                                                          from £99.75
                                                                          from £99.75
                                                                          # 014
                                                                          MPN: 175812
                                                                          LH EXHAUST EXTENSION
                                                                          from £636.55
                                                                          from £636.55
                                                                          # 015
                                                                          MPN: 16045024
                                                                          SCREW
                                                                          (minimum order quantity = 10)
                                                                          from £0.52
                                                                          from £0.52
                                                                          This part replaces part number 125924 - and 1 more. Click to view details
                                                                          # 016
                                                                          MPN: 15210824
                                                                          SCREW
                                                                          from £0.47
                                                                          from £0.47
                                                                          # 017
                                                                          MPN: 10519224
                                                                          WASHER
                                                                          from £0.53
                                                                          from £0.53
                                                                          This part replaces part number 10519201
                                                                          # 018
                                                                          MPN: 128010
                                                                          WASHER
                                                                          from £2.16
                                                                          from £2.16
                                                                          # 019
                                                                          MPN: 114749
                                                                          SPACER
                                                                          from £1.24
                                                                          from £1.24
                                                                          # 020
                                                                          MPN: 111743
                                                                          SPRING
                                                                          from £6.96
                                                                          from £6.96
                                                                          # 021
                                                                          MPN: 114748
                                                                          NUT
                                                                          from £8.79
                                                                          from £8.79
                                                                          # 022
                                                                          MPN: 154361
                                                                          FLANGE
                                                                          from £48.05
                                                                          from £48.05
                                                                          # 023
                                                                          MPN: 154363
                                                                          GASKET
                                                                          from £34.54
                                                                          from £34.54
                                                                          # 025
                                                                          MPN: 154110
                                                                          OUTER SUPPORT
                                                                          from £44.03
                                                                          from £44.03
                                                                          # 026
                                                                          MPN: 161548
                                                                          L. H. INNER SUPPORT
                                                                          from £71.54
                                                                          from £71.54
                                                                          This part replaces part number 156840
                                                                          # 026
                                                                          MPN: 161549
                                                                          R. H. INNER SUPPORT
                                                                          from £95.11
                                                                          from £95.11
                                                                          This part replaces part number 156849
                                                                          # 027
                                                                          MPN: 154116
                                                                          BRACKET
                                                                          from £3.98
                                                                          from £3.98
                                                                          # 028
                                                                          MPN: 156968
                                                                          BUFFER FOR SUPPORT
                                                                          from £36.75
                                                                          from £36.75
                                                                          # 029
                                                                          MPN: 16287524
                                                                          SCREW
                                                                          from £0.81
                                                                          from £0.81
                                                                          This part replaces part number 16287521
                                                                          # 030
                                                                          MPN: 154016
                                                                          SPACER
                                                                          from £8.99
                                                                          from £8.99
                                                                          # 031
                                                                          MPN: 12642078
                                                                          WASHER
                                                                          from £0.51
                                                                          from £0.51
                                                                          This part replaces part number 12642006
                                                                          # 032
                                                                          MPN: 14058519
                                                                          NUT
                                                                          from £0.53
                                                                          from £0.53
                                                                          # 033
                                                                          MPN: 170541
                                                                          CLAMP
                                                                          from £12.83
                                                                          from £12.83
                                                                          # 034
                                                                          MPN: 154364

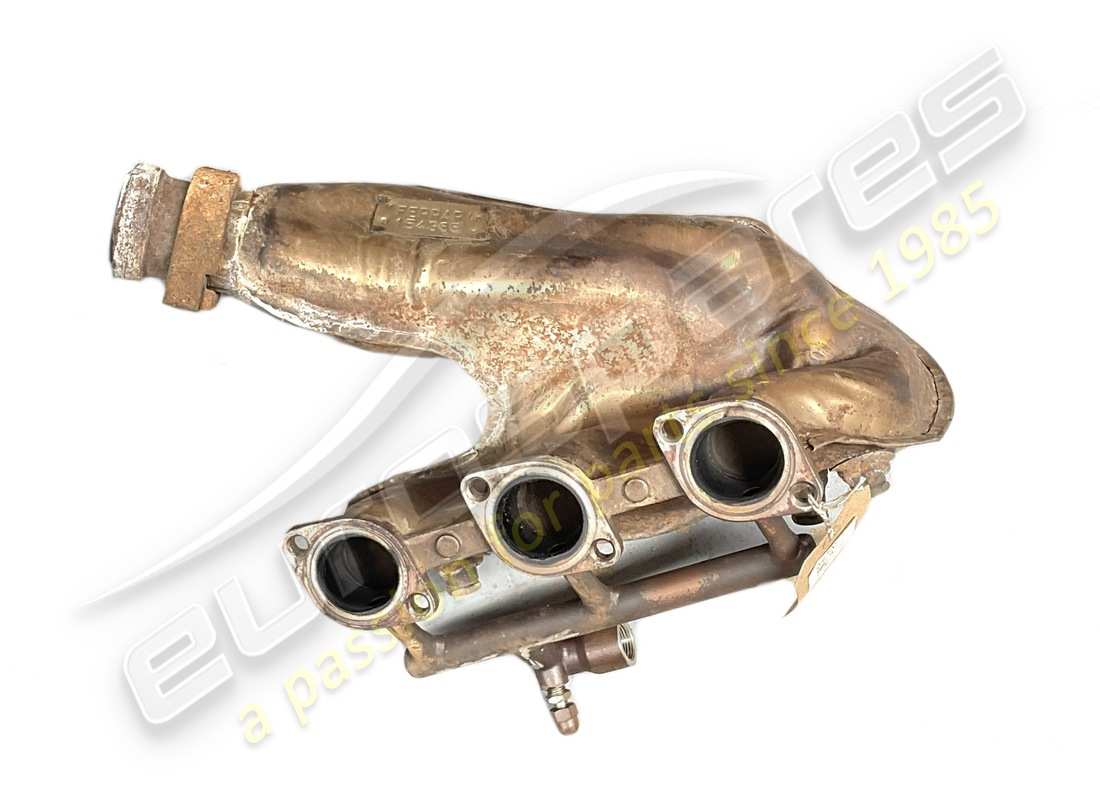

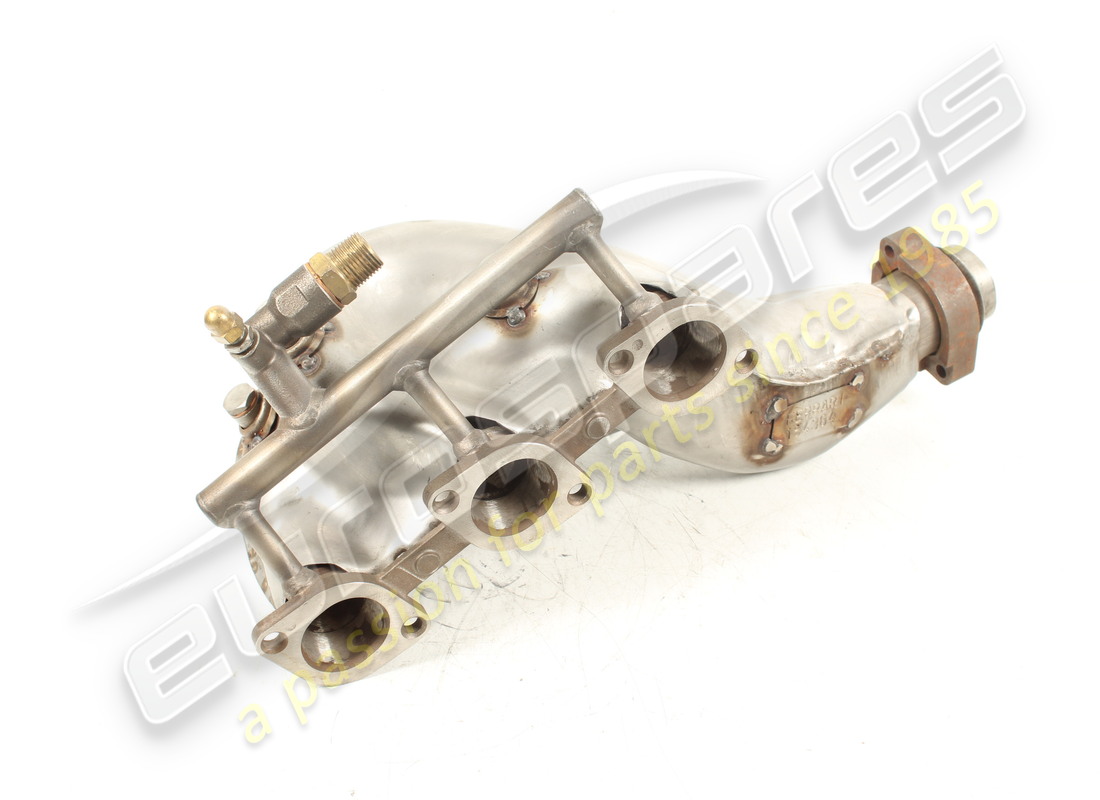

                                                                          RH FRONT EXHAUST MANIFOLD
                                                                          - Not for GD
                                                                          from £1,109.27
                                                                          from £1,109.27
                                                                          This part replaces part number 169337 - and 2 more. Click to view details
                                                                          # 034
                                                                          MPN: 175437
                                                                          RH FRONT EXHAUST MANIFOLD
                                                                          - Valid for GD
                                                                          from £958.23
                                                                          from £958.23
                                                                          # 035
                                                                          MPN: 154365

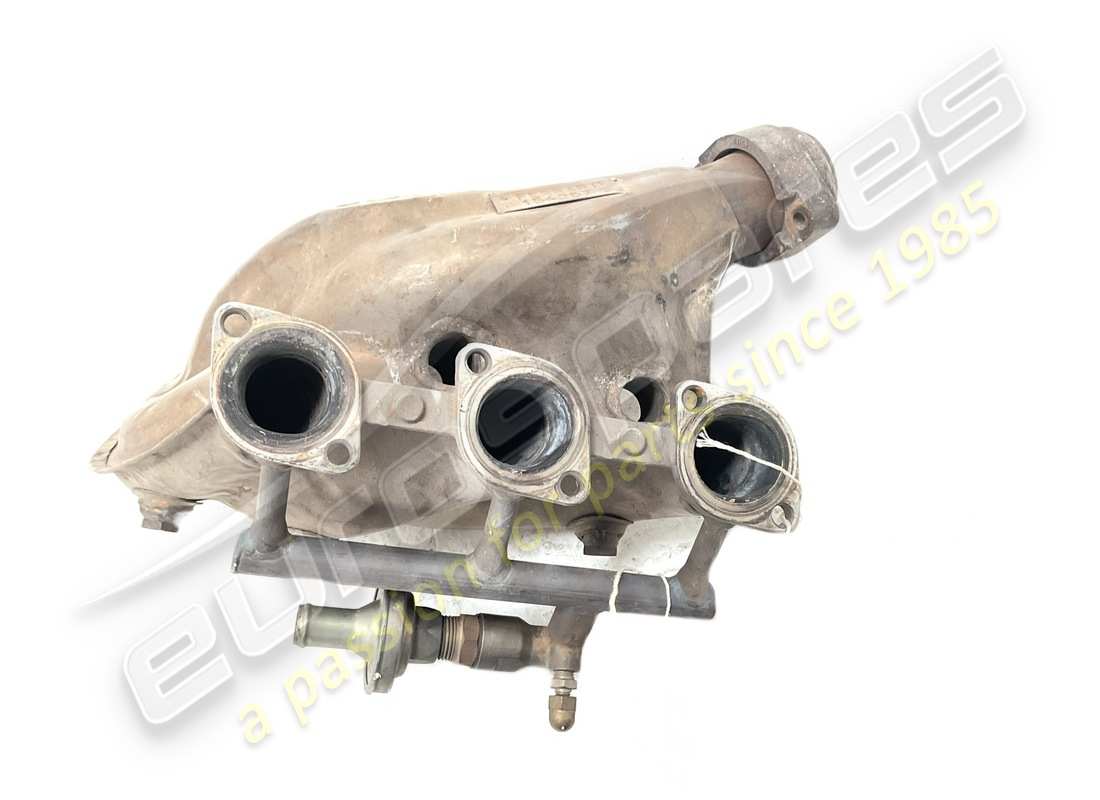

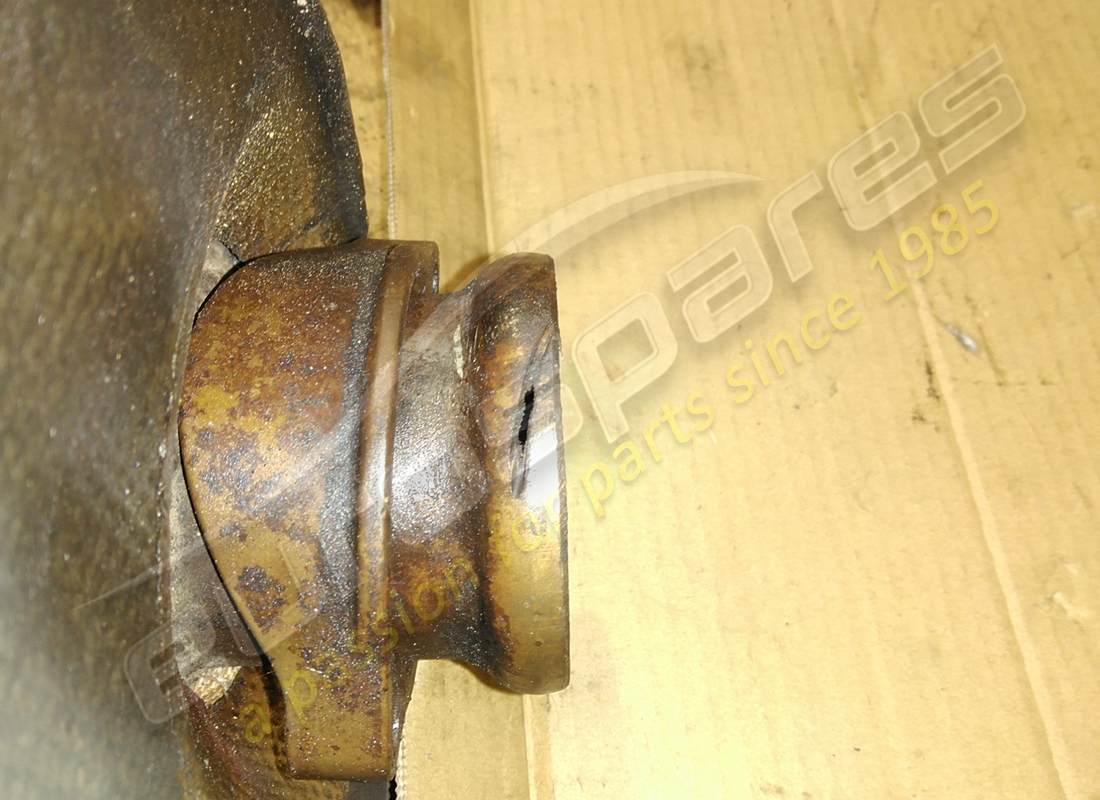

                                                                          RH REAR EXHAUST MANIFOLD
                                                                          - Not for GD
                                                                          from £744.21
                                                                          from £744.21
                                                                          This part replaces part number 169339 - and 2 more. Click to view details
                                                                          # 035
                                                                          MPN: 175439
                                                                          RH REAR EXHAUST MANIFOLD
                                                                          - Valid for GD
                                                                          from £527.03
                                                                          from £527.03
                                                                          # 036
                                                                          MPN: 154366

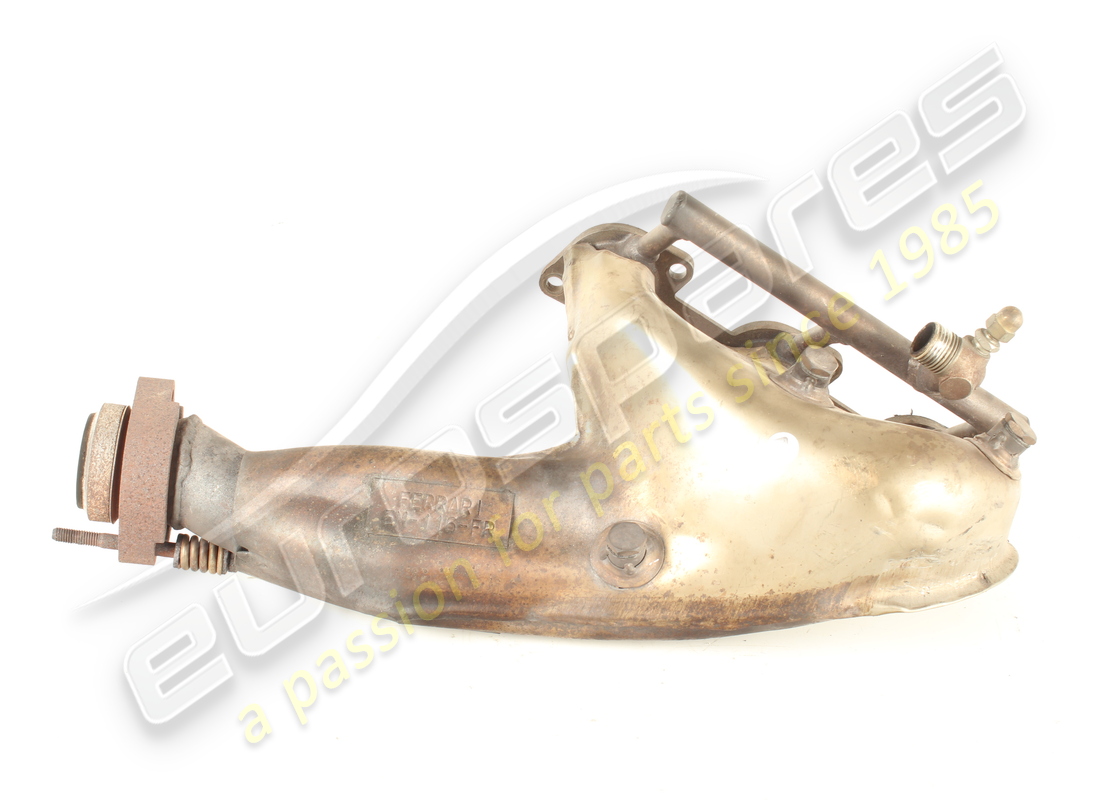

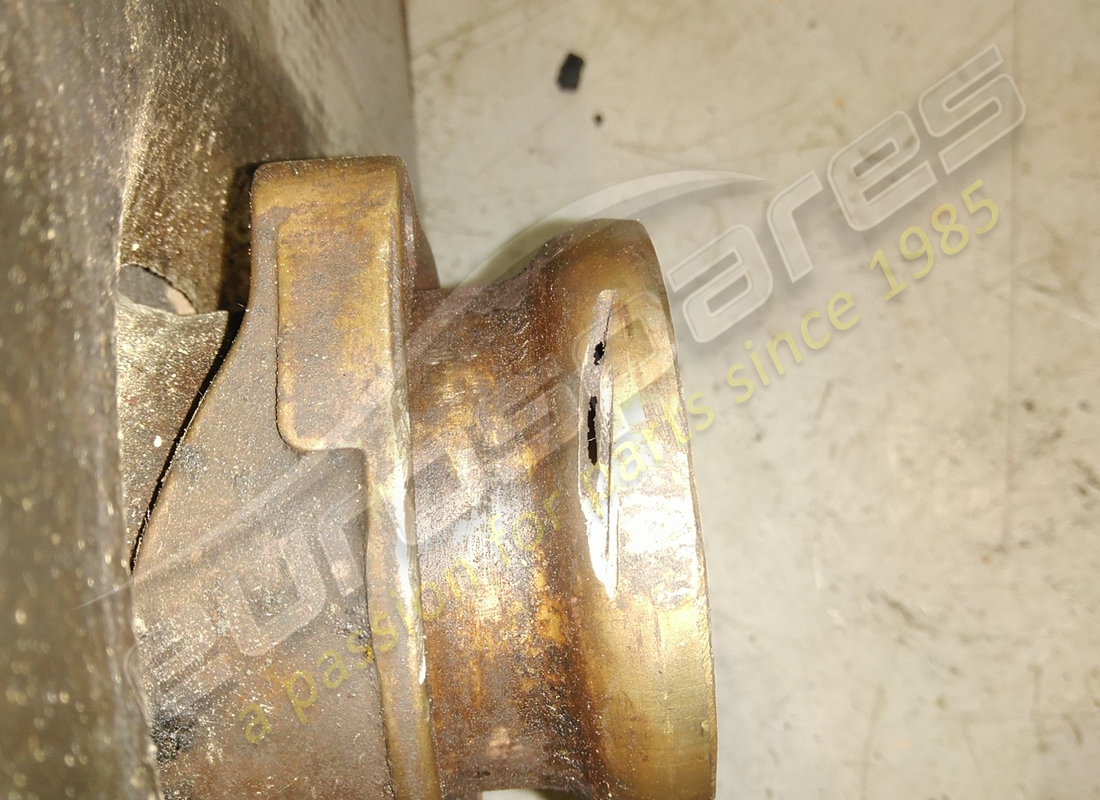

                                                                          LH FRONT EXHAUST MANIFOLD
                                                                          - Valid for GD
                                                                          from £1,394.58
                                                                          from £1,394.58
                                                                          This part replaces part number 169338 - and 3 more. Click to view details
                                                                          # 036
                                                                          MPN: 174632

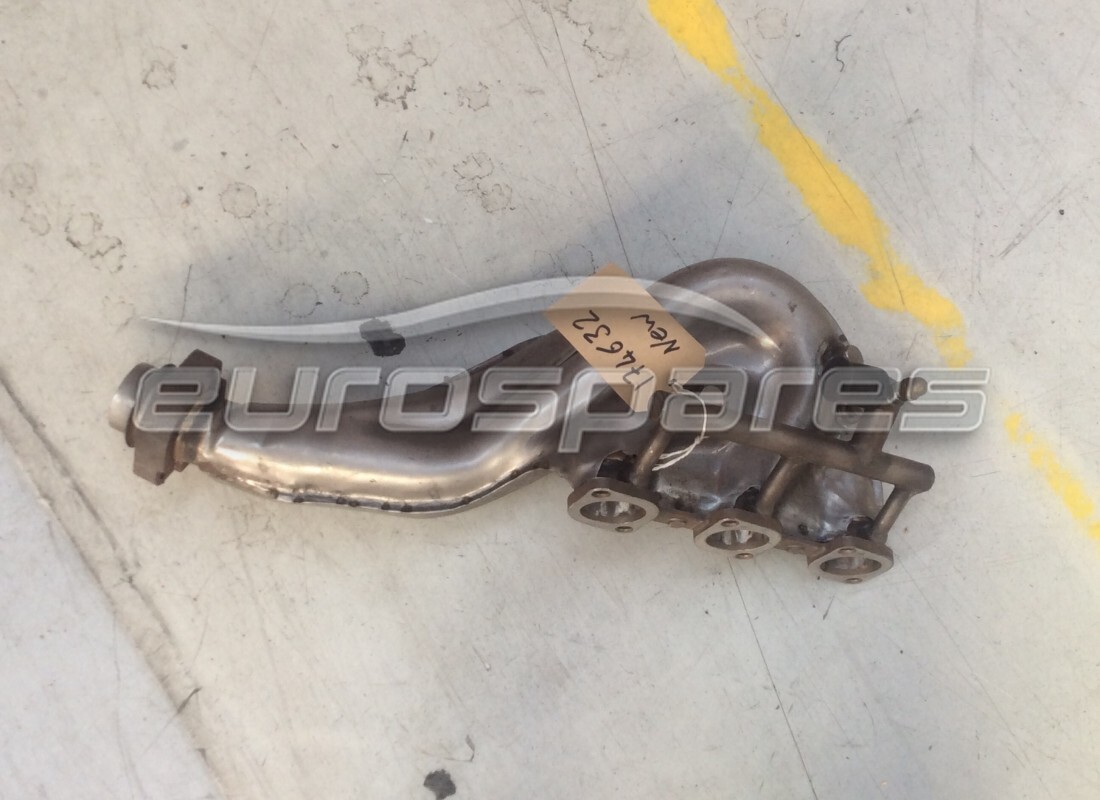

                                                                          LH FRONT EXHAUST MANIFOLD
                                                                          - Not for GD
                                                                          from £763.30
                                                                          from £763.30
                                                                          # 037
                                                                          MPN: 154367
                                                                          LH REAR EXHAUST MANIFOLD
                                                                          - Valid for GD
                                                                          from £1,250.13
                                                                          from £1,250.13
                                                                          This part replaces part number 169340 - and 4 more. Click to view details
                                                                          # 037
                                                                          MPN: 174633
                                                                          LH REAR EXHAUST MANIFOLD
                                                                          - Not for GD
                                                                          from £917.11
                                                                          from £917.11
                                                                          # 038
                                                                          MPN: 143408
                                                                          GASKET
                                                                          (minimum order quantity = 12)
                                                                          from £10.76
                                                                          from £10.76
                                                                          # 039
                                                                          MPN: 138392
                                                                          NUT
                                                                          (minimum order quantity = 25)
                                                                          from £0.75
                                                                          from £0.75
                                                                          # 040
                                                                          MPN: 14058519
                                                                          NUT
                                                                          from £0.51
                                                                          from £0.51
                                                                          # 041
                                                                          MPN: 153111
                                                                          THERMOCOUPLE
                                                                          from £61.25
                                                                          from £61.25
                                                                          # 042
                                                                          MPN: 179278
                                                                          CATALYST TEMPERATURE CONTROL STATION
                                                                          from £317.86
                                                                          from £317.86
                                                                          This part replaces part number 173533
                                                                          # 043
                                                                          MPN: 10902424
                                                                          SCREW
                                                                          from £0.51
                                                                          from £0.51
                                                                          This part replaces part number 10902324 - and 3 more. Click to view details
                                                                          # 044
                                                                          MPN: 15896214
                                                                          NUT
                                                                          from £0.53
                                                                          from £0.53
                                                                          This part replaces part number 15896211
                                                                          # 045
                                                                          MPN: 14569480

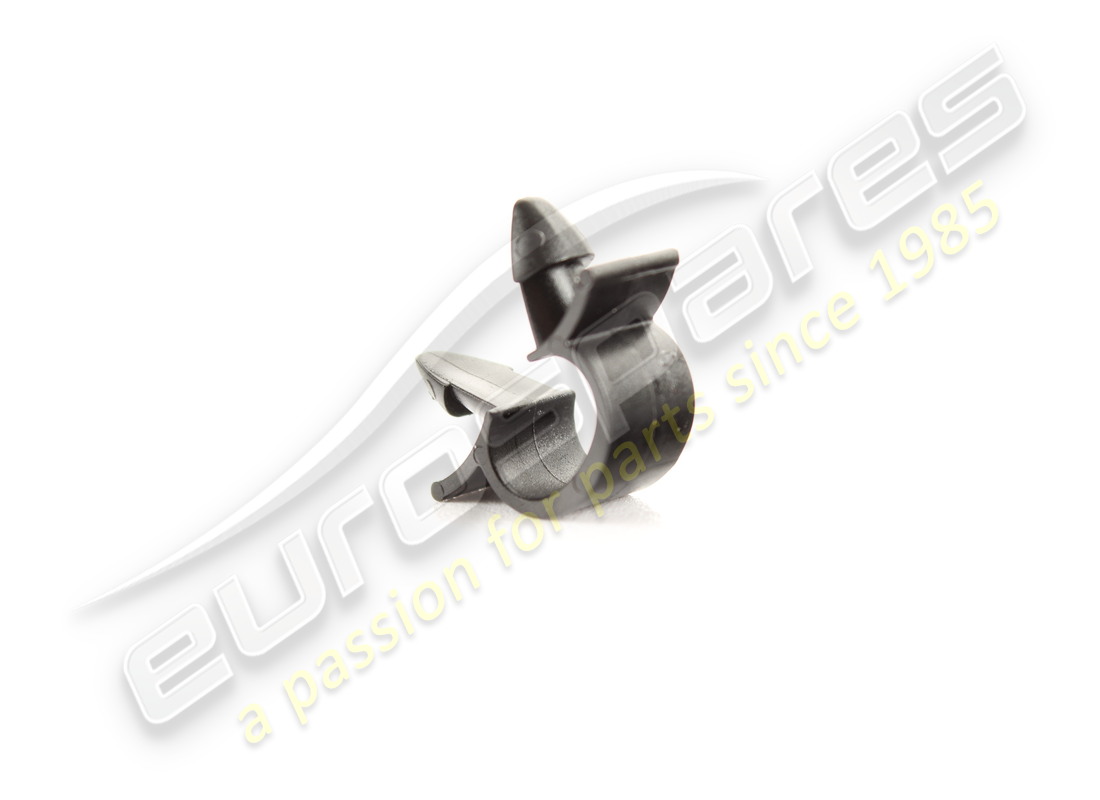

                                                                          CLIP
                                                                          from £0.53
                                                                          from £0.53
                                                                          This part replaces part number 81580800
                                                                          # 046
                                                                          MPN: 165170
                                                                          REAR LAMBDA FEELER
                                                                          - Valid for catalyzed cars
                                                                          from £60.00
                                                                          from £60.00
                                                                          # 047
                                                                          MPN: 169296
                                                                          RH REAR EXHAUST EXTENSION
                                                                          - Valid for 456M GTA
                                                                          from £136.98
                                                                          from £136.98
                                                                          # 048
                                                                          MPN: 170541
                                                                          CLAMP
                                                                          - Valid for 456M GTA
                                                                          from £12.83
                                                                          from £12.83
                                                                          # 049
                                                                          MPN: 62790300
                                                                          NUT
                                                                          from £0.53
                                                                          from £0.53
                                                                          This part replaces part number 12574011 - and 1 more. Click to view details
                                                                          # 050
                                                                          MPN: 12642878
                                                                          WASHER
                                                                          from £0.53
                                                                          from £0.53
                                                                          Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
