Ferrari 456 M GT/M GTA Brake and Clutch Hydraulic System -Not for GD Parts Diagram

043 - Brake and Clutch Hydraulic System -Not for GD

Ferrari 456 M GT/M GTA Brake and Clutch Hydraulic System -Not for GD Parts Diagram

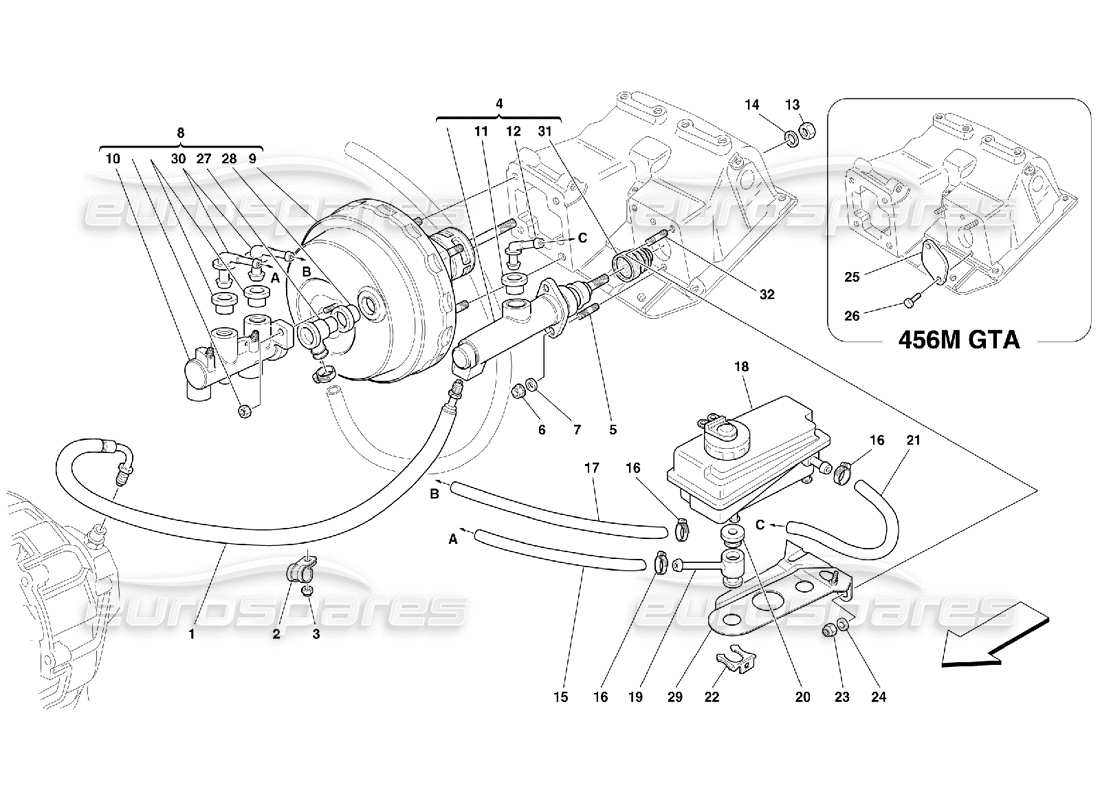

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                    #
                                    Part number
                                    Description
                                    Price

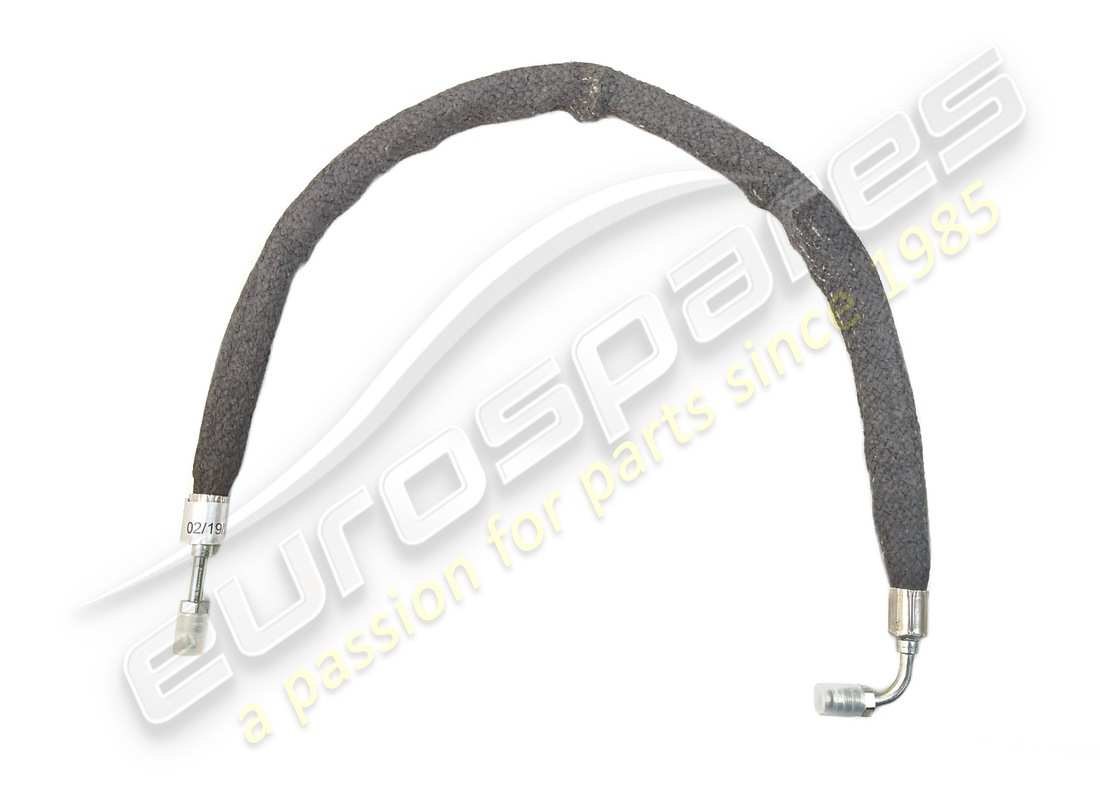

                                    # 001
                                    MPN: 154009
                                    CLUTCH CONTROL TUBE
                                    - Not for 456M GTA
                                    from £212.95
                                    from £212.95
                                    # 002
                                    MPN: 10441590
                                    BRACKET WITH SHEATH
                                    - Not for 456M GTA
                                    from £0.51
                                    from £0.51
                                    This part replaces part number 10113600
                                    # 003
                                    MPN: 102948
                                    NUT
                                    - Not for 456M GTA
                                    from £0.54
                                    from £0.54
                                    This part replaces part number 12574211 - and 4 more. Click to view details
                                    # 004
                                    MPN: 175211
                                    Clutch Pump
                                    - Not for 456M GTA
                                    from £88.80
                                    from £88.80
                                    This part replaces part number 123416 - and 4 more. Click to view details
                                    # 005
                                    MPN: 13516824
                                    STUD
                                    - Not for 456M GTA
                                    from £0.51
                                    from £0.51
                                    This part replaces part number 13516821
                                    # 006
                                    MPN: 177778
                                    NUT
                                    - Not for 456M GTA
                                    from £1.04
                                    from £1.04
                                    This part replaces part number 133215 - and 1 more. Click to view details
                                    # 007
                                    MPN: 12601374
                                    WASHER
                                    - Not for 456M GTA
                                    from £0.54
                                    from £0.54
                                    This part replaces part number 10615474 - and 6 more. Click to view details
                                    # 008
                                    MPN: 177034

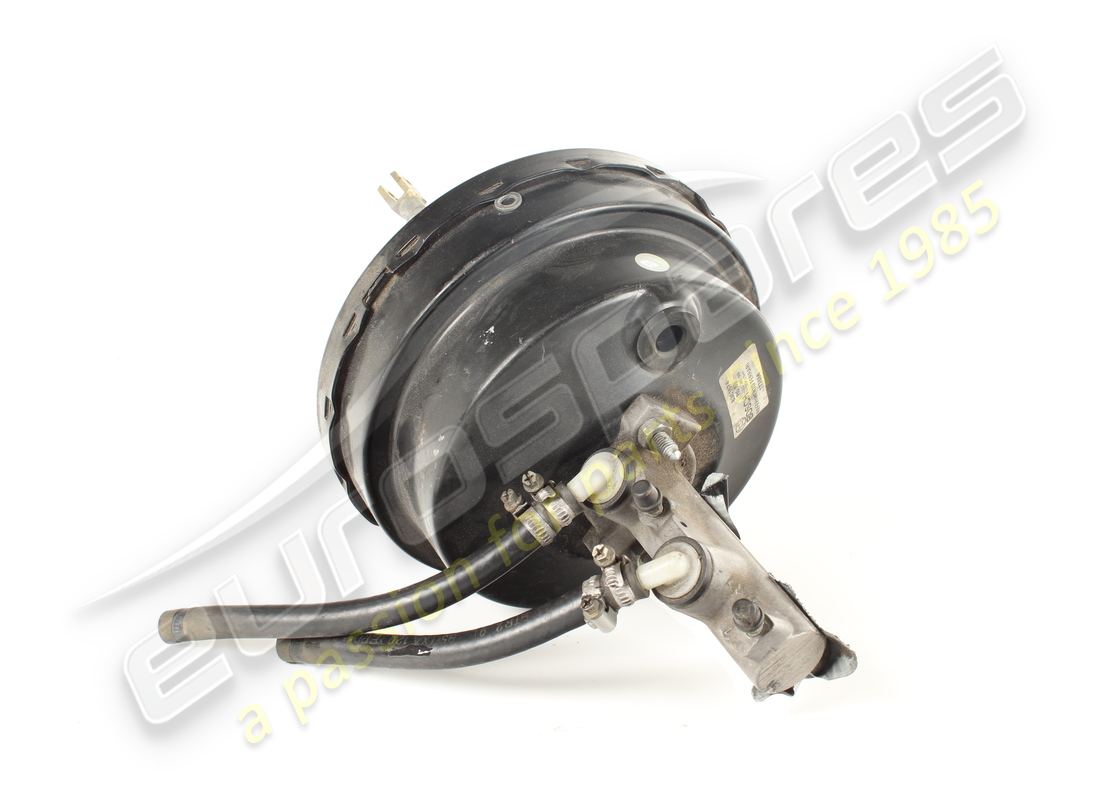

                                    COMPLETE BRAKE BOOSTER
                                    from £393.75
                                    from £393.75
                                    # 010
                                    MPN: 171782
                                    BRAKE PUMP
                                    from £309.02
                                    from £309.02
                                    This part replaces part number 171782/A
                                    # 011
                                    MPN: 175189
                                    SEAL RING
                                    - Not for 456M GTA
                                    from £13.70
                                    from £13.70
                                    This part replaces part number 106625
                                    # 012
                                    MPN: 175188
                                    UNION
                                    - Not for 456M GTA
                                    Supersession
                                    Supersession
                                    This part replaces part number 165032
                                    # 013
                                    MPN: 147985
                                    NUT
                                    from £0.53
                                    from £0.53
                                    # 014
                                    MPN: 12601374
                                    WASHER
                                    from £0.53
                                    from £0.53
                                    This part replaces part number 10615474 - and 6 more. Click to view details
                                    # 015
                                    MPN: 105857
                                    RUBBER PIPE
                                    from £4.89
                                    from £4.89
                                    # 016
                                    MPN: 13000190
                                    SCREW COLLAR
                                    - For 456M GTA Q.ty 4
                                    from £0.52
                                    from £0.52
                                    This part replaces part number 12178990 - and 1 more. Click to view details
                                    # 017
                                    MPN: 173882
                                    RUBBER PIPE
                                    from £3.91
                                    from £3.91
                                    This part replaces part number 123266 - and 1 more. Click to view details
                                    # 019
                                    MPN: 113116
                                    UNION
                                    - Valid till stock exhaustion
                                    from £13.86
                                    from £13.86
                                    This part replaces part number 173824 - and 1 more. Click to view details
                                    # 019
                                    MPN: 177896
                                    UNION
                                    - Valid after stock exhaustion of 113116
                                    from £36.87
                                    from £36.87
                                    This part replaces part number 113116 which we have in stock - and 2 more. Click to view details
                                    # 020
                                    MPN: 175189
                                    RUBBER
                                    from £13.70
                                    from £13.70
                                    This part replaces part number 106625
                                    # 021
                                    MPN: 173882
                                    RUBBER PIPE
                                    - Not for 456M GTA
                                    from £3.91
                                    from £3.91
                                    This part replaces part number 123266 - and 1 more. Click to view details

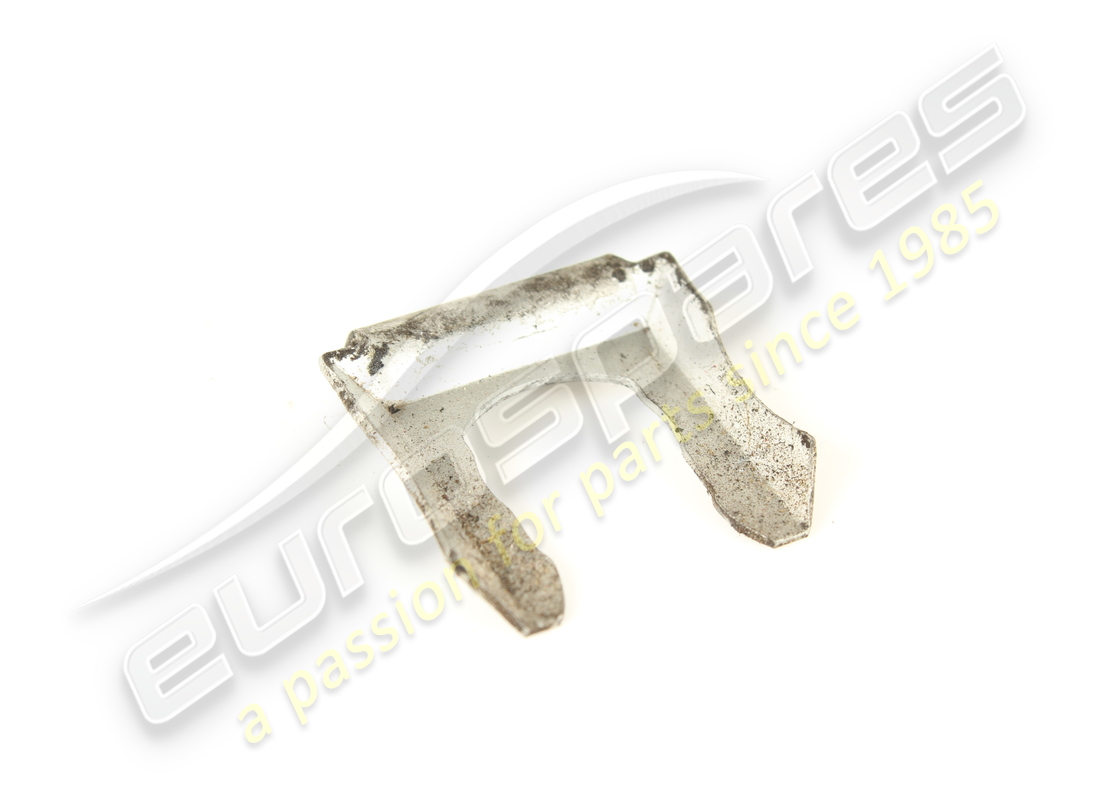

                                    # 022
                                    MPN: 110810
                                    ELASTIC PLATE
                                    from £1.40
                                    from £1.40
                                    This part replaces part number 994922
                                    # 023
                                    MPN: 104030
                                    NUT
                                    from £0.53
                                    from £0.53
                                    This part replaces part number 16104125
                                    # 024
                                    MPN: 12638524
                                    WASHER
                                    from £0.47
                                    from £0.47
                                    This part replaces part number 12638501 - and 2 more. Click to view details
                                    # 025
                                    MPN: 163651
                                    FLANGE
                                    - Valid for 456M GTA
                                    from £47.81
                                    from £47.81
                                    # 026
                                    MPN: 16043021
                                    SCREW
                                    - Valid for 456M GTA
                                    from £0.53
                                    from £0.53
                                    # 027
                                    MPN: 144552
                                    UNION
                                    from £1.77
                                    from £1.77
                                    # 028
                                    MPN: 151475
                                    CABLE GROMMET
                                    from £6.07
                                    from £6.07

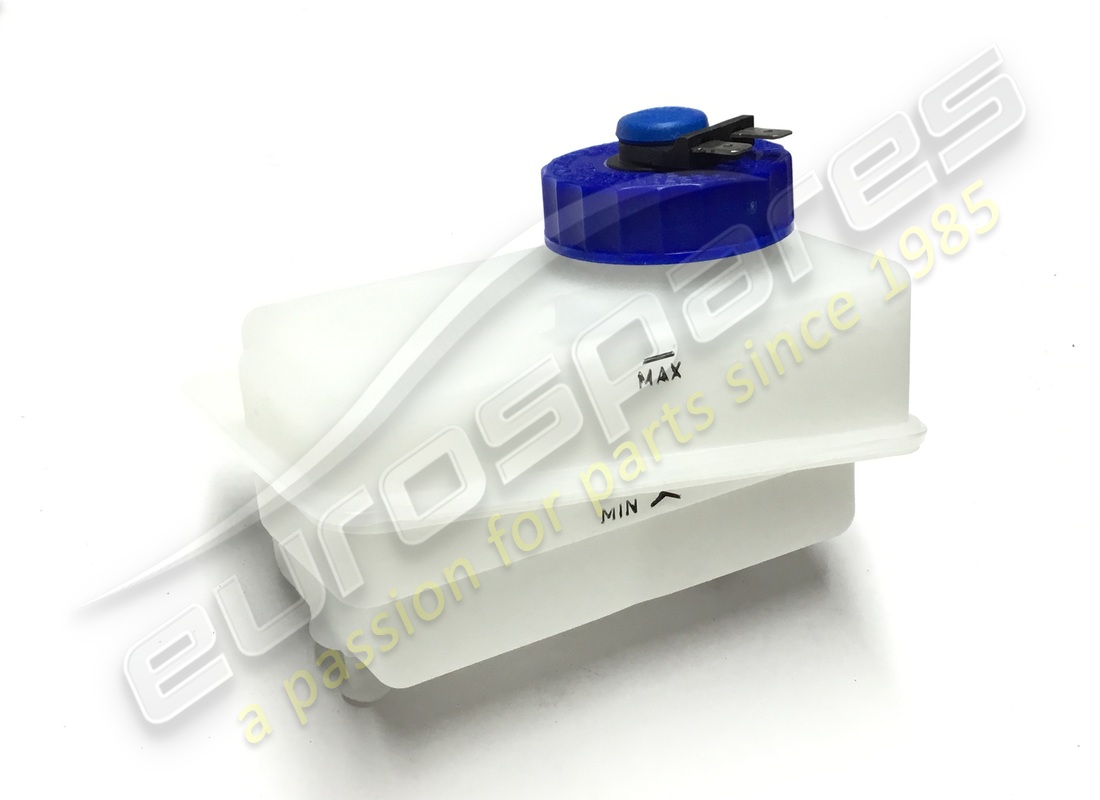

                                    # 029
                                    MPN: 174569
                                    BRAKE OIL TANK SUPPORT
                                    from £25.19
                                    from £25.19
                                    # 030
                                    MPN: 173871
                                    UNION
                                    from £4.77
                                    from £4.77
                                    # 031
                                    MPN: 175212
                                    PROTECTION BOOT
                                    - Not for 456M GTA
                                    from £16.68
                                    from £16.68
                                    # 032
                                    MPN: 13516824
                                    STUD
                                    from £0.51
                                    from £0.51
                                    This part replaces part number 13516821
