Ferrari 456 M GT/M GTA Electrical Boards Parts Diagram

130 - Electrical Boards

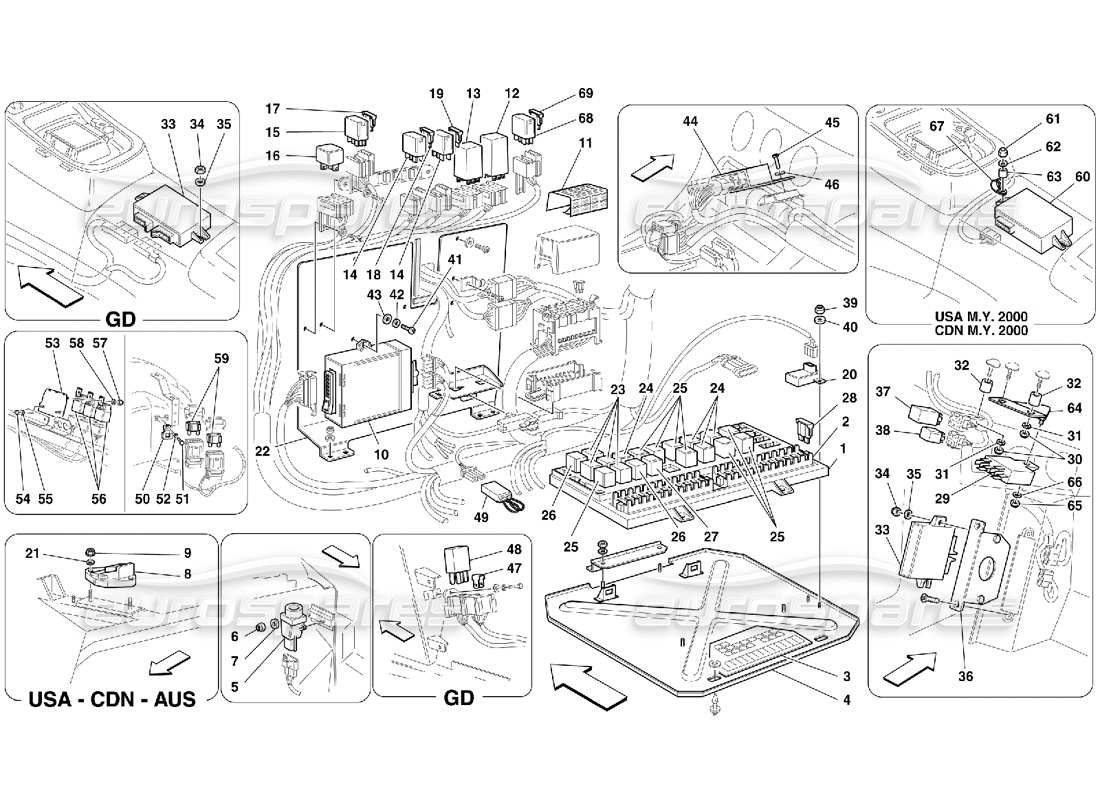

Ferrari 456 M GT/M GTA Electrical Boards Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                          #
                                                          Part number
                                                          Description
                                                          Price

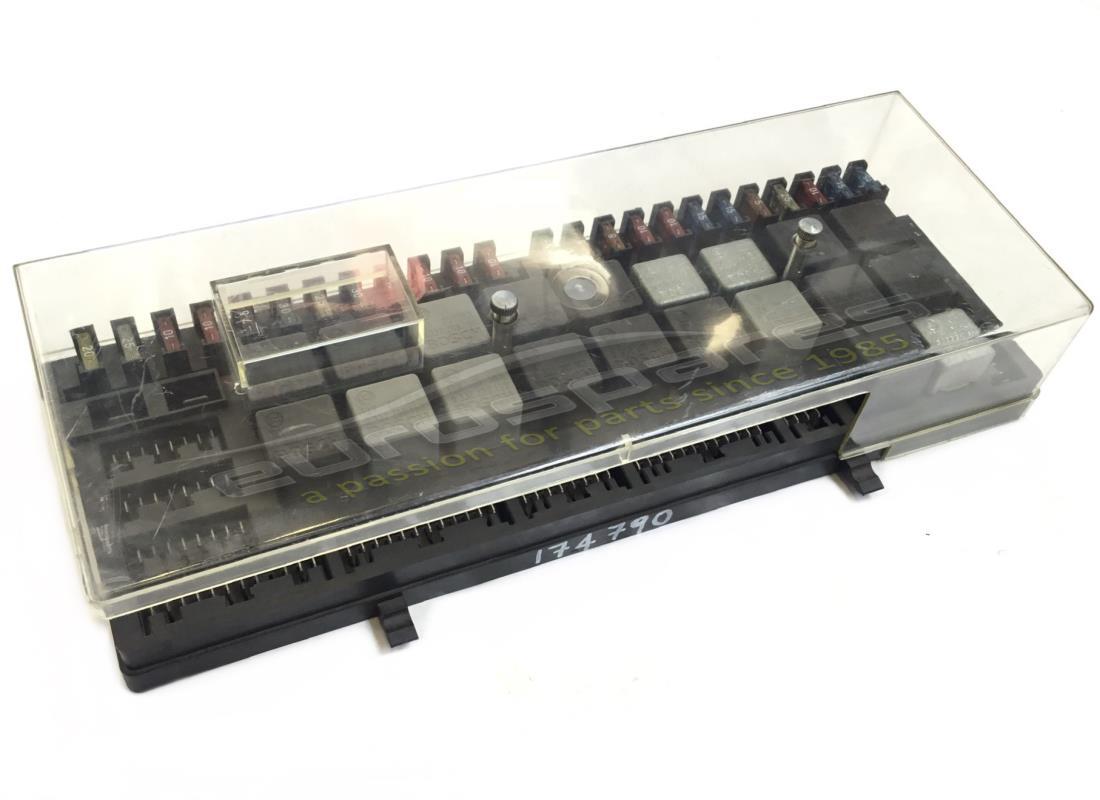

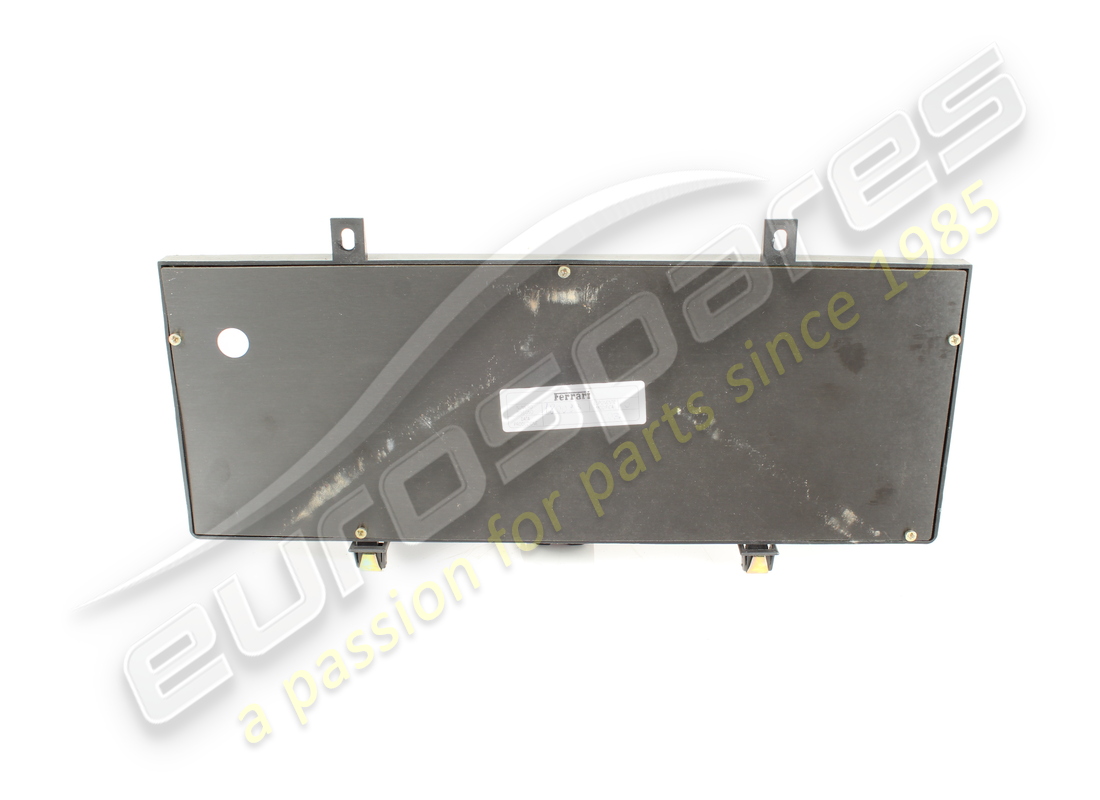

                                                          # 000
                                                          MPN: 174790
                                                          COMPLETE ELECTRIC BOARD
                                                          - Not for USA - Valid till car Ass. Nr. 32532 GS and till car Ass. Nr. 32851 GD
                                                          from £2,416.77
                                                          from £2,416.77
                                                          # 000
                                                          MPN: 175754
                                                          COMPLETE ELECTRIC BOARD
                                                          - Valid for USA - Valid till car Ass. Nr. 32532 GS and till car Ass. Nr. 32851 GD
                                                          from £936.99
                                                          from £936.99
                                                          # 000
                                                          MPN: 180023
                                                          COMPLETE ELECTRIC BOARD
                                                          - Not for USA - Valid from car Ass. Nr. 32533 GS and from car Ass. Nr. 32852 GD
                                                          from £1,160.94
                                                          from £1,160.94
                                                          # 000
                                                          MPN: 180024
                                                          COMPLETE ELECTRIC BOARD
                                                          - Valid for USA - Valid from car Ass. Nr. 32533 GS and from car Ass. Nr. 32852 GD
                                                          from £1,310.49
                                                          from £1,310.49
                                                          # 001
                                                          MPN: 160594
                                                          CONTROL UNIT PLATE
                                                          from £1,767.71
                                                          from £1,767.71
                                                          This part replaces part number 147000
                                                          # 002
                                                          MPN: 61352100
                                                          FUSES BOX
                                                          from £34.50
                                                          from £34.50
                                                          # 003
                                                          MPN: 179930
                                                          RELAYS AND FUSES NAMEPLATE
                                                          - Valid till car Ass. Nr. 32532 GS and till car Ass. Nr. 32851 GD
                                                          from £4.04
                                                          from £4.04
                                                          This part replaces part number 174792
                                                          # 003
                                                          MPN: 180025
                                                          RELAYS AND FUSES NAMEPLATE
                                                          - Valid from car Ass. Nr. 32533 GS and from car Ass. Nr. 32852 GD
                                                          from £4.75
                                                          from £4.75
                                                          # 004
                                                          MPN: 174919
                                                          PASSENGER FOOT-REST PLATE
                                                          - Not for GD
                                                          from £42.45
                                                          from £42.45
                                                          # 004
                                                          MPN: 176912
                                                          PASSENGER FOOT-REST PLATE
                                                          - Valid for GD
                                                          from £29.40
                                                          from £29.40
                                                          # 005
                                                          MPN: 179087
                                                          INERTIAL SWITCH
                                                          from £35.07
                                                          from £35.07
                                                          This part replaces part number 163675 - and 7 more. Click to view details
                                                          # 006
                                                          MPN: 113647
                                                          NUT
                                                          from £0.53
                                                          from £0.53
                                                          # 007
                                                          MPN: 12637824
                                                          WASHER
                                                          from £0.47
                                                          from £0.47
                                                          This part replaces part number 12637801 - and 1 more. Click to view details
                                                          # 008
                                                          MPN: 166784
                                                          ACCELERATION SENSOR
                                                          - Valid for USA, CDN and AUS
                                                          from £59.09
                                                          from £59.09
                                                          # 009
                                                          MPN: 102741
                                                          NUT
                                                          - Valid for USA, CDN and AUS
                                                          from £0.53
                                                          from £0.53
                                                          This part replaces part number 12575411 - and 1 more. Click to view details
                                                          # 010
                                                          MPN: 179080
                                                          GLASS LIFTING CONTROL ELECTRIC UNIT
                                                          - Not for USA, CDN and AUS
                                                          from £424.15
                                                          from £424.15
                                                          This part replaces part number 174762
                                                          # 010
                                                          MPN: 179080
                                                          GLASS LIFTING CONTROL ELECTRIC UNIT
                                                          - Valid for USA, CDN and AUS
                                                          from £424.15
                                                          from £424.15
                                                          This part replaces part number 174762
                                                          # 011
                                                          MPN: 174794
                                                          FUSES NAMEPLATE
                                                          - Valid till car Ass. Nr. 32532 GS and till car Ass. Nr. 32851 GD
                                                          from £2.74
                                                          from £2.74
                                                          # 011
                                                          MPN: 180091
                                                          FUSES NAMEPLATE
                                                          - Valid from car Ass. Nr. 32533 GS and from car Ass. Nr. 32852 GD
                                                          from £4.59
                                                          from £4.59
                                                          # 012
                                                          MPN: 174763
                                                          HYDRAULIC STEERING CONTRO ELECTRIC UNIT
                                                          from £75.10
                                                          from £75.10
                                                          # 013
                                                          MPN: 171596
                                                          REAR FOG LIGHT CONTROL ELECTRIC UNIT
                                                          - Not for USA and CDN
                                                          from £19.08
                                                          from £19.08
                                                          # 014
                                                          MPN: 161590
                                                          MICRO-RELAY SWITCH 20 A.
                                                          - Valid till stock exhaustion
                                                          from £13.24
                                                          from £13.24
                                                          # 014
                                                          MPN: 184102
                                                          MICRO-RELAY SWITCH 20 A.
                                                          - Valid after stock exhaustion of 161590
                                                          from £3.80
                                                          from £3.80
                                                          # 015
                                                          MPN: 184103
                                                          MICRO-RELAY 10/20 A.
                                                          - Valid after stock exhaustion of 161591
                                                          from £4.38
                                                          from £4.38
                                                          # 015
                                                          MPN: 227285
                                                          MICRO-RELAY 10/20 A.
                                                          from £14.28
                                                          from £14.28
                                                          This part replaces part number 161591
                                                          # 016
                                                          MPN: 157802
                                                          DOUBLE SWITCH RELAY
                                                          Supersession
                                                          Supersession
                                                          # 017
                                                          MPN: 125242
                                                          FUSE15 A.
                                                          from £0.54
                                                          from £0.54
                                                          This part replaces part number 11055090 - and 1 more. Click to view details
                                                          # 018
                                                          MPN: 125240
                                                          FUSE 7,5 A.
                                                          from £0.47
                                                          from £0.47
                                                          This part replaces part number 11054890 - and 1 more. Click to view details

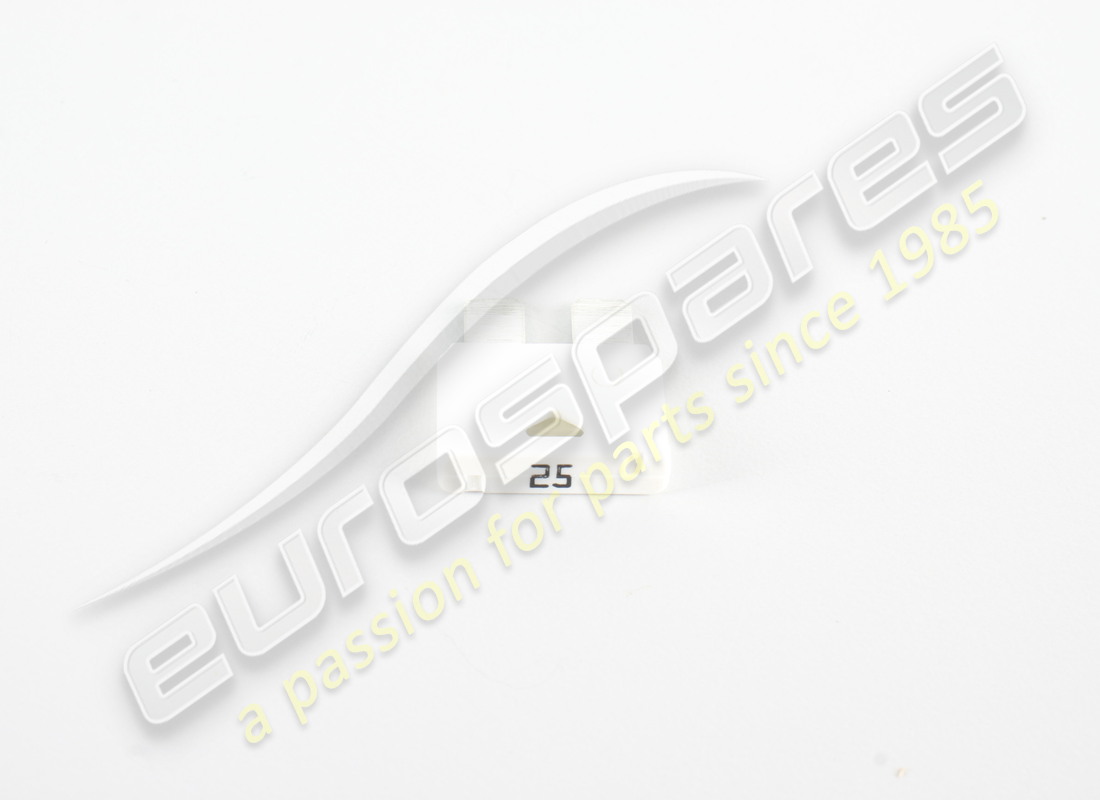

                                                          # 019
                                                          MPN: 126031
                                                          FUSE 25 A.
                                                          - Valid for 456M GTA
                                                          from £0.47
                                                          from £0.47
                                                          This part replaces part number MC3742/5
                                                          # 020

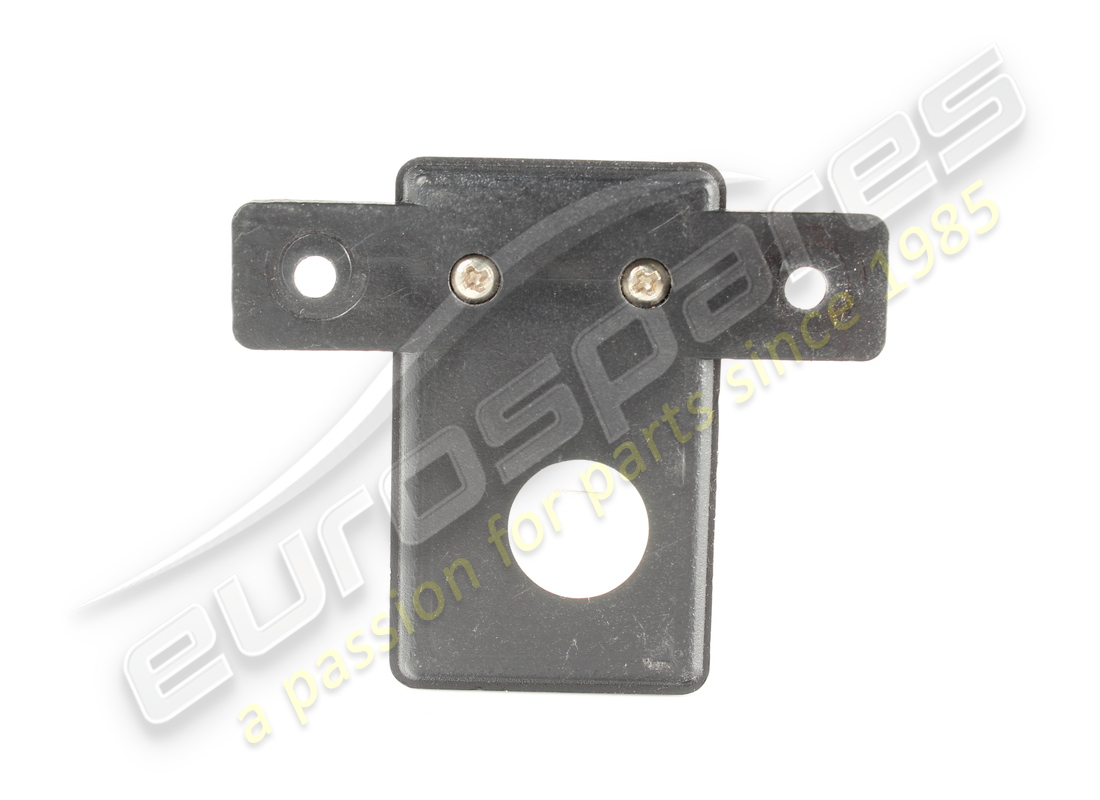

                                                          MPN: 168228
                                                          ASR EXCLUSION CONTROL STATION
                                                          - Not as spare part now - Replaced by 179418
                                                          Supersession
                                                          Supersession
                                                          # 020
                                                          MPN: 179418
                                                          ASR EXCLUSION CONTROL STATION
                                                          from £136.14
                                                          from £136.14
                                                          This part replaces part number 168228
                                                          # 021
                                                          MPN: 14496424
                                                          WASHER
                                                          - Valid for USA, CDN and AUS
                                                          Supersession
                                                          Supersession
                                                          This part replaces part number 14496401 - and 3 more. Click to view details
                                                          # 022
                                                          MPN: 175620
                                                          ELECTRIC UNITS FIXING PLATE
                                                          - Not for GD
                                                          from £32.39
                                                          from £32.39
                                                          # 022
                                                          MPN: 177179
                                                          ELECTRIC UNITS FIXING PLATE
                                                          - Valid for GD
                                                          from £15.52
                                                          from £15.52
                                                          # 023
                                                          MPN: 175318
                                                          INJECTION DEVICE RELAY
                                                          from £19.26
                                                          from £19.26
                                                          This part replaces part number 139361
                                                          # 024
                                                          MPN: 157992
                                                          DEVIATOR RELAY 30/20 A.
                                                          from £25.59
                                                          from £25.59
                                                          # 025
                                                          MPN: 157991
                                                          SWITCH RELAY 30 A.
                                                          - For car till car Ass. Nr. 32532 GS and till car Ass. Nr. 32851 GD q.ty 9
                                                          from £22.65
                                                          from £22.65
                                                          # 026
                                                          MPN: 157802
                                                          DOUBLE SWITCH RELAY
                                                          Supersession
                                                          Supersession
                                                          # 027
                                                          MPN: 157802
                                                          DOUBLE SWITCH RELAY
                                                          - Not for USA
                                                          Supersession
                                                          Supersession
                                                          # 027
                                                          MPN: 157991
                                                          SWITCH RELAY 30 A.
                                                          - Valid for USA
                                                          from £22.65
                                                          from £22.65
                                                          # 028
                                                          MPN: 125240
                                                          FUSE 7,5 A.
                                                          from £0.47
                                                          from £0.47
                                                          This part replaces part number 11054890 - and 1 more. Click to view details
                                                          # 028
                                                          MPN: 125241
                                                          FUSE 10 A.
                                                          from £0.51
                                                          from £0.51
                                                          This part replaces part number 11054990 - and 1 more. Click to view details
                                                          # 028
                                                          MPN: 125242
                                                          FUSE 15 A.
                                                          from £0.53
                                                          from £0.53
                                                          This part replaces part number 11055090 - and 1 more. Click to view details
                                                          # 028
                                                          MPN: 125243
                                                          FUSE 20 A.
                                                          from £0.47
                                                          from £0.47
                                                          This part replaces part number 11055190 - and 1 more. Click to view details
                                                          # 028
                                                          MPN: 126031
                                                          FUSE 25 A.
                                                          from £0.47
                                                          from £0.47
                                                          This part replaces part number MC3742/5
                                                          # 028
                                                          MPN: 131941
                                                          FUSE 30 A.
                                                          - For cars Valid till car - Ass. Nr. 32532 GS and till car - Ass. Nr. 32851 GD q.ty 2
                                                          from £0.54
                                                          from £0.54
                                                          This part replaces part number MC3742/6
                                                          # 028
                                                          MPN: 155459
                                                          FUSE 5 A.
                                                          - For cars Valid till car - Ass. Nr. 32532 GS and till car - Ass. Nr. 32851 GD q.ty 3
                                                          from £0.47
                                                          from £0.47
                                                          # 029
                                                          MPN: 153095
                                                          WINDSHIELD WIPER INTERMITTER
                                                          - Not for GD Valid till car - Ass. Nr. 34991 - For GD valid till car Ass. Nr. 37346
                                                          from £218.51
                                                          from £218.51
                                                          # 029
                                                          MPN: 253060
                                                          WINDSHIELD WIPER INTERMITTER
                                                          - Not for GD Valid from car - Ass. Nr. 34992 - For GD valid from car Ass. Nr. 37347
                                                          from £53.64
                                                          from £53.64
                                                          This part replaces part number 180199 which we have in stock
                                                          # 030
                                                          MPN: 102741
                                                          NUT
                                                          from £0.52
                                                          from £0.52
                                                          This part replaces part number 12575411 - and 1 more. Click to view details
                                                          # 031
                                                          MPN: 10519424
                                                          WASHER
                                                          from £0.54
                                                          from £0.54
                                                          This part replaces part number 10519401 - and 3 more. Click to view details
                                                          # 032
                                                          MPN: 172613
                                                          SPACER
                                                          from £2.96
                                                          from £2.96
                                                          # 033
                                                          MPN: 174764
                                                          SHOCK ABSORBERS ELECTRONIC CONTROL STATION
                                                          - Not for 456M GTA
                                                          from £1,236.75
                                                          from £1,236.75
                                                          # 033
                                                          MPN: 175747
                                                          SHOCK ABSORBERS ELECTRONIC CONTROL STATION
                                                          - Valid for 456M GTA
                                                          from £745.33
                                                          from £745.33
                                                          # 034
                                                          MPN: 113647
                                                          NUT
                                                          from £0.53
                                                          from £0.53
                                                          # 035
                                                          MPN: 12637824
                                                          WASHER
                                                          from £0.47
                                                          from £0.47
                                                          This part replaces part number 12637801 - and 1 more. Click to view details

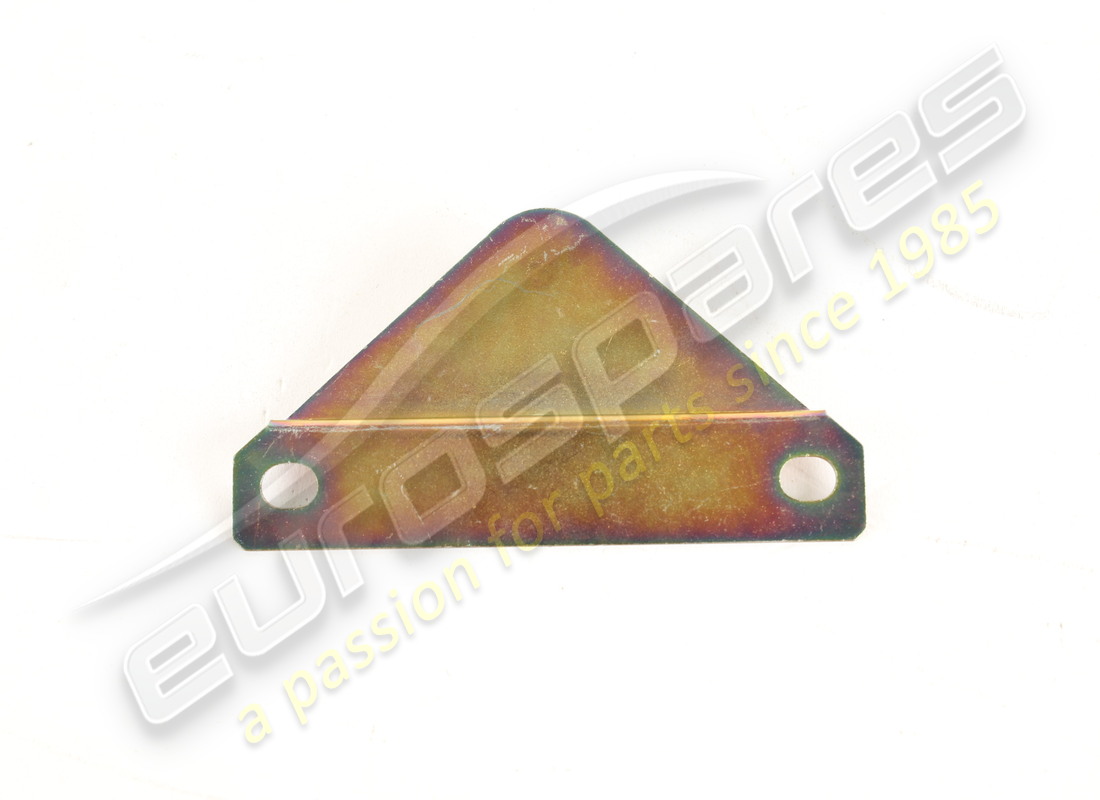

                                                          # 036
                                                          MPN: 175684
                                                          BRACKET
                                                          - Not for GD
                                                          from £37.86
                                                          from £37.86
                                                          # 037
                                                          MPN: 170762
                                                          DIRECTION-EMERGENCY LIGHT RELAY
                                                          - Not for USA and CDN
                                                          from £118.41
                                                          from £118.41
                                                          This part replaces part number 153120 - and 2 more. Click to view details
                                                          # 037
                                                          MPN: 171375
                                                          DIRECTION-EMERGENCY LIGHT RELAY
                                                          - Valid for USA and CDN
                                                          from £90.25
                                                          from £90.25
                                                          This part replaces part number 164368
                                                          # 038
                                                          MPN: 157991
                                                          DOUBLE SWITCH RELAY 30 A.
                                                          from £22.65
                                                          from £22.65
                                                          # 039
                                                          MPN: 62790300
                                                          NUT
                                                          from £0.53
                                                          from £0.53
                                                          This part replaces part number 12574011 - and 1 more. Click to view details
                                                          # 040
                                                          MPN: 12642877
                                                          WASHER
                                                          from £0.54
                                                          from £0.54

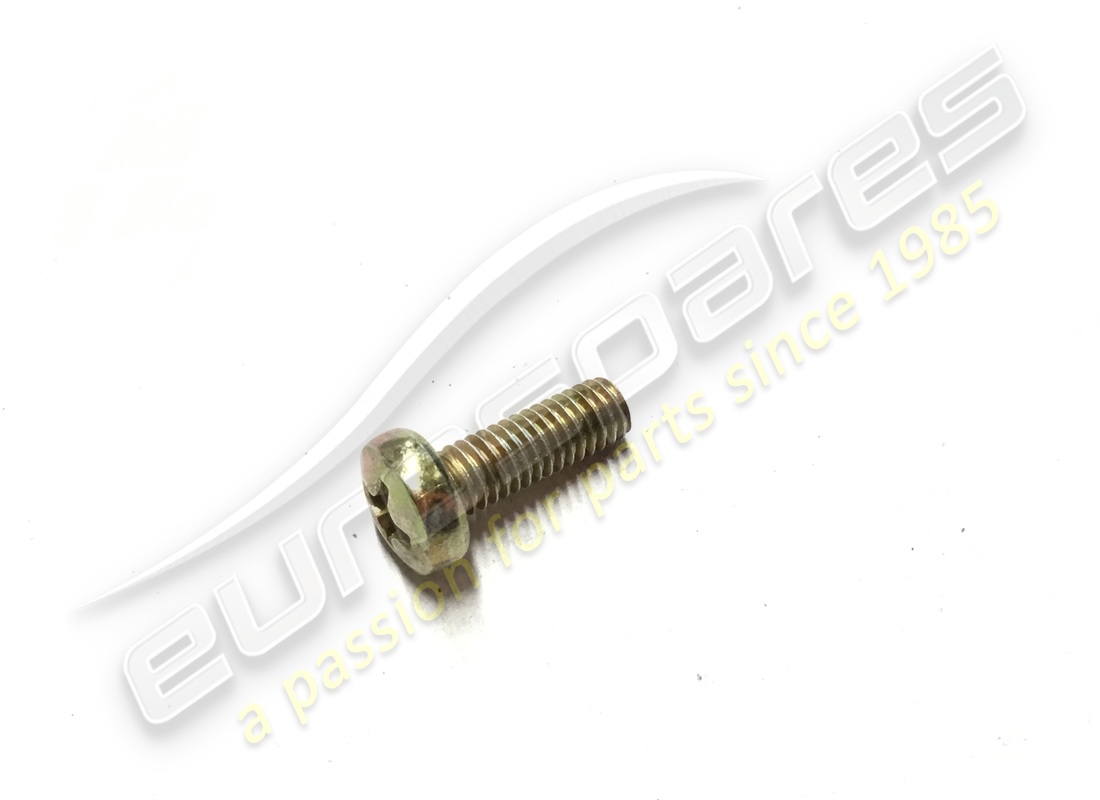

                                                          # 041
                                                          MPN: 13274014
                                                          SCREW
                                                          from £2.48
                                                          from £2.48
                                                          This part replaces part number 13274011
                                                          # 042
                                                          MPN: 127493
                                                          WASHER
                                                          from £0.53
                                                          from £0.53
                                                          This part replaces part number 106849 - and 1 more. Click to view details
                                                          # 043
                                                          MPN: 12637824
                                                          WASHER
                                                          from £0.47
                                                          from £0.47
                                                          This part replaces part number 12637801 - and 1 more. Click to view details
                                                          # 045
                                                          MPN: 13272011
                                                          SCREW
                                                          from £0.53
                                                          from £0.53
                                                          # 046
                                                          MPN: 10519224
                                                          WASHER
                                                          from £0.54
                                                          from £0.54
                                                          This part replaces part number 10519201
                                                          # 047
                                                          MPN: 178433
                                                          JUMPER FOR CIGAR LIGHTER RELAY
                                                          - Valid for GD - Not for AUS
                                                          from £8.19
                                                          from £8.19
                                                          # 048
                                                          MPN: 161590
                                                          MICRO-RELAY SWITCH 20 A. FOR CIGAR LIGHTER
                                                          - Valid for AUS - Valid till stock exhaustion
                                                          from £13.24
                                                          from £13.24
                                                          # 048
                                                          MPN: 184102
                                                          MICRO-RELAY SWITCH 20 A. FOR CIGAR LIGHTER
                                                          - Valid for AUS - Valid after stock exhaustion of 161590
                                                          from £3.80
                                                          from £3.80
                                                          # 049
                                                          MPN: 175663
                                                          JUMPER FOR DIURNAL LIGHTS
                                                          - Valid for CDN
                                                          from £8.20
                                                          from £8.20
                                                          # 049
                                                          MPN: 175664
                                                          JUMPER FOR DIURNAL LIGHTS
                                                          - Valid for USA and J
                                                          from £7.67
                                                          from £7.67
                                                          # 050
                                                          MPN: 178295
                                                          FUSES SUPPORT
                                                          - Valid from car Ass. Nr. 32533 GS and from car Ass. Nr. 32852 GD
                                                          from £2.76
                                                          from £2.76
                                                          # 051
                                                          MPN: 10977624
                                                          SCREW
                                                          - Valid from car Ass. Nr. 32533 GS and from car Ass. Nr. 32852 GD
                                                          from £0.53
                                                          from £0.53
                                                          This part replaces part number 10977611 - and 1 more. Click to view details
                                                          # 052
                                                          MPN: 14496324
                                                          WASHER
                                                          - Valid from car Ass. Nr. 32533 GS and from car Ass. Nr. 32852 GD
                                                          from £1.42
                                                          from £1.42
                                                          This part replaces part number 14496301
                                                          # 053
                                                          MPN: 180086
                                                          BLOWER RELAY PLATE
                                                          - Valid from car Ass. Nr. 32533 GS and from car Ass. Nr. 32852 GD - Valid till car Ass. Nr. 35218
                                                          from £34.40
                                                          from £34.40
                                                          # 053
                                                          MPN: 182977
                                                          BLOWER RELAY PLATE
                                                          - Valid from car Ass. Nr. 35219
                                                          from £23.61
                                                          from £23.61
                                                          # 054
                                                          MPN: 102741
                                                          NUT
                                                          - Valid from car Ass. Nr. 32533 GS and from car Ass. Nr. 32852 GD
                                                          from £0.53
                                                          from £0.53
                                                          This part replaces part number 12575411 - and 1 more. Click to view details
                                                          # 055
                                                          MPN: 10519424
                                                          WASHER
                                                          - Valid from car Ass. Nr. 32533 GS and from car Ass. Nr. 32852 GD
                                                          from £0.54
                                                          from £0.54
                                                          This part replaces part number 10519401 - and 3 more. Click to view details
                                                          # 056
                                                          MPN: 180026
                                                          DEVIATOR RELAY 30/40 A.
                                                          - Valid from car Ass. Nr. 32533 GS and from car Ass. Nr. 32852 GD
                                                          from £17.89
                                                          from £17.89
                                                          # 057
                                                          MPN: 102741
                                                          NUT
                                                          - Valid from car Ass. Nr. 32533 GS and from car Ass. Nr. 32852 GD
                                                          from £0.52
                                                          from £0.52
                                                          This part replaces part number 12575411 - and 1 more. Click to view details
                                                          # 058
                                                          MPN: 10519424
                                                          WASHER
                                                          - Valid from car Ass. Nr. 32533 GS and from car Ass. Nr. 32852 GD
                                                          from £0.54
                                                          from £0.54
                                                          This part replaces part number 10519401 - and 3 more. Click to view details
                                                          # 059
                                                          MPN: 170093
                                                          30 A. FUSE
                                                          - Valid from car Ass. Nr. 32533 GS and from car Ass. Nr. 32852 GD
                                                          from £8.02
                                                          from £8.02
                                                          # 060
                                                          MPN: 180628

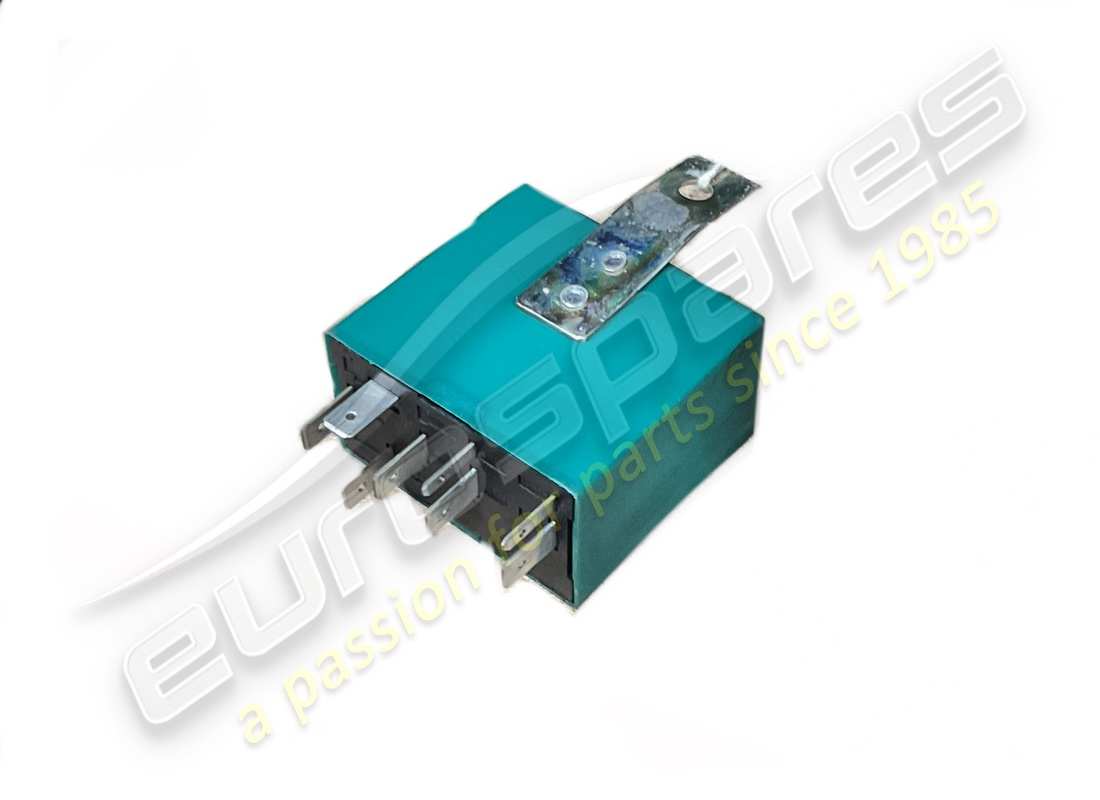

                                                          ELECTRONIC CONTROL STATION FOR FUEL COOLING
                                                          - Valid for USA M.Y. 2000 and CDN M.Y. 2000
                                                          from £358.86
                                                          from £358.86
                                                          # 061
                                                          MPN: 102741
                                                          NUT
                                                          - Valid for USA M.Y. 2000 and CDN M.Y. 2000
                                                          from £0.53
                                                          from £0.53
                                                          This part replaces part number 12575411 - and 1 more. Click to view details
                                                          # 062
                                                          MPN: 10519424
                                                          WASHER
                                                          - Valid for USA M.Y. 2000 and CDN M.Y. 2000
                                                          from £0.54
                                                          from £0.54
                                                          This part replaces part number 10519401 - and 3 more. Click to view details
                                                          # 063
                                                          MPN: 63186100
                                                          SPACER
                                                          - Valid for USA M.Y. 2000 and CDN M.Y. 2000
                                                          from £0.93
                                                          from £0.93
                                                          # 064
                                                          MPN: 181583
                                                          BRACKET
                                                          - Not for GD Valid from car - Ass. Nr. 34992 - For GD valid from car Ass. Nr. 37347
                                                          from £3.24
                                                          from £3.24
                                                          # 065
                                                          MPN: 102741
                                                          NUT
                                                          - Not for GD Valid from car - Ass. Nr. 34992 - For GD valid from car Ass. Nr. 37347
                                                          from £0.53
                                                          from £0.53
                                                          This part replaces part number 12575411 - and 1 more. Click to view details
                                                          # 066
                                                          MPN: 10519424
                                                          WASHER
                                                          - Not for GD Valid from car - Ass. Nr. 34992 - For GD valid from car Ass. Nr. 37347
                                                          from £0.54
                                                          from £0.54
                                                          This part replaces part number 10519401 - and 3 more. Click to view details
                                                          # 067
                                                          MPN: 10442190
                                                          BRACKET WITH SHEATH
                                                          - Valid for USA M.Y. 2000 and CDN M.Y. 2000
                                                          from £0.53
                                                          from £0.53
                                                          # 068
                                                          MPN: 184103

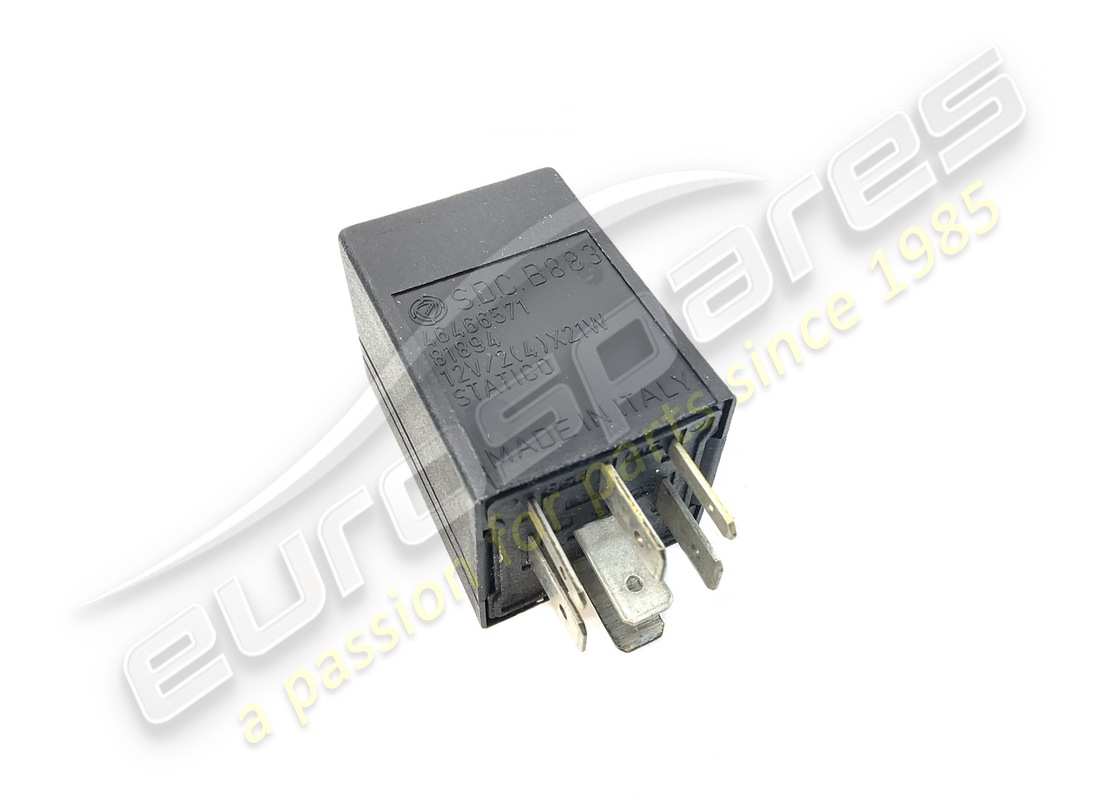

                                                          MICRO-RELAY 10/20 A.
                                                          from £4.38
                                                          from £4.38
                                                          # 069
                                                          MPN: 125240
                                                          FUSE 7,5 A.
                                                          from £0.47
                                                          from £0.47
                                                          This part replaces part number 11054890 - and 1 more. Click to view details
                                                          Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
