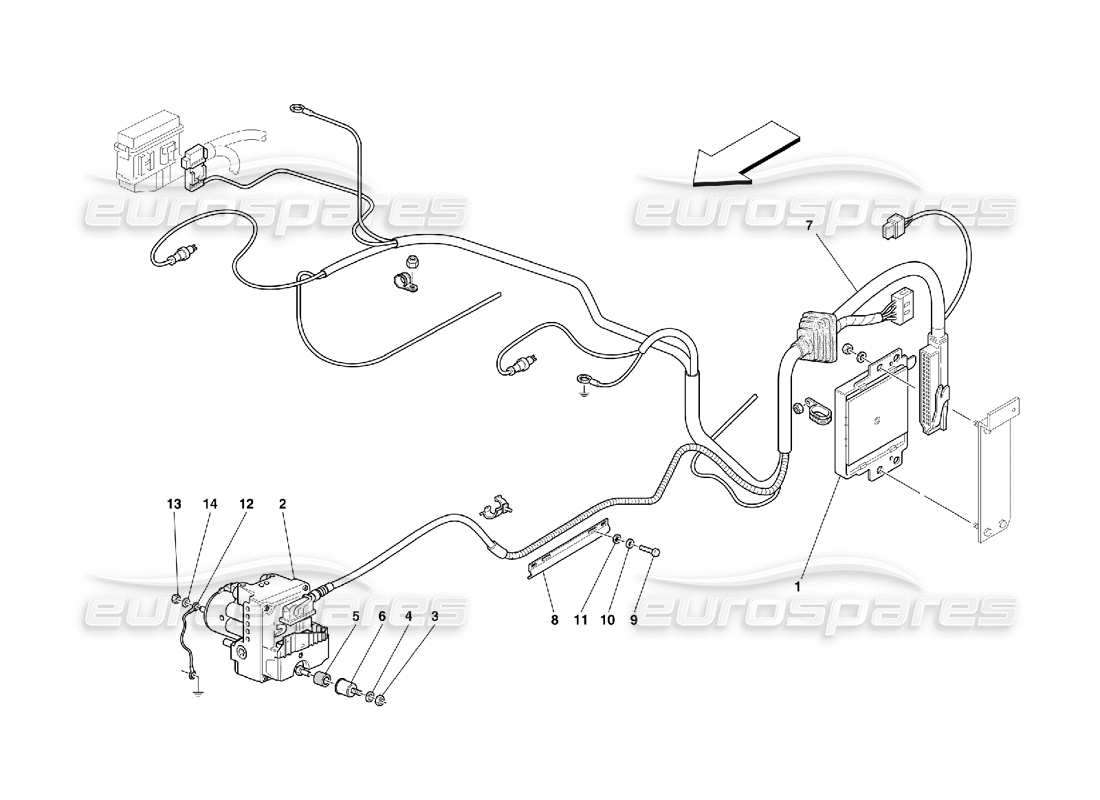

Ferrari 456 M GT/M GTA Control Unit and Hydraulic Equipment for ABS System Parts Diagram

049 - Control Unit and Hydraulic Equipment for ABS System

Ferrari 456 M GT/M GTA Control Unit and Hydraulic Equipment for ABS System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                          #
                          Part number
                          Description
                          Price
                          # 001
                          MPN: 164682

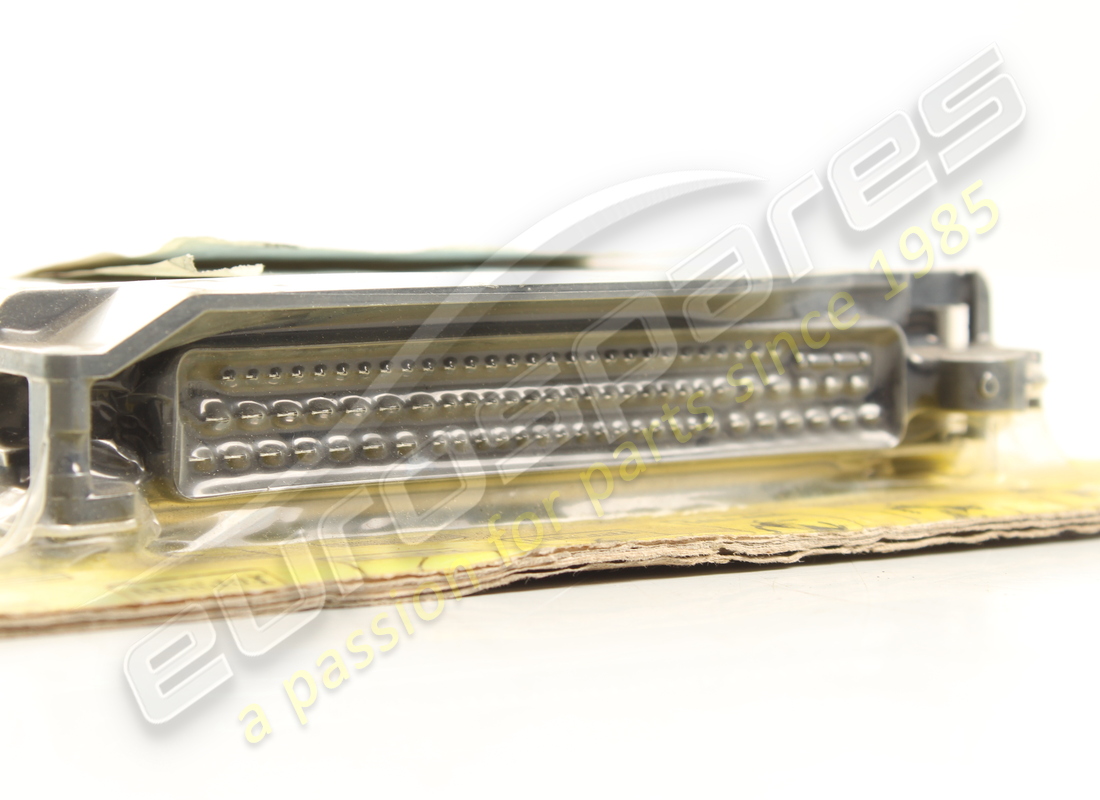

                          ABS/ASR ELECTRONIC CONTROL STATION
                          from £3,839.63
                          from £3,839.63
                          # 002
                          MPN: 164001
                          ABS/ASR HYDRAULIC CONTROL STATION
                          from £7,760.72
                          from £7,760.72
                          # 003
                          MPN: 102948
                          NUT
                          from £0.54
                          from £0.54
                          This part replaces part number 12574211 - and 4 more. Click to view details
                          # 004
                          MPN: 14496424
                          WASHER
                          Supersession
                          Supersession
                          This part replaces part number 14496401 - and 3 more. Click to view details
                          # 005
                          MPN: 154553
                          RUBBER PAD
                          from £1.18
                          from £1.18
                          # 006
                          MPN: 127614
                          CUP
                          from £1.45
                          from £1.45
                          # 007
                          MPN: 174490
                          ABS/ASR CONNECTION CABLES
                          - Not for GD - Not for USA M.Y. 2000 and CDN M.Y. 2000 - Valid till car Ass. Nr. 32532
                          from £624.75
                          from £624.75
                          # 007
                          MPN: 177175
                          ABS/ASR CONNECTION CABLES
                          - Valid for GD - Valid till car Ass. Nr. 32851
                          from £231.83
                          from £231.83
                          # 007
                          MPN: 179855
                          ABS/ASR CONNECTION CABLES
                          - Not for GD - Not for USA M.Y. 2000 and CDN M.Y. 2000 - Valid from car Ass. Nr. 32533
                          from £160.46
                          from £160.46
                          # 007
                          MPN: 179861
                          ABS/ASR CONNECTION CABLES
                          - Valid for GD - Valid from car Ass. Nr. 32852
                          from £431.99
                          from £431.99
                          # 007
                          MPN: 180500
                          ABS/ASR CONNECTION CABLES
                          - Valid for USA M.Y. 2000 and CDN M.Y. 2000
                          from £296.12
                          from £296.12
                          # 008
                          MPN: 171020
                          SHIELD FOR WIRING PASSAGE
                          from £12.88
                          from £12.88
                          This part replaces part number 161512
                          # 009
                          MPN: 10977524
                          SCREW
                          from £0.53
                          from £0.53
                          # 010
                          MPN: 10519424
                          WASHER
                          from £0.54
                          from £0.54
                          This part replaces part number 10519401 - and 3 more. Click to view details
                          # 011
                          MPN: 127494
                          WASHER
                          (minimum order quantity = 20)
                          from £0.53
                          from £0.53
                          This part replaces part number 10516470 - and 4 more. Click to view details
                          # 012
                          MPN: 166854
                          GROUND CABLE
                          from £3.01
                          from £3.01
                          # 013
                          MPN: 62790300
                          NUT
                          from £0.53
                          from £0.53
                          This part replaces part number 12574011 - and 1 more. Click to view details
                          # 014
                          MPN: 12642877
                          WASHER
                          from £0.54
                          from £0.54
