132 - Windshield Wiper, Washer and Horns

Ferrari 456 M GT/M GTA Windshield Wiper, Washer and Horns Parts Diagram

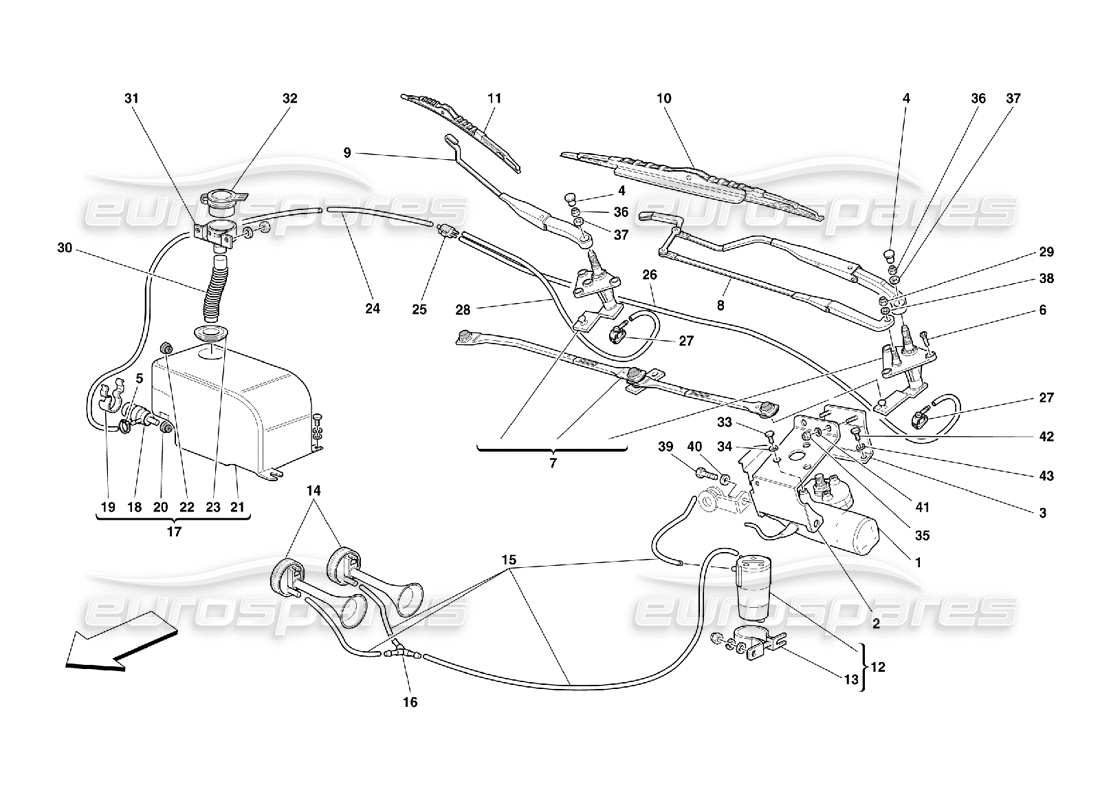

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                  #
                                                                  Part number
                                                                  Description
                                                                  Price
                                                                  # 001
                                                                  MPN: 63780200
                                                                  wiper motor
                                                                  - Not for GD
                                                                  from £293.08
                                                                  from £293.08
                                                                  # 001
                                                                  MPN: 64275500
                                                                  wiper motor
                                                                  - Valid for GD
                                                                  from £173.42
                                                                  from £173.42
                                                                  # 002
                                                                  MPN: 65514300
                                                                  WINDSHIELD WIPER MOTOR FRONT BRACKET
                                                                  - Valid for GD
                                                                  # 002
                                                                  MPN: 65750400
                                                                  WINDSHIELD WIPER MOTOR FRONT BRACKET
                                                                  - Not for GD
                                                                  from £67.21
                                                                  from £67.21
                                                                  # 003
                                                                  MPN: 63878800
                                                                  WINDSHIELD WIPER MOTOR REAR BRACKET
                                                                  - Not for GD
                                                                  from £42.00
                                                                  from £42.00
                                                                  # 004
                                                                  MPN: 65081700
                                                                  SMALL COVER
                                                                  - Valid for GD
                                                                  from £0.47
                                                                  from £0.47
                                                                  # 004
                                                                  MPN: 65190900
                                                                  SMALL COVER
                                                                  - Not for GD
                                                                  from £0.47
                                                                  from £0.47
                                                                  # 005
                                                                  MPN: 173710
                                                                  SCREW COLLAR
                                                                  from £0.54
                                                                  from £0.54
                                                                  # 006
                                                                  MPN: 14441324
                                                                  SCREW
                                                                  from £0.50
                                                                  from £0.50
                                                                  # 007
                                                                  MPN: 65081300
                                                                  COMPLETE WINDSHIELD WIPER LEVERAGE AND PINS
                                                                  - Not for GD
                                                                  from £222.44
                                                                  from £222.44
                                                                  # 007
                                                                  MPN: 65202600
                                                                  COMPLETE WINDSHIELD WIPER LEVERAGE AND PINS
                                                                  - Valid for GD
                                                                  from £357.15
                                                                  from £357.15
                                                                  # 008
                                                                  MPN: 65645700
                                                                  LH WINDSHIELD WIPER ARM
                                                                  - Not for GD
                                                                  from £219.15
                                                                  from £219.15
                                                                  # 008
                                                                  MPN: 65848500
                                                                  LH WINDSHIELD WIPER ARM
                                                                  - Valid for GD
                                                                  from £113.74
                                                                  from £113.74
                                                                  # 009
                                                                  MPN: 65081400
                                                                  RH WINDSHIELD WIPER ARM
                                                                  - Not for GD
                                                                  from £60.46
                                                                  from £60.46
                                                                  # 009
                                                                  MPN: 65645800
                                                                  RH WINDSHIELD WIPER ARM
                                                                  - Valid for GD
                                                                  from £108.88
                                                                  from £108.88
                                                                  # 010
                                                                  MPN: 65206400
                                                                  RH WIPER BLADE
                                                                  (RHD model)
                                                                  from £60.95
                                                                  from £60.95
                                                                  This part replaces part number 65755100 - and 3 more. Click to view details
                                                                  # 011
                                                                  MPN: 63756100
                                                                  LH WIPER BLADE
                                                                  (LHD model)
                                                                  from £21.49
                                                                  from £21.49
                                                                  # 012
                                                                  MPN: 225757
                                                                  ELECTRO-COMPRESSOR
                                                                  from £137.23
                                                                  from £137.23
                                                                  This part replaces part number 139920

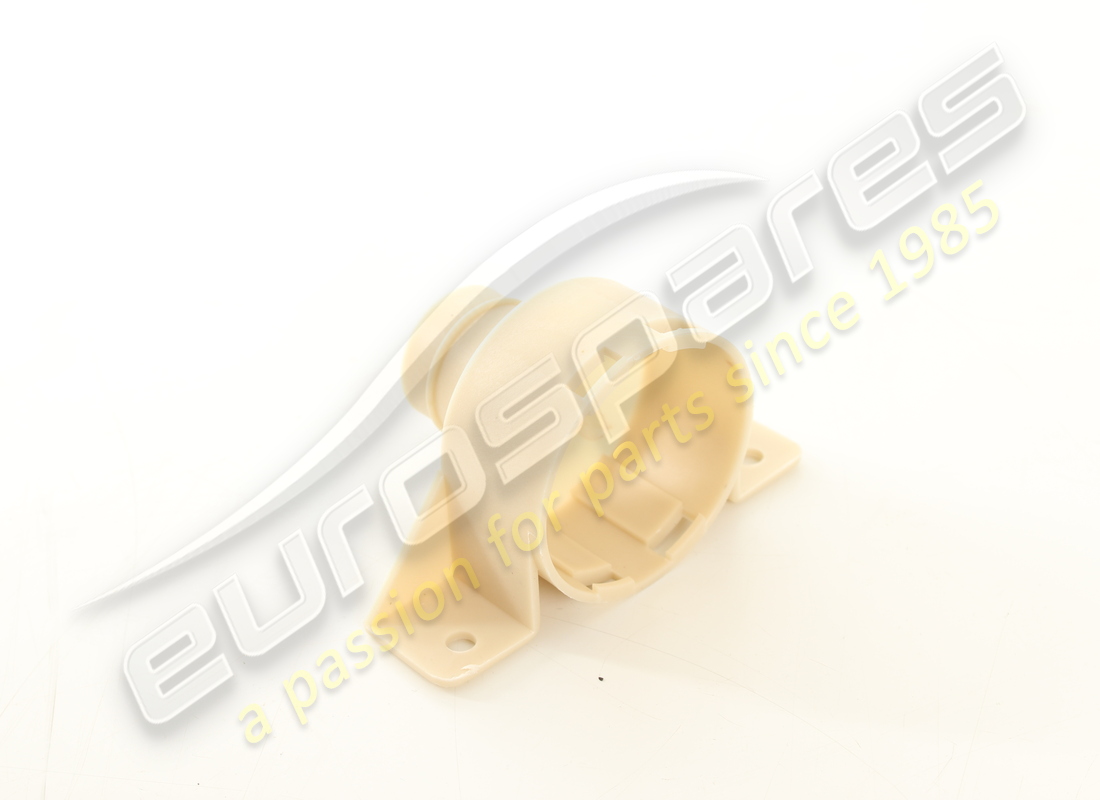

                                                                  # 013
                                                                  MPN: 60741200
                                                                  BRACKET FOR ELECTRO-COMPRESSOR
                                                                  from £0.71
                                                                  from £0.71
                                                                  # 014
                                                                  MPN: 189428
                                                                  PNEUMATIC HORN
                                                                  from £6.83
                                                                  from £6.83
                                                                  This part replaces part number 10665500 which we have in stock - and 7 more. Click to view details
                                                                  # 015
                                                                  MPN: 155904
                                                                  RUBBER PIPE
                                                                  from £3.88
                                                                  from £3.88
                                                                  # 016
                                                                  MPN: 60741100
                                                                  3-WAY UNION
                                                                  from £0.54
                                                                  from £0.54
                                                                  This part replaces part number 61741100
                                                                  # 017
                                                                  MPN: 63970100
                                                                  COMPLETE WINDSHIELD WIPER CONTAINER
                                                                  from £470.26
                                                                  from £470.26
                                                                  # 018
                                                                  MPN: 65358700
                                                                  WIPER PUMP
                                                                  from £26.95
                                                                  from £26.95
                                                                  # 019
                                                                  MPN: 63290800
                                                                  SPRING
                                                                  from £13.37
                                                                  from £13.37
                                                                  # 020
                                                                  MPN: 63290900
                                                                  RUBBER BUSHING
                                                                  from £0.56
                                                                  from £0.56
                                                                  # 021
                                                                  MPN: 63970200
                                                                  WINDSHIELD WIPER CONTAINER
                                                                  from £50.90
                                                                  from £50.90
                                                                  # 022
                                                                  MPN: 63291000
                                                                  CAP FOR BREATHER HOLE
                                                                  from £0.84
                                                                  from £0.84
                                                                  # 023
                                                                  MPN: 63954700
                                                                  TUBE TIGHTENING RING
                                                                  from £10.53
                                                                  from £10.53
                                                                  # 024
                                                                  MPN: 65559600
                                                                  PIPE FROM PUMP TO VALVE
                                                                  from £3.78
                                                                  from £3.78
                                                                  # 025
                                                                  MPN: 61648100
                                                                  NONRETURN VALVE
                                                                  from £16.60
                                                                  from £16.60
                                                                  # 026
                                                                  MPN: 65559700
                                                                  PIPE FROM VALVE TO PILOT ARM
                                                                  from £1.84
                                                                  from £1.84
                                                                  # 027
                                                                  MPN: 65191000
                                                                  JET FOR WINDOW WASHING
                                                                  from £1.05
                                                                  from £1.05
                                                                  This part replaces part number 80131500 - and 2 more. Click to view details
                                                                  # 028
                                                                  MPN: 65559800
                                                                  PIPE FROM VALVE TO PASSENGER ARM
                                                                  from £1.44
                                                                  from £1.44
                                                                  # 029
                                                                  MPN: 15896472
                                                                  NUT
                                                                  from £0.53
                                                                  from £0.53
                                                                  This part replaces part number 15896416

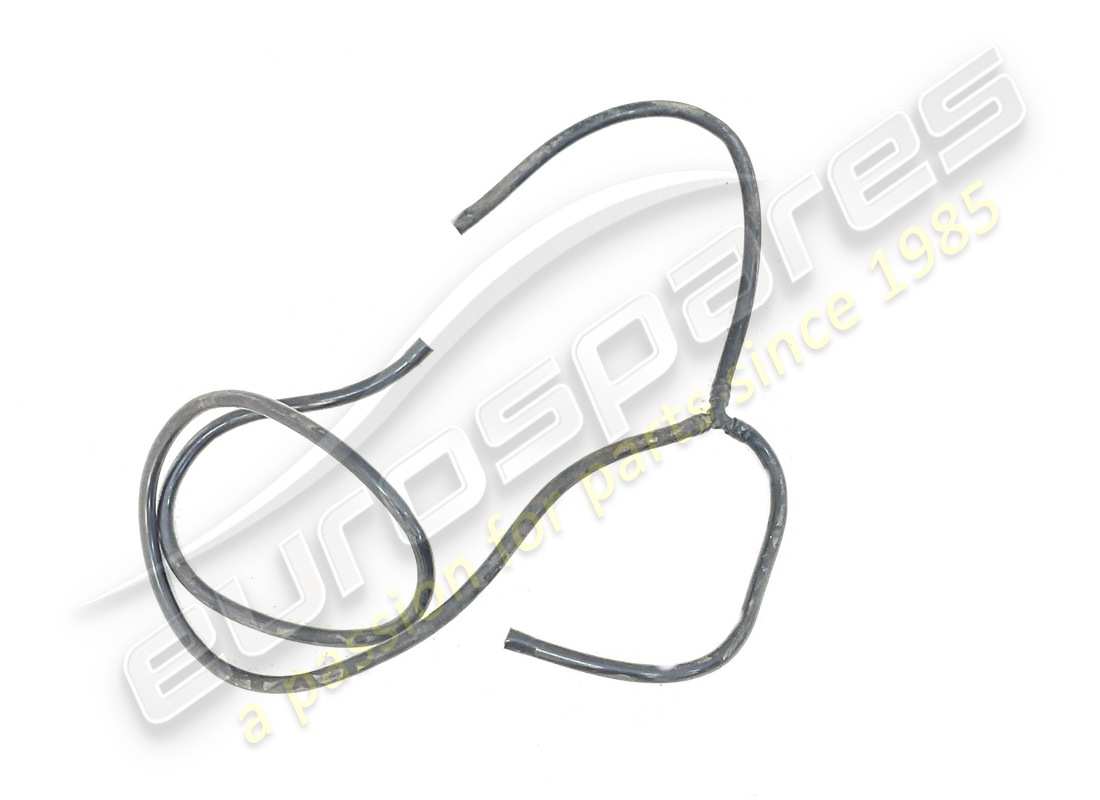

                                                                  # 030
                                                                  MPN: 63969500
                                                                  PLASTIC HOSE
                                                                  from £5.74
                                                                  from £5.74
                                                                  # 031
                                                                  MPN: 63449500
                                                                  FEED OPENING
                                                                  from £82.97
                                                                  from £82.97
                                                                  # 032
                                                                  MPN: 63118500
                                                                  PLUG
                                                                  from £1.90
                                                                  from £1.90
                                                                  # 033
                                                                  MPN: 10902224
                                                                  SCREW
                                                                  from £0.52
                                                                  from £0.52
                                                                  # 034
                                                                  MPN: 127494
                                                                  WASHER
                                                                  (minimum order quantity = 20)
                                                                  from £0.53
                                                                  from £0.53
                                                                  This part replaces part number 10516470 - and 4 more. Click to view details
                                                                  # 035
                                                                  MPN: 147985
                                                                  NUT
                                                                  from £0.54
                                                                  from £0.54
                                                                  # 036
                                                                  MPN: 16100814
                                                                  NUT
                                                                  from £0.49
                                                                  from £0.49
                                                                  This part replaces part number 16100811 - and 1 more. Click to view details
                                                                  # 037
                                                                  MPN: 12601374
                                                                  WASHER
                                                                  from £0.30
                                                                  from £0.30
                                                                  This part replaces part number 10615474 - and 13 more. Click to view details
                                                                  # 038
                                                                  MPN: 12601176
                                                                  WASHER
                                                                  Supersession
                                                                  Supersession
                                                                  # 039
                                                                  MPN: 16043324
                                                                  SCREW
                                                                  from £0.53
                                                                  from £0.53
                                                                  This part replaces part number 16043321
                                                                  # 040
                                                                  MPN: 127496
                                                                  WASHER
                                                                  from £0.54
                                                                  from £0.54
                                                                  This part replaces part number 10516671 - and 2 more. Click to view details
                                                                  # 042
                                                                  MPN: 10902224
                                                                  SCREW
                                                                  from £0.53
                                                                  from £0.53
                                                                  # 043
                                                                  MPN: 127494
                                                                  WASHER
                                                                  (minimum order quantity = 20)
                                                                  from £0.53
                                                                  from £0.53
                                                                  This part replaces part number 10516470 - and 4 more. Click to view details
