Ferrari 456 M GT/M GTA Trunk Hood Insulations -Valid for 456M GTA Parts Diagram

109 - Trunk Hood Insulations -Valid for 456M GTA

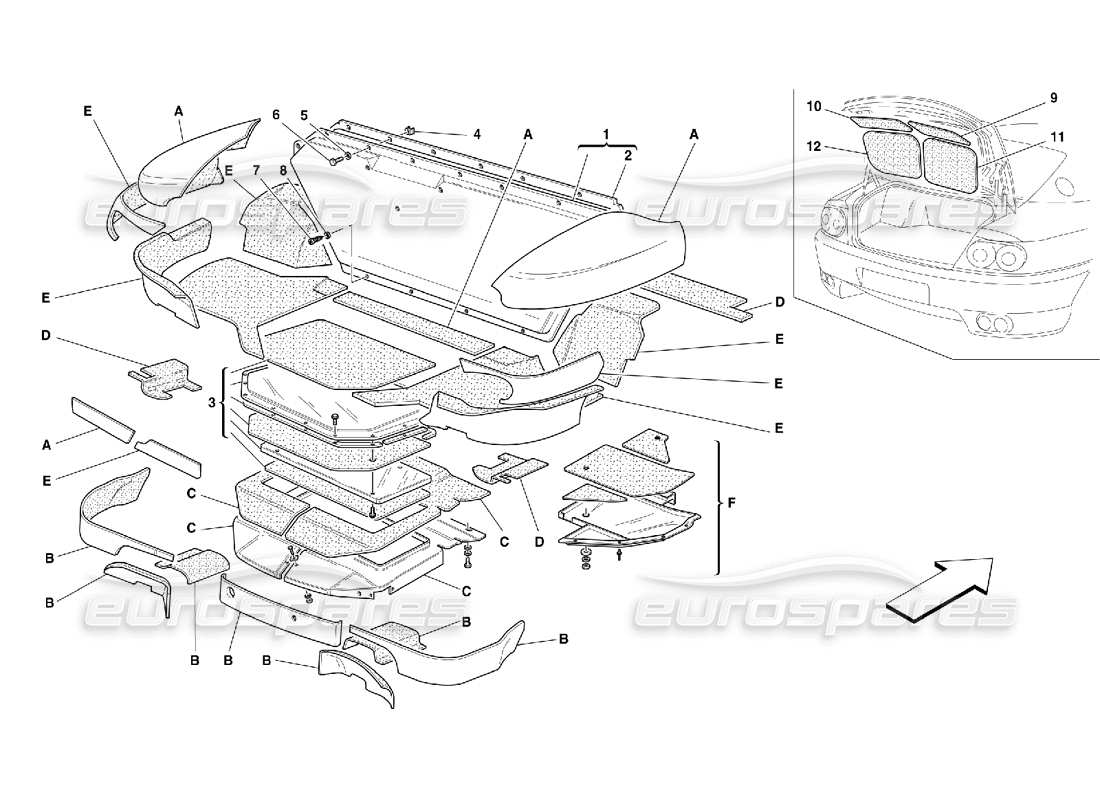

Ferrari 456 M GT/M GTA Trunk Hood Insulations -Valid for 456M GTA Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                          #
                          Part number
                          Description
                          Price
                          # 000
                          MPN: 64055000
                          TANK/SPARE WHEEL SHIELD SERIES
                          - E on Picture -
                          from £75.69
                          from £75.69
                          This part replaces part number 64055100 - and 1 more. Click to view details
                          # 000
                          MPN: 64090300
                          HEAT SHIELD SERIES
                          - B on Picture -
                          from £178.07
                          from £178.07
                          # 000
                          MPN: 64721500
                          HEAT SHIELD SERIES
                          - F on Picture -
                          from £112.20
                          from £112.20
                          # 000

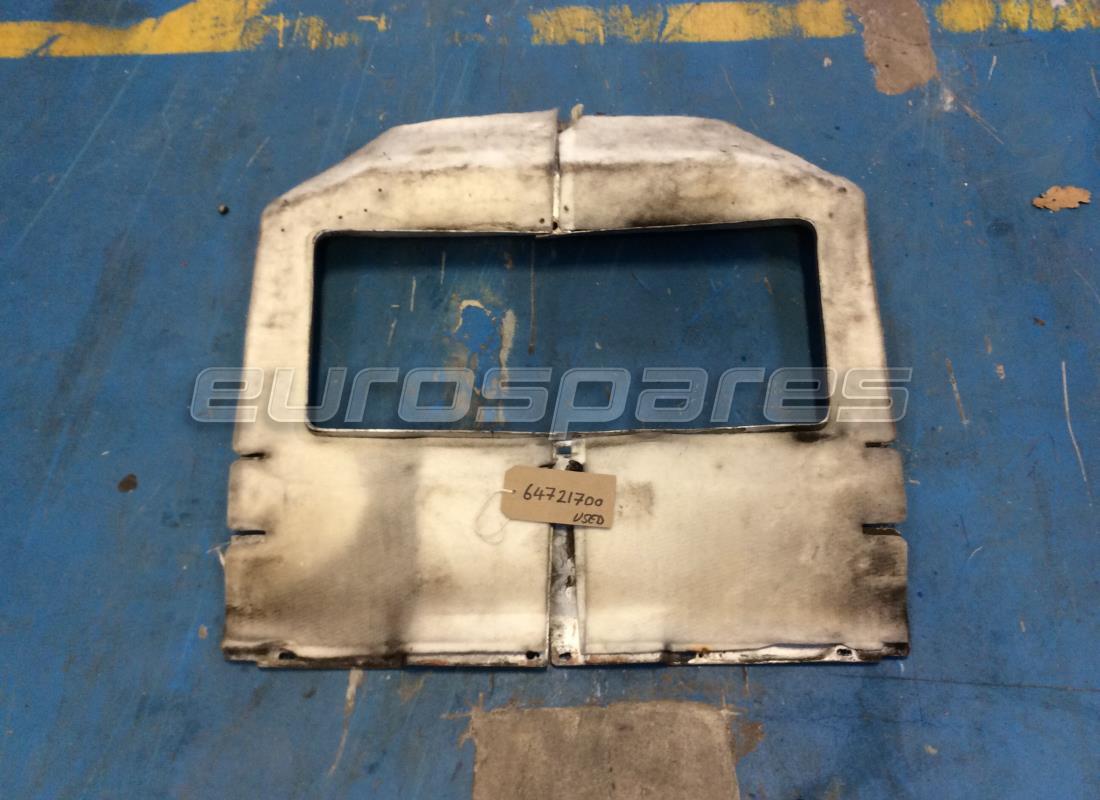

                          MPN: 64721700
                          HEAT SHIELD SERIES
                          - C on Picture -
                          from £362.07
                          from £362.07
                          # 000
                          MPN: 65418900
                          HEAT SHIELD SERIES
                          - A on Picture -
                          from £335.44
                          from £335.44
                          # 000
                          MPN: 65809400
                          RH BOOT HEAT SHIELD
                          from £304.77
                          from £304.77
                          This part replaces part number 63899700 which we have in stock
                          # 000
                          MPN: 65809600
                          LH BOOT HEAT SHIELD
                          - F on Picture -
                          from £304.77
                          from £304.77
                          This part replaces part number 63899600 which we have in stock
                          # 001
                          MPN: 65806900
                          SHIELD FOR LUGGAGE COMPARTMENT AND FUEL TANK
                          from £263.77
                          from £263.77
                          # 002
                          MPN: 63761800
                          GASKET
                          from £172.23
                          from £172.23
                          # 003
                          MPN: 65773000
                          COVER FOR LUGGAGE COMPARTMENT
                          from £199.50
                          from £199.50
                          This part replaces part number 65376600
                          # 004
                          MPN: 65774200
                          NUT WITH CAGE
                          from £0.57
                          from £0.57
                          # 005
                          MPN: 12647701
                          WASHER
                          from £0.47
                          from £0.47
                          # 006
                          MPN: 10902821
                          SCREW
                          from £1.10
                          from £1.10
                          This part replaces part number 10902801 - and 1 more. Click to view details
                          # 007
                          MPN: 15687275
                          SCREW
                          from £0.53
                          from £0.53
                          This part replaces part number 15687206
                          # 008
                          MPN: 12642878
                          WASHER
                          from £0.53
                          from £0.53
                          # 009
                          MPN: 63494800
                          RH UPPER HEAT SHIELD
                          from £73.80
                          from £73.80
                          # 010
                          MPN: 63494900
                          LH UPPER HEAT SHIELD
                          from £73.80
                          from £73.80
                          # 011
                          MPN: 63495000
                          RH LOWER HEAT SHIELD
                          from £95.66
                          from £95.66
                          # 012
                          MPN: 63495100
                          LH LOWER HEAT SHIELD
                          from £95.66
                          from £95.66
