Ferrari 456 M GT/M GTA Antievaporation Device -Not for USA, CDN and AUS Parts Diagram

014 - Antievaporation Device -Not for USA, CDN and AUS

Ferrari 456 M GT/M GTA Antievaporation Device -Not for USA, CDN and AUS Parts Diagram

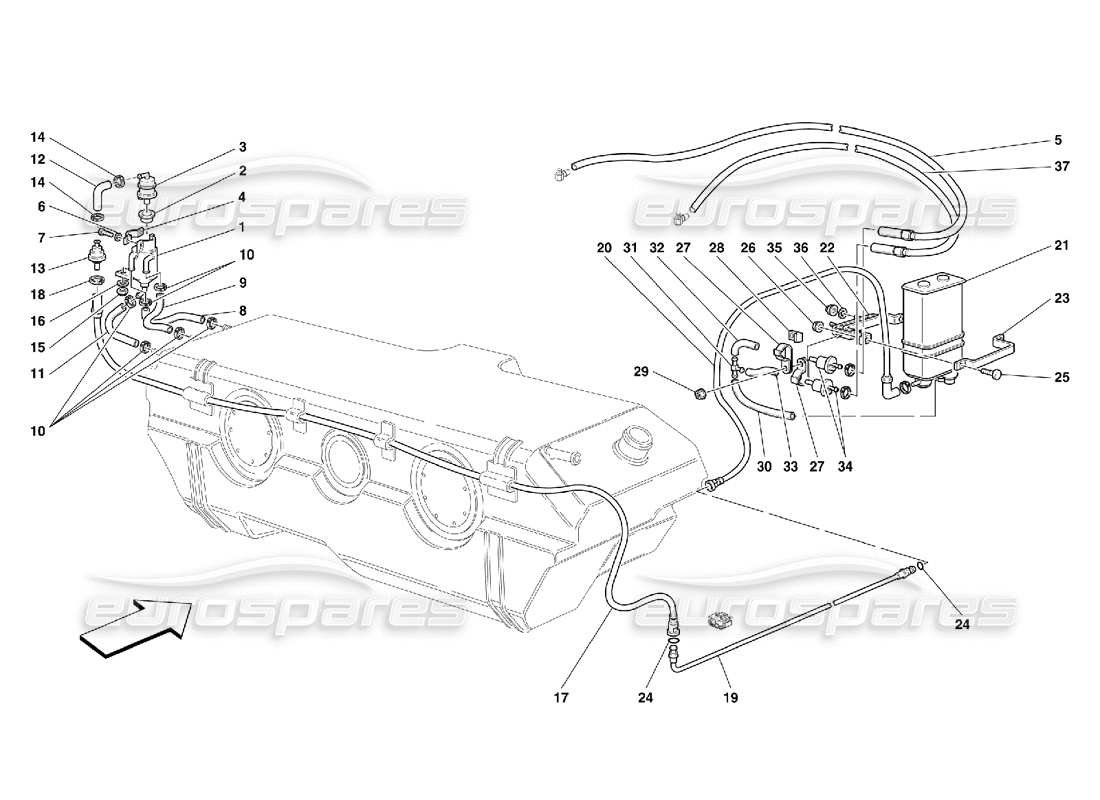

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                            #
                                                                            Part number
                                                                            Description
                                                                            Price
                                                                            # 001
                                                                            MPN: 155407
                                                                            DISAREATOR
                                                                            from £93.75
                                                                            from £93.75
                                                                            # 002
                                                                            MPN: 155313
                                                                            SEAL RING
                                                                            from £22.01
                                                                            from £22.01
                                                                            # 003
                                                                            MPN: 124193
                                                                            ANTI FLOWING BACK VALVE
                                                                            from £85.71
                                                                            from £85.71
                                                                            This part replaces part number 114843
                                                                            # 004
                                                                            MPN: 155405
                                                                            BRACKET
                                                                            from £12.22
                                                                            from £12.22
                                                                            # 005
                                                                            MPN: 155779
                                                                            PIPE FROM VALVE TO LH MANIFOLD
                                                                            from £71.14
                                                                            from £71.14
                                                                            This part replaces part number 155855
                                                                            # 006
                                                                            MPN: 14496324
                                                                            WASHER
                                                                            from £1.40
                                                                            from £1.40
                                                                            This part replaces part number 14496301
                                                                            # 007
                                                                            MPN: 13273911
                                                                            SCREW
                                                                            from £0.53
                                                                            from £0.53
                                                                            # 008
                                                                            MPN: 116764
                                                                            FRONT PIPE FROM FUEL TANK TO DISAERATOR
                                                                            from £14.11
                                                                            from £14.11
                                                                            This part replaces part number 105492 - and 3 more. Click to view details
                                                                            # 009
                                                                            MPN: 154709
                                                                            CENTRAL PIPE FROM FUEL TANK TO DISAERATOR
                                                                            Supersession
                                                                            Supersession
                                                                            This part replaces part number 120441 - and 1 more. Click to view details
                                                                            # 010
                                                                            MPN: 13000190
                                                                            SCREW COLLAR
                                                                            from £0.52
                                                                            from £0.52
                                                                            This part replaces part number 12178990 - and 1 more. Click to view details
                                                                            # 011
                                                                            MPN: 114880
                                                                            PIPE
                                                                            from £24.63
                                                                            from £24.63
                                                                            This part replaces part number 106202 - and 1 more. Click to view details
                                                                            # 012
                                                                            MPN: 148464
                                                                            SLEEVE
                                                                            from £4.47
                                                                            from £4.47
                                                                            # 013
                                                                            MPN: 170442
                                                                            TANK VENTILATION VALVE
                                                                            from £59.90
                                                                            from £59.90
                                                                            This part replaces part number 159478 - and 1 more. Click to view details
                                                                            # 014
                                                                            MPN: 13000190
                                                                            SCREW COLLAR
                                                                            from £0.53
                                                                            from £0.53
                                                                            This part replaces part number 12178990 - and 1 more. Click to view details
                                                                            # 015
                                                                            MPN: 102948
                                                                            NUT
                                                                            from £0.54
                                                                            from £0.54
                                                                            This part replaces part number 12574211 - and 4 more. Click to view details
                                                                            # 016
                                                                            MPN: 14496424
                                                                            WASHER
                                                                            Supersession
                                                                            Supersession
                                                                            This part replaces part number 14496401 - and 3 more. Click to view details
                                                                            # 017
                                                                            MPN: 155762
                                                                            PIPE FROM VALVE TO INTERMEDIATE PIPE
                                                                            from £43.86
                                                                            from £43.86
                                                                            # 018
                                                                            MPN: 13000190
                                                                            SCREW COLLAR
                                                                            from £0.54
                                                                            from £0.54
                                                                            This part replaces part number 12178990 - and 1 more. Click to view details
                                                                            # 019
                                                                            MPN: 155763
                                                                            INTERMEDIATE PIPE
                                                                            from £42.88
                                                                            from £42.88

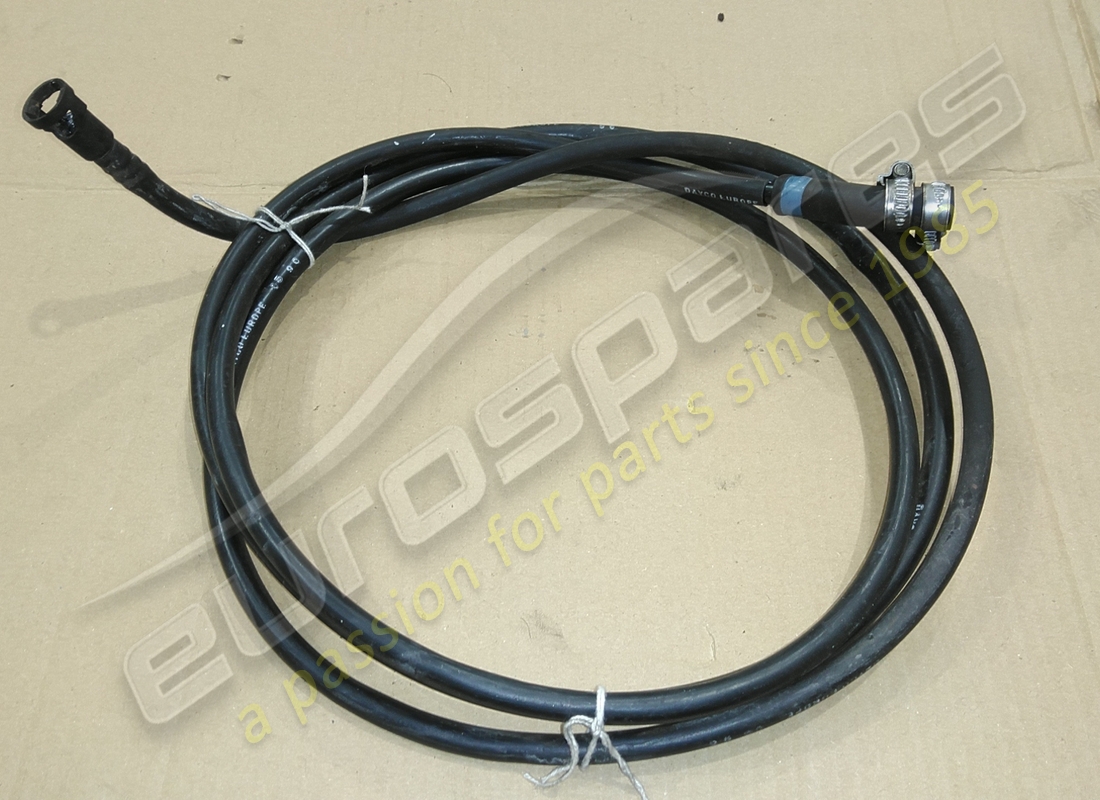

                                                                            # 020
                                                                            MPN: 155765
                                                                            PIPE FROM INTERMEDIATE PIPE TO VAPOR FILTER
                                                                            from £144.13
                                                                            from £144.13
                                                                            # 021
                                                                            MPN: 173791
                                                                            CHARCOAL CARBON CANISTER
                                                                            from £110.20
                                                                            from £110.20
                                                                            This part replaces part number 168366 - and 3 more. Click to view details
                                                                            # 022
                                                                            MPN: 156452
                                                                            FRAME FASTENING FILTER BRACKET
                                                                            from £9.68
                                                                            from £9.68
                                                                            # 023
                                                                            MPN: 154385
                                                                            COMPLETE BRACKET
                                                                            from £15.75
                                                                            from £15.75
                                                                            # 024
                                                                            MPN: 133956
                                                                            O.R. GASKET
                                                                            from £1.00
                                                                            from £1.00
                                                                            # 025
                                                                            MPN: 10902124
                                                                            SCREW
                                                                            from £0.53
                                                                            from £0.53
                                                                            This part replaces part number 10902111 - and 1 more. Click to view details
                                                                            # 026
                                                                            MPN: 102948
                                                                            NUT
                                                                            from £0.54
                                                                            from £0.54
                                                                            This part replaces part number 12574211 - and 4 more. Click to view details
                                                                            # 027
                                                                            MPN: 164437
                                                                            FIXING BRACKET
                                                                            from £2.07
                                                                            from £2.07
                                                                            # 028
                                                                            MPN: 137716
                                                                            PLATE
                                                                            from £12.66
                                                                            from £12.66
                                                                            # 029
                                                                            MPN: 14058411
                                                                            NUT
                                                                            from £0.54
                                                                            from £0.54
                                                                            # 030
                                                                            MPN: 114874
                                                                            PIPE FROM FILTER TO UNION
                                                                            Supersession
                                                                            Supersession
                                                                            This part replaces part number 114873 - and 1 more. Click to view details
                                                                            # 031
                                                                            MPN: 105990
                                                                            LEFT STRIKER
                                                                            from £0.46
                                                                            from £0.46
                                                                            # 032
                                                                            MPN: 164439
                                                                            PIPE FROM UNION TO UPPER ANTIEVAPORATION VALVE
                                                                            from £41.95
                                                                            from £41.95
                                                                            # 033
                                                                            MPN: 164440
                                                                            PIPE FROM UNION TO LOWER ANTIEVAPORATION VALVE
                                                                            from £20.40
                                                                            from £20.40
                                                                            # 035
                                                                            MPN: 102948
                                                                            NUT
                                                                            from £0.54
                                                                            from £0.54
                                                                            This part replaces part number 12574211 - and 4 more. Click to view details
                                                                            # 036
                                                                            MPN: 14499324
                                                                            WASHER
                                                                            from £0.47
                                                                            from £0.47
                                                                            This part replaces part number 14499301 which we have in stock
                                                                            # 037
                                                                            MPN: 155778
                                                                            PIPE FROM VALVE TO RH MANIFOLD
                                                                            from £63.70
                                                                            from £63.70
                                                                            This part replaces part number 155856 which we have in stock
