Ferrari 456 M GT/M GTA crankcase Parts Diagram

001 - crankcase

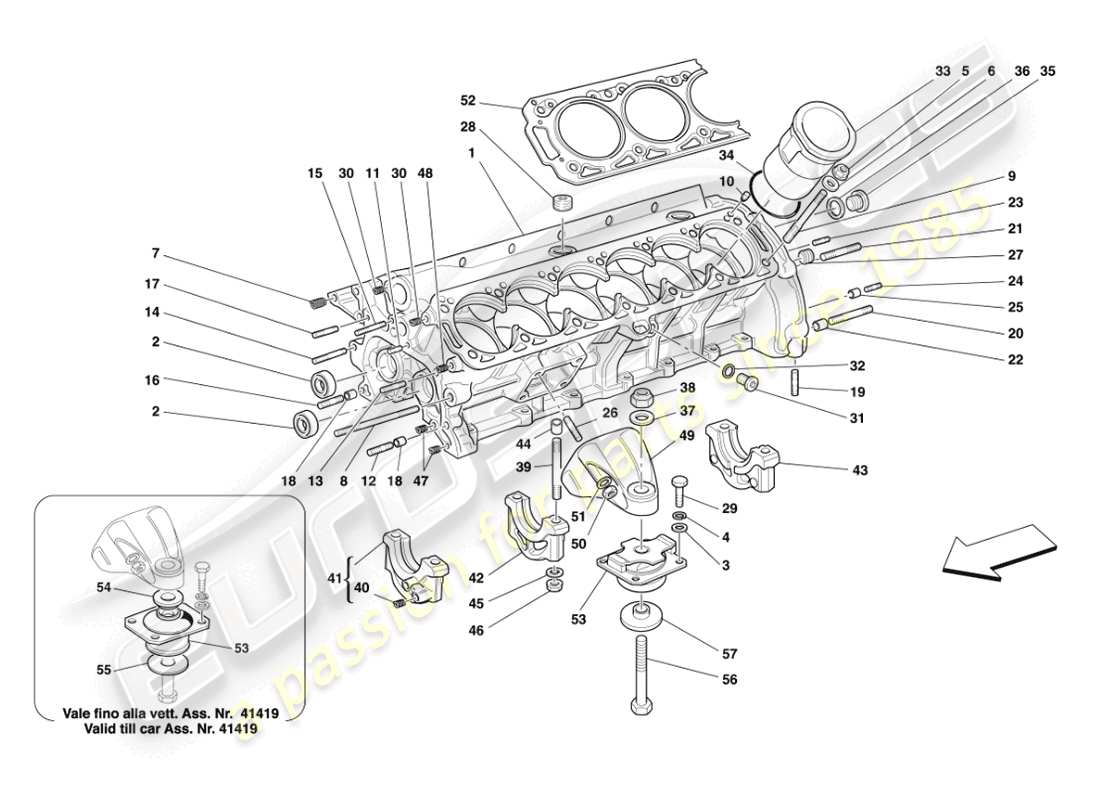

Ferrari 456 M GT/M GTA Crankcase Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                        #
                                                                                                        Part number
                                                                                                        Description
                                                                                                        Price
                                                                                                        # 000
                                                                                                        MPN: 153178
                                                                                                        GASKET SET
                                                                                                        456 GTA/M
                                                                                                        from £1,478.21
                                                                                                        from £1,478.21
                                                                                                        # 000
                                                                                                        MPN: 173504
                                                                                                        COMPLETE BASE-PLATE
                                                                                                        from £12,995.00
                                                                                                        from £12,995.00
                                                                                                        This part replaces part number 164849 - and 5 more. Click to view details
                                                                                                        # 000
                                                                                                        MPN: 178689
                                                                                                        COMPLETE ENGINE
                                                                                                        Valid for 456M GTA UK
                                                                                                        from £45,622.32
                                                                                                        from £45,622.32
                                                                                                        # 001
                                                                                                        MPN: 164849
                                                                                                        crankcase
                                                                                                        - Not as spare part - With the compl. crankcase 173504
                                                                                                        Supersession
                                                                                                        Supersession
                                                                                                        # 002
                                                                                                        MPN: 171177
                                                                                                        BEARING
                                                                                                        from £10.17
                                                                                                        from £10.17
                                                                                                        This part replaces part number 144713
                                                                                                        # 003
                                                                                                        MPN: 14496624
                                                                                                        WASHER
                                                                                                        from £0.51
                                                                                                        from £0.51
                                                                                                        This part replaces part number 14496601 - and 2 more. Click to view details
                                                                                                        # 004
                                                                                                        MPN: 127497
                                                                                                        WASHER
                                                                                                        from £0.53
                                                                                                        from £0.53
                                                                                                        This part replaces part number 10516871 - and 2 more. Click to view details
                                                                                                        # 005
                                                                                                        MPN: 140664
                                                                                                        NUT
                                                                                                        from £32.02
                                                                                                        from £32.02
                                                                                                        # 006
                                                                                                        MPN: 140603
                                                                                                        WASHER
                                                                                                        from £2.93
                                                                                                        from £2.93
                                                                                                        # 007
                                                                                                        MPN: 13526170
                                                                                                        THREADED INSERT
                                                                                                        from £2.43
                                                                                                        from £2.43
                                                                                                        This part replaces part number 105197
                                                                                                        # 008
                                                                                                        MPN: 13972234
                                                                                                        STUD
                                                                                                        from £2.08
                                                                                                        from £2.08
                                                                                                        # 009
                                                                                                        MPN: 140591
                                                                                                        STUD
                                                                                                        from £37.50
                                                                                                        from £37.50
                                                                                                        # 010
                                                                                                        MPN: 152627
                                                                                                        DOWEL
                                                                                                        from £2.28
                                                                                                        from £2.28
                                                                                                        This part replaces part number 123864
                                                                                                        # 011
                                                                                                        MPN: 13541224
                                                                                                        STUD
                                                                                                        from £35.39
                                                                                                        from £35.39
                                                                                                        This part replaces part number 13541221
                                                                                                        # 012
                                                                                                        MPN: 13543924
                                                                                                        STUD
                                                                                                        from £0.93
                                                                                                        from £0.93
                                                                                                        This part replaces part number 13543921
                                                                                                        # 013
                                                                                                        MPN: 13543524
                                                                                                        STUD
                                                                                                        from £2.04
                                                                                                        from £2.04
                                                                                                        This part replaces part number 13543521
                                                                                                        # 014
                                                                                                        MPN: 13541924
                                                                                                        STUD
                                                                                                        from £0.83
                                                                                                        from £0.83
                                                                                                        This part replaces part number 13541921
                                                                                                        # 015
                                                                                                        MPN: 13541724
                                                                                                        STUD
                                                                                                        from £1.57
                                                                                                        from £1.57
                                                                                                        This part replaces part number 13541721
                                                                                                        # 016
                                                                                                        MPN: 13543424
                                                                                                        STUD
                                                                                                        from £1.10
                                                                                                        from £1.10
                                                                                                        This part replaces part number 13543421
                                                                                                        # 017
                                                                                                        MPN: 13543824
                                                                                                        STUD
                                                                                                        from £2.31
                                                                                                        from £2.31
                                                                                                        This part replaces part number 13543821
                                                                                                        # 018
                                                                                                        MPN: 100041
                                                                                                        DOWEL
                                                                                                        from £4.74
                                                                                                        from £4.74
                                                                                                        # 019
                                                                                                        MPN: 13517224
                                                                                                        STUD
                                                                                                        from £1.49
                                                                                                        from £1.49
                                                                                                        This part replaces part number 13517221
                                                                                                        # 020
                                                                                                        MPN: 13543924
                                                                                                        STUD
                                                                                                        from £0.93
                                                                                                        from £0.93
                                                                                                        This part replaces part number 13543921
                                                                                                        # 021
                                                                                                        MPN: 13543824
                                                                                                        STUD
                                                                                                        from £2.18
                                                                                                        from £2.18
                                                                                                        This part replaces part number 13543821
                                                                                                        # 022
                                                                                                        MPN: 102704
                                                                                                        DOWEL
                                                                                                        from £1.79
                                                                                                        from £1.79
                                                                                                        This part replaces part number 500805
                                                                                                        # 023
                                                                                                        MPN: 13541024
                                                                                                        STUD
                                                                                                        from £0.47
                                                                                                        from £0.47
                                                                                                        This part replaces part number 13541021
                                                                                                        # 024
                                                                                                        MPN: 13541224
                                                                                                        STUD
                                                                                                        from £35.39
                                                                                                        from £35.39
                                                                                                        This part replaces part number 13541221
                                                                                                        # 025
                                                                                                        MPN: 103038
                                                                                                        DOWEL
                                                                                                        from £0.77
                                                                                                        from £0.77
                                                                                                        # 026
                                                                                                        MPN: 13546524
                                                                                                        STUD
                                                                                                        from £0.69
                                                                                                        from £0.69
                                                                                                        This part replaces part number 13546521
                                                                                                        # 027
                                                                                                        MPN: 163528
                                                                                                        THREADED PLUG
                                                                                                        from £2.43
                                                                                                        from £2.43
                                                                                                        This part replaces part number 10268450 - and 1 more. Click to view details
                                                                                                        # 028
                                                                                                        MPN: 14325540
                                                                                                        THREADED PLUG
                                                                                                        from £4.23
                                                                                                        from £4.23
                                                                                                        # 029
                                                                                                        MPN: 15970634
                                                                                                        SCREW
                                                                                                        from £1.57
                                                                                                        from £1.57
                                                                                                        # 030
                                                                                                        MPN: 13525870
                                                                                                        THREADED INSERT
                                                                                                        from £1.96
                                                                                                        from £1.96
                                                                                                        This part replaces part number 105510
                                                                                                        # 031
                                                                                                        MPN: 150731
                                                                                                        THREADED PLUG
                                                                                                        from £2.30
                                                                                                        from £2.30
                                                                                                        # 032
                                                                                                        MPN: 10280060
                                                                                                        GASKET
                                                                                                        from £0.53
                                                                                                        from £0.53
                                                                                                        This part replaces part number 100501 - and 3 more. Click to view details
                                                                                                        # 033
                                                                                                        MPN: 166991
                                                                                                        CYLINDER LINER
                                                                                                        from £168.88
                                                                                                        from £168.88
                                                                                                        # 034
                                                                                                        MPN: 140321
                                                                                                        GASKET
                                                                                                        from £5.57
                                                                                                        from £5.57
                                                                                                        # 035
                                                                                                        MPN: 10304640
                                                                                                        THREADED PLUG
                                                                                                        from £3.42
                                                                                                        from £3.42
                                                                                                        # 036
                                                                                                        MPN: 10264560
                                                                                                        GASKET
                                                                                                        from £0.53
                                                                                                        from £0.53
                                                                                                        # 037
                                                                                                        MPN: 12601774
                                                                                                        WASHER
                                                                                                        from £0.71
                                                                                                        from £0.71
                                                                                                        This part replaces part number 12601779
                                                                                                        # 038
                                                                                                        MPN: 176573
                                                                                                        NUT
                                                                                                        from £1.11
                                                                                                        from £1.11
                                                                                                        This part replaces part number 158307
                                                                                                        # 039
                                                                                                        MPN: 140553
                                                                                                        STUD
                                                                                                        from £3.93
                                                                                                        from £3.93
                                                                                                        # 040
                                                                                                        MPN: 13525770
                                                                                                        THREADED INSERT
                                                                                                        from £1.57
                                                                                                        from £1.57
                                                                                                        This part replaces part number 103830
                                                                                                        # 041
                                                                                                        MPN: 140545
                                                                                                        FRONT HAT
                                                                                                        - Not as spare part - With complete crankase
                                                                                                        from £117.60
                                                                                                        from £117.60
                                                                                                        # 042
                                                                                                        MPN: 140499
                                                                                                        INTERMEDIATE HAT
                                                                                                        - Not as spare part - With complete crankase
                                                                                                        from £164.66
                                                                                                        from £164.66
                                                                                                        # 043
                                                                                                        MPN: 140565
                                                                                                        REAR HAT
                                                                                                        - Not as spare part - With complete crankase
                                                                                                        from £117.60
                                                                                                        from £117.60
                                                                                                        # 044
                                                                                                        MPN: 145493
                                                                                                        DOWEL
                                                                                                        from £1.18
                                                                                                        from £1.18
                                                                                                        # 045
                                                                                                        MPN: 142588
                                                                                                        WASHER
                                                                                                        from £0.71
                                                                                                        from £0.71
                                                                                                        # 046
                                                                                                        MPN: 142590
                                                                                                        NUT
                                                                                                        from £3.33
                                                                                                        from £3.33
                                                                                                        # 047
                                                                                                        MPN: 13525570
                                                                                                        THREADED INSERT
                                                                                                        from £2.28
                                                                                                        from £2.28
                                                                                                        This part replaces part number 109668
                                                                                                        # 048
                                                                                                        MPN: 13525570
                                                                                                        THREADED INSERT
                                                                                                        from £2.28
                                                                                                        from £2.28
                                                                                                        This part replaces part number 109668
                                                                                                        # 049
                                                                                                        MPN: 141892
                                                                                                        SUPPORT FOR MOTOR FIXING
                                                                                                        from £79.11
                                                                                                        from £79.11
                                                                                                        # 050
                                                                                                        MPN: 133988
                                                                                                        NUT
                                                                                                        from £0.47
                                                                                                        from £0.47
                                                                                                        This part replaces part number 12164711 - and 2 more. Click to view details
                                                                                                        # 051
                                                                                                        MPN: 11190574
                                                                                                        WASHER
                                                                                                        from £0.47
                                                                                                        from £0.47
                                                                                                        This part replaces part number 14499504
                                                                                                        # 052
                                                                                                        MPN: 142865
                                                                                                        HEAD GASKET
                                                                                                        from £295.23
                                                                                                        from £295.23
                                                                                                        This part replaces part number 153509
                                                                                                        # 053
                                                                                                        MPN: 159423
                                                                                                        SUPPORT MOUNT
                                                                                                        Up to assy Nr. 41419
                                                                                                        from £115.39
                                                                                                        from £115.39
                                                                                                        This part replaces part number 155075 - and 1 more. Click to view details
                                                                                                        # 053
                                                                                                        MPN: 184176
                                                                                                        SUPPORT MOUNT
                                                                                                        valid from Assy Nr. 41420- -replaced by 192021
                                                                                                        Supersession
                                                                                                        Supersession
                                                                                                        # 054
                                                                                                        MPN: 132268
                                                                                                        SPACER
                                                                                                        from £18.30
                                                                                                        from £18.30
                                                                                                        This part replaces part number 154996
                                                                                                        # 055
                                                                                                        MPN: 132269
                                                                                                        SPACER
                                                                                                        from £22.46
                                                                                                        from £22.46
                                                                                                        This part replaces part number 154997
                                                                                                        # 056
                                                                                                        MPN: 15981634
                                                                                                        SCREW
                                                                                                        from £21.06
                                                                                                        from £21.06
                                                                                                        This part replaces part number 154811 - and 1 more. Click to view details
