Ferrari 456 M GT/M GTA Differential Carrier and Gearbox Cooling Radiator -Not for 456M GTA Parts Diagram

033 - Differential Carrier and Gearbox Cooling Radiator -Not for 456M GTA

Ferrari 456 M GT/M GTA Differential Carrier and Gearbox Cooling Radiator -Not for 456M GTA Parts Diagram

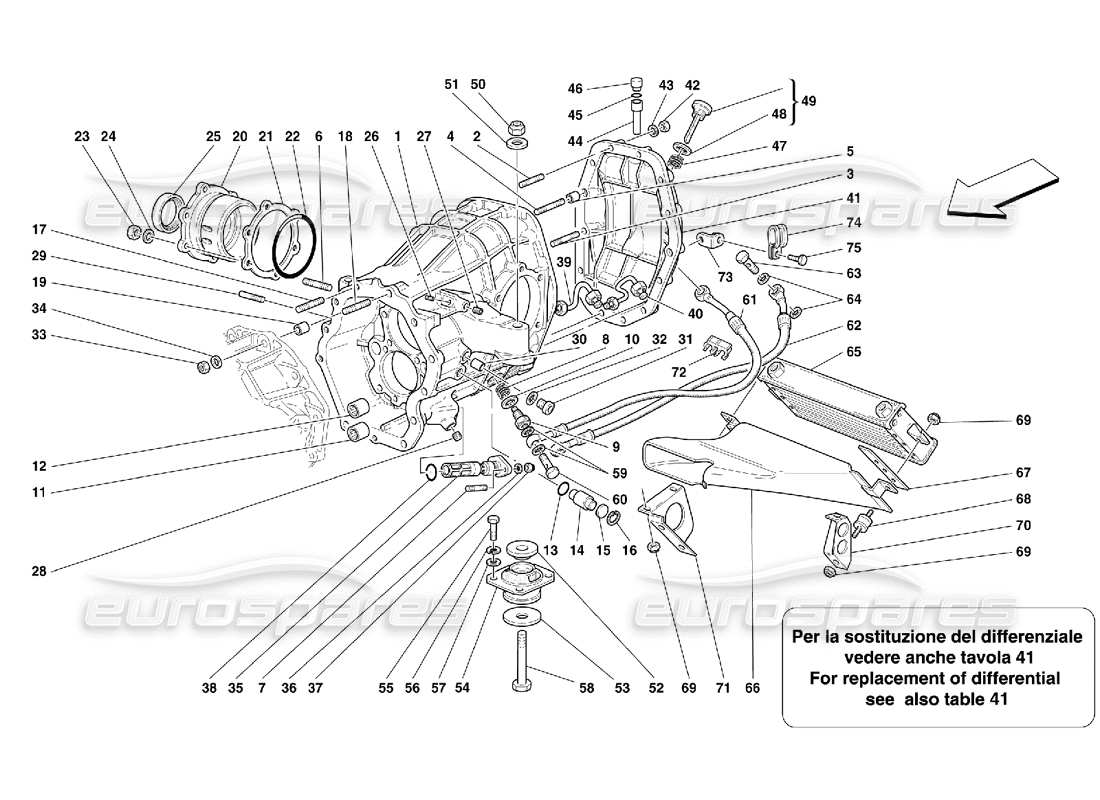

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                                                  #
                                                                                                                                                  Part number
                                                                                                                                                  Description
                                                                                                                                                  Price

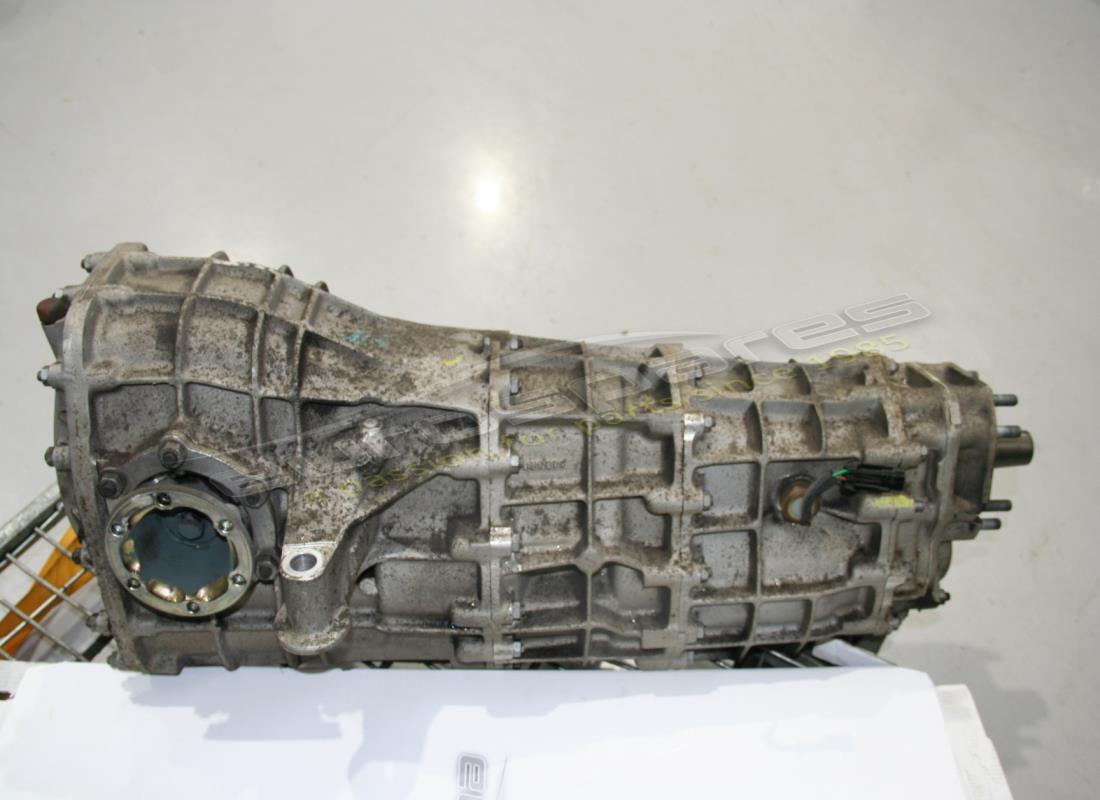

                                                                                                                                                  # 000
                                                                                                                                                  MPN: 174874
                                                                                                                                                  GEARBOX ASSY
                                                                                                                                                  from £9,444.75
                                                                                                                                                  from £9,444.75
                                                                                                                                                  COMPLETE MANUAL GEARBOX 456M Genuine Ferrari Part - Used In stock
                                                                                                                                                  Manual 1994 year 14240 miles (exchange) removed from https://www.Eurospares.co.uk/cars-breaking-for-spares/car/262
                                                                                                                                                  # 000
                                                                                                                                                  MPN: 174875
                                                                                                                                                  GEARBOX CASING
                                                                                                                                                  from £2,015.49
                                                                                                                                                  from £2,015.49
                                                                                                                                                  # 001
                                                                                                                                                  MPN: 161978
                                                                                                                                                  GEAR BOX 4TH ELEMENT
                                                                                                                                                  - Not as spare part - With complete gear box
                                                                                                                                                  # 002
                                                                                                                                                  MPN: 13543624
                                                                                                                                                  STUD
                                                                                                                                                  from £0.47
                                                                                                                                                  from £0.47
                                                                                                                                                  This part replaces part number 13543621
                                                                                                                                                  # 003
                                                                                                                                                  MPN: 13543724
                                                                                                                                                  STUD
                                                                                                                                                  from £0.87
                                                                                                                                                  from £0.87
                                                                                                                                                  This part replaces part number 13543721
                                                                                                                                                  # 004
                                                                                                                                                  MPN: 13543824
                                                                                                                                                  STUD
                                                                                                                                                  from £2.25
                                                                                                                                                  from £2.25
                                                                                                                                                  This part replaces part number 13543821
                                                                                                                                                  # 005
                                                                                                                                                  MPN: 102704
                                                                                                                                                  CENTERING DOWEL
                                                                                                                                                  from £1.78
                                                                                                                                                  from £1.78
                                                                                                                                                  This part replaces part number 500805
                                                                                                                                                  # 006
                                                                                                                                                  MPN: 13546224
                                                                                                                                                  STUD
                                                                                                                                                  from £7.97
                                                                                                                                                  from £7.97
                                                                                                                                                  This part replaces part number 13546124 which we have in stock - and 1 more. Click to view details
                                                                                                                                                  # 007
                                                                                                                                                  MPN: 11001024
                                                                                                                                                  STUD
                                                                                                                                                  (minimum order quantity = 5)
                                                                                                                                                  from £1.44
                                                                                                                                                  from £1.44
                                                                                                                                                  This part replaces part number 11001011 - and 1 more. Click to view details
                                                                                                                                                  # 008
                                                                                                                                                  MPN: 112254
                                                                                                                                                  THREADED INSERT
                                                                                                                                                  from £2.38
                                                                                                                                                  from £2.38
                                                                                                                                                  # 009
                                                                                                                                                  MPN: 150853
                                                                                                                                                  UNION
                                                                                                                                                  from £8.62
                                                                                                                                                  from £8.62
                                                                                                                                                  # 010
                                                                                                                                                  MPN: 10263460
                                                                                                                                                  GASKET
                                                                                                                                                  from £0.53
                                                                                                                                                  from £0.53
                                                                                                                                                  This part replaces part number 95119
                                                                                                                                                  # 011
                                                                                                                                                  MPN: 106500
                                                                                                                                                  BEARING BUSH FOR REVERSE ROD
                                                                                                                                                  from £5.79
                                                                                                                                                  from £5.79
                                                                                                                                                  # 012
                                                                                                                                                  MPN: 149907
                                                                                                                                                  BEARING FOR 1ST AND 2ND GEAR ROD
                                                                                                                                                  from £17.90
                                                                                                                                                  from £17.90
                                                                                                                                                  This part replaces part number 143775 - and 1 more. Click to view details
                                                                                                                                                  # 013
                                                                                                                                                  MPN: 134232
                                                                                                                                                  O.R. GASKET
                                                                                                                                                  from £0.67
                                                                                                                                                  from £0.67
                                                                                                                                                  This part replaces part number 153718 which we have in stock
                                                                                                                                                  # 014
                                                                                                                                                  MPN: 153719
                                                                                                                                                  PIN
                                                                                                                                                  from £16.05
                                                                                                                                                  from £16.05
                                                                                                                                                  # 015
                                                                                                                                                  MPN: 154698
                                                                                                                                                  PIN RETAININGPAD
                                                                                                                                                  from £1.95
                                                                                                                                                  from £1.95
                                                                                                                                                  This part replaces part number 153709
                                                                                                                                                  # 016
                                                                                                                                                  MPN: 11057476
                                                                                                                                                  STOP RING
                                                                                                                                                  from £0.53
                                                                                                                                                  from £0.53
                                                                                                                                                  # 017
                                                                                                                                                  MPN: 13543524
                                                                                                                                                  STUD
                                                                                                                                                  from £2.03
                                                                                                                                                  from £2.03
                                                                                                                                                  This part replaces part number 13543521
                                                                                                                                                  # 018
                                                                                                                                                  MPN: 13543624
                                                                                                                                                  STUD
                                                                                                                                                  from £0.51
                                                                                                                                                  from £0.51
                                                                                                                                                  This part replaces part number 13543621
                                                                                                                                                  # 019
                                                                                                                                                  MPN: 102704
                                                                                                                                                  CENTERING DOWEL
                                                                                                                                                  from £1.78
                                                                                                                                                  from £1.78
                                                                                                                                                  This part replaces part number 500805
                                                                                                                                                  # 020
                                                                                                                                                  MPN: 145531
                                                                                                                                                  DIFFERENTIAL COVER
                                                                                                                                                  - Not as spare part now - Replaced by 177438
                                                                                                                                                  Supersession
                                                                                                                                                  Supersession
                                                                                                                                                  # 020
                                                                                                                                                  MPN: 177438
                                                                                                                                                  DIFFERENTIAL COVER WITH BEARING
                                                                                                                                                  - Valid for differential ''ZF''
                                                                                                                                                  from £244.50
                                                                                                                                                  from £244.50
                                                                                                                                                  This part replaces part number 145531
                                                                                                                                                  # 020
                                                                                                                                                  MPN: 181626
                                                                                                                                                  RH DIFFERENTIAL COVER WITH BEARING
                                                                                                                                                  - Valid for differential ''GRAZIANO Trasmissioni''
                                                                                                                                                  from £666.78
                                                                                                                                                  from £666.78
                                                                                                                                                  # 020
                                                                                                                                                  MPN: 181627
                                                                                                                                                  LH DIFFERENTIAL COVER WITH BEARING
                                                                                                                                                  - Valid for differential ''GRAZIANO Trasmissioni''
                                                                                                                                                  from £666.78
                                                                                                                                                  from £666.78
                                                                                                                                                  # 021
                                                                                                                                                  MPN: 150099
                                                                                                                                                  DIFFERENTIAL COVER THRUST THINCKNESS MM 1.3
                                                                                                                                                  from £66.90
                                                                                                                                                  from £66.90
                                                                                                                                                  # 021
                                                                                                                                                  MPN: 150100
                                                                                                                                                  DITTO THINCKNESS MM 1.4
                                                                                                                                                  from £30.44
                                                                                                                                                  from £30.44
                                                                                                                                                  # 021
                                                                                                                                                  MPN: 150101
                                                                                                                                                  DITTO THINCKNESS MM 1.5
                                                                                                                                                  from £55.35
                                                                                                                                                  from £55.35
                                                                                                                                                  # 021
                                                                                                                                                  MPN: 150102
                                                                                                                                                  DITTO THINCKNESS MM 1.6
                                                                                                                                                  from £55.35
                                                                                                                                                  from £55.35
                                                                                                                                                  # 021
                                                                                                                                                  MPN: 150103
                                                                                                                                                  DITTO THINCKNESS MM 1.7
                                                                                                                                                  from £63.88
                                                                                                                                                  from £63.88
                                                                                                                                                  # 021
                                                                                                                                                  MPN: 150104
                                                                                                                                                  DITTO THINCKNESS MM 1.8
                                                                                                                                                  from £66.90
                                                                                                                                                  from £66.90
                                                                                                                                                  # 021
                                                                                                                                                  MPN: 150105
                                                                                                                                                  DITTO THINCKNESS MM 1.9
                                                                                                                                                  from £63.70
                                                                                                                                                  from £63.70
                                                                                                                                                  # 021
                                                                                                                                                  MPN: 150106
                                                                                                                                                  DITTO THINCKNESS MM 1.45
                                                                                                                                                  from £58.44
                                                                                                                                                  from £58.44
                                                                                                                                                  # 021
                                                                                                                                                  MPN: 150107
                                                                                                                                                  DITTO THINCKNESS MM 1.55
                                                                                                                                                  from £55.66
                                                                                                                                                  from £55.66
                                                                                                                                                  # 021
                                                                                                                                                  MPN: 150108
                                                                                                                                                  DITTO THINCKNESS MM 1.65
                                                                                                                                                  from £55.35
                                                                                                                                                  from £55.35
                                                                                                                                                  # 021
                                                                                                                                                  MPN: 175378
                                                                                                                                                  DITTO THINCKNESS MM 1.75
                                                                                                                                                  from £31.59
                                                                                                                                                  from £31.59

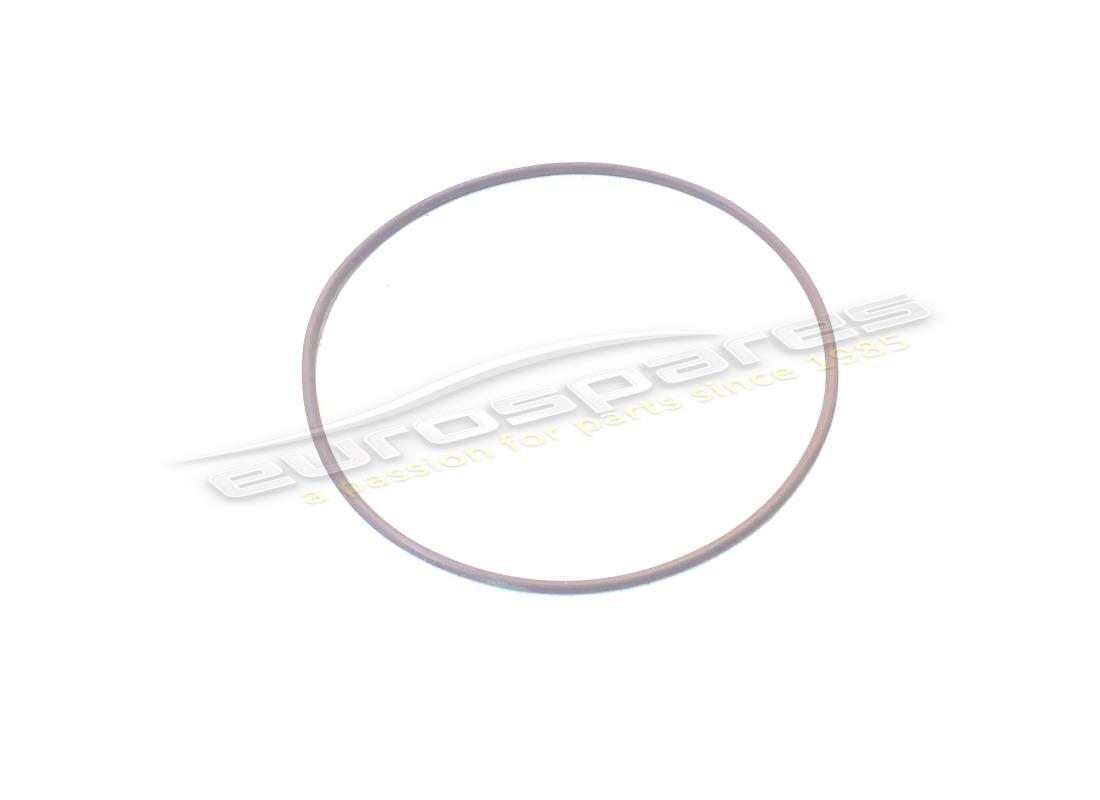

                                                                                                                                                  # 022
                                                                                                                                                  MPN: 139453
                                                                                                                                                  O.R. GASKET
                                                                                                                                                  from £4.15
                                                                                                                                                  from £4.15
                                                                                                                                                  # 023
                                                                                                                                                  MPN: 133988
                                                                                                                                                  NUT
                                                                                                                                                  from £0.47
                                                                                                                                                  from £0.47
                                                                                                                                                  This part replaces part number 12164711 - and 2 more. Click to view details
                                                                                                                                                  # 024
                                                                                                                                                  MPN: 12601474
                                                                                                                                                  WASHER
                                                                                                                                                  from £0.52
                                                                                                                                                  from £0.52
                                                                                                                                                  This part replaces part number 12601471 which we have in stock - and 2 more. Click to view details
                                                                                                                                                  # 025
                                                                                                                                                  MPN: 133628
                                                                                                                                                  OIL SEAL
                                                                                                                                                  from £29.85
                                                                                                                                                  from £29.85
                                                                                                                                                  This part replaces part number 125077 - and 1 more. Click to view details
                                                                                                                                                  # 025
                                                                                                                                                  MPN: 141509
                                                                                                                                                  LH GASKET.
                                                                                                                                                  - Valid for differential ''ZF''
                                                                                                                                                  from £71.69
                                                                                                                                                  from £71.69
                                                                                                                                                  This part replaces part number 125077
                                                                                                                                                  # 025
                                                                                                                                                  MPN: 181617
                                                                                                                                                  LH GASKET.
                                                                                                                                                  - Valid for differential ''GRAZIANO Trasmissioni''
                                                                                                                                                  from £26.36
                                                                                                                                                  from £26.36
                                                                                                                                                  This part replaces part number 182105
                                                                                                                                                  # 025
                                                                                                                                                  MPN: 181618
                                                                                                                                                  RH GASKET
                                                                                                                                                  - Valid for differential ''GRAZIANO Trasmissioni''
                                                                                                                                                  from £29.30
                                                                                                                                                  from £29.30
                                                                                                                                                  This part replaces part number 182103
                                                                                                                                                  # 026
                                                                                                                                                  MPN: 65928500
                                                                                                                                                  PLUG
                                                                                                                                                  from £24.08
                                                                                                                                                  from £24.08
                                                                                                                                                  This part replaces part number 10267550
                                                                                                                                                  # 027
                                                                                                                                                  MPN: 14326150
                                                                                                                                                  THREADED PLUG
                                                                                                                                                  from £0.53
                                                                                                                                                  from £0.53
                                                                                                                                                  This part replaces part number 12326150
                                                                                                                                                  # 028
                                                                                                                                                  MPN: 14326050
                                                                                                                                                  PLUG
                                                                                                                                                  from £1.01
                                                                                                                                                  from £1.01
                                                                                                                                                  # 029
                                                                                                                                                  MPN: 16183021
                                                                                                                                                  SCREW
                                                                                                                                                  from £0.57
                                                                                                                                                  from £0.57
                                                                                                                                                  # 030
                                                                                                                                                  MPN: 115376
                                                                                                                                                  BUSHING
                                                                                                                                                  from £29.31
                                                                                                                                                  from £29.31
                                                                                                                                                  # 031
                                                                                                                                                  MPN: 150731
                                                                                                                                                  PLUG
                                                                                                                                                  from £2.34
                                                                                                                                                  from £2.34
                                                                                                                                                  # 032
                                                                                                                                                  MPN: 10282460
                                                                                                                                                  GASKET
                                                                                                                                                  from £0.58
                                                                                                                                                  from £0.58
                                                                                                                                                  # 033
                                                                                                                                                  MPN: 16100814
                                                                                                                                                  NUT
                                                                                                                                                  from £0.49
                                                                                                                                                  from £0.49
                                                                                                                                                  This part replaces part number 16100811 - and 1 more. Click to view details
                                                                                                                                                  # 034
                                                                                                                                                  MPN: 12601374
                                                                                                                                                  WASHER
                                                                                                                                                  from £0.52
                                                                                                                                                  from £0.52
                                                                                                                                                  This part replaces part number 10615474 - and 6 more. Click to view details
                                                                                                                                                  # 035
                                                                                                                                                  MPN: 143939
                                                                                                                                                  OIL FILTER ON THE GEAR BOX
                                                                                                                                                  from £50.50
                                                                                                                                                  from £50.50
                                                                                                                                                  # 036
                                                                                                                                                  MPN: 14496324
                                                                                                                                                  WASHER
                                                                                                                                                  from £1.40
                                                                                                                                                  from £1.40
                                                                                                                                                  This part replaces part number 14496301
                                                                                                                                                  # 037
                                                                                                                                                  MPN: 169180
                                                                                                                                                  NUT
                                                                                                                                                  from £0.53
                                                                                                                                                  from £0.53
                                                                                                                                                  This part replaces part number 12574121
                                                                                                                                                  # 038
                                                                                                                                                  MPN: 147278
                                                                                                                                                  O.R. GASKET
                                                                                                                                                  from £0.98
                                                                                                                                                  from £0.98
                                                                                                                                                  # 039
                                                                                                                                                  MPN: 150594
                                                                                                                                                  OIL DELIVERY TUBE
                                                                                                                                                  from £70.40
                                                                                                                                                  from £70.40
                                                                                                                                                  # 040
                                                                                                                                                  MPN: 150592
                                                                                                                                                  OIL RETURN TUBE
                                                                                                                                                  from £25.07
                                                                                                                                                  from £25.07
                                                                                                                                                  # 041
                                                                                                                                                  MPN: 168107
                                                                                                                                                  REAR COVER
                                                                                                                                                  from £171.84
                                                                                                                                                  from £171.84
                                                                                                                                                  This part replaces part number 143846 - and 1 more. Click to view details
                                                                                                                                                  # 042
                                                                                                                                                  MPN: 16100814
                                                                                                                                                  NUT
                                                                                                                                                  from £0.49
                                                                                                                                                  from £0.49
                                                                                                                                                  This part replaces part number 16100811 - and 1 more. Click to view details
                                                                                                                                                  # 043
                                                                                                                                                  MPN: 12601374
                                                                                                                                                  WASHER
                                                                                                                                                  from £0.52
                                                                                                                                                  from £0.52
                                                                                                                                                  This part replaces part number 10615474 - and 6 more. Click to view details
                                                                                                                                                  # 044
                                                                                                                                                  MPN: 153500
                                                                                                                                                  EXTENSION FOR OIL EXHAUST
                                                                                                                                                  from £5.99
                                                                                                                                                  from £5.99
                                                                                                                                                  # 045
                                                                                                                                                  MPN: 13415400
                                                                                                                                                  OIL DEFLECTOR DISC FOR VENT
                                                                                                                                                  from £0.47
                                                                                                                                                  from £0.47
                                                                                                                                                  # 046
                                                                                                                                                  MPN: 13414691
                                                                                                                                                  OIL BREATHER
                                                                                                                                                  from £5.61
                                                                                                                                                  from £5.61
                                                                                                                                                  # 047
                                                                                                                                                  MPN: 112254
                                                                                                                                                  THREADED INSERT
                                                                                                                                                  from £2.44
                                                                                                                                                  from £2.44
                                                                                                                                                  # 048
                                                                                                                                                  MPN: 10261860
                                                                                                                                                  GASKET
                                                                                                                                                  from £0.54
                                                                                                                                                  from £0.54
                                                                                                                                                  This part replaces part number 10279550 - and 1 more. Click to view details
                                                                                                                                                  # 049
                                                                                                                                                  MPN: 144014
                                                                                                                                                  COMPLETE OIL LEVEL ROD
                                                                                                                                                  from £14.54
                                                                                                                                                  from £14.54
                                                                                                                                                  # 050
                                                                                                                                                  MPN: 169193
                                                                                                                                                  NUT
                                                                                                                                                  from £0.86
                                                                                                                                                  from £0.86
                                                                                                                                                  # 051
                                                                                                                                                  MPN: 10520224
                                                                                                                                                  WASHER
                                                                                                                                                  from £0.47
                                                                                                                                                  from £0.47
                                                                                                                                                  This part replaces part number 10520221 which we have in stock
                                                                                                                                                  # 052
                                                                                                                                                  MPN: 132268
                                                                                                                                                  UPPER SPACER
                                                                                                                                                  from £18.30
                                                                                                                                                  from £18.30
                                                                                                                                                  This part replaces part number 154996
                                                                                                                                                  # 053
                                                                                                                                                  MPN: 132269
                                                                                                                                                  LOWER SPACER
                                                                                                                                                  from £22.46
                                                                                                                                                  from £22.46
                                                                                                                                                  This part replaces part number 154997
                                                                                                                                                  # 054
                                                                                                                                                  MPN: 159238
                                                                                                                                                  WICK BODY
                                                                                                                                                  from £40.91
                                                                                                                                                  from £40.91
                                                                                                                                                  # 055
                                                                                                                                                  MPN: 15970634
                                                                                                                                                  SCREW
                                                                                                                                                  from £1.57
                                                                                                                                                  from £1.57
                                                                                                                                                  # 056
                                                                                                                                                  MPN: 127497
                                                                                                                                                  WASHER
                                                                                                                                                  from £0.53
                                                                                                                                                  from £0.53
                                                                                                                                                  This part replaces part number 10516871 - and 2 more. Click to view details
                                                                                                                                                  # 057
                                                                                                                                                  MPN: 14496624
                                                                                                                                                  WASHER
                                                                                                                                                  from £0.51
                                                                                                                                                  from £0.51
                                                                                                                                                  This part replaces part number 14496601 - and 2 more. Click to view details
                                                                                                                                                  # 058
                                                                                                                                                  MPN: 156458
                                                                                                                                                  SCREW
                                                                                                                                                  from £6.79
                                                                                                                                                  from £6.79
                                                                                                                                                  # 059
                                                                                                                                                  MPN: 10261060
                                                                                                                                                  GASKET
                                                                                                                                                  from £0.51
                                                                                                                                                  from £0.51
                                                                                                                                                  # 060
                                                                                                                                                  MPN: 10185011
                                                                                                                                                  UNION
                                                                                                                                                  from £21.08
                                                                                                                                                  from £21.08
                                                                                                                                                  # 061
                                                                                                                                                  MPN: 156133
                                                                                                                                                  OIL DELIVERY TUBE TO RADIATOR
                                                                                                                                                  from £87.87
                                                                                                                                                  from £87.87
                                                                                                                                                  # 062
                                                                                                                                                  MPN: 156134
                                                                                                                                                  OIL RETURN TUBE FROM RADIATOR
                                                                                                                                                  from £354.16
                                                                                                                                                  from £354.16
                                                                                                                                                  # 063
                                                                                                                                                  MPN: 10185011
                                                                                                                                                  UNION
                                                                                                                                                  from £21.08
                                                                                                                                                  from £21.08
                                                                                                                                                  # 064
                                                                                                                                                  MPN: 10261060
                                                                                                                                                  GASKET
                                                                                                                                                  from £0.51
                                                                                                                                                  from £0.51
                                                                                                                                                  # 065
                                                                                                                                                  MPN: 154696
                                                                                                                                                  OIL RADIATOR
                                                                                                                                                  from £317.82
                                                                                                                                                  from £317.82
                                                                                                                                                  # 066
                                                                                                                                                  MPN: 156132
                                                                                                                                                  AIR CONVEYOR
                                                                                                                                                  from £139.78
                                                                                                                                                  from £139.78
                                                                                                                                                  # 067
                                                                                                                                                  MPN: 158276
                                                                                                                                                  GASKET
                                                                                                                                                  from £1.74
                                                                                                                                                  from £1.74
                                                                                                                                                  # 068

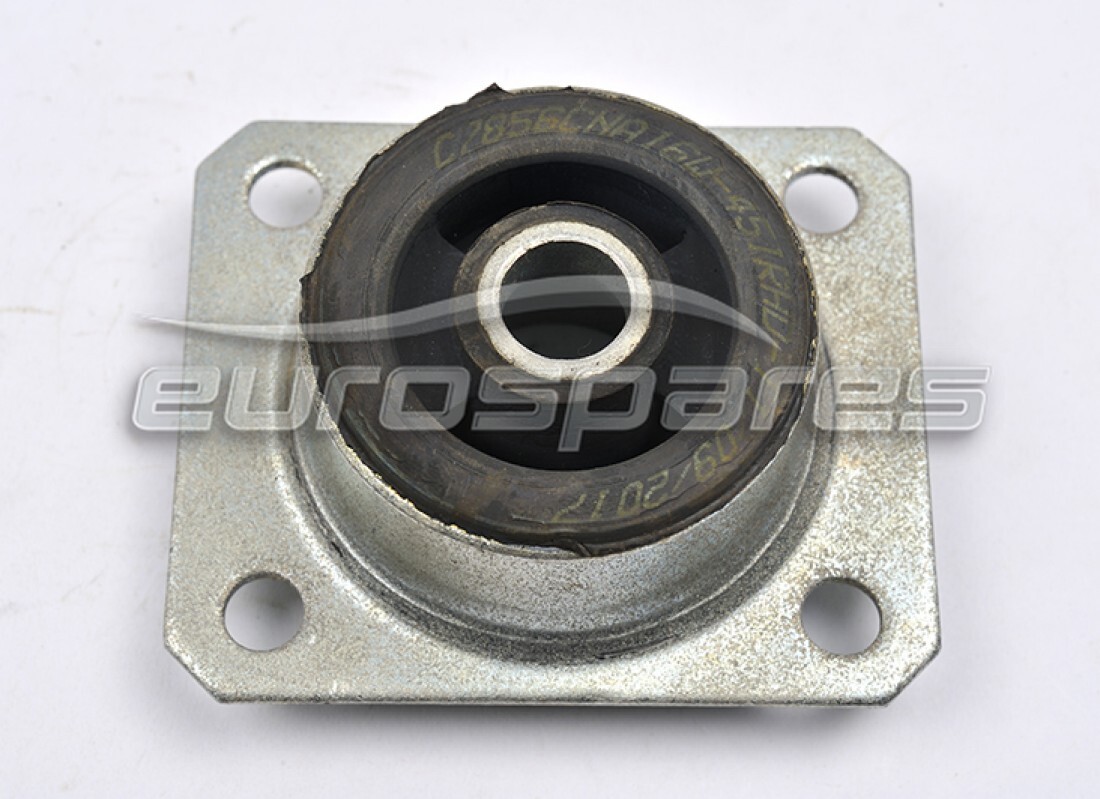

                                                                                                                                                  MPN: 102947
                                                                                                                                                  FIXING PAD
                                                                                                                                                  from £7.01
                                                                                                                                                  from £7.01
                                                                                                                                                  This part replaces part number 102007 - and 14 more. Click to view details
                                                                                                                                                  # 069
                                                                                                                                                  MPN: 13832101
                                                                                                                                                  NUT
                                                                                                                                                  from £0.52
                                                                                                                                                  from £0.52
                                                                                                                                                  # 070
                                                                                                                                                  MPN: 156131
                                                                                                                                                  LH BRACKET
                                                                                                                                                  from £2.70
                                                                                                                                                  from £2.70
                                                                                                                                                  # 071
                                                                                                                                                  MPN: 156130
                                                                                                                                                  RH BRACKET
                                                                                                                                                  from £6.41
                                                                                                                                                  from £6.41
                                                                                                                                                  # 072
                                                                                                                                                  MPN: 145543
                                                                                                                                                  FLEXIBLE CLIP
                                                                                                                                                  from £0.54
                                                                                                                                                  from £0.54
                                                                                                                                                  # 073
                                                                                                                                                  MPN: 142060
                                                                                                                                                  BRACKET
                                                                                                                                                  from £3.58
                                                                                                                                                  from £3.58
                                                                                                                                                  # 074
                                                                                                                                                  MPN: 10441290
                                                                                                                                                  BRACKET WITH SHEATH
                                                                                                                                                  from £0.51
                                                                                                                                                  from £0.51
                                                                                                                                                  # 075
                                                                                                                                                  MPN: 10902124
                                                                                                                                                  SCREW
                                                                                                                                                  from £0.53
                                                                                                                                                  from £0.53
                                                                                                                                                  This part replaces part number 10902111 - and 1 more. Click to view details
