861 - Relays, Fuses And Cases

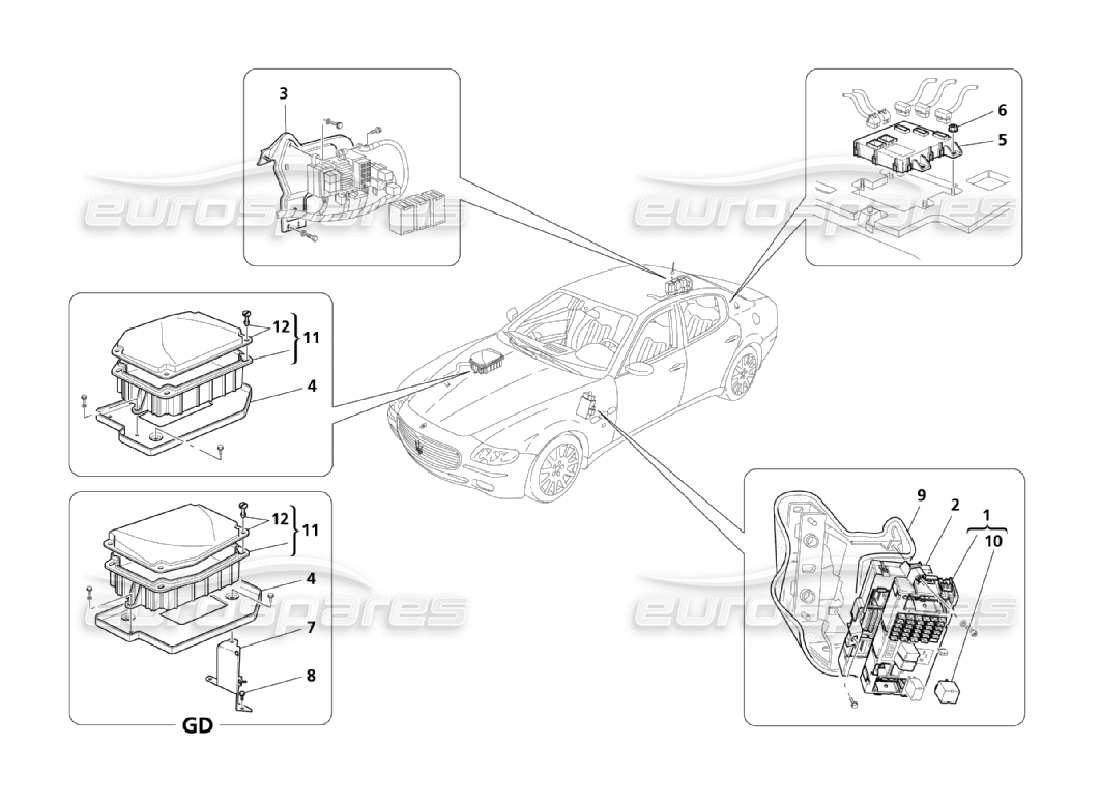

Maserati QTP. (2006) 4.2 Relays, Fuses And Cases Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
-
You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
001
MPN:
190831
DASHBOARD UNITS
from
£84.00
from
£84.00
#
002
MPN:
221968
BODY COMPUTER UNIT
Valid till stock exhaustion
Supersession
Supersession
#
002
MPN:
226367
BODY COMPUTER UNIT
Valid after stock exhaustion of 221968
from
£334.59
from
£334.59
This part replaces part number 221968
#
003
MPN:
188238
CONTROL UNIT FIXING BRACKET
from
£12.22
from
£12.22
#
004
MPN:
188287
FUSES CASE SUPPORT
Not for GD - Valid till stock exhaustion
Supersession
Supersession
#
004
MPN:
191101
FUSES CASE SUPPORT
Valid for GD - Valid till stock exhaustion
Supersession
Supersession
#
004
MPN:
191130
FUSES CASE SUPPORT
Not for GD - Valid after stock exhaustion of 188287
from
£28.76
from
£28.76
This part replaces part number 188287
#
004
MPN:
191131
FUSES CASE SUPPORT
Valid for GD - Valid after stock exhaustion of 191101
from
£16.25
from
£16.25
This part replaces part number 191101
- and 1 more. Click to view details
#
005
MPN:
210683
TRUNK COMPARTMENT CONTROL UNIT
from
£331.49
from
£331.49
This part replaces part number 190925 which we have in stock
#
006
MPN:
13046114
NUT
from
£0.47
from
£0.47
#
007
MPN:
191107
BRACKET
Valid for GD
from
£15.30
from
£15.30
#
008
MPN:
11612424
SCREW
Valid for GD
from
£0.86
from
£0.86
#
009
MPN:
68806100
BODY COMPUTER SHIELD
Not for GD
from
£11.17
from
£11.17
#
009
MPN:
68806200
BODY COMPUTER SHIELD
Valid for GD
from
£9.84
from
£9.84
#
010
MPN:
233100
RELAY 50A
not as spare part - use part number: 233100
from
£5.72
from
£5.72
#
011
MPN:
196907
RELAYS AND FUSES CASE
Not for GD - Included in the engine compartment cable (Draw 8.60 Pos. 1)
from
£65.98
from
£65.98
#
011
MPN:
196908
RELAYS AND FUSES CASE
Valid for GD - Included in the engine compartment cable (Draw 8.60 Pos. 1)
from
£105.90
from
£105.90
#
012
MPN:
196910
COMPLETE COVER
from
£27.92
from
£27.92
