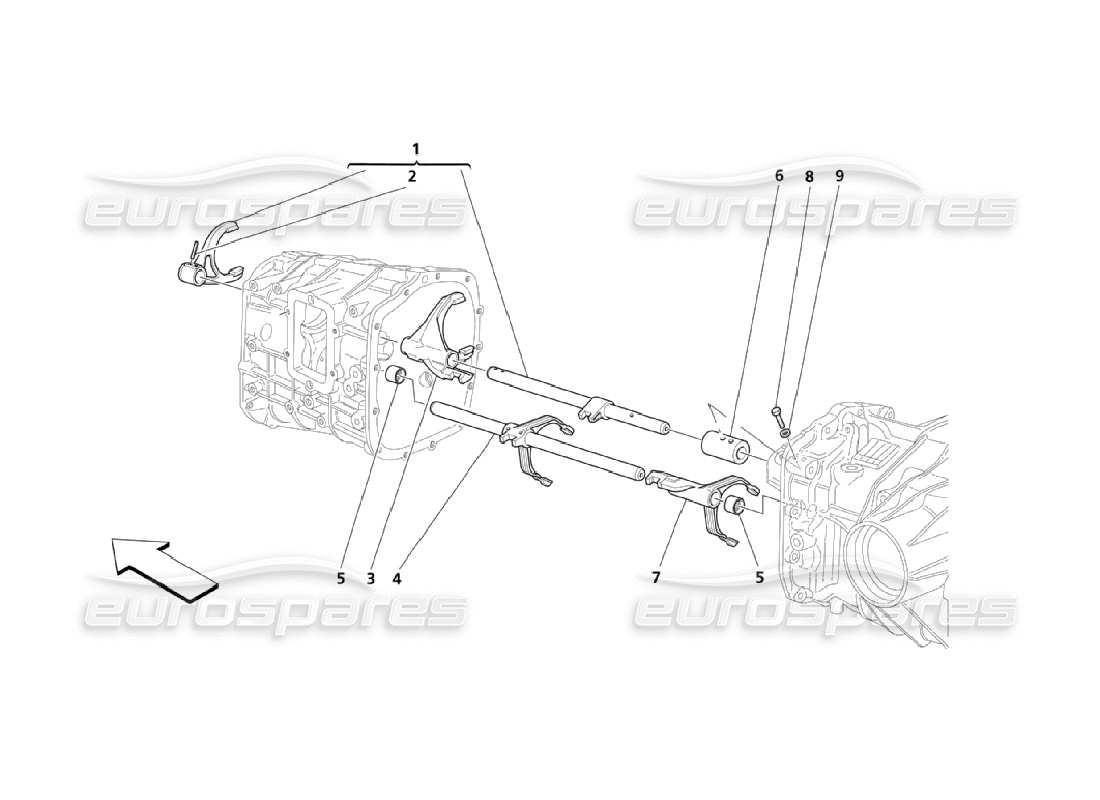

Maserati QTP. (2006) 4.2 Inside Gearbox Controls Parts Diagram

313 - Inside Gearbox Controls

Maserati QTP. (2006) 4.2 Inside Gearbox Controls Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                  #
                  Part number
                  Description
                  Price
                  # 001
                  MPN: 201284
                  COMPLETE ROD FOR 1ST 2ND GEAR AND REVERSE
                  from £199.79
                  from £199.79
                  # 002
                  MPN: 13910470
                  FLEXIBLE PIN
                  from £1.46
                  from £1.46
                  # 003
                  MPN: 211472
                  CONTROL FORK FOR 1ST AND 2ND GEAR
                  Not for AUS and J - Not for cars GD opt. japan version
                  from £167.41
                  from £167.41
                  # 003
                  MPN: 211472
                  CONTROL FORK FOR 1ST AND 2ND GEAR
                  Valid for AUS and J - Valid for cars GD opt. japan version - Valid till car Ass. Nr. 24274
                  from £167.41
                  from £167.41
                  # 003
                  MPN: 211472
                  CONTROL FORK FOR 1ST AND 2ND GEAR
                  Valid for AUS and J - Valid for cars GD opt. japan version - Valid from car Ass. Nr. 24275
                  from £167.41
                  from £167.41
                  # 004
                  MPN: 183955
                  COMPLETE ROD FOR 5TH AND 6TH GEAR
                  from £230.29
                  from £230.29
                  # 005
                  MPN: 183982
                  BEARING BUSH
                  from £19.24
                  from £19.24
                  # 006
                  MPN: 185707
                  BUSHING
                  from £68.75
                  from £68.75
                  # 007
                  MPN: 211473
                  CONTROL FORK FOR 3RD AND 4TH GEAR
                  from £216.47
                  from £216.47
                  This part replaces part number 184646
                  # 008
                  MPN: 10902224
                  SCREW
                  from £0.53
                  from £0.53
                  # 009
                  MPN: 11194377
                  WASHER
                  from £0.49
                  from £0.49
