142 - Fuel Tanks

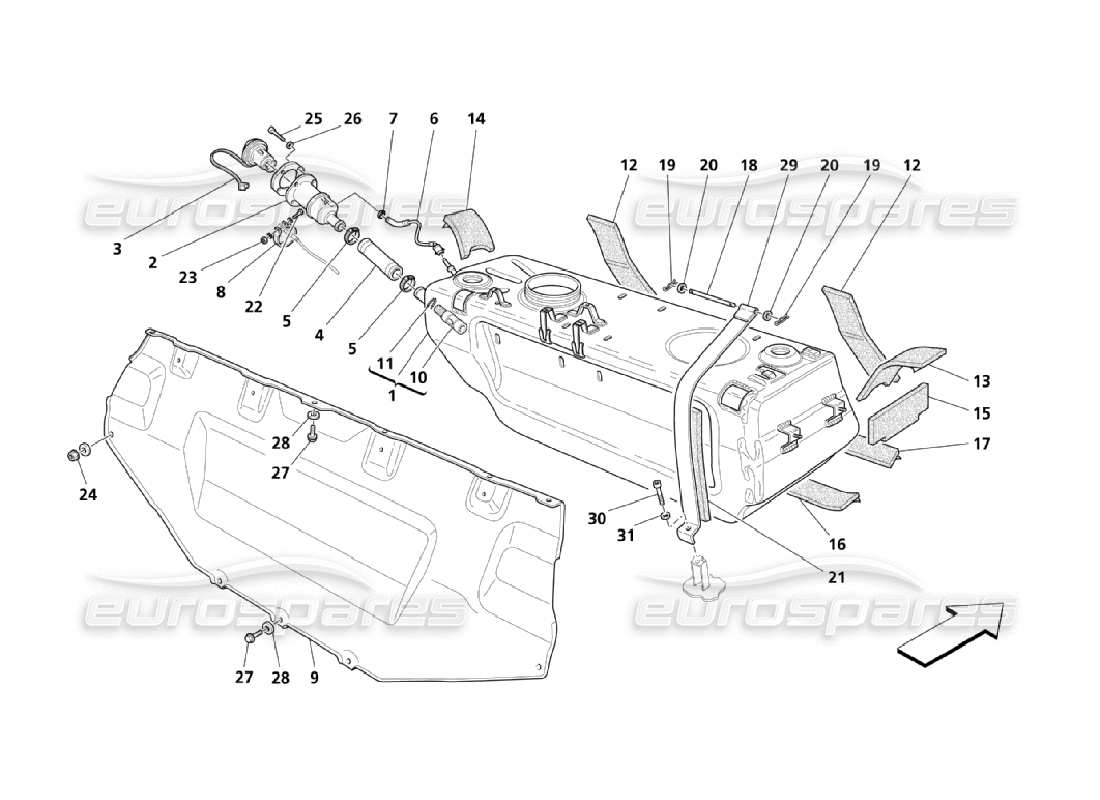

Maserati QTP. (2006) 4.2 Fuel Tanks Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                    #
                                                    Part number
                                                    Description
                                                    Price
                                                    # 001
                                                    MPN: 197121

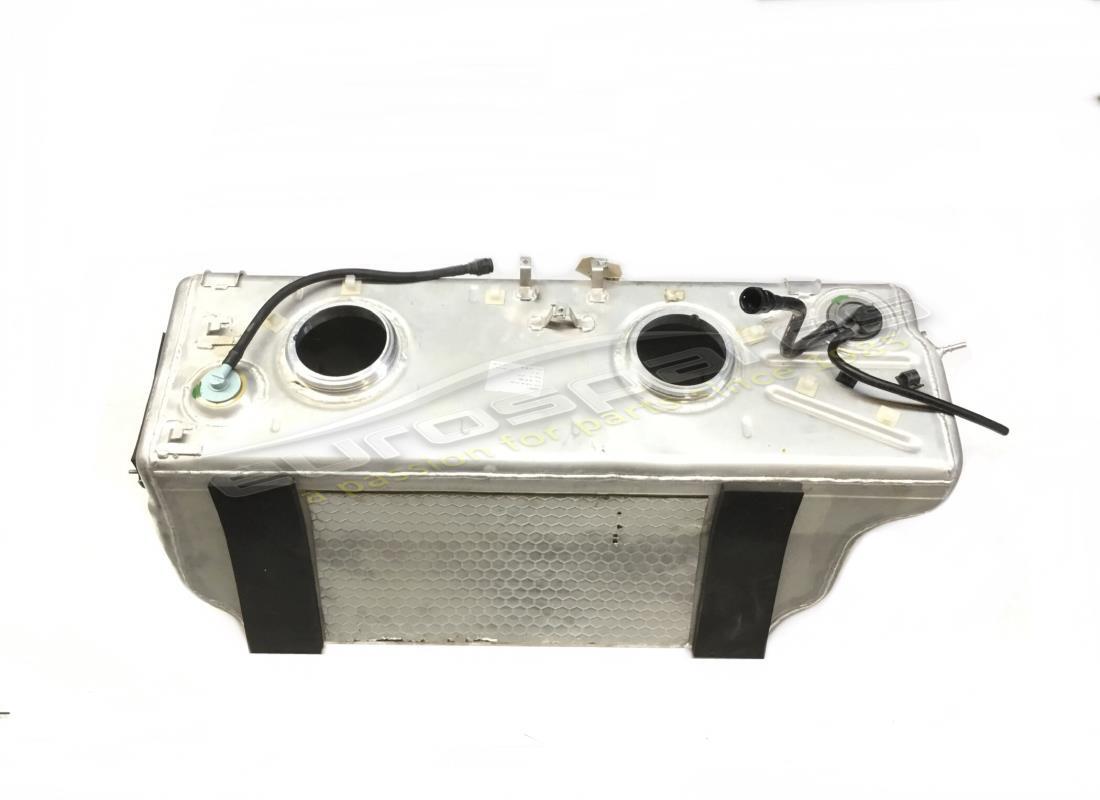

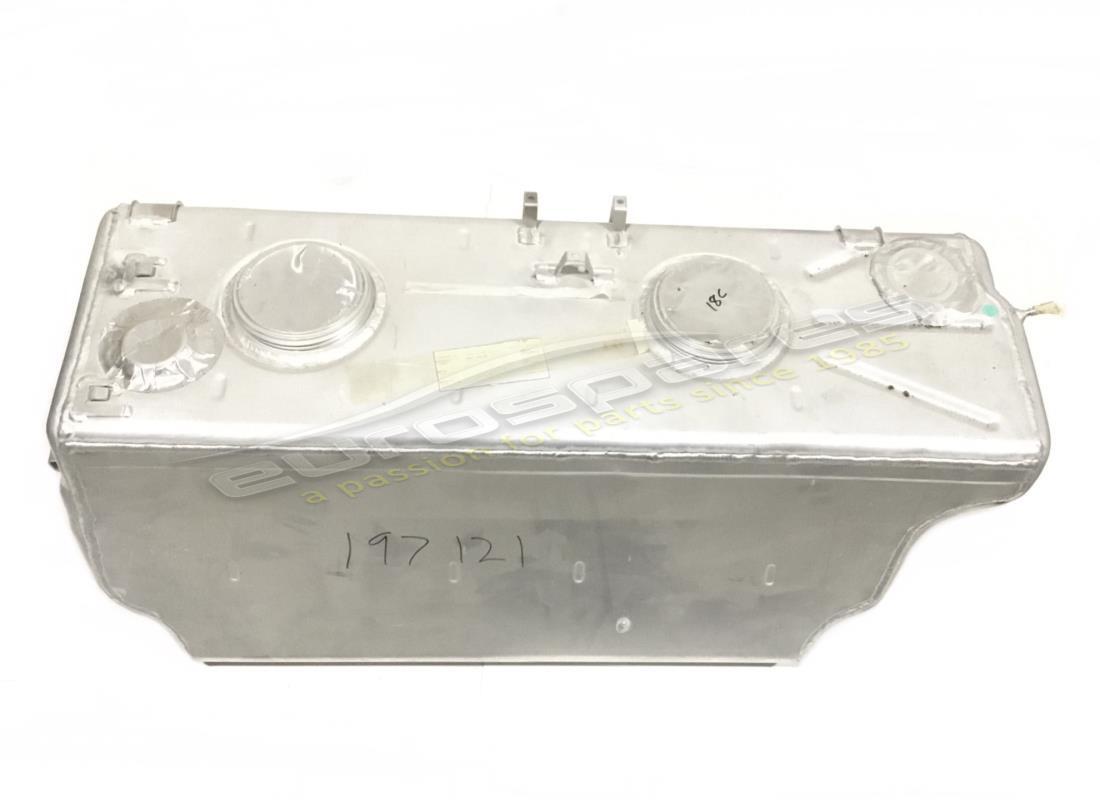

                                                    FUEL TANK
                                                    Not for USA and CDN - Valid till car Ass. Nr. 24274
                                                    from £473.70
                                                    from £473.70
                                                    # 001
                                                    MPN: 199999
                                                    FUEL TANK
                                                    Valid for USA and CDN - Valid till car Ass. Nr. 24274
                                                    from £969.41
                                                    from £969.41
                                                    # 001
                                                    MPN: 214699

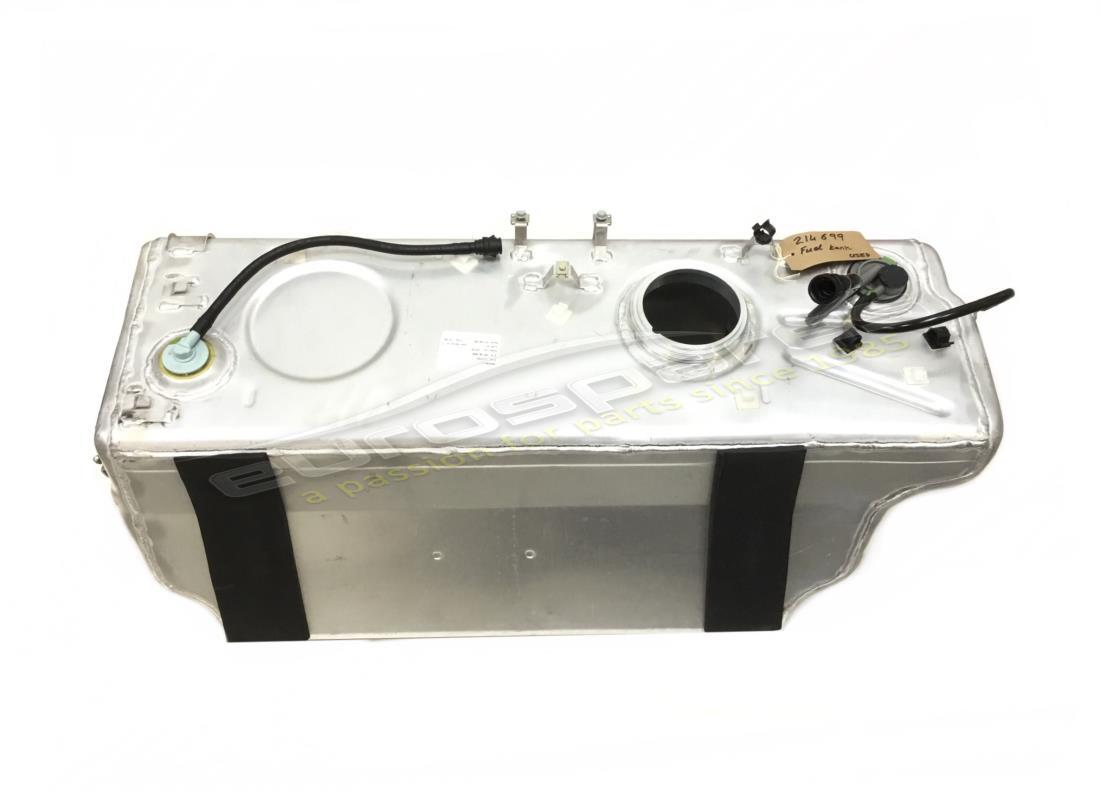

                                                    FUEL TANK
                                                    Not for USA and CDN - Valid from car Ass. Nr. 24275
                                                    from £581.61
                                                    from £581.61
                                                    # 001
                                                    MPN: 215473
                                                    FUEL TANK
                                                    Valid for USA and CDN - Valid from car Ass. Nr. 24275
                                                    Supersession
                                                    Supersession
                                                    # 002
                                                    MPN: 192332

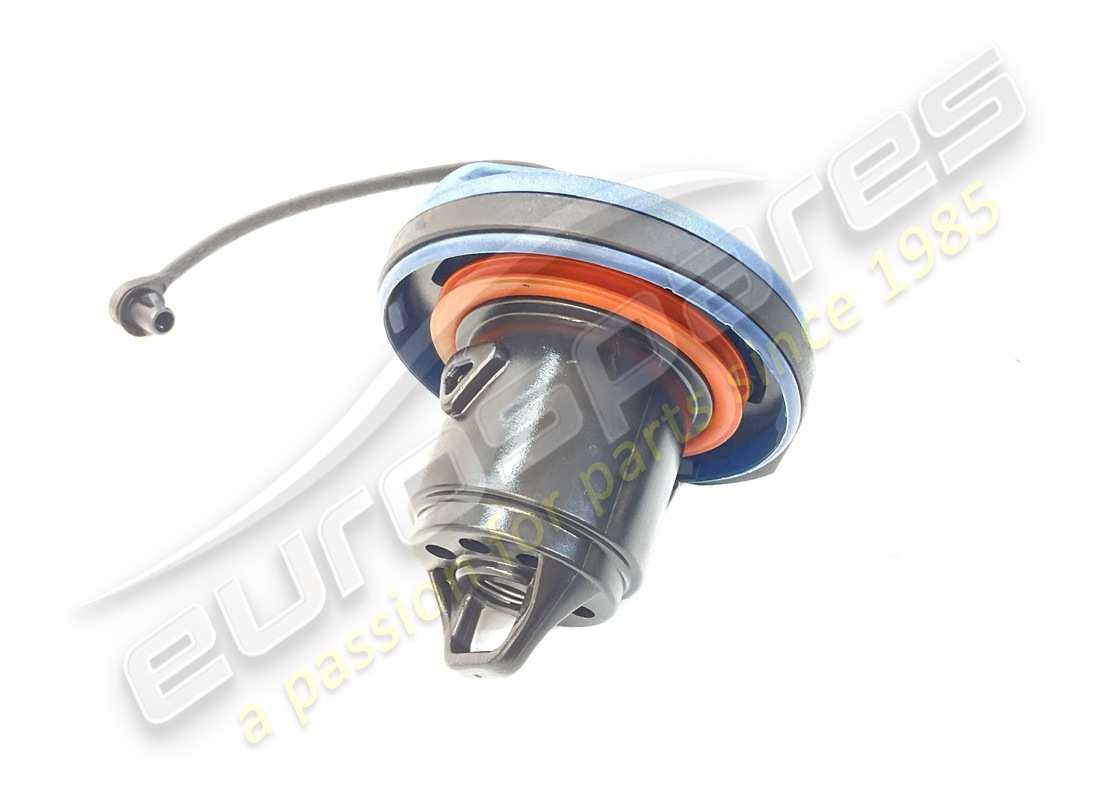

                                                    COMPLETE FUEL UNION
                                                    Complete of plug (Pos. 3) - Valid till stock exhaustion
                                                    from £78.84
                                                    from £78.84
                                                    # 002
                                                    MPN: 222257
                                                    COMPLETE FUEL UNION
                                                    Valid after stock exhaustion of 192332
                                                    from £19.38
                                                    from £19.38
                                                    This part replaces part number 192332 which we have in stock - and 1 more. Click to view details
                                                    # 003
                                                    MPN: 201026
                                                    TANK PLUG
                                                    from £34.16
                                                    from £34.16
                                                    # 004
                                                    MPN: 182637
                                                    UNIONTANK CONNECTING PIPE
                                                    Valid for USA and CDN
                                                    from £25.34
                                                    from £25.34
                                                    # 004
                                                    MPN: 197828
                                                    UNIONTANK CONNECTING PIPE
                                                    Not for USA and CDN
                                                    from £11.26
                                                    from £11.26
                                                    # 005
                                                    MPN: 13000590
                                                    SCREW COLLAR
                                                    from £0.47
                                                    from £0.47
                                                    # 006
                                                    MPN: 193573
                                                    VAPORS RECYCLING PIPE
                                                    from £195.21
                                                    from £195.21
                                                    # 007
                                                    MPN: 13432070
                                                    COLLAR
                                                    from £0.47
                                                    from £0.47
                                                    This part replaces part number 13434670
                                                    # 008
                                                    MPN: 203446
                                                    COLLAR FOR GROUND CABLE
                                                    from £33.77
                                                    from £33.77
                                                    # 009
                                                    MPN: 67564100
                                                    TANK PANEL
                                                    Valid till stock exhaustion
                                                    from £49.64
                                                    from £49.64
                                                    # 009
                                                    MPN: 68807100
                                                    TANK PANEL
                                                    Valid after stock exhaustion of 67564100
                                                    from £87.75
                                                    from £87.75
                                                    This part replaces part number 67564100 which we have in stock
                                                    # 010
                                                    MPN: 181929
                                                    INTERCEPTION VALVE
                                                    from £153.95
                                                    from £153.95
                                                    # 011
                                                    MPN: 181930
                                                    CLIP
                                                    from £10.36
                                                    from £10.36
                                                    # 012
                                                    MPN: 192990
                                                    RUBBER THICKNESS
                                                    from £7.40
                                                    from £7.40
                                                    # 013
                                                    MPN: 192993
                                                    RH RUBBER THICKNESS
                                                    from £5.25
                                                    from £5.25
                                                    # 014
                                                    MPN: 192994
                                                    LH RUBBER THICKNESS
                                                    from £6.61
                                                    from £6.61
                                                    # 015
                                                    MPN: 192329
                                                    RUBBER THICKNESS
                                                    from £2.95
                                                    from £2.95
                                                    # 016
                                                    MPN: 192991
                                                    LOWER RUBBER THICKNESS
                                                    from £14.41
                                                    from £14.41
                                                    # 017
                                                    MPN: 192992
                                                    LOWER RUBBER THICKNESS
                                                    from £9.48
                                                    from £9.48
                                                    # 019
                                                    MPN: 58841309
                                                    SAFETY CLIP
                                                    from £1.90
                                                    from £1.90
                                                    This part replaces part number 670000498 - and 2 more. Click to view details
                                                    # 020
                                                    MPN: 12648206
                                                    WASHER
                                                    from £0.47
                                                    from £0.47
                                                    # 021
                                                    MPN: 221335
                                                    ADHESIVE GASKET
                                                    Valid from car Ass. Nr. 24275
                                                    from £3.86
                                                    from £3.86
                                                    # 021
                                                    MPN: 379200397
                                                    ADHESIVE GASKET
                                                    Valid till car Ass. Nr. 24274
                                                    from £3.18
                                                    from £3.18
                                                    # 022
                                                    MPN: 10389321
                                                    SCREW
                                                    from £0.47
                                                    from £0.47
                                                    # 023
                                                    MPN: 14059121
                                                    NUT
                                                    from £0.54
                                                    from £0.54
                                                    # 024
                                                    MPN: 14040611
                                                    NUT
                                                    from £0.53
                                                    from £0.53
                                                    # 025
                                                    MPN: 13289277
                                                    SCREW
                                                    from £1.91
                                                    from £1.91
                                                    # 026
                                                    MPN: 389200348
                                                    WASHER
                                                    from £4.30
                                                    from £4.30
                                                    # 027
                                                    MPN: 11625724
                                                    SCREW
                                                    from £0.47
                                                    from £0.47
                                                    # 028
                                                    MPN: 12643724
                                                    WASHER
                                                    from £0.47
                                                    from £0.47
                                                    # 029
                                                    MPN: 205365
                                                    FUEL TANK FASTENER
                                                    Valid till car Ass. Nr. 24274
                                                    from £11.79
                                                    from £11.79
                                                    # 029
                                                    MPN: 223524
                                                    FUEL TANK FASTENER
                                                    Valid from car Ass. Nr. 24275
                                                    from £13.06
                                                    from £13.06
                                                    # 030
                                                    MPN: 205402
                                                    SCREW
                                                    from £1.60
                                                    from £1.60
                                                    # 031
                                                    MPN: 13550224
                                                    WASHER
                                                    from £0.68
                                                    from £0.68
                                                    Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
