Maserati QTP. (2006) 4.2 Lubrication And Cooling For Gearbox Oil Parts Diagram

350 - Lubrication And Cooling For Gearbox Oil

Maserati QTP. (2006) 4.2 Lubrication And Cooling for Gearbox Oil Parts Diagram

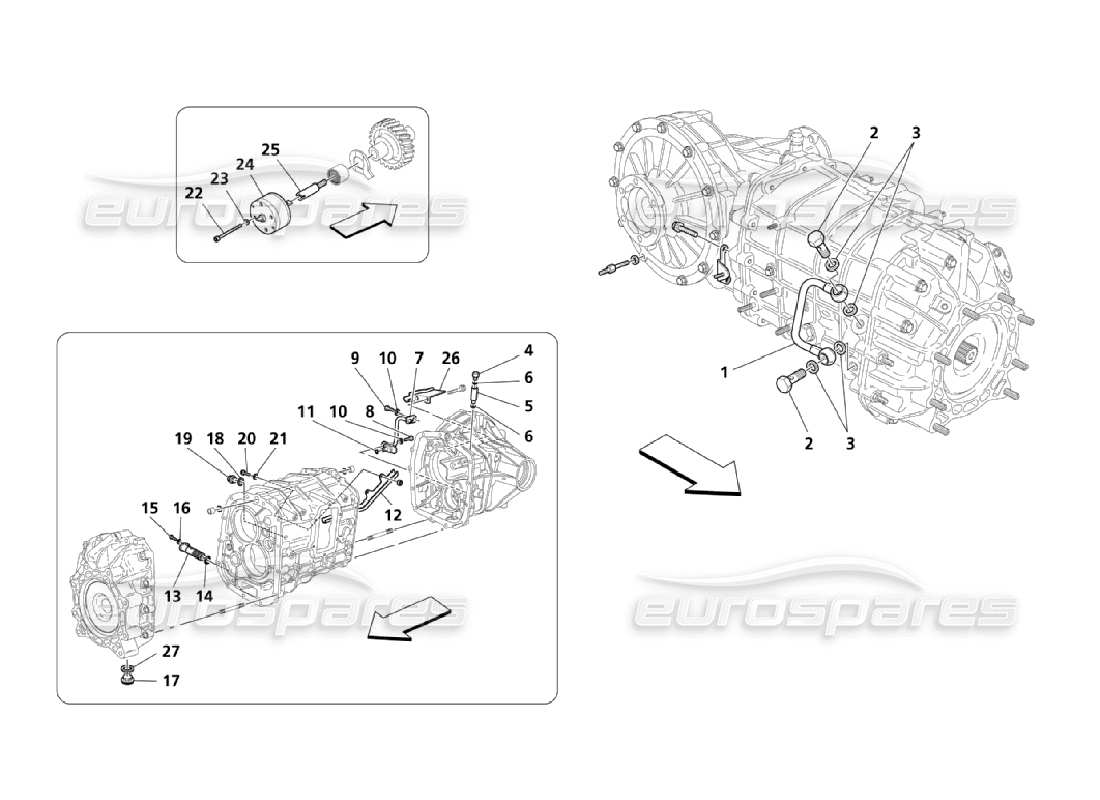

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                  #
                                  Part number
                                  Description
                                  Price
                                  # 001
                                  MPN: 211710
                                  UNION FOR OIL RECYCLING
                                  from £22.67
                                  from £22.67
                                  This part replaces part number 193594
                                  # 003
                                  MPN: 10280060
                                  GASKET
                                  from £0.51
                                  from £0.51
                                  # 004
                                  MPN: 13414691
                                  OIL BREATHER
                                  Included in the Complete differential box (Draw 3.21 Pos. 17)
                                  from £5.64
                                  from £5.64
                                  # 005
                                  MPN: 186900
                                  ADAPTER FOR VENT
                                  Included in the Complete differential box (Draw 3.21 Pos. 17)
                                  from £51.42
                                  from £51.42
                                  # 006
                                  MPN: 13415400
                                  COPPER GASKET
                                  Included in the Complete differential box (Draw 3.21 Pos. 17)
                                  from £0.47
                                  from £0.47
                                  # 007
                                  MPN: 185720
                                  LUBRICATION TUBE
                                  Valid for AUS and J - Valid for cars GD opt. japan version - Valid till car Ass. Nr. 24274
                                  from £89.13
                                  from £89.13
                                  # 007
                                  MPN: 219954
                                  LUBRICATION TUBE
                                  Not for AUS and J - Not for cars GD opt. japan version
                                  from £98.61
                                  from £98.61
                                  # 007
                                  MPN: 219954
                                  LUBRICATION TUBE
                                  Valid for AUS and J - Valid for cars GD opt. japan version - Valid from car Ass. Nr. 24275
                                  from £98.61
                                  from £98.61
                                  # 008
                                  MPN: 10902224
                                  SCREW
                                  from £0.53
                                  from £0.53
                                  # 009
                                  MPN: 10979424
                                  SCREW
                                  from £0.53
                                  from £0.53
                                  # 010
                                  MPN: 11194377
                                  WASHER
                                  from £0.49
                                  from £0.49
                                  # 011
                                  MPN: 137192
                                  O.R. GASKET
                                  from £0.54
                                  from £0.54
                                  # 012
                                  MPN: 185714
                                  OIL TILE
                                  Included in the Complete gearbox (Draw 3.10 Pos. 1)
                                  from £10.02
                                  from £10.02
                                  # 013
                                  MPN: 182416

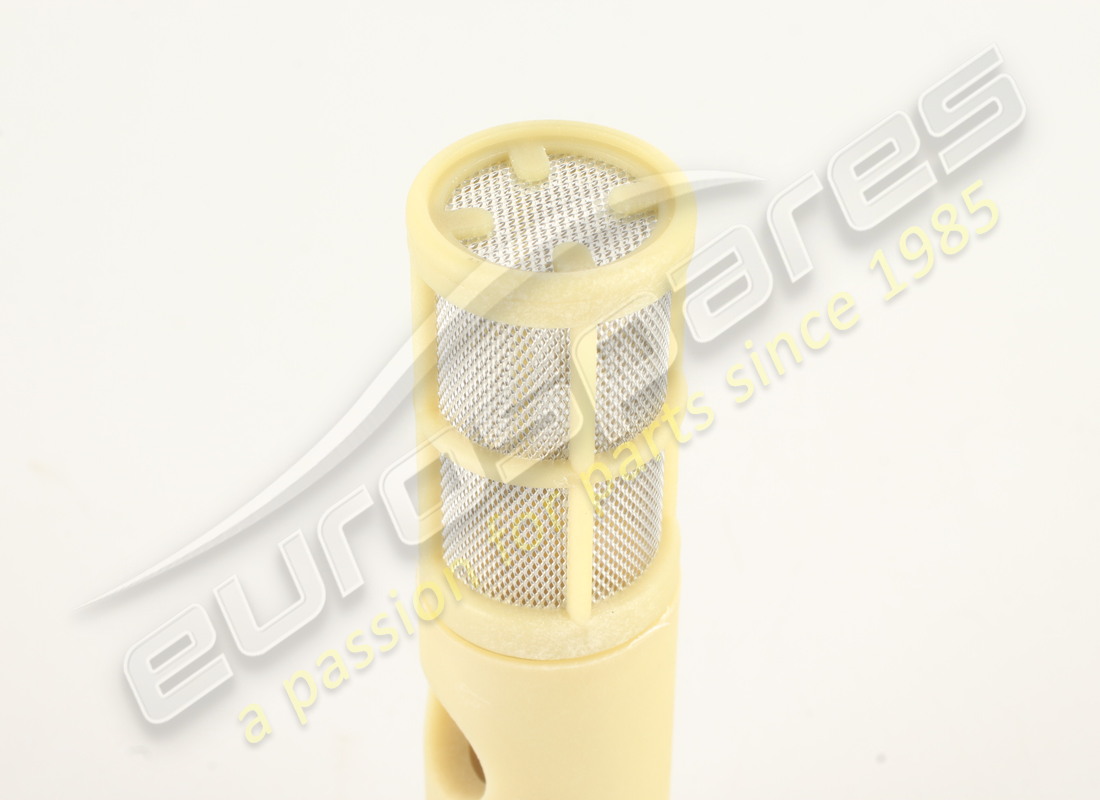

                                  OIL FILTER
                                  from £64.53
                                  from £64.53
                                  # 014
                                  MPN: 182119
                                  O.R. GASKET
                                  from £2.54
                                  from £2.54
                                  # 015
                                  MPN: 10977624
                                  SCREW
                                  from £0.53
                                  from £0.53
                                  # 016
                                  MPN: 11199277
                                  WASHER
                                  from £1.88
                                  from £1.88
                                  # 017
                                  MPN: 183962
                                  MAGNETIC PLUG
                                  Included in the Complete front cover (Draw 3.10 Pos. 2)
                                  from £14.56
                                  from £14.56
                                  This part replaces part number 4123120
                                  # 018
                                  MPN: 10263460
                                  GASKET
                                  Included in the Complete gearbox (Draw 3.10 Pos. 1)
                                  from £0.53
                                  from £0.53
                                  This part replaces part number 10261830
                                  # 019
                                  MPN: 10305111
                                  THREADED PLUG
                                  Included in the Complete gearbox (Draw 3.10 Pos. 1)
                                  from £4.40
                                  from £4.40
                                  # 020
                                  MPN: 16286121
                                  SCREW
                                  Included in the Complete gearbox (Draw 3.10 Pos. 1)
                                  from £0.53
                                  from £0.53
                                  # 021
                                  MPN: 10297760
                                  GASKET
                                  Included in the Complete gearbox (Draw 3.10 Pos. 1)
                                  from £0.53
                                  from £0.53
                                  # 022
                                  MPN: 14303624
                                  SCREW
                                  from £0.47
                                  from £0.47
                                  # 023
                                  MPN: 10571379
                                  WASHER
                                  from £0.53
                                  from £0.53
                                  # 024
                                  MPN: 182279
                                  COMPLETE OIL PUMP
                                  from £341.46
                                  from £341.46
                                  # 025
                                  MPN: 198622
                                  PIN
                                  from £53.17
                                  from £53.17
                                  # 026
                                  MPN: 185713
                                  OIL CONVEYOR
                                  from £15.90
                                  from £15.90
                                  # 027
                                  MPN: 10263460
                                  GASKET
                                  Included in the Complete front cover (Draw 3.10 Pos. 2)
                                  from £0.53
                                  from £0.53
                                  This part replaces part number 10261830
