maserati qtp. (2006) 4.2 valves parts diagram

125 - Valves

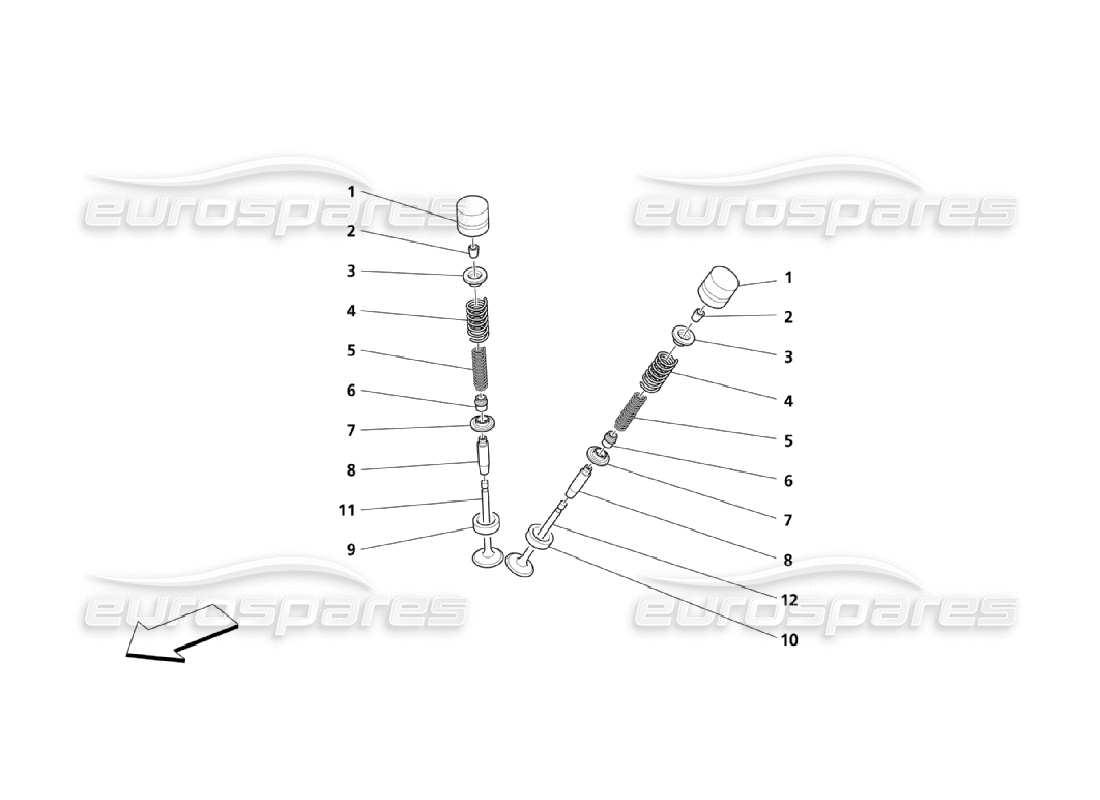

Maserati QTP. (2006) 4.2 Valves Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
            #
            Part number
            Description
            Price
            # 001
            MPN: 194700
            HYDRAULIC TAPPET FOR VALVE
            from £21.00
            from £21.00
            This part replaces part number 187657 - and 3 more. Click to view details
            # 002
            MPN: 179763
            COTTER FOR VALVE SPRING
            from £0.28
            from £0.28
            # 003
            MPN: 187489
            UPPER CUP
            from £4.91
            from £4.91
            # 004
            MPN: 184054
            OUTER SPRING FOR VALVE RETURN
            from £7.07
            from £7.07
            # 005
            MPN: 184055
            INNER SPRING FOR VALVE RETURN
            from £27.30
            from £27.30
            # 006
            MPN: 148153

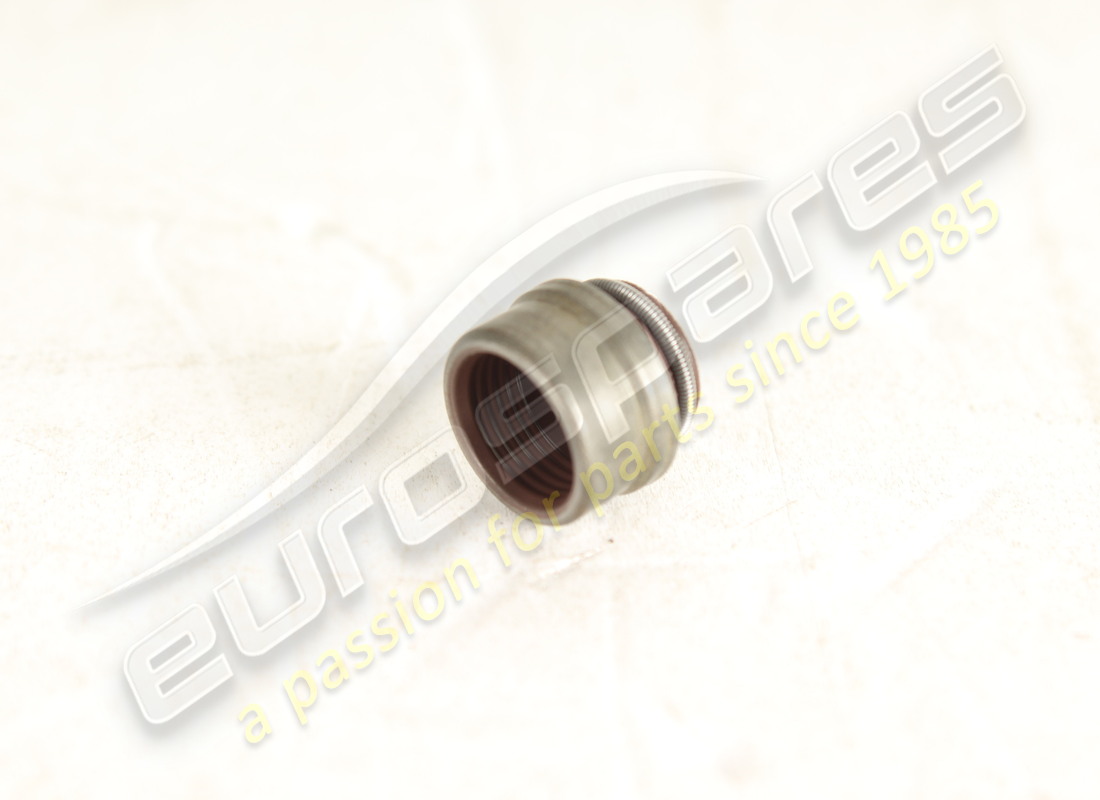

            OIL RING
            Supplied also in the cylinder heads gasket revision kit (cod. 980020003) - Valid till stock exhaustion
            from £1.91
            from £1.91
            # 006
            MPN: 221473
            OIL RING
            Supplied also in the cylinder heads gasket revision kit (cod. 980020003) - Valid after stock exhaustion of 148153
            from £0.96
            from £0.96
            This part replaces part number 148153
            # 007
            MPN: 190388
            LOWER CUP
            from £4.24
            from £4.24
            This part replaces part number 184594 which we have in stock
            # 007
            MPN: 190408
            LOWER CUP
            OVERSIZED
            from £36.96
            from £36.96
            This part replaces part number 184596
            # 008
            MPN: 6172452
            INTAKE VALVE GUIDE
            OVERSIZED
            # 008
            MPN: 6213498
            INTAKE VALVE GUIDE
            from £1.79
            from £1.79
            This part replaces part number 6172328
            # 008
            MPN: 6213498
            INTAKE VALVE GUIDE
            Valid after stock exhaustion of 172328
            from £1.79
            from £1.79
            This part replaces part number 6172328
            # 009
            MPN: 6175381
            INTAKE VALVE SEAT
            Valid till stock exhaustion
            from £6.84
            from £6.84
            This part replaces part number 175381 which we have in stock
            # 009
            MPN: 6213496
            INTAKE VALVE SEAT
            Valid after stock exhaustion of 175381
            from £2.95
            from £2.95
            This part replaces part number 213496 - and 1 more. Click to view details
            # 010
            MPN: 6179959
            EXHAUST VALVE SEAT
            Valid till stock exhaustion
            from £4.10
            from £4.10
            This part replaces part number 179959
            # 010
            MPN: 6213497
            EXHAUST VALVE SEAT
            Valid after stock exhaustion of 179959
            from £2.95
            from £2.95
            This part replaces part number 213497 which we have in stock - and 1 more. Click to view details
            # 011
            MPN: 198581

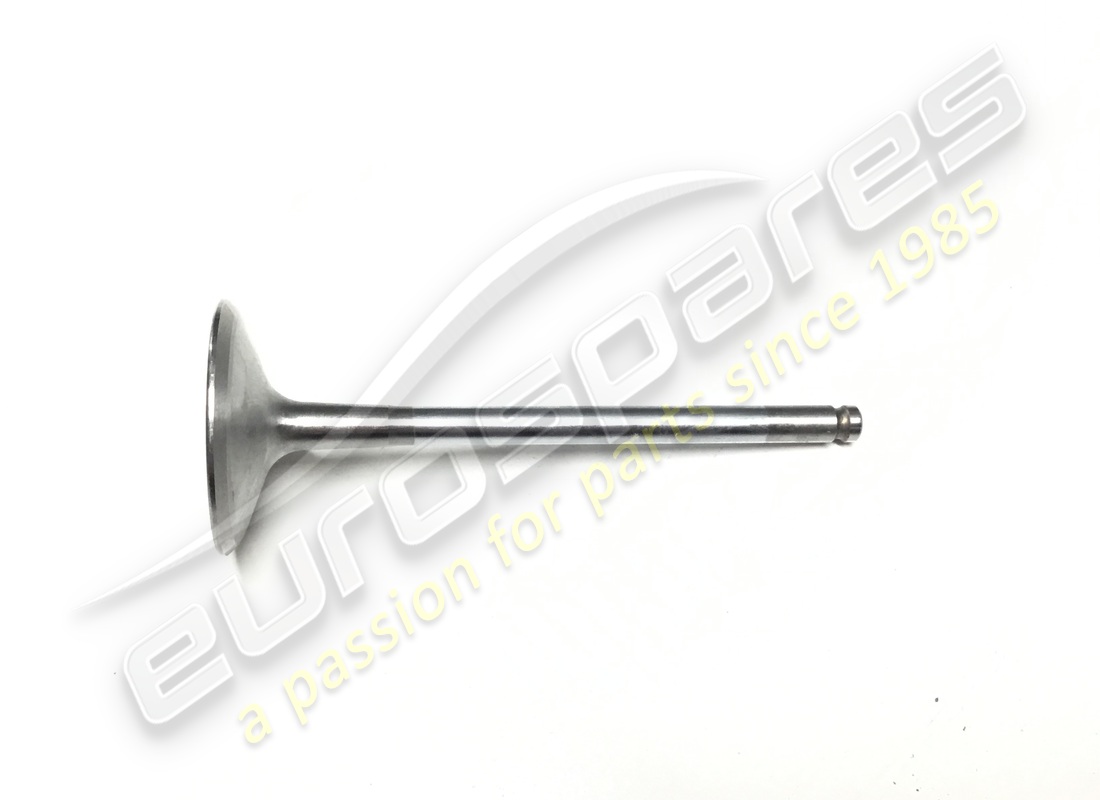

            INTAKE VALVE
            Valid after stock exhaustion of 175395
            from £4.57
            from £4.57
            # 012
            MPN: 198582
            EXHAUST VALVE
            Valid after stock exhaustion of 189351
            from £10.96
            from £10.96
            This part replaces part number 189351 which we have in stock
