maserati qtp. (2006) 4.2 rear suspensions parts diagram

620 - Rear Suspensions

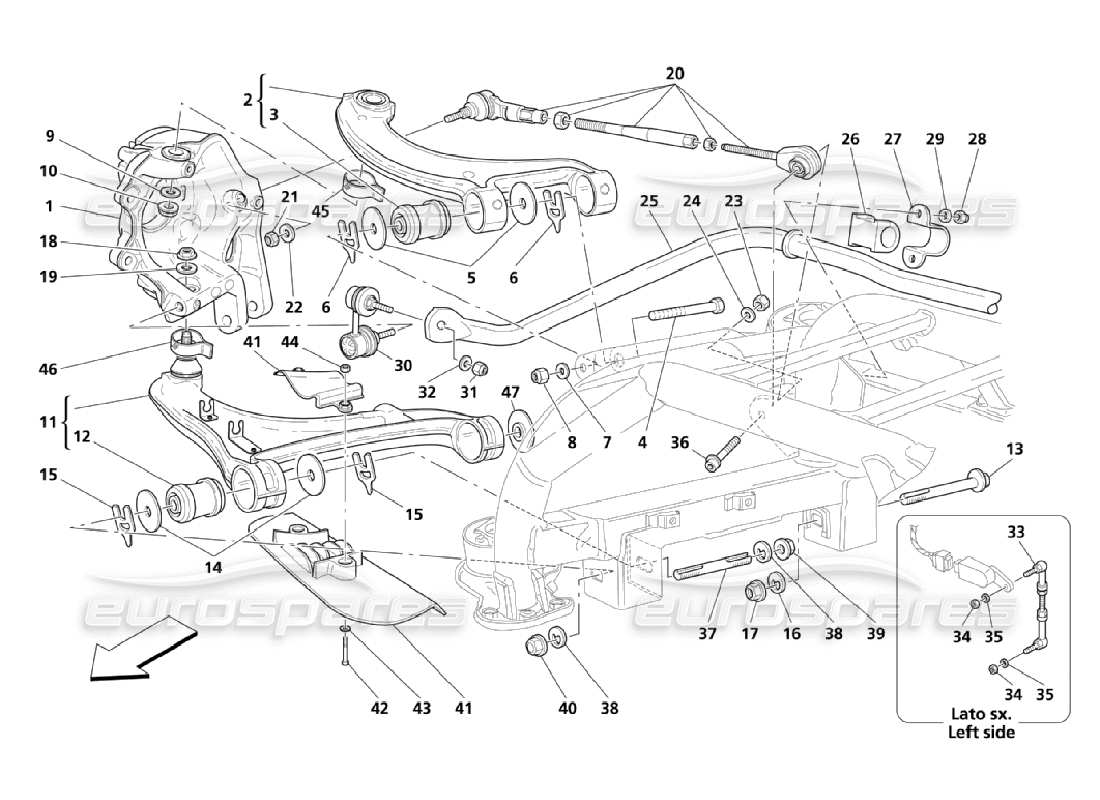

Maserati QTP. (2006) 4.2 Rear Suspensions Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                          #
                                                                                          Part number
                                                                                          Description
                                                                                          Price
                                                                                          # 001
                                                                                          MPN: 216250
                                                                                          COMPLETE RH REAR HUB HOLDER
                                                                                          from £443.92
                                                                                          from £443.92
                                                                                          # 001
                                                                                          MPN: 216251
                                                                                          COMPLETE LH REAR HUB HOLDER
                                                                                          from £244.16
                                                                                          from £244.16
                                                                                          # 002
                                                                                          MPN: 199811
                                                                                          COMPLETE RH REAR UPPER LEVER
                                                                                          from £105.00
                                                                                          from £105.00
                                                                                          This part replaces part number 227727 - and 1 more. Click to view details
                                                                                          # 002
                                                                                          MPN: 199812
                                                                                          COMPLETE LH REAR UPPER LEVER
                                                                                          from £163.83
                                                                                          from £163.83
                                                                                          This part replaces part number 227728
                                                                                          # 003
                                                                                          MPN: 208703
                                                                                          SILENTBLOCK
                                                                                          Supersession
                                                                                          Supersession
                                                                                          # 004
                                                                                          MPN: 15541334
                                                                                          SCREW
                                                                                          from £3.25
                                                                                          from £3.25
                                                                                          # 005
                                                                                          MPN: 194444
                                                                                          WASHER
                                                                                          from £1.90
                                                                                          from £1.90
                                                                                          # 006
                                                                                          MPN: 198043
                                                                                          SPACER
                                                                                          Thickness mm. 0,50
                                                                                          from £3.25
                                                                                          from £3.25
                                                                                          # 006
                                                                                          MPN: 198044
                                                                                          SPACER
                                                                                          Thickness mm. 0,75
                                                                                          from £3.17
                                                                                          from £3.17
                                                                                          # 006
                                                                                          MPN: 198045
                                                                                          SPACER
                                                                                          Thickness mm. 1,00
                                                                                          from £3.09
                                                                                          from £3.09
                                                                                          # 006
                                                                                          MPN: 198046
                                                                                          SPACER
                                                                                          Thickness mm. 1,75
                                                                                          from £2.46
                                                                                          from £2.46
                                                                                          # 006
                                                                                          MPN: 198047
                                                                                          SPACER
                                                                                          Thickness mm. 3,00
                                                                                          from £2.46
                                                                                          from £2.46
                                                                                          # 007
                                                                                          MPN: 14496721
                                                                                          WASHER
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          # 008
                                                                                          MPN: 102825
                                                                                          NUT
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          This part replaces part number 15506221
                                                                                          # 009
                                                                                          MPN: 12646924
                                                                                          WASHER
                                                                                          from £1.43
                                                                                          from £1.43
                                                                                          # 010
                                                                                          MPN: 149807
                                                                                          NUT
                                                                                          from £0.63
                                                                                          from £0.63
                                                                                          # 011
                                                                                          MPN: 217738
                                                                                          COMPLETE RH REAR LOWER LEVER
                                                                                          from £230.13
                                                                                          from £230.13
                                                                                          # 011
                                                                                          MPN: 217739
                                                                                          COMPLETE LH LOWER REAR LEVER
                                                                                          from £306.50
                                                                                          from £306.50
                                                                                          # 012
                                                                                          MPN: 198543
                                                                                          SILENTBLOCK
                                                                                          FRONT
                                                                                          from £27.40
                                                                                          from £27.40
                                                                                          # 012
                                                                                          MPN: 980139890
                                                                                          REAR SUSPENSION BUSHES KIT
                                                                                          from £185.32
                                                                                          from £185.32
                                                                                          This part replaces part number 208703 - and 1 more. Click to view details
                                                                                          # 013
                                                                                          MPN: 194221
                                                                                          ECCENTRIC SCREW
                                                                                          from £41.55
                                                                                          from £41.55
                                                                                          # 014
                                                                                          MPN: 194445
                                                                                          WASHER
                                                                                          from £2.38
                                                                                          from £2.38
                                                                                          # 015
                                                                                          MPN: 198038
                                                                                          SPACER
                                                                                          Thickness mm. 0,50
                                                                                          from £3.25
                                                                                          from £3.25
                                                                                          # 015
                                                                                          MPN: 198039
                                                                                          SPACER
                                                                                          Thickness mm. 0,75
                                                                                          from £3.17
                                                                                          from £3.17
                                                                                          # 015
                                                                                          MPN: 198040
                                                                                          SPACER
                                                                                          Thickness mm. 1,00
                                                                                          from £3.09
                                                                                          from £3.09
                                                                                          # 015
                                                                                          MPN: 198041
                                                                                          SPACER
                                                                                          Thickness mm. 1,75
                                                                                          from £2.54
                                                                                          from £2.54
                                                                                          # 015
                                                                                          MPN: 198042
                                                                                          SPACER
                                                                                          Thickness mm. 3,00
                                                                                          from £3.41
                                                                                          from £3.41
                                                                                          # 016
                                                                                          MPN: 194222
                                                                                          ECCENTRIC WASHER
                                                                                          from £32.04
                                                                                          from £32.04
                                                                                          # 017
                                                                                          MPN: 203795
                                                                                          NUT
                                                                                          from £1.31
                                                                                          from £1.31
                                                                                          This part replaces part number 183417 - and 1 more. Click to view details
                                                                                          # 018
                                                                                          MPN: 203795
                                                                                          NUT
                                                                                          from £1.31
                                                                                          from £1.31
                                                                                          This part replaces part number 183417 - and 1 more. Click to view details
                                                                                          # 019
                                                                                          MPN: 205496
                                                                                          WASHER
                                                                                          from £13.02
                                                                                          from £13.02
                                                                                          # 020

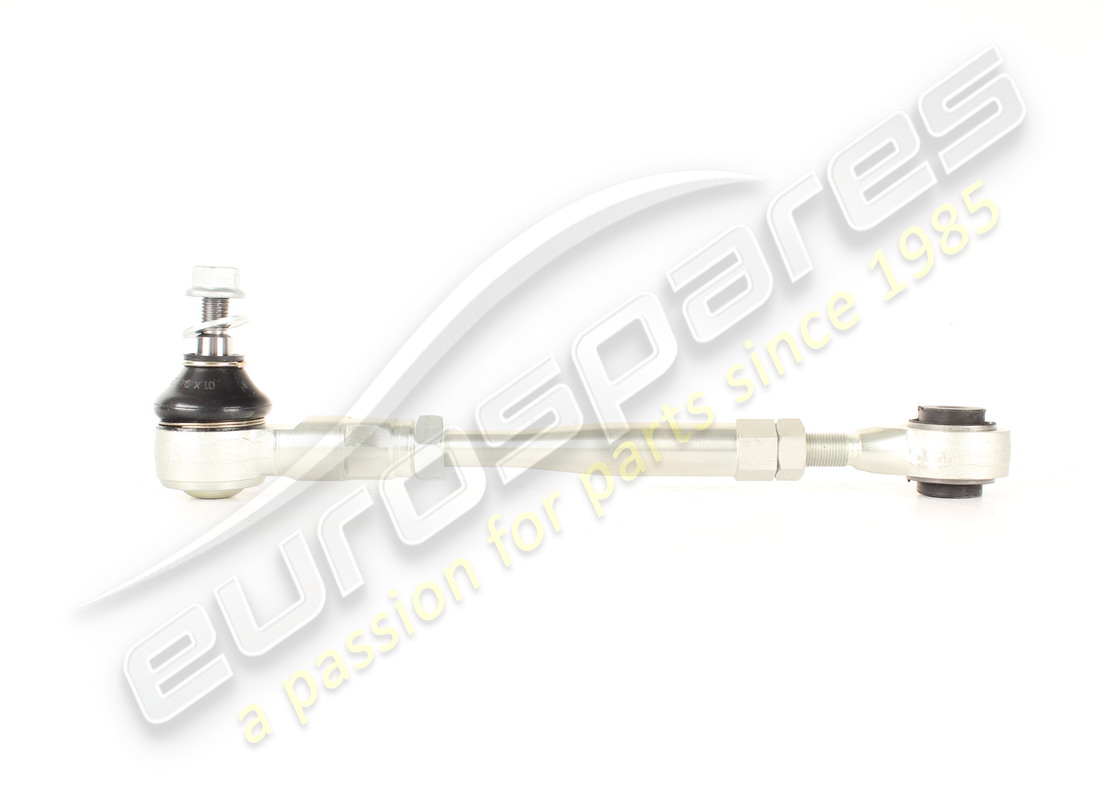

                                                                                          MPN: 276636
                                                                                          Convergency Regolation Tie Rod
                                                                                          from £175.87
                                                                                          from £175.87
                                                                                          This part replaces part number 262362
                                                                                          # 021
                                                                                          MPN: 203657
                                                                                          NUT
                                                                                          from £1.35
                                                                                          from £1.35
                                                                                          # 022
                                                                                          MPN: 12626224
                                                                                          WASHER
                                                                                          from £0.54
                                                                                          from £0.54
                                                                                          # 023
                                                                                          MPN: 203657
                                                                                          NUT
                                                                                          from £1.35
                                                                                          from £1.35
                                                                                          # 024
                                                                                          MPN: 12626224
                                                                                          WASHER
                                                                                          from £0.54
                                                                                          from £0.54
                                                                                          # 025
                                                                                          MPN: 216714
                                                                                          REAR ANTIROLL BAR
                                                                                          from £81.76
                                                                                          from £81.76
                                                                                          # 026
                                                                                          MPN: 200587

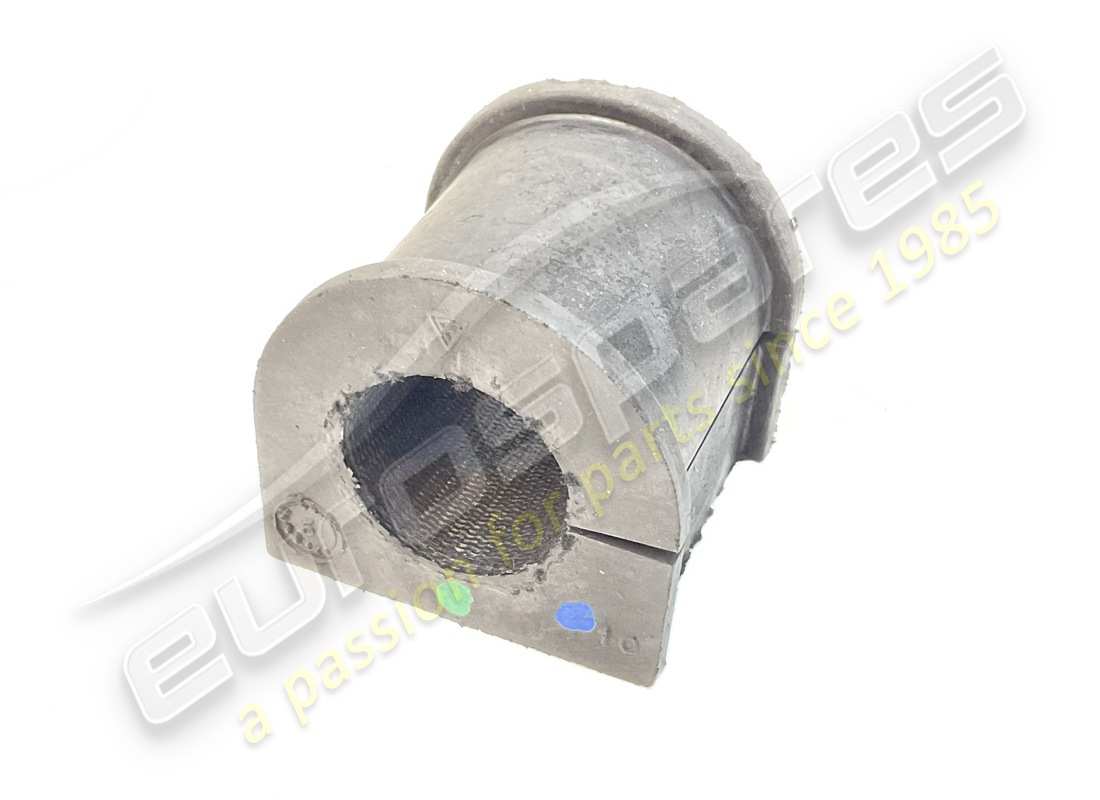

                                                                                          PAD
                                                                                          from £20.98
                                                                                          from £20.98
                                                                                          # 027
                                                                                          MPN: 191221
                                                                                          PAD FASTENING PLATE
                                                                                          from £25.69
                                                                                          from £25.69
                                                                                          # 028
                                                                                          MPN: 104030
                                                                                          NUT
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          # 029
                                                                                          MPN: 14496524
                                                                                          WASHER
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          # 030
                                                                                          MPN: 259572

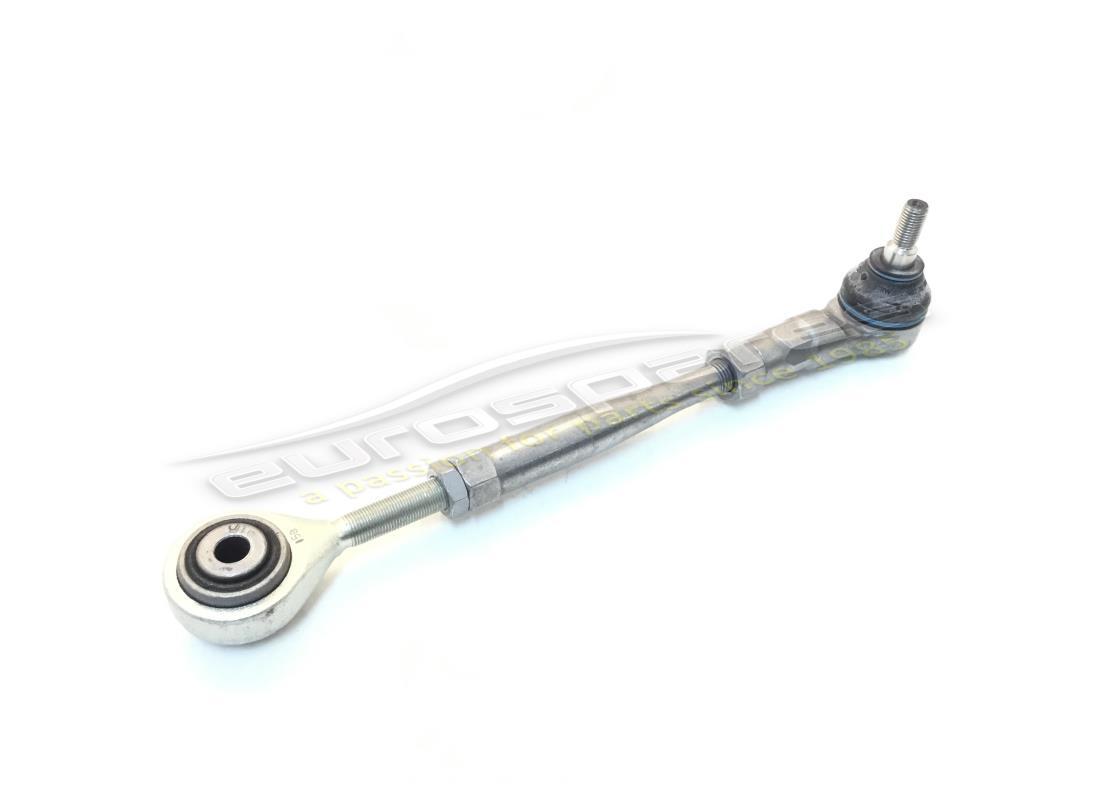

                                                                                          RH BALL TIE ROD
                                                                                          from £52.98
                                                                                          from £52.98
                                                                                          This part replaces part number 162619
                                                                                          # 030
                                                                                          MPN: 259573
                                                                                          LH BALL TIE ROD
                                                                                          from £48.67
                                                                                          from £48.67
                                                                                          This part replaces part number 162620 which we have in stock
                                                                                          # 031
                                                                                          MPN: 102742
                                                                                          NUT
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          # 032
                                                                                          MPN: 12601474
                                                                                          WASHER
                                                                                          from £0.53
                                                                                          from £0.53
                                                                                          # 033
                                                                                          MPN: 188632
                                                                                          TIE ROD FOR LIGHT ADJUSTING POTENTIOMETER
                                                                                          from £68.03
                                                                                          from £68.03
                                                                                          # 034
                                                                                          MPN: 102741
                                                                                          NUT
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          This part replaces part number 12575421
                                                                                          # 035
                                                                                          MPN: 14498824
                                                                                          WASHER
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          # 037
                                                                                          MPN: 204008

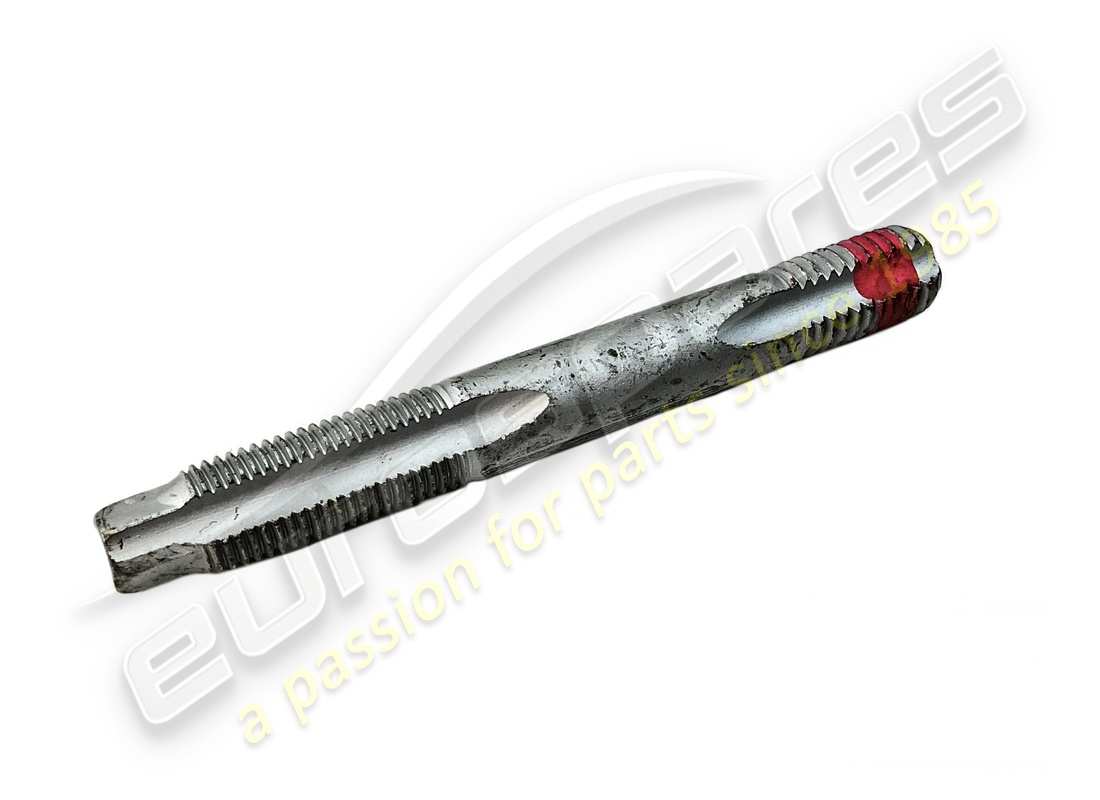

                                                                                          STUD
                                                                                          from £36.80
                                                                                          from £36.80
                                                                                          # 038
                                                                                          MPN: 194222
                                                                                          WASHER
                                                                                          from £32.04
                                                                                          from £32.04
                                                                                          # 039
                                                                                          MPN: 203795
                                                                                          NUT
                                                                                          from £1.31
                                                                                          from £1.31
                                                                                          This part replaces part number 183417 - and 1 more. Click to view details
                                                                                          # 040
                                                                                          MPN: 204010
                                                                                          CAP NUT
                                                                                          from £4.20
                                                                                          from £4.20
                                                                                          # 041
                                                                                          MPN: 206881
                                                                                          AIR CHANGEOVER SWITCH FOR LH REAR LOWER LEVER
                                                                                          from £17.13
                                                                                          from £17.13
                                                                                          # 041
                                                                                          MPN: 206882
                                                                                          AIR CHANGEOVER SWITCH FOR RH REAR LOWER LEVER
                                                                                          from £17.13
                                                                                          from £17.13
                                                                                          # 042
                                                                                          MPN: 14064414
                                                                                          SCREW
                                                                                          from £1.35
                                                                                          from £1.35
                                                                                          # 043
                                                                                          MPN: 14498804
                                                                                          WASHER
                                                                                          from £0.71
                                                                                          from £0.71
                                                                                          # 045
                                                                                          MPN: 386600416
                                                                                          JOINT UPPER PROTECTION
                                                                                          from £3.74
                                                                                          from £3.74
                                                                                          # 046
                                                                                          MPN: 160019
                                                                                          JOINT LOWER PROTECTION
                                                                                          from £3.74
                                                                                          from £3.74
                                                                                          This part replaces part number 386600419
                                                                                          # 047
                                                                                          MPN: 222203
                                                                                          SPACER
                                                                                          from £13.80
                                                                                          from £13.80
