maserati qtp. (2006) 4.2 window-bag system parts diagram

704 - Window-Bag System

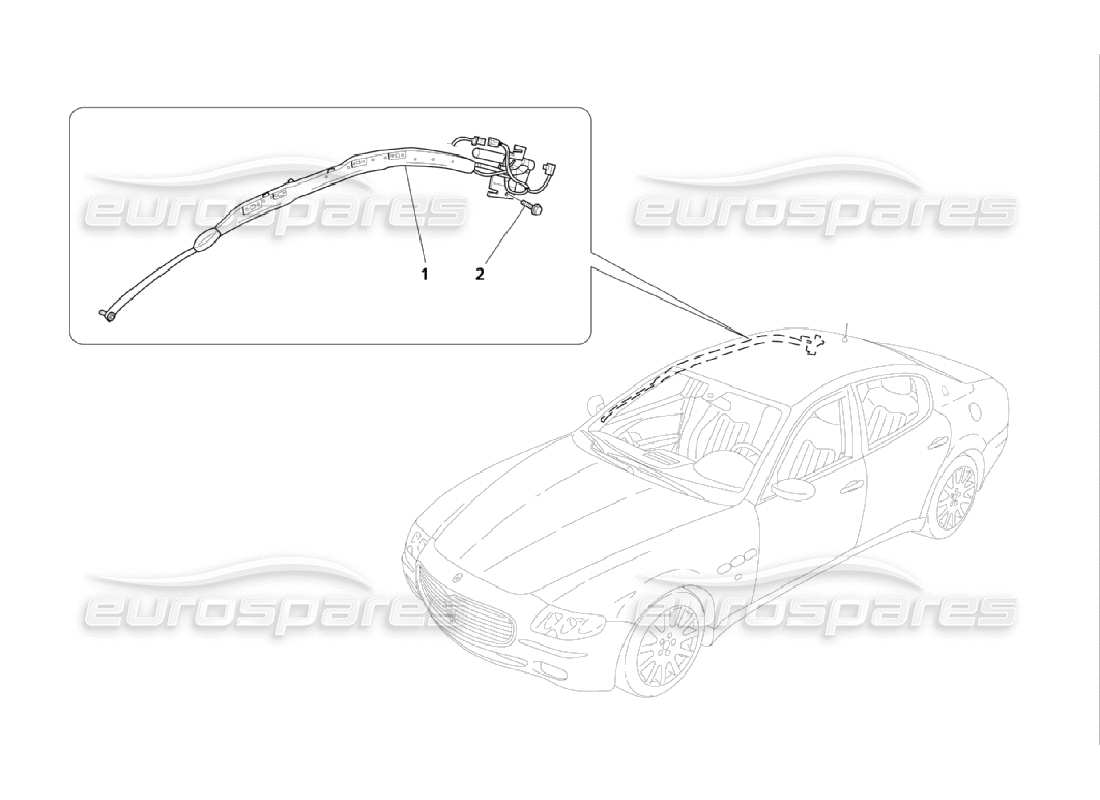

Maserati QTP. (2006) 4.2 Window-Bag System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
    #
    Part number
    Description
    Price
    # 001
    MPN: 67065600
    RH HEADBAG
    Valid till stock exhaustion
    Supersession
    Supersession
    # 001
    MPN: 67065700
    LH HEADBAG
    Valid till stock exhaustion
    from £150.07
    from £150.07
    # 001
    MPN: 69295000
    RH HEADBAG
    Valid after stock exhaustion of 67065600
    from £150.07
    from £150.07
    This part replaces part number 67065600 - and 1 more. Click to view details
    # 001
    MPN: 69295100
    LH HEADBAG
    Valid after stock exhaustion of 67065700
    from £150.07
    from £150.07
    This part replaces part number 67065700 which we have in stock - and 1 more. Click to view details
    # 002
    MPN: 16286024
    SCREW
    from £0.50
    from £0.50
