maserati qtp. (2006) 4.2 central outer structures and body parts diagram

901 - Central Outer Structures And Body

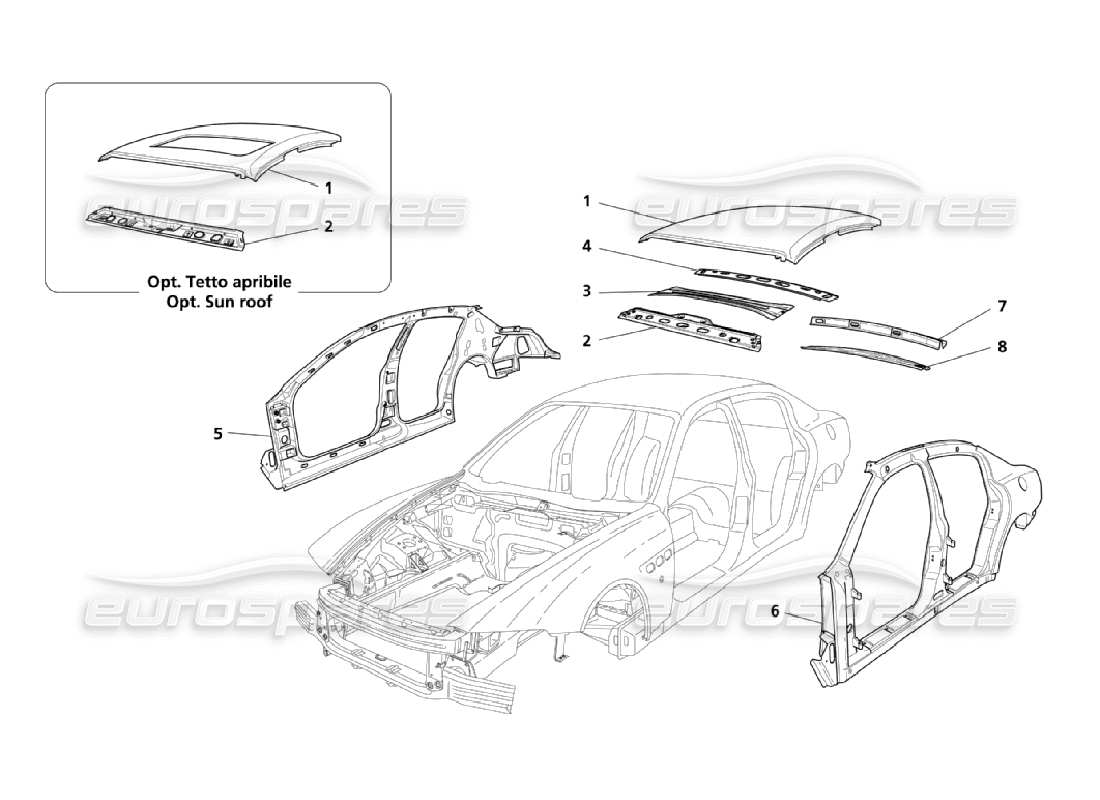

Maserati QTP. (2006) 4.2 Central Outer Structures And Body Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
              #
              Part number
              Description
              Price
              # 001
              MPN: 66823600
              ROOF UPHOLSTERY
              STANDARD
              from £2,161.79
              from £2,161.79
              # 001
              MPN: 67873500
              ROOF UPHOLSTERY
              Optional Mobile phone
              from £771.13
              from £771.13
              # 001
              MPN: 980139323
              WHOLE ROOF
              Optional Sun roof
              from £1,461.66
              from £1,461.66
              # 001
              MPN: 980139324
              WHOLE ROOF
              Optional Sun roof and mobile phone
              from £1,671.71
              from £1,671.71
              # 002
              MPN: 980139321
              COMPLETE WINDSHIELD FRONT CROSS MEMBER
              STANDARD
              from £193.44
              from £193.44
              # 002
              MPN: 980139322
              COMPLETE WINDSHIELD FRONT CROSS MEMBER
              Optional Sun roof
              from £115.30
              from £115.30
              # 003
              MPN: 66823100
              UPHOLSTERY CENTRAL CROSS MEMBER
              from £55.98
              from £55.98
              # 004
              MPN: 980139325
              COMPLETE REAR CROSS MEMBER
              from £94.91
              from £94.91
              # 005
              MPN: 980139319
              RH LATERAL STRUCTURE ASSEMBLY
              Supersession
              Supersession
              # 006
              MPN: 980139320
              LH LATERAL STRUCTURE ASSEMBLY
              Supersession
              Supersession
              # 007
              MPN: 66823900
              UNDER REAR WINDOW CROSS MEMBER
              from £1,207.49
              from £1,207.49
              # 008
              MPN: 66827000
              UNDER REAR WINDOW CROSS MEMBER FRAME
              from £28.76
              from £28.76
