maserati qtp. (2006) 4.2 rear wheels braking parts parts diagram

411 - Rear Wheels Braking Parts

Maserati QTP. (2006) 4.2 Rear Wheels Braking Parts Parts Diagram

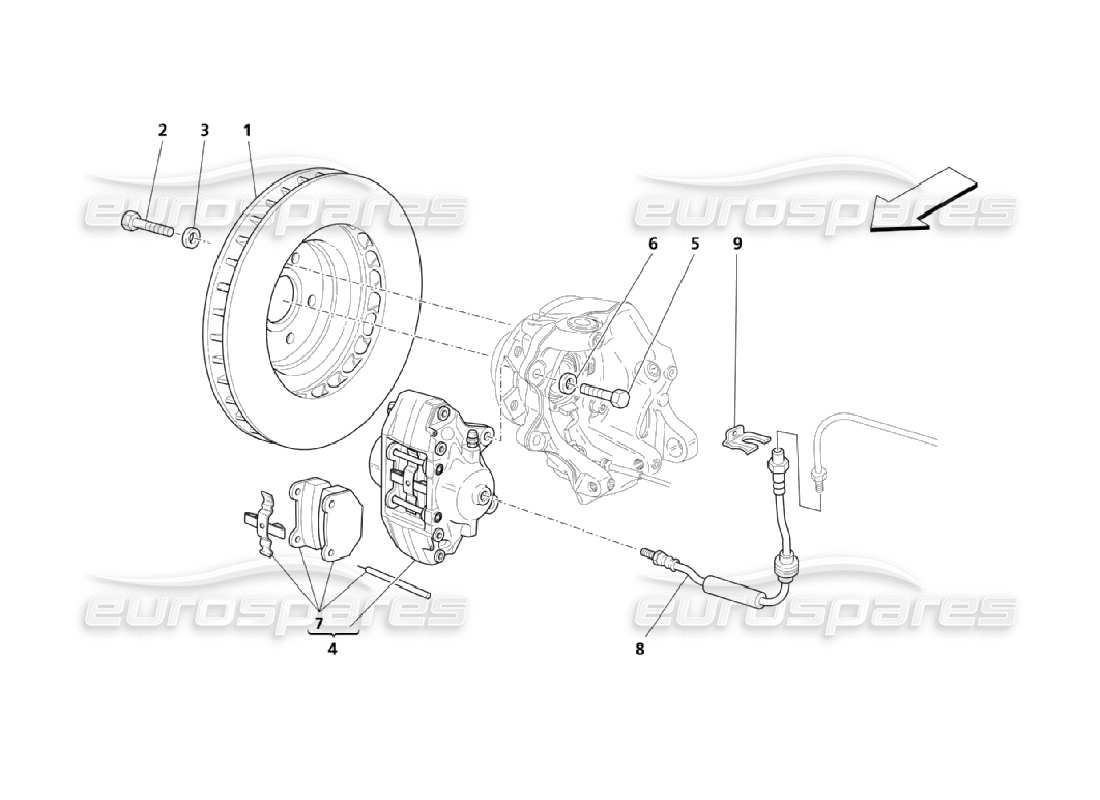

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
          #
          Part number
          Description
          Price
          # 000
          MPN: 228411/A
          REAR BRAKE KIT
          includes 1x 980139064 and 2x 228411 Pack sport version, Manufactured In Italy Chassis Number Required
          # 001
          MPN: 194983

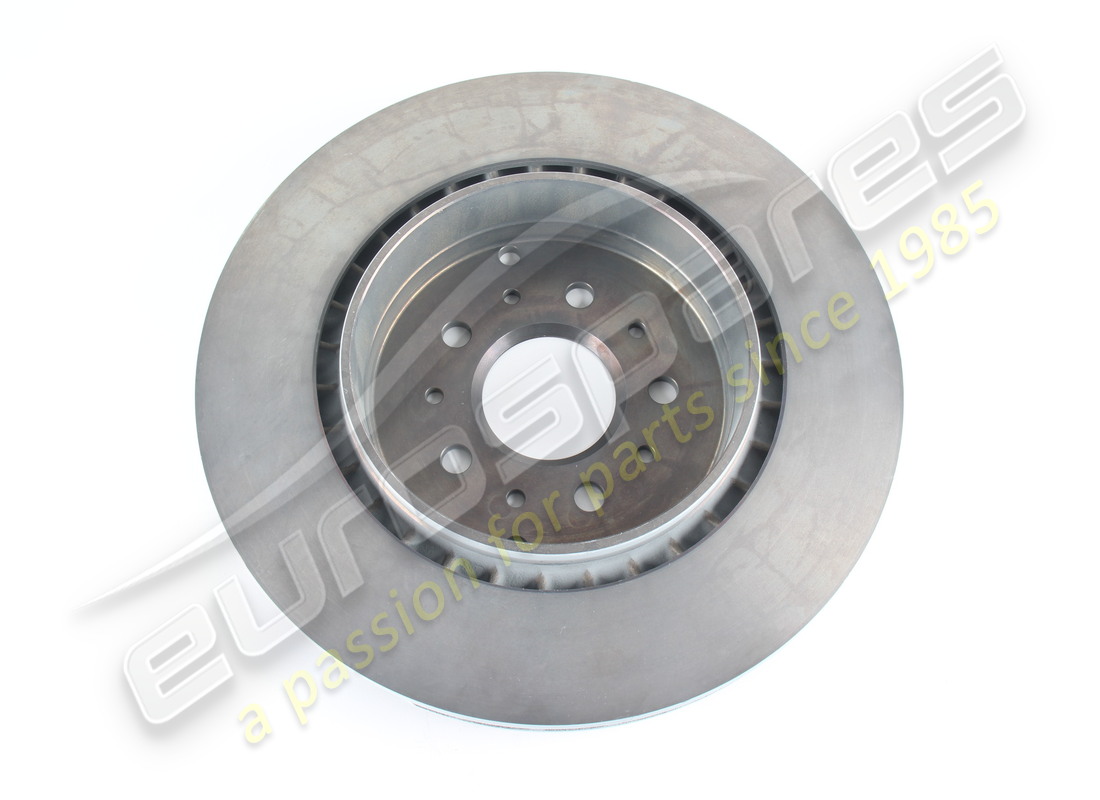

          REAR BRAKE DISC
          STANDARD
          from £166.85
          from £166.85
          # 001
          MPN: 202017

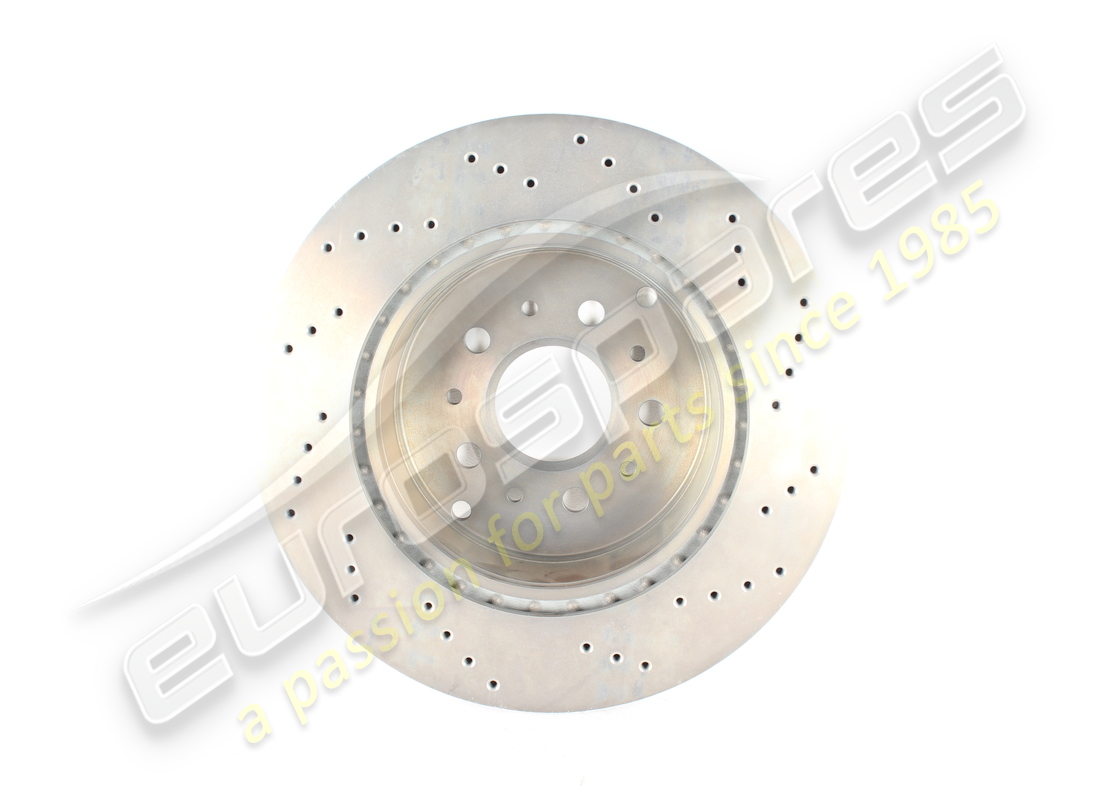

          REAR BRAKE DISC
          drilled - Pack sport version
          from £187.83
          from £187.83
          # 001
          MPN: 221253
          REAR BRAKE DISC
          (Standard - Model Year 2008 >)
          from £166.85
          from £166.85
          # 001
          MPN: 228411

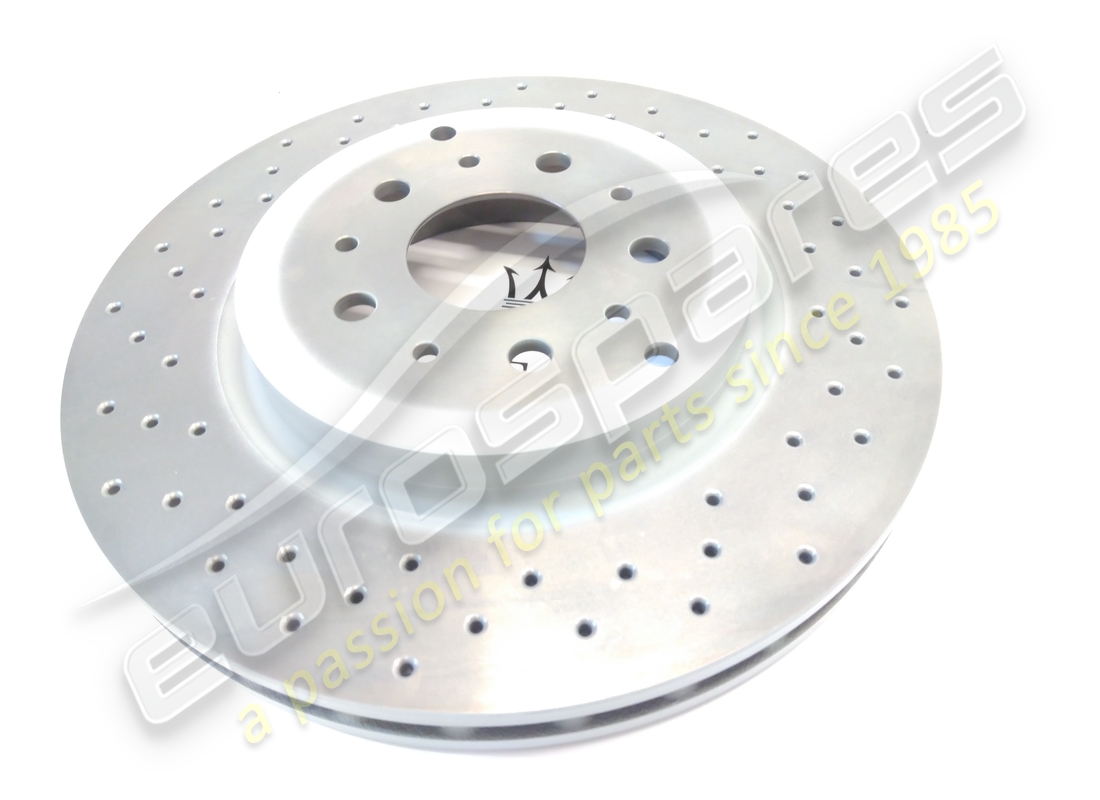

          REAR BRAKE DISC
          (Option - Sports Package - Model Year 2008 >) (priced per disc) Chassis Number Required O/D 330mm, Thickness 28mm
          from £139.40
          from £139.40
          # 002
          MPN: 16043424
          SCREW
          from £0.51
          from £0.51
          # 003
          MPN: 12601374
          WASHER
          from £0.47
          from £0.47
          # 004
          MPN: 188663

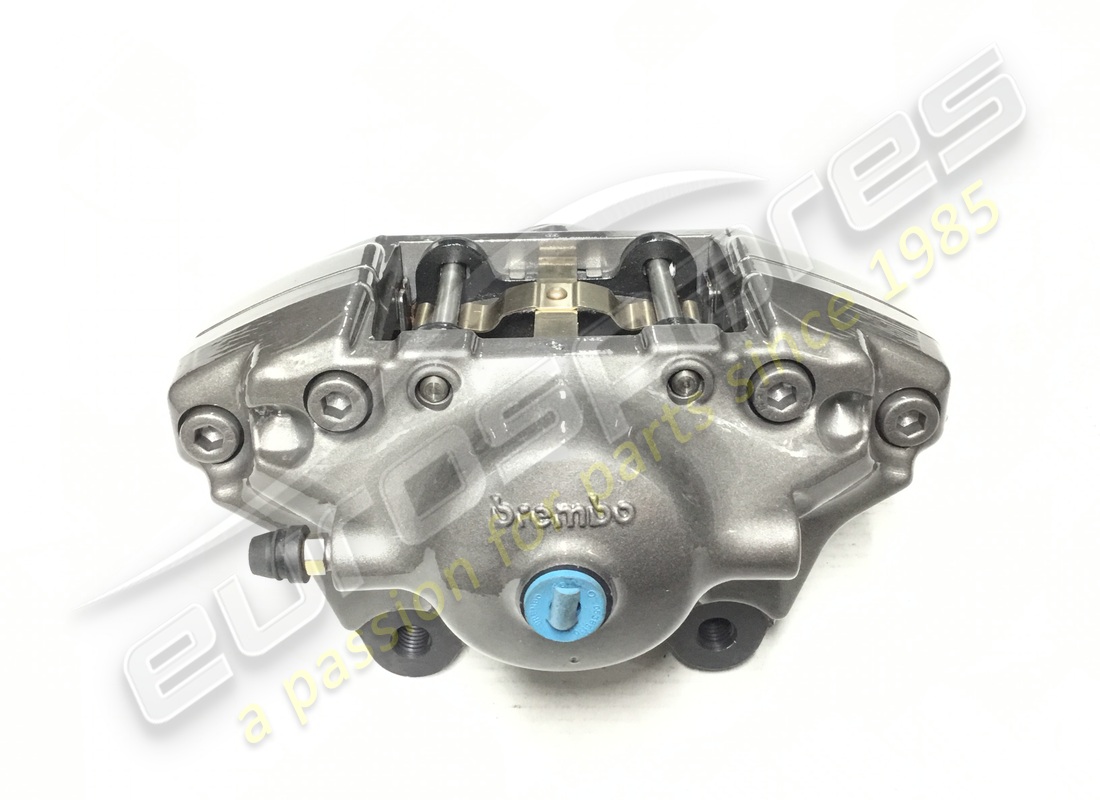

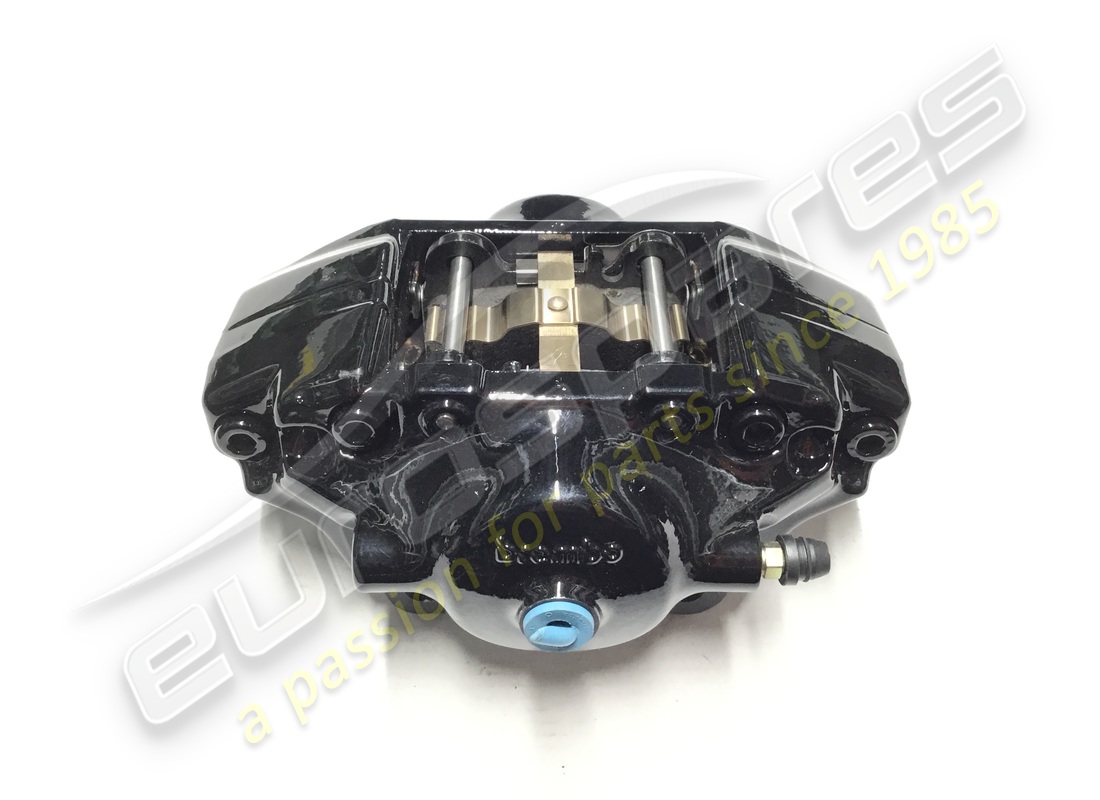

          COMPLETE RH REAR CALIPER
          Black - Valid till stock exhaustion
          from £288.75
          from £288.75
          # 004
          MPN: 188666

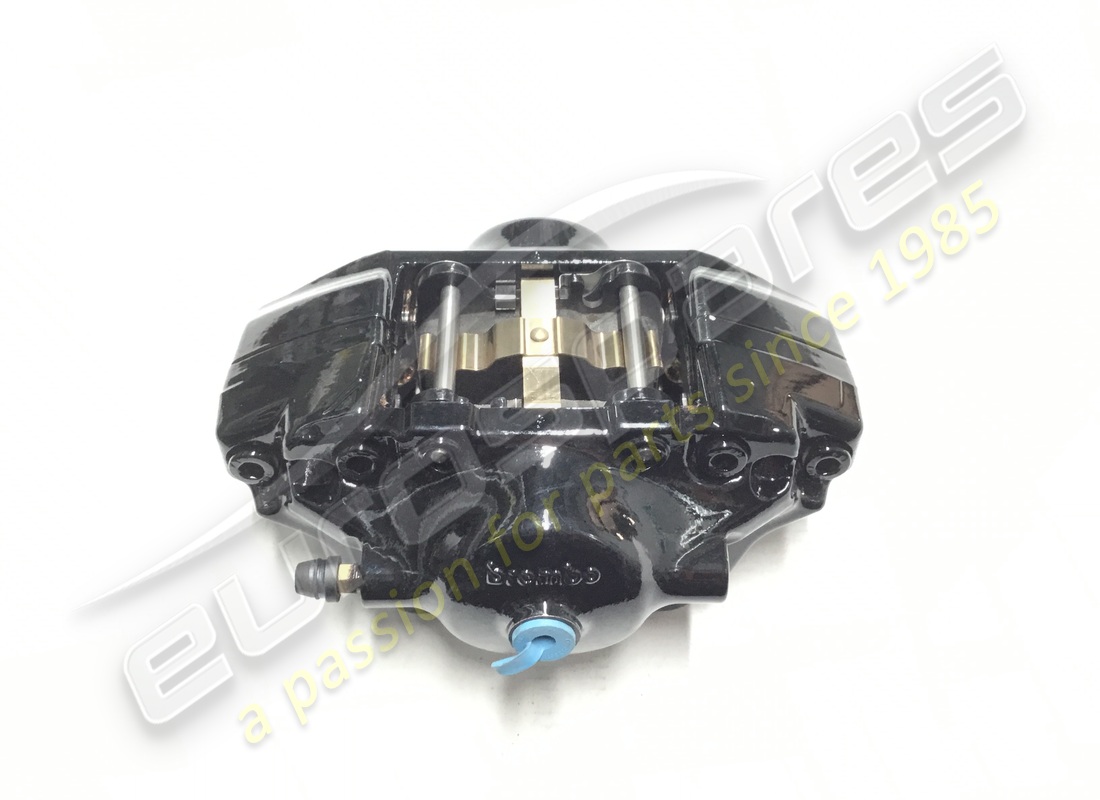

          COMPLETE LH REAR CALIPER
          Black - Valid till stock exhaustion
          from £329.69
          from £329.69
          # 004
          MPN: 201300

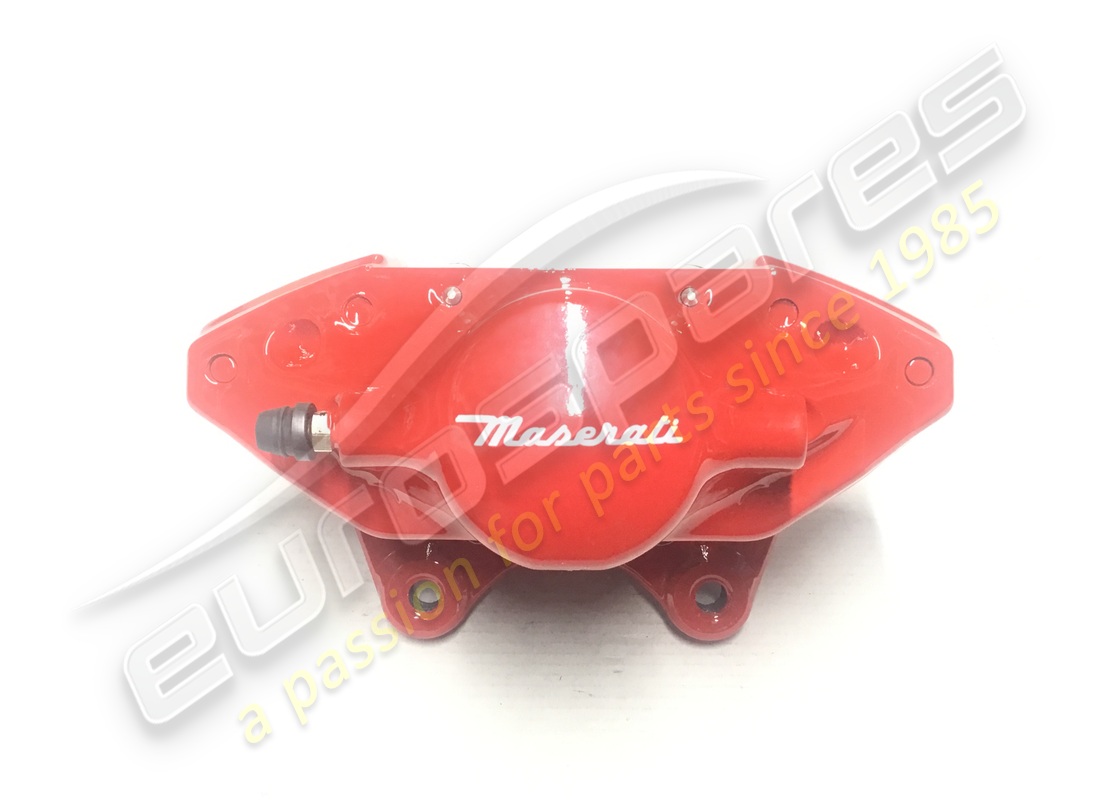

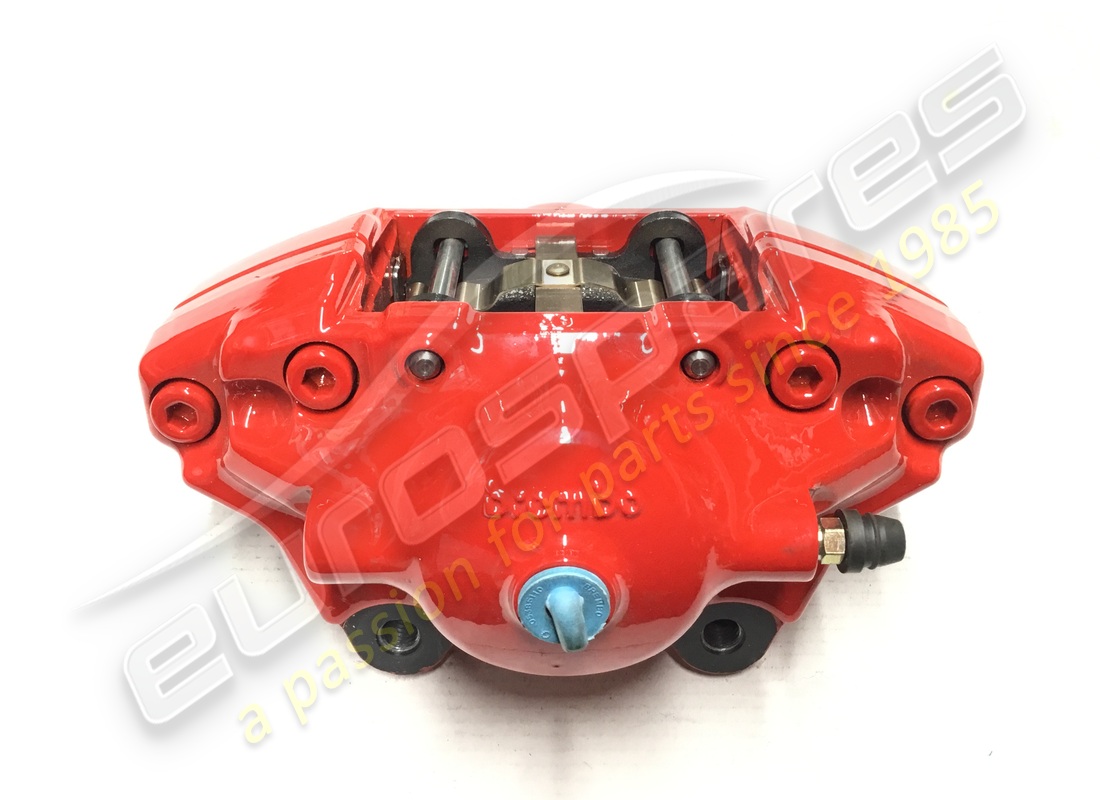

          COMPLETE LH REAR CALIPER
          Red - Valid till stock exhaustion
          Supersession
          Supersession
          # 004
          MPN: 201302

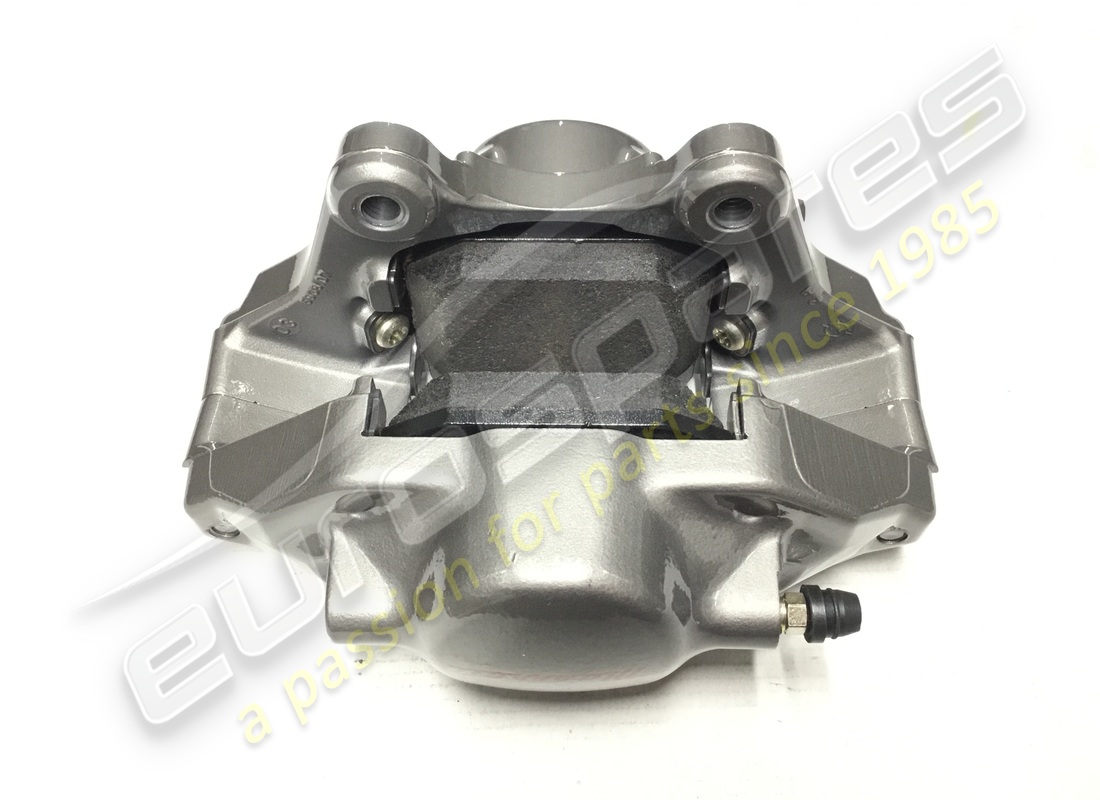

          COMPLETE LH REAR CALIPER
          Silver - Valid till stock exhaustion
          from £680.23
          from £680.23
          # 004
          MPN: 201303

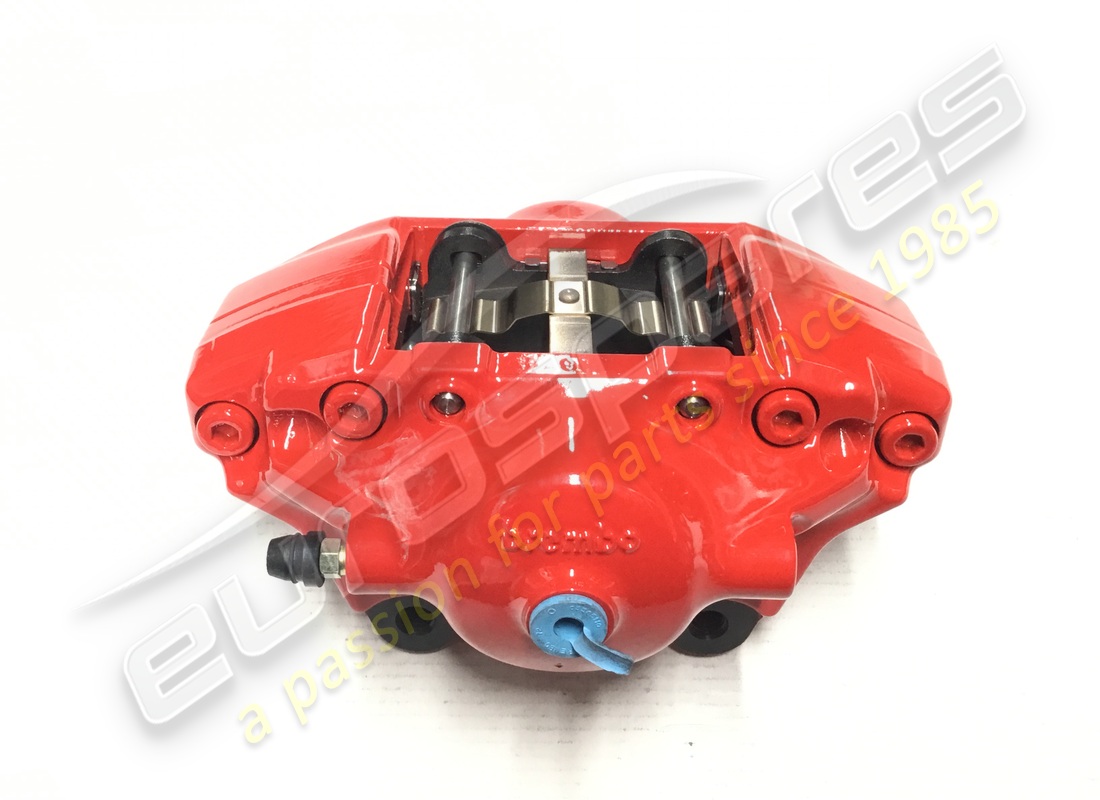

          COMPLETE RH REAR CALIPER
          Red - Valid till stock exhaustion
          from £603.75
          from £603.75
          # 004
          MPN: 201304
          COMPLETE RH REAR CALIPER
          Silver - Valid till stock exhaustion
          Supersession
          Supersession
          # 004
          MPN: 203030
          COMPLETE RH REAR CALIPER
          Dark green - Pack sport version - Valid till stock exhaustion
          from £371.62
          from £371.62
          # 004
          MPN: 203031
          COMPLETE LH REAR CALIPER
          Dark green - Pack sport version - Valid till stock exhaustion
          Supersession
          Supersession
          # 004
          MPN: 228349
          COMPLETE LH REAR CALIPER
          Black - Valid after stock exhaustion of 188666
          from £652.64
          from £652.64
          This part replaces part number 188666 which we have in stock
          # 004
          MPN: 228350
          COMPLETE RH REAR CALIPER
          Black - Valid after stock exhaustion of 188663
          from £541.62
          from £541.62
          This part replaces part number 188663 which we have in stock
          # 004
          MPN: 228351
          COMPLETE LH REAR CALIPER
          Red - Valid after stock exhaustion of 201300
          from £349.79
          from £349.79
          This part replaces part number 201300 - and 1 more. Click to view details
          # 004
          MPN: 228352
          COMPLETE RH REAR CALIPER
          Red - Valid after stock exhaustion of 201303
          from £457.96
          from £457.96
          This part replaces part number 201303 which we have in stock - and 1 more. Click to view details
          # 004
          MPN: 228353
          COMPLETE LH REAR CALIPER
          Silver - Valid after stock exhaustion of 201302
          from £682.78
          from £682.78
          This part replaces part number 201302 which we have in stock
          # 004
          MPN: 228354
          COMPLETE RH REAR CALIPER
          Silver - Valid after stock exhaustion of 201304
          from £707.36
          from £707.36
          This part replaces part number 201304
          # 004
          MPN: 228355
          COMPLETE LH REAR CALIPER
          Dark green - Pack sport version - Valid after stock exhaustion of 203031
          from £373.49
          from £373.49
          This part replaces part number 203031
          # 004
          MPN: 228356
          COMPLETE RH REAR CALIPER
          Dark green - Pack sport version - Valid after stock exhaustion of 203030
          from £373.49
          from £373.49
          This part replaces part number 203030 which we have in stock
          # 005
          MPN: 11234734
          SCREW
          M 10X45
          from £0.47
          from £0.47
          # 005
          MPN: 15970934
          SCREW
          M 10X35
          from £0.82
          from £0.82
          # 006
          MPN: 11198374
          WASHER
          from £0.47
          from £0.47
          This part replaces part number 675000618
          # 007
          MPN: 980139069

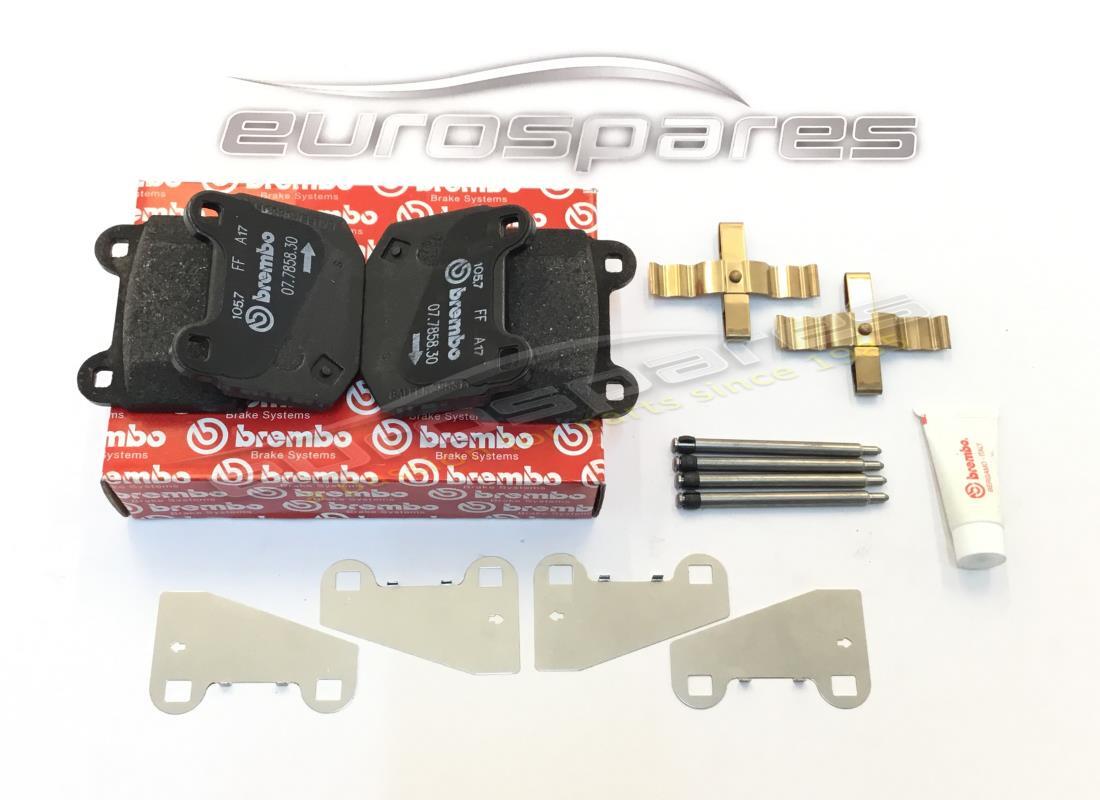

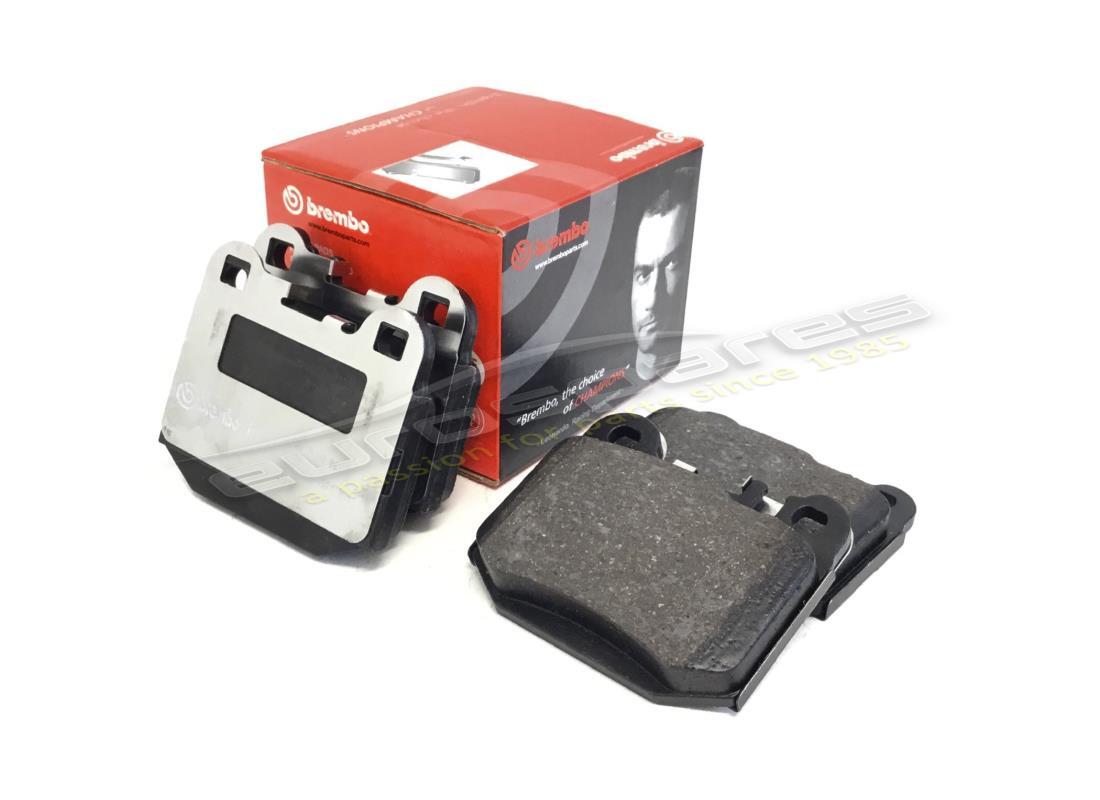

          KIT OF REAR PADS
          Valid till stock exhaustion
          from £93.45
          from £93.45
          This part replaces part number 206676
          # 007
          MPN: 980139069
          KIT OF REAR PADS
          Valid after stock exhaustion of 206676
          from £93.45
          from £93.45
          This part replaces part number 206676
          # 008
          MPN: 197175
          FLEXIBLE PIPE TO REAR CALIPERS
          STANDARD
          from £37.51
          from £37.51
          # 008
          MPN: 204963
          FLEXIBLE PIPE TO REAR CALIPERS
          Optional - Pack sport version
          from £68.95
          from £68.95
          # 009
          MPN: 181897
          CLIP
          from £1.11
          from £1.11
          This part replaces part number 252814
          Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
