Maserati QTP. (2006) 4.2 Hydraulic Controls For F1 Gearbox Parts Diagram

201 - Hydraulic Controls For F1 Gearbox

Maserati QTP. (2006) 4.2 Hydraulic Controls for F1 Gearbox Parts Diagram

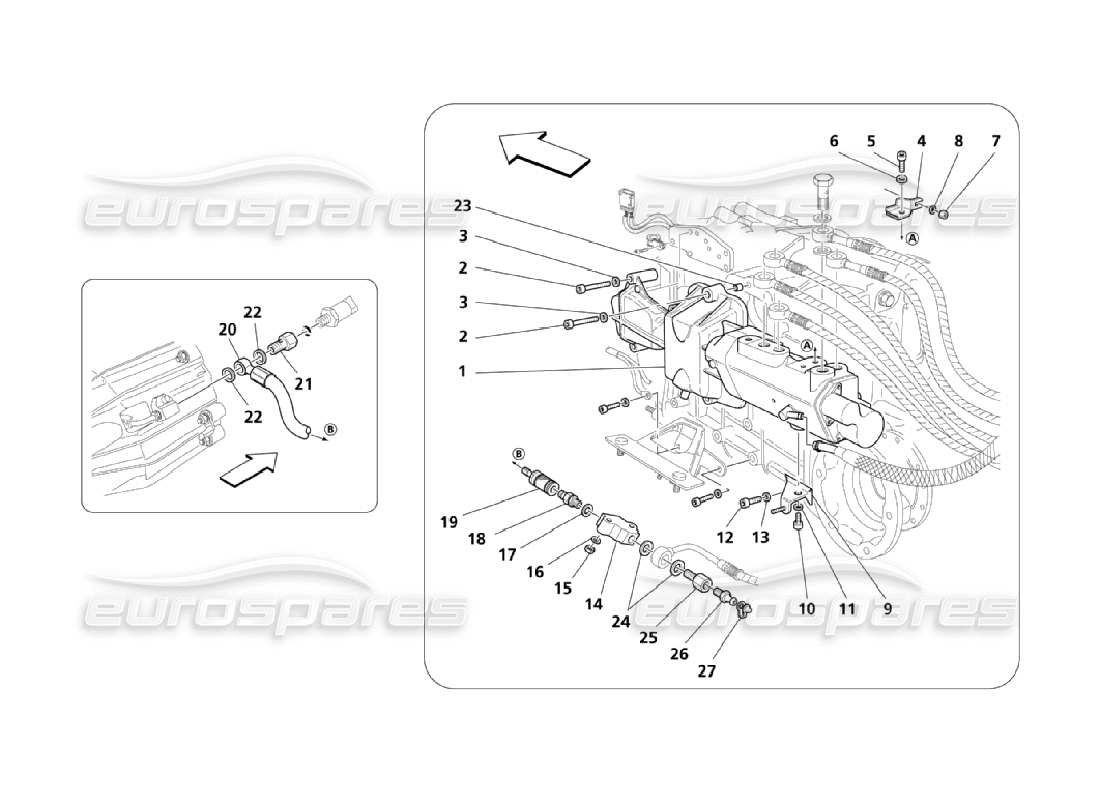

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                      #
                                                      Part number
                                                      Description
                                                      Price
                                                      # 001
                                                      MPN: 183064

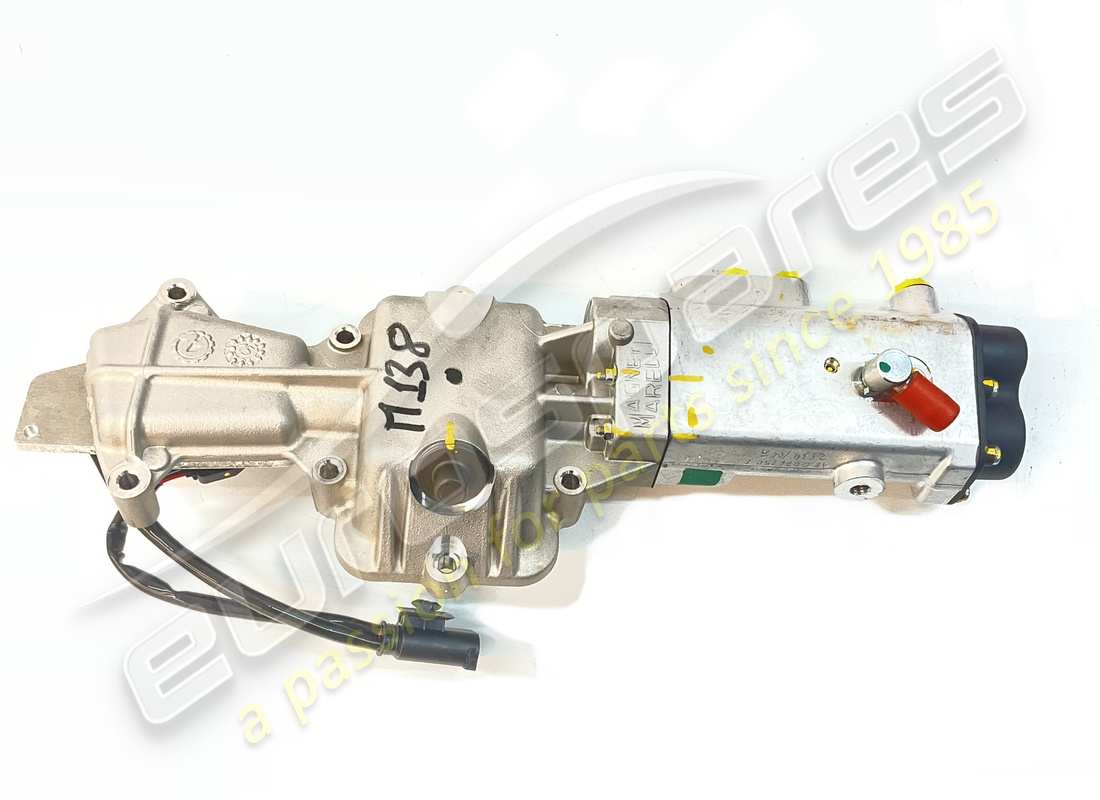

                                                      COMPLETE ACTUATOR
                                                      from £1,837.50
                                                      from £1,837.50
                                                      # 002
                                                      MPN: 14305524
                                                      SCREW
                                                      from £0.53
                                                      from £0.53
                                                      # 002
                                                      MPN: 14305624
                                                      SCREW
                                                      from £0.50
                                                      from £0.50
                                                      # 003
                                                      MPN: 12601274
                                                      WASHER
                                                      from £0.51
                                                      from £0.51
                                                      This part replaces part number 12601270
                                                      # 004
                                                      MPN: 186776
                                                      ACTUATOR SUPPORT UPPER BRACKET
                                                      from £6.89
                                                      from £6.89
                                                      # 005
                                                      MPN: 14306224
                                                      SCREW
                                                      from £0.53
                                                      from £0.53
                                                      # 006
                                                      MPN: 12601374
                                                      WASHER
                                                      from £0.30
                                                      from £0.30
                                                      # 007
                                                      MPN: 14048215
                                                      NUT
                                                      from £3.60
                                                      from £3.60
                                                      # 008
                                                      MPN: 14499424
                                                      WASHER
                                                      Supersession
                                                      Supersession
                                                      # 009
                                                      MPN: 199723
                                                      ACTUATOR SUPPORT LOWER BRACKET
                                                      from £8.31
                                                      from £8.31
                                                      # 010
                                                      MPN: 14301924
                                                      SCREW
                                                      from £1.57
                                                      from £1.57
                                                      # 011
                                                      MPN: 12601374
                                                      WASHER
                                                      from £0.30
                                                      from £0.30
                                                      # 012
                                                      MPN: 14360024
                                                      SCREW
                                                      from £0.53
                                                      from £0.53
                                                      # 013
                                                      MPN: 12601474
                                                      WASHER
                                                      from £0.54
                                                      from £0.54
                                                      # 015
                                                      MPN: 15896214
                                                      NUT
                                                      from £0.54
                                                      from £0.54
                                                      This part replaces part number 15896211
                                                      # 016
                                                      MPN: 12601279
                                                      WASHER
                                                      from £0.53
                                                      from £0.53
                                                      # 017
                                                      MPN: 171755
                                                      WASHER
                                                      from £2.35
                                                      from £2.35
                                                      # 018
                                                      MPN: 210468
                                                      MALE COUPLING
                                                      from £81.67
                                                      from £81.67
                                                      # 019
                                                      MPN: 210469
                                                      FEMALE COUPLING
                                                      Valid till stock exhaustion
                                                      Supersession
                                                      Supersession
                                                      # 019
                                                      MPN: 225148
                                                      FEMALE COUPLING
                                                      Valid after stock exhaustion of 210469
                                                      from £41.65
                                                      from £41.65
                                                      This part replaces part number 210469
                                                      # 020
                                                      MPN: 199910
                                                      CLUTCH OIL HOSE
                                                      from £292.47
                                                      from £292.47
                                                      # 022
                                                      MPN: 10261060
                                                      GASKET
                                                      from £0.53
                                                      from £0.53
                                                      This part replaces part number 274036
                                                      # 023
                                                      MPN: 145992
                                                      DOWEL
                                                      from £41.34
                                                      from £41.34
                                                      # 024
                                                      MPN: 10261060
                                                      GASKET
                                                      from £0.53
                                                      from £0.53
                                                      This part replaces part number 274036
                                                      # 026
                                                      MPN: 152954

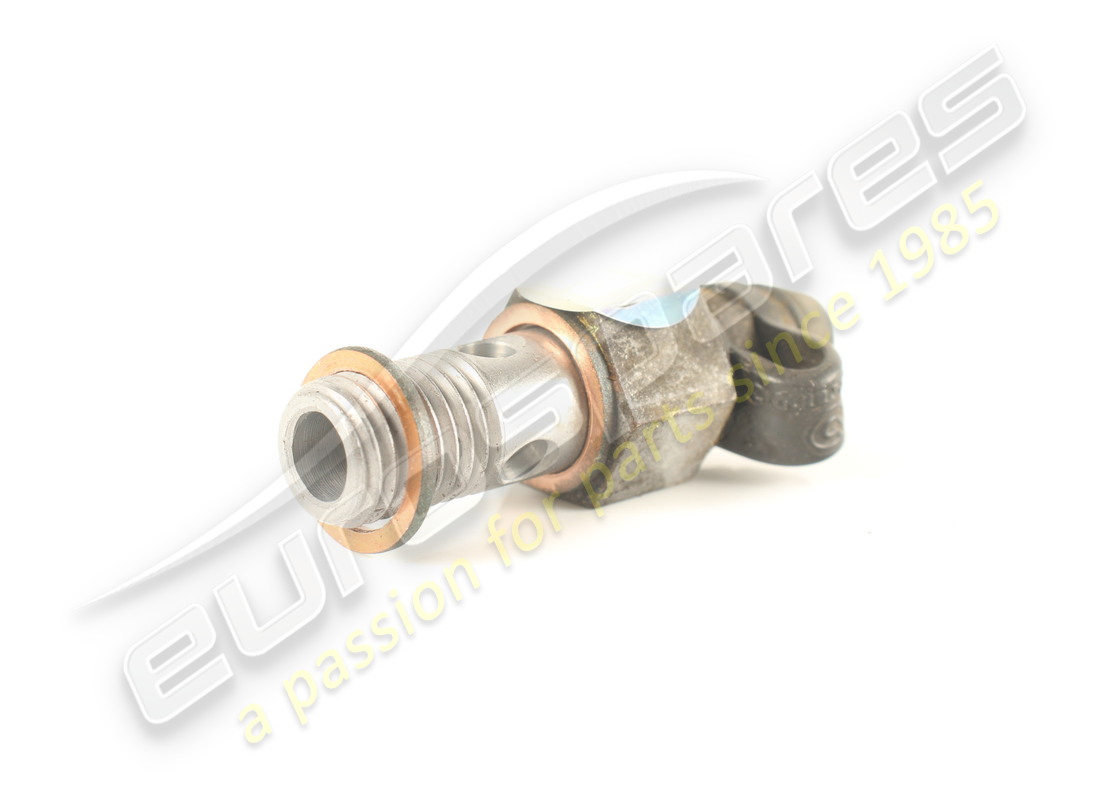

                                                      BLEEDER SCREW
                                                      from £3.36
                                                      from £3.36
