maserati qtp. (2006) 4.2 cooling system: water pump parts diagram

172 - cooling system: water pump

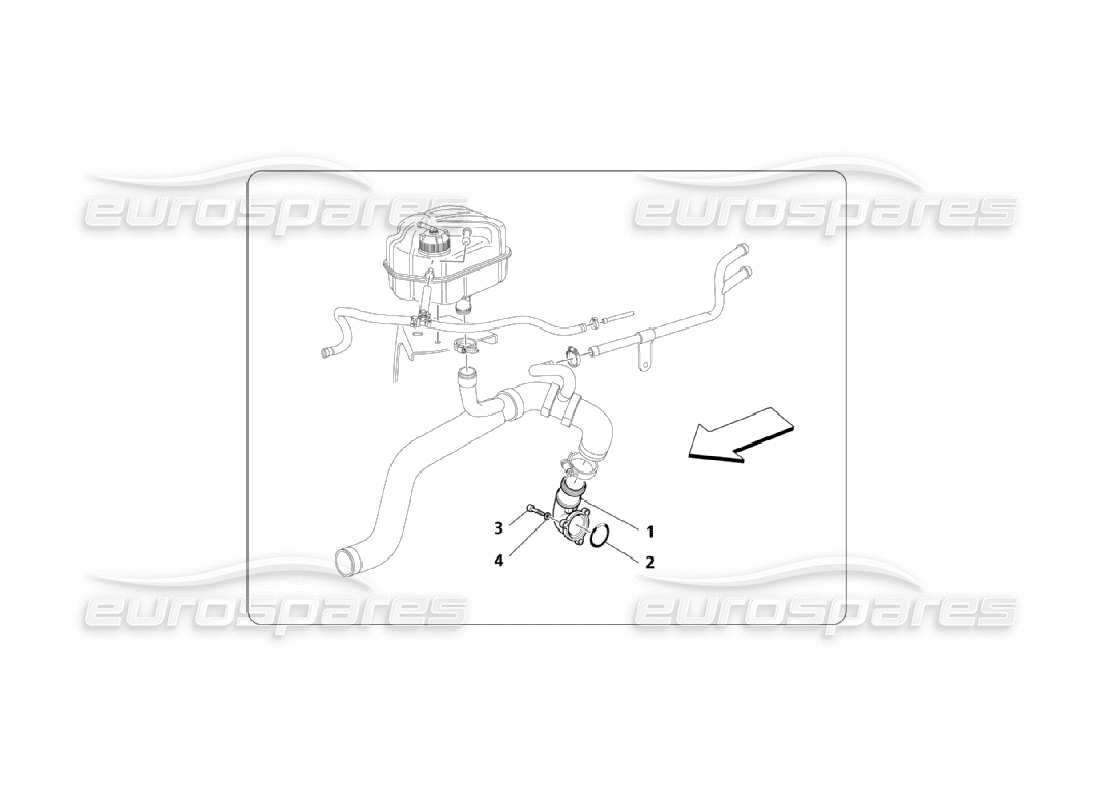

Maserati QTP. (2006) 4.2 Cooling System: Water Pump Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
          #
          Part number
          Description
          Price
          # 001
          MPN: 196104
          WATER INLET COVER
          from £142.58
          from £142.58
          # 002
          MPN: 154191
          GASKET
          from £0.77
          from £0.77
          # 003
          MPN: 14432224
          SCREW
          from £0.47
          from £0.47
          # 004
          MPN: 11197774
          WASHER
          from £0.54
          from £0.54
