maserati qtp. (2006) 4.2 tyres pressure control system -optional- parts diagram

720 - Tyres Pressure Control System -Optional-

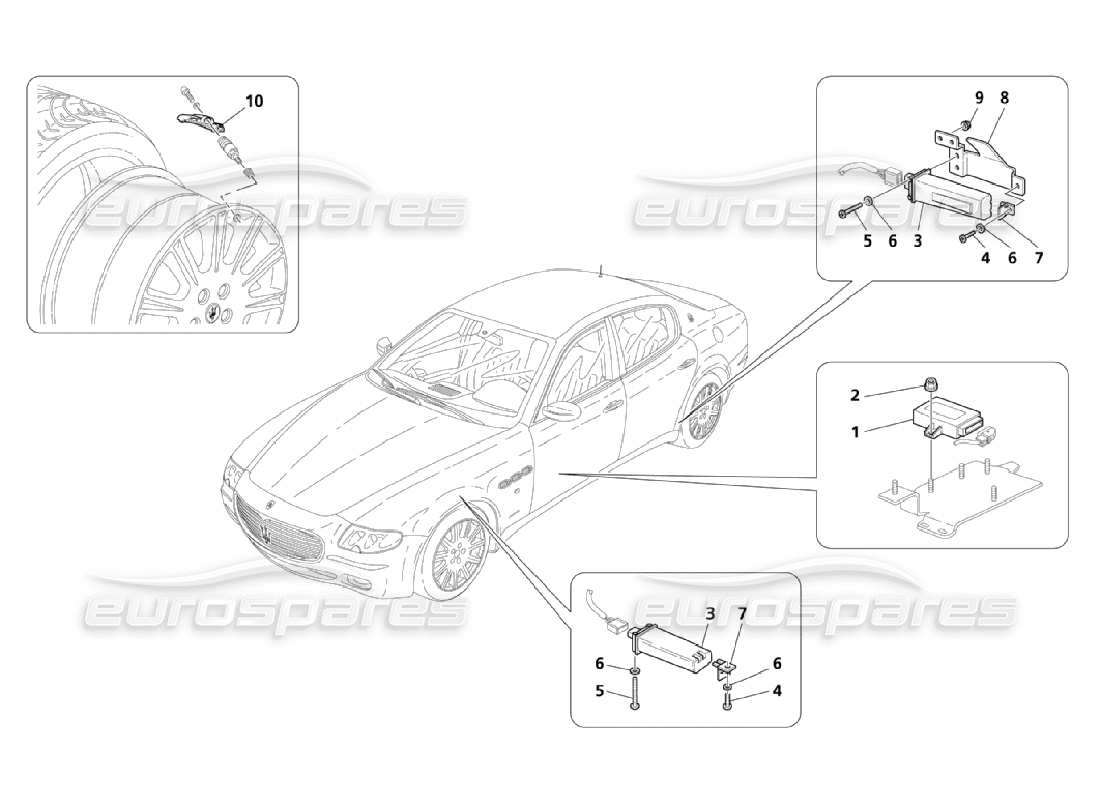

Maserati QTP. (2006) 4.2 Tyres Pressure Control System -Optional- Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
            #
            Part number
            Description
            Price
            # 001
            MPN: 235303
            TYRES PRESSURE CONTROL UNIT
            (EXCHANGE ONLY)
            from £371.17
            from £371.17
            This part replaces part number 221360
            # 001
            MPN: 235303
            TYRES PRESSURE CONTROL UNIT
            (EXCHANGE ONLY)
            from £371.17
            from £371.17
            This part replaces part number 221360
            # 002
            MPN: 14059211
            NUT
            from £0.47
            from £0.47
            This part replaces part number 675000181
            # 003
            MPN: 191444
            TYRES PRESSURE CONTROL ANTENNA 315 MHZ
            Valid for J - Valid for cars GD opt. japan version - Valid till stock exhaustion
            Supersession
            Supersession
            # 003
            MPN: 224562
            TYRES PRESSURE CONTROL ANTENNA 433 MHZ
            Not for J - Not for cars GD opt. japan version - Valid till stock exhaustion
            from £51.56
            from £51.56
            This part replaces part number 191443
            # 003
            MPN: 224562
            TYRES PRESSURE CONTROL ANTENNA 433 MHZ
            Not for J - Not for cars GD opt. japan version - Valid after stock exhaustion of 191443
            from £51.56
            from £51.56
            This part replaces part number 191443
            # 003
            MPN: 224563
            TYRES PRESSURE CONTROL ANTENNA 315 MHZ
            Valid for J - Valid for cars GD opt. japan version - Valid after stock exhaustion of 191444
            from £85.56
            from £85.56
            This part replaces part number 191444
            # 004
            MPN: 13272111
            SCREW
            M 4X14
            from £0.71
            from £0.71
            # 005
            MPN: 13272911
            SCREW
            M 4X35
            from £1.36
            from £1.36
            # 006
            MPN: 12642821
            WASHER
            from £0.47
            from £0.47
            # 007
            MPN: 195646
            CLIP
            from £0.75
            from £0.75
            # 008
            MPN: 67989400
            RH REAR BRACKET
            from £12.59
            from £12.59
            # 008
            MPN: 67989500
            LH REAR BRACKET
            from £12.59
            from £12.59
            # 009
            MPN: 14059211
            NUT
            from £0.47
            from £0.47
            This part replaces part number 675000181
            # 010
            MPN: 185189
            TYRES PRESSURE CONTROL SENSOR
            not as spare part - use part number: 224549
            Supersession
            Supersession
            # 010
            MPN: 312450
            TYRE PRESSURE SENSOR 433 MHZ
            from £92.17
            from £92.17
            This part replaces part number 224549 which we have in stock
            # 010
            MPN: 312451
            TYRE PRESSURE SENSORS 315 MHZ
            Valid for J - Valid for cars GD opt. japan version
            from £91.79
            from £91.79
            This part replaces part number 224548
