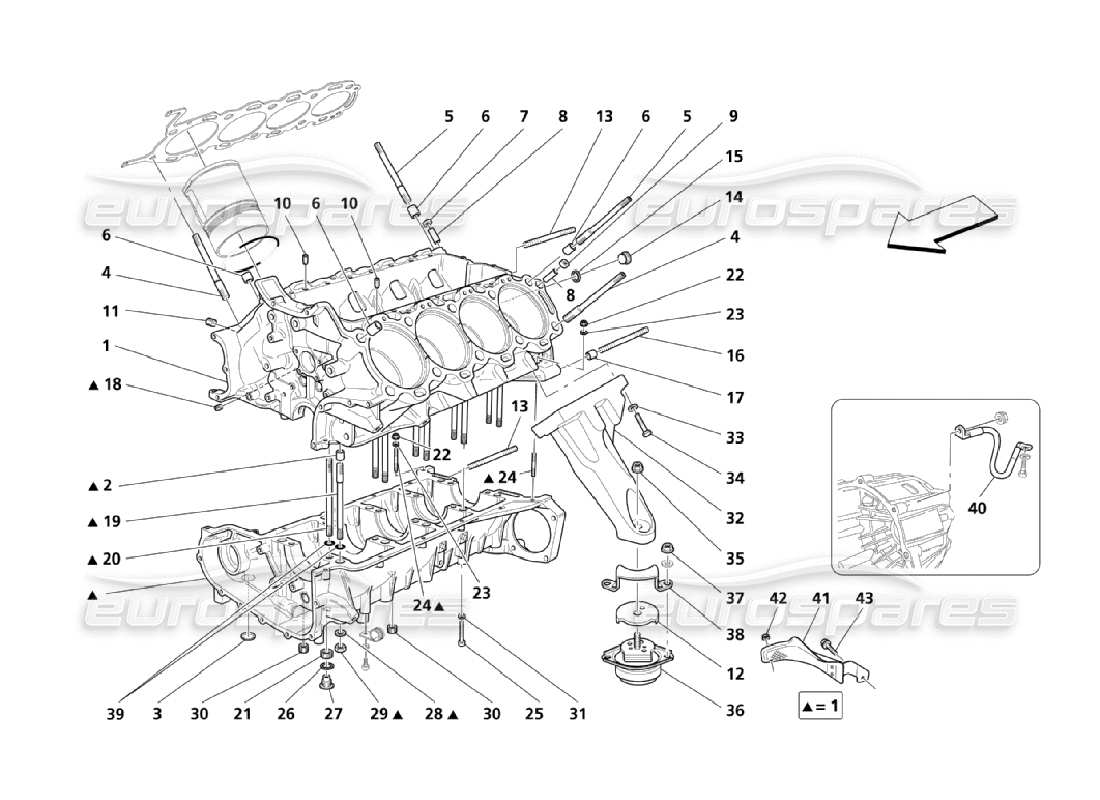

Maserati QTP. (2006) 4.2 Crankcase Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                              #
                                                                              Part number
                                                                              Description
                                                                              Price
                                                                              # 000
                                                                              MPN: 980020009
                                                                              BOTTOM END SET
                                                                              from £172.48
                                                                              from £172.48
                                                                              # 001
                                                                              MPN: 216263
                                                                              COMPLETE CRANKCASE
                                                                              Valid till engine Nr. 107296 - Valid till stock exhaustion
                                                                              Supersession
                                                                              Supersession
                                                                              # 001
                                                                              MPN: 223371
                                                                              COMPLETE CRANKCASE
                                                                              Valid till engine Nr. 107296 - Valid after stock exhaustion of 216263
                                                                              from £2,772.05
                                                                              from £2,772.05
                                                                              This part replaces part number 216263
                                                                              # 001
                                                                              MPN: 224857
                                                                              COMPLETE CRANKCASE
                                                                              Valid from engine Nr. 107297
                                                                              from £2,752.76
                                                                              from £2,752.76
                                                                              # 002
                                                                              MPN: 176421
                                                                              CENTERING DOWEL
                                                                              from £2.08
                                                                              from £2.08
                                                                              # 003
                                                                              MPN: 10158801
                                                                              PLUG
                                                                              from £0.73
                                                                              from £0.73
                                                                              # 004
                                                                              MPN: 194754
                                                                              STUD
                                                                              from £11.74
                                                                              from £11.74
                                                                              # 005
                                                                              MPN: 194755
                                                                              STUD
                                                                              from £10.31
                                                                              from £10.31
                                                                              # 006
                                                                              MPN: 185360
                                                                              CENTERING DOWEL
                                                                              from £1.43
                                                                              from £1.43
                                                                              # 007
                                                                              MPN: 194773
                                                                              DOWEL
                                                                              from £5.71
                                                                              from £5.71
                                                                              # 008
                                                                              MPN: 156862
                                                                              NONRETURN VALVE
                                                                              from £5.28
                                                                              from £5.28
                                                                              # 009
                                                                              MPN: 184045
                                                                              DOWEL
                                                                              from £5.71
                                                                              from £5.71
                                                                              # 010
                                                                              MPN: 177727
                                                                              CENTERING DOWEL
                                                                              from £1.26
                                                                              from £1.26
                                                                              # 011
                                                                              MPN: 164400
                                                                              THREADED PLUG
                                                                              from £1.86
                                                                              from £1.86
                                                                              # 012
                                                                              MPN: 196590
                                                                              UPPER PROTECTION FOR ENGINE PAD
                                                                              Not for AUS, J and cars GD opt. japan version - till car Ass. Nr. 24274
                                                                              from £5.17
                                                                              from £5.17
                                                                              # 014
                                                                              MPN: 10275011
                                                                              THREADED PLUG
                                                                              from £1.05
                                                                              from £1.05
                                                                              This part replaces part number 178959
                                                                              # 015
                                                                              MPN: 10263460
                                                                              GASKET
                                                                              Supplied also in the crankcase gasket revision kit (cod. 980020004)
                                                                              from £0.47
                                                                              from £0.47
                                                                              This part replaces part number 10261830
                                                                              # 016
                                                                              MPN: 13546934
                                                                              STUD
                                                                              from £0.86
                                                                              from £0.86
                                                                              # 016
                                                                              MPN: 13547034
                                                                              STUD
                                                                              from £1.66
                                                                              from £1.66
                                                                              # 017
                                                                              MPN: 100052
                                                                              CENTERING DOWEL
                                                                              from £1.13
                                                                              from £1.13
                                                                              # 018
                                                                              MPN: 13525770
                                                                              THREADED INSERT
                                                                              from £1.52
                                                                              from £1.52
                                                                              # 019
                                                                              MPN: 194756
                                                                              STUD
                                                                              from £36.80
                                                                              from £36.80
                                                                              # 020
                                                                              MPN: 194757
                                                                              STUD
                                                                              Valid till engine Nr. 100809 - Not for cars with complete crankcase (Pos. 1) code 216263 - Valid till stock exhaustion
                                                                              from £4.13
                                                                              from £4.13
                                                                              # 020
                                                                              MPN: 215652
                                                                              STUD
                                                                              Valid from engine Nr. 100810
                                                                              Supersession
                                                                              Supersession
                                                                              This part replaces part number 194757 which we have in stock
                                                                              # 021
                                                                              MPN: 112254
                                                                              THREADED INSERT
                                                                              from £2.33
                                                                              from £2.33
                                                                              # 021
                                                                              MPN: 223577
                                                                              THREADED INSERT
                                                                              As an alternative
                                                                              from £2.38
                                                                              from £2.38
                                                                              # 022
                                                                              MPN: 132877
                                                                              NUT
                                                                              from £1.54
                                                                              from £1.54
                                                                              # 023
                                                                              MPN: 12604274
                                                                              WASHER
                                                                              from £0.47
                                                                              from £0.47
                                                                              # 024
                                                                              MPN: 13541624
                                                                              STUD
                                                                              from £9.44
                                                                              from £9.44
                                                                              # 025
                                                                              MPN: 14305424
                                                                              SCREW
                                                                              from £0.47
                                                                              from £0.47
                                                                              # 025
                                                                              MPN: 14432224
                                                                              SCREW
                                                                              from £0.47
                                                                              from £0.47
                                                                              # 026
                                                                              MPN: 10261860
                                                                              GASKET
                                                                              Supplied also in the crankcase gasket revision kit (cod. 980020004)
                                                                              from £0.53
                                                                              from £0.53
                                                                              # 027
                                                                              MPN: 104280
                                                                              THREADED PLUG
                                                                              from £4.95
                                                                              from £4.95
                                                                              # 028
                                                                              MPN: 178348
                                                                              WASHER
                                                                              from £0.47
                                                                              from £0.47
                                                                              # 029
                                                                              MPN: 133988
                                                                              NUT
                                                                              from £0.47
                                                                              from £0.47
                                                                              This part replaces part number 186261
                                                                              # 030
                                                                              MPN: 14325140
                                                                              THREADED PLUG
                                                                              from £0.96
                                                                              from £0.96
                                                                              # 031
                                                                              MPN: 11197774
                                                                              WASHER
                                                                              from £0.52
                                                                              from £0.52
                                                                              # 032
                                                                              MPN: 199850
                                                                              RH BRACKET FOR MOTOR FIXING
                                                                              from £235.48
                                                                              from £235.48
                                                                              # 032
                                                                              MPN: 199851
                                                                              LH BRACKET FOR MOTOR FIXING
                                                                              from £259.70
                                                                              from £259.70
                                                                              # 033
                                                                              MPN: 11190574
                                                                              WASHER
                                                                              from £0.47
                                                                              from £0.47
                                                                              # 034
                                                                              MPN: 15970934
                                                                              SCREW
                                                                              from £0.82
                                                                              from £0.82
                                                                              # 035
                                                                              MPN: 177018
                                                                              NUT
                                                                              from £0.66
                                                                              from £0.66

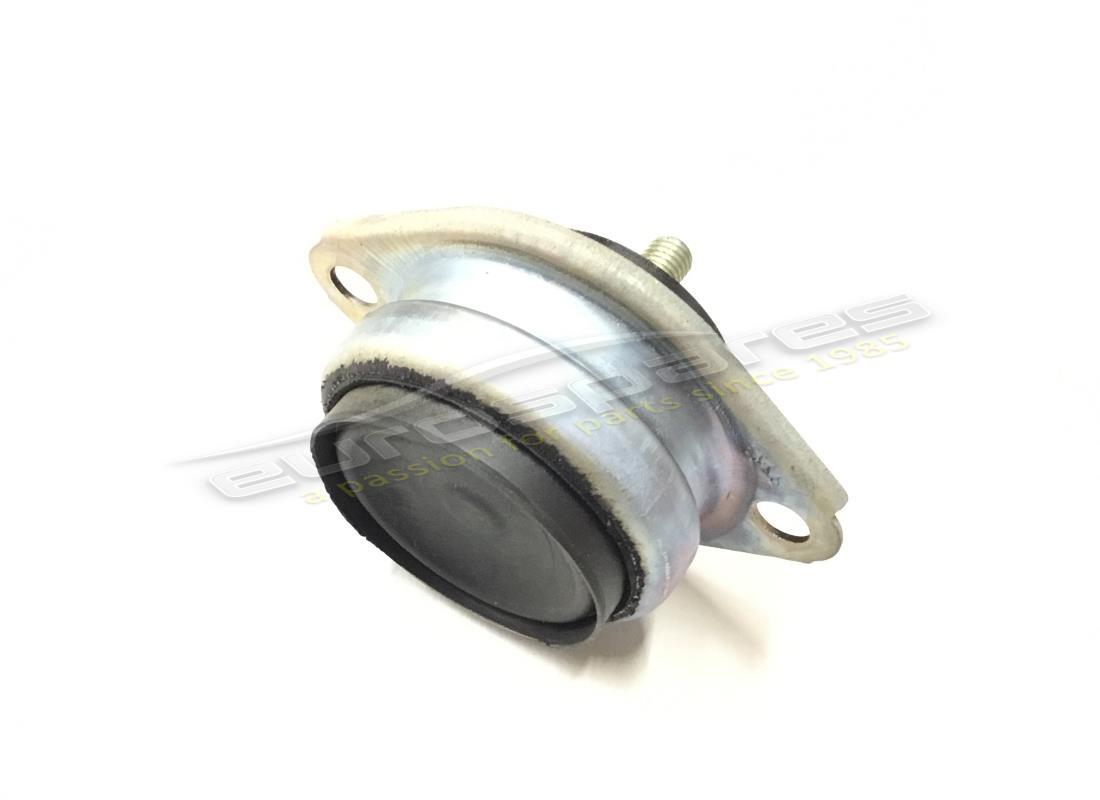

                                                                              # 036
                                                                              MPN: 225839
                                                                              ENGINE SUPPORT FLEXIBLE PAD
                                                                              from £204.91
                                                                              from £204.91
                                                                              This part replaces part number 185361 - and 1 more. Click to view details
                                                                              # 037
                                                                              MPN: 177764
                                                                              NUT
                                                                              from £0.47
                                                                              from £0.47
                                                                              # 038
                                                                              MPN: 198530
                                                                              BRACKET
                                                                              from £86.99
                                                                              from £86.99
                                                                              # 039
                                                                              MPN: 134704
                                                                              O.R. GASKET
                                                                              from £0.66
                                                                              from £0.66
                                                                              # 040
                                                                              MPN: 200164
                                                                              CABLE FOR ENGINE-FRAME EARTH
                                                                              Supersession
                                                                              Supersession
                                                                              # 041
                                                                              MPN: 227525
                                                                              RH HEAT SHIELD
                                                                              from £45.73
                                                                              from £45.73
                                                                              # 041
                                                                              MPN: 227526
                                                                              LH HEAT SHIELD
                                                                              from £41.17
                                                                              from £41.17
                                                                              # 042
                                                                              MPN: 14058411
                                                                              NUT
                                                                              from £0.47
                                                                              from £0.47
                                                                              # 043
                                                                              MPN: 13833011
                                                                              SCREW
                                                                              from £0.47
                                                                              from £0.47
                                                                              Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
