maserati qtp. (2006) 4.2 transmission tube parts diagram

330 - TRANSMISSION TUBE

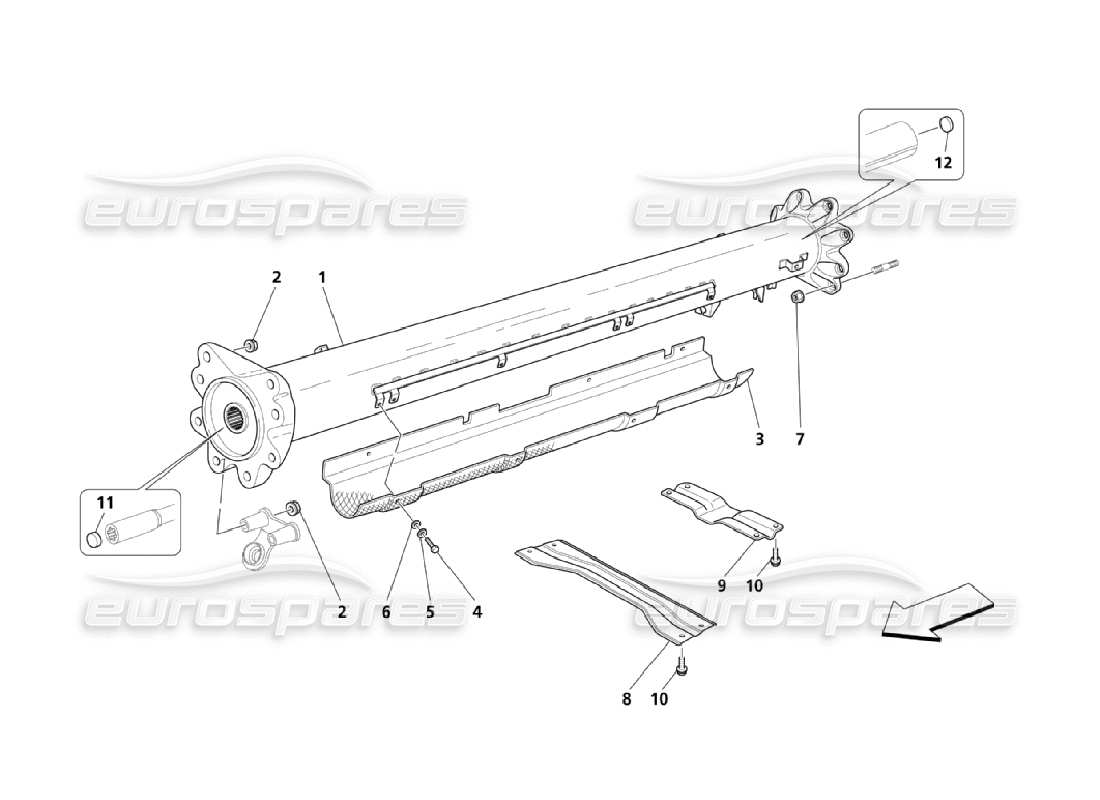

Maserati QTP. (2006) 4.2 Transmission Tube Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                  #
                  Part number
                  Description
                  Price
                  # 001
                  MPN: 198108
                  ENGINEGEARBOX CONNECTING TUBE
                  Valid till car Ass. Nr. 26975 - Valid till stock exhaustion
                  Supersession
                  Supersession
                  # 001
                  MPN: 220533
                  ENGINEGEARBOX CONNECTING TUBE
                  See also 221974
                  from £2,628.26
                  from £2,628.26
                  This part replaces part number 198108 - and 1 more. Click to view details
                  # 001
                  MPN: 221974
                  ENGINEGEARBOX CONNECTING TUBE
                  Valid till car Ass. Nr. 26975 - Valid after stock exhaustion of 198108
                  from £4,412.47
                  from £4,412.47
                  This part replaces part number 220533 which we have in stock
                  # 001
                  MPN: 228688
                  ENGINEGEARBOX CONNECTING TUBE
                  Valid from car Ass. Nr. 26976
                  from £5,771.73
                  from £5,771.73
                  # 003
                  MPN: 197003
                  TRANSMISSION HEAT SHIELD
                  Valid till car Ass. Nr. 26975
                  Supersession
                  Supersession
                  # 003
                  MPN: 226268
                  TRANSMISSION HEAT SHIELD
                  Valid from car Ass. Nr. 26976
                  from £21.80
                  from £21.80
                  This part replaces part number 197003 - and 1 more. Click to view details
                  # 004
                  MPN: 10856821
                  SCREW
                  from £0.47
                  from £0.47
                  # 005
                  MPN: 12601174
                  WASHER
                  from £0.47
                  from £0.47
                  This part replaces part number 675000100
                  # 006
                  MPN: 12637824
                  WASHER
                  from £0.47
                  from £0.47
                  # 008
                  MPN: 67487100
                  FRONT CROSS MEMBER
                  from £20.10
                  from £20.10
                  # 009
                  MPN: 66931600
                  REAR CROSS MEMBER
                  from £8.12
                  from £8.12
                  # 010
                  MPN: 11617324
                  SCREW
                  from £1.90
                  from £1.90
                  # 011
                  MPN: 191902
                  SPACER
                  Included in the enginegearbox connecting tube (Pos. 1)
                  from £20.06
                  from £20.06
                  # 012
                  MPN: 144443
                  SPACER
                  Included in the enginegearbox connecting tube (Pos. 1)
                  from £1.94
                  from £1.94
