910 - FRONT BUMPER

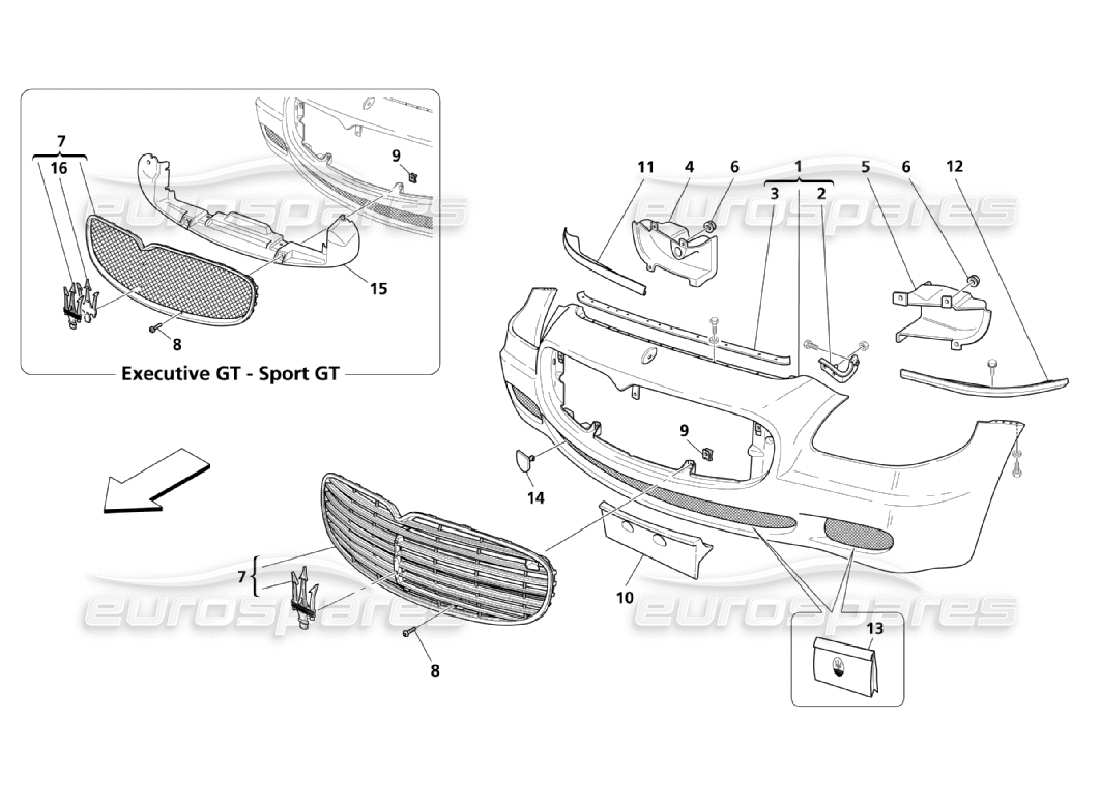

Maserati QTP. (2006) 4.2 Front Bumper Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 980139379
COMPLETE FRONT BUMPER
Standard - Not for USA and CDN
from £949.80
from £949.80
# 001
MPN: 980139382
COMPLETE FRONT BUMPER
Optional Parking sensors - Not for USA and CDN
from £1,159.58
from £1,159.58
# 001
MPN: 980139426
COMPLETE FRONT BUMPER
Standard - Valid for USA and CDN
from £1,482.55
from £1,482.55
# 001
MPN: 980139427
COMPLETE FRONT BUMPER
Optional Parking sensors - Valid for USA and CDN
from £1,864.16
from £1,864.16
# 002
MPN: 67070800
RH BRACKET
from £17.70
from £17.70
# 002
MPN: 67070900
LH BRACKET
from £17.70
from £17.70
# 003
MPN: 67071000
CENTRAL BRACKET
from £38.49
from £38.49
# 004
MPN: 67564900
RH AIR CONVEYOR
from £54.67
from £54.67
# 005
MPN: 67565000
LH AIR CONVEYOR
from £54.67
from £54.67
# 006
MPN: 14059114
NUT
from £0.53
from £0.53
# 007
MPN: 67874400
COMPLETE CALENDER
Standard Version
from £261.99
from £261.99
This part replaces part number 67069100
# 007
MPN: 68804900
COMPLETE CALENDER
Version Executive GT
from £523.22
from £523.22
This part replaces part number 67825800
# 007
MPN: 69283400
COMPLETE CALENDER
Version Sport GT
from £523.22
from £523.22
# 008
MPN: 67278600
SCREW
from £2.47
from £2.47
# 009
MPN: 67278700
BRACKET
from £2.32
from £2.32
# 010
MPN: 67575700
FRONT PLATE FRAME
Not for USA and CDN - Not for cars middle east version
from £101.00
from £101.00
# 010
MPN: 68725300
FRONT PLATE FRAME
Not for USA and CDN - Valid for cars middle east version
from £10.28
from £10.28
# 010
MPN: 68725300
FRONT PLATE FRAME
Valid for USA and CDN
from £10.28
from £10.28
# 011
MPN: 67723100
RH BRACKET
from £9.20
from £9.20
# 012
MPN: 67723200
LH BRACKET
from £9.20
from £9.20
# 013
MPN: 980139380
KIT NETS FOR FRONT BUMPER
Included in the Complete front bumper (Pos. 1)
from £155.22
from £155.22
# 014
MPN: 67316700
TOW HOOK PLUG
from £16.70
from £16.70
# 015
MPN: 69294700
LOWER SIDE CONVEYOR
Valid for USA and CDN - Version Executive GT - Version Sport GT - Valid till stock exhaustion
Supersession
Supersession
# 015
MPN: 69839300
LOWER SIDE CONVEYOR
Not for USA and CDN - Version Executive GT - Version Sport GT - Valid till stock exhaustion
from £107.11
from £107.11
This part replaces part number 69296000
# 015
MPN: 69839300
LOWER SIDE CONVEYOR
Not for USA and CDN - Version Executive GT - Version Sport GT - Valid after stock exhaustion of 69296000
from £107.11
from £107.11
This part replaces part number 69296000
# 015
MPN: 69839400
LOWER SIDE CONVEYOR
Valid for USA and CDN - Version Executive GT - Version Sport GT - Valid after stock exhaustion of 69294700
from £107.59
from £107.59
This part replaces part number 69294700
# 016
MPN: 68804700
SPACER
Version Executive GT - Version Sport GT
from £85.01
from £85.01
