Maserati QTP. (2006) 4.2 Rear Doors: Movement Devices Parts Diagram

933 - Rear Doors: Movement Devices

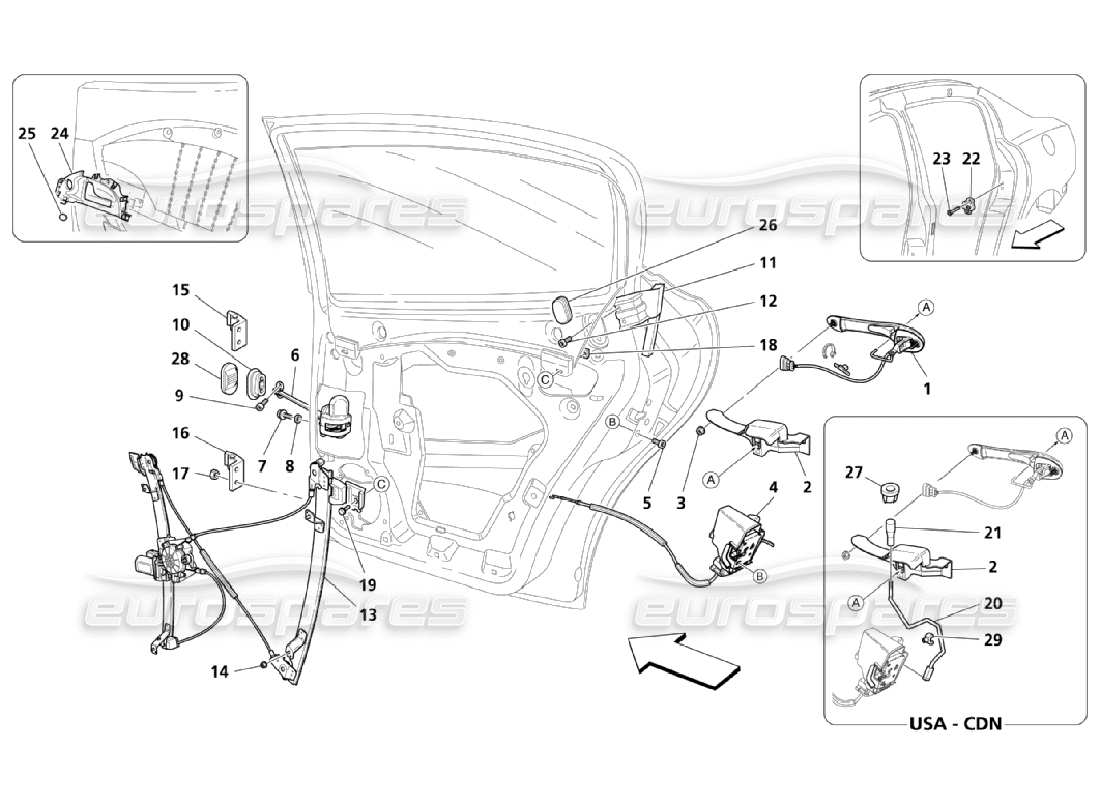

Maserati QTP. (2006) 4.2 Rear Doors: Movement Devices Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                      #
                                      Part number
                                      Description
                                      Price
                                      # 001
                                      MPN: 68808800
                                      RH HANDLE FOR DOOR OPENING
                                      Valid till car Ass. Nr. 22906
                                      from £100.50
                                      from £100.50
                                      This part replaces part number 66945000 - and 1 more. Click to view details
                                      # 001
                                      MPN: 68808900
                                      LH HANDLE FOR DOOR OPENING
                                      Valid till car Ass. Nr. 22906
                                      from £108.35
                                      from £108.35
                                      This part replaces part number 66945100 which we have in stock - and 1 more. Click to view details
                                      # 001
                                      MPN: 69287600
                                      RH HANDLE FOR DOOR OPENING
                                      Valid from car Ass. Nr. 22907
                                      from £77.45
                                      from £77.45
                                      # 001
                                      MPN: 69287700
                                      LH HANDLE FOR DOOR OPENING
                                      Valid from car Ass. Nr. 22907
                                      from £76.24
                                      from £76.24
                                      # 002
                                      MPN: 67865600
                                      RH REAR HANDLE BOX
                                      Not for USA and CDN
                                      from £34.15
                                      from £34.15
                                      # 002
                                      MPN: 67865700
                                      LH REAR HANDLE BOX
                                      Not for USA and CDN
                                      from £7.06
                                      from £7.06
                                      # 002
                                      MPN: 68470000
                                      RH REAR HANDLE BOX
                                      Valid for USA and CDN
                                      from £34.83
                                      from £34.83
                                      # 002
                                      MPN: 68470100
                                      LH REAR HANDLE BOX
                                      Valid for USA and CDN
                                      from £34.83
                                      from £34.83
                                      # 003
                                      MPN: 14040514
                                      NUT
                                      from £0.53
                                      from £0.53
                                      # 004
                                      MPN: 68206200
                                      RH REAR DOOR LOCK
                                      Valid for USA and CDN
                                      from £112.75
                                      from £112.75
                                      # 004
                                      MPN: 68206300
                                      LH REAR DOOR LOCK
                                      Valid for USA and CDN
                                      from £112.75
                                      from £112.75
                                      # 004
                                      MPN: 68206400
                                      RH REAR DOOR LOCK
                                      Not for USA and CDN
                                      from £117.68
                                      from £117.68
                                      # 004
                                      MPN: 68206500
                                      LH REAR DOOR LOCK
                                      Not for USA and CDN
                                      from £108.99
                                      from £108.99
                                      # 005
                                      MPN: 67077900
                                      SCREW
                                      from £0.52
                                      from £0.52
                                      # 006
                                      MPN: 66514400
                                      TIE ROD
                                      82519300
                                      Supersession
                                      Supersession
                                      # 007
                                      MPN: 67077800
                                      SCREW
                                      from £1.57
                                      from £1.57
                                      # 008
                                      MPN: 12643724
                                      WASHER
                                      from £0.51
                                      from £0.51
                                      # 009
                                      MPN: 68808500
                                      SCREW
                                      from £2.51
                                      from £2.51
                                      # 011
                                      MPN: 67271400
                                      RH REAR GLASS GUIDE
                                      from £12.96
                                      from £12.96
                                      # 011
                                      MPN: 67271500
                                      LH REAR GLASS GUIDE
                                      from £12.96
                                      from £12.96
                                      # 012
                                      MPN: 46401657
                                      SCREW
                                      from £0.53
                                      from £0.53
                                      # 013
                                      MPN: 84934400
                                      REAR RH GLASS LIFT
                                      from £362.37
                                      from £362.37
                                      This part replaces part number 66945400
                                      # 013
                                      MPN: 84934500
                                      REAR LH GLASS LIFT
                                      from £362.37
                                      from £362.37
                                      This part replaces part number 66945500
                                      # 014
                                      MPN: 14040614
                                      NUT
                                      from £0.53
                                      from £0.53
                                      # 015
                                      MPN: 67880900
                                      UPPER RH HINGE
                                      from £51.38
                                      from £51.38
                                      # 015
                                      MPN: 67881000
                                      UPPER LH HINGE
                                      from £51.38
                                      from £51.38
                                      # 016
                                      MPN: 66814900
                                      LOWER RH HINGE
                                      from £64.90
                                      from £64.90
                                      # 016
                                      MPN: 66815000
                                      LOWER LH HINGE
                                      from £64.90
                                      from £64.90
                                      # 017
                                      MPN: 15501025
                                      NUT
                                      from £0.78
                                      from £0.78
                                      # 018
                                      MPN: 67712400
                                      PLATE
                                      from £0.86
                                      from £0.86
                                      # 019
                                      MPN: 16296924
                                      SCREW
                                      from £0.51
                                      from £0.51
                                      # 020
                                      MPN: 68217300
                                      LH REAR DOOR LOCK TIE ROD
                                      Valid for USA and CDN
                                      from £36.51
                                      from £36.51
                                      # 020
                                      MPN: 68217400
                                      RH REAR DOOR LOCK TIE ROD
                                      Valid for USA and CDN
                                      from £36.51
                                      from £36.51
                                      # 021
                                      MPN: 68205600
                                      PAWL
                                      Valid for USA and CDN
                                      from £22.16
                                      from £22.16
                                      # 022
                                      MPN: 68308800
                                      STRIKER
                                      - Not as spare part - use: 85321500
                                      from £2.34
                                      from £2.34
                                      This part replaces part number 67877100
                                      # 022
                                      MPN: 85321500
                                      STRIKER
                                      from £10.65
                                      from £10.65
                                      This part replaces part number 68308800
                                      # 023
                                      MPN: 67999500
                                      SCREW
                                      from £0.86
                                      from £0.86
                                      # 024
                                      MPN: 980139377
                                      COMPLETE RH REAR HANDLE FOR DOOR OPENING
                                      Included in the Complete Rear door panel (Draw 9.32 Pos. 2)
                                      from £139.84
                                      from £139.84
                                      # 024
                                      MPN: 980139378
                                      COMPLETE LH REAR HANDLE FOR DOOR OPENING
                                      Included in the Complete Rear door panel (Draw 9.32 Pos. 2)
                                      from £139.84
                                      from £139.84
                                      # 025
                                      MPN: 66939600
                                      PLUG
                                      Included in the Complete Rear door panel (Draw 9.32 Pos. 2)
                                      from £5.64
                                      from £5.64
                                      # 026
                                      MPN: 67886000
                                      PLUG
                                      from £6.89
                                      from £6.89
                                      # 027
                                      MPN: 68206000
                                      RH CLOSURE PLATE
                                      Valid for USA and CDN
                                      from £8.50
                                      from £8.50
                                      # 027
                                      MPN: 68206100
                                      LH CLOSURE PLATE
                                      Valid for USA and CDN
                                      from £8.97
                                      from £8.97
                                      # 028
                                      MPN: 67079200
                                      RH GASKET
                                      from £2.84
                                      from £2.84
                                      # 028
                                      MPN: 67723400
                                      LH GASKET
                                      from £2.84
                                      from £2.84
                                      # 029
                                      MPN: 67827900
                                      CLIP
                                      Valid for USA and CDN-
                                      from £2.90
                                      from £2.90
