870 - Sound Proof System

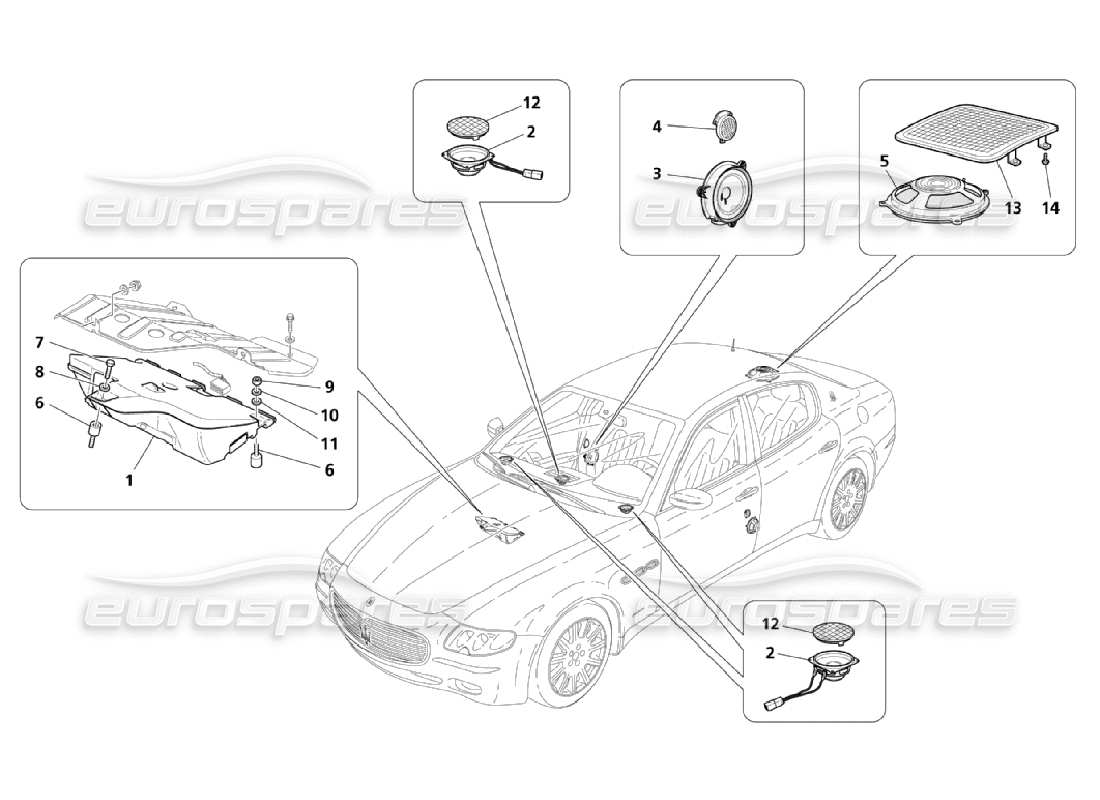

Maserati QTP. (2006) 4.2 Sound Proof System Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 67071100
COMPLETE BASSBOX
RH side for cars GS - LH side for cars GD
from £343.17
from £343.17
# 002
MPN: 191365
LOUD SPEAKER TWIDDLER
from £49.81
from £49.81
# 003
MPN: 191369
LOUD SPEAKER WOOFER
from £59.17
from £59.17
# 004
MPN: 191370
LOUD SPEAKER TWEETER
from £27.51
from £27.51
# 005
MPN: 197503
LOUD SPEAKER WOOFER
from £260.46
from £260.46
# 006
MPN: 188296
RUBBER
from £5.57
from £5.57
# 007
MPN: 10902011
SCREW
from £1.08
from £1.08
# 008
MPN: 12647624
WASHER
from £0.53
from £0.53
This part replaces part number 12647601
# 009
MPN: 14039614
NUT
from £0.53
from £0.53
# 010
MPN: 12643724
WASHER
from £0.53
from £0.53
# 011
MPN: 12640624
WASHER
from £0.54
from £0.54
# 012
MPN: 66551500
LOUD SPEAKER PLATE
from £155.00
from £155.00

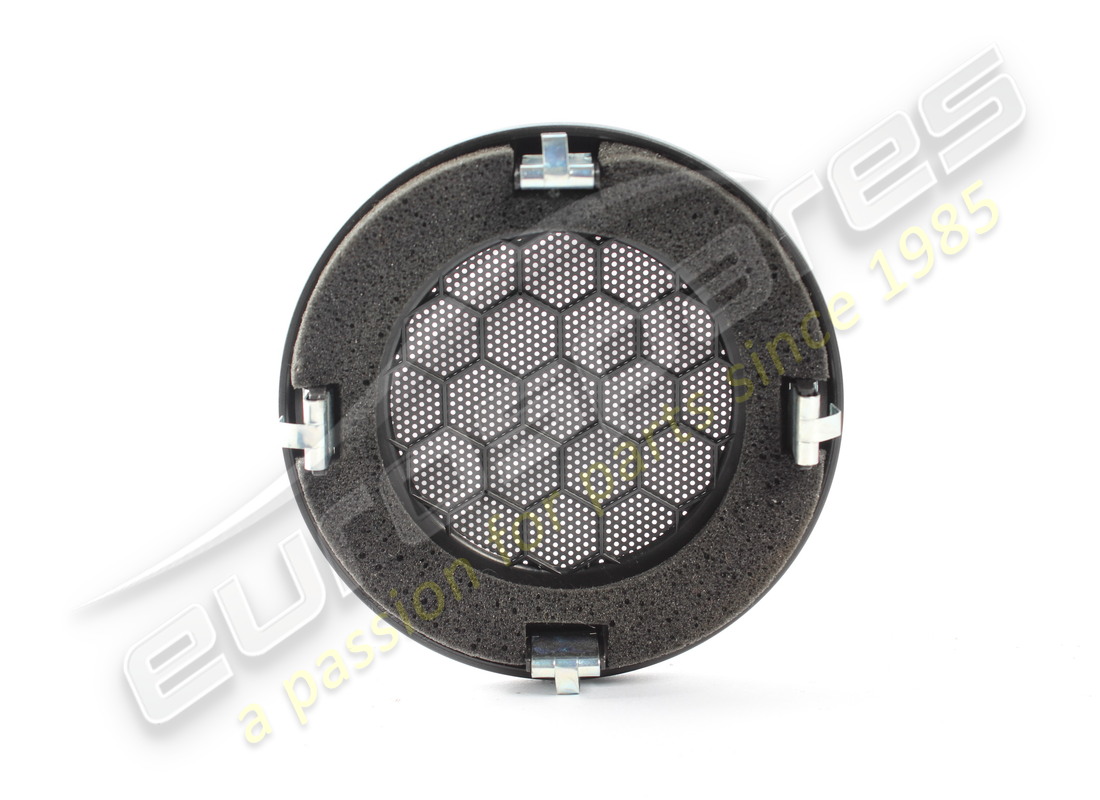

# 013
MPN: 66948000
LOUDSPEAKER PLATE
from £34.38
from £34.38
# 014
MPN: 15783207
SCREW
from £19.47
from £19.47
