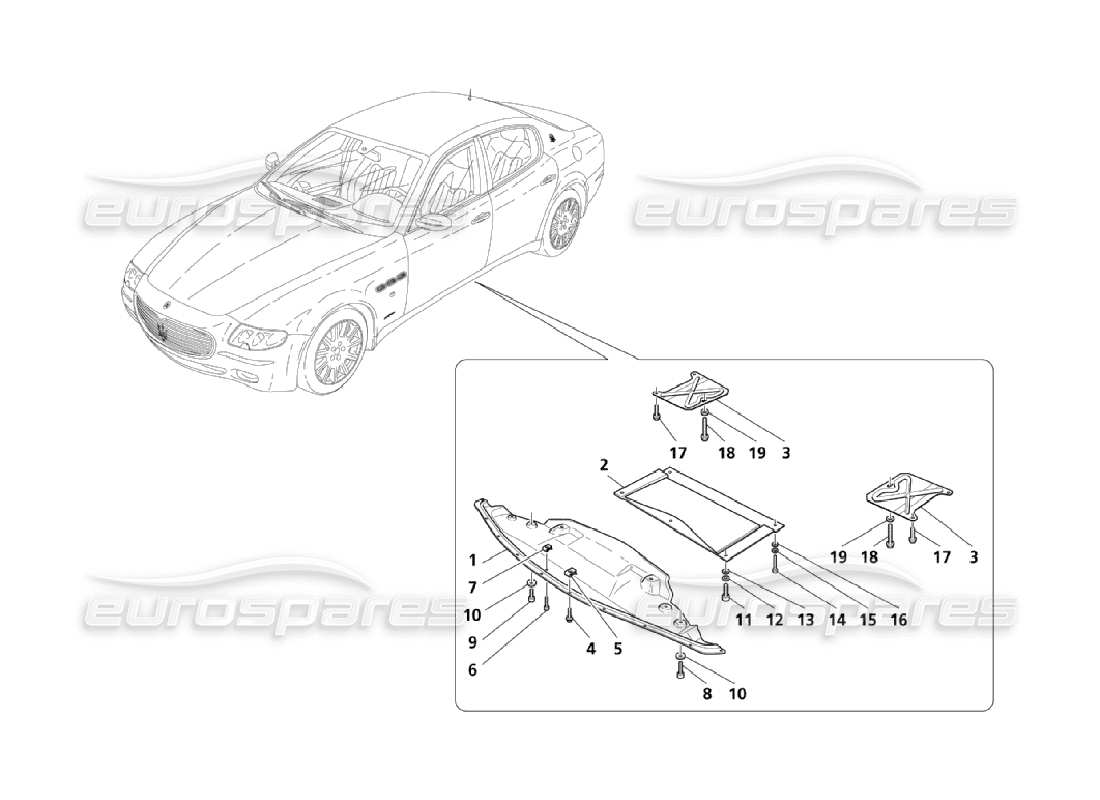

914 - Flat Floor And Underbody Shields
Maserati QTP. (2006) 4.2 Flat Floor And Underbody Shields Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 67279200
UNDER BODY FLOOR SHIELD
from £152.44
from £152.44
# 001
MPN: 80042400
UNDER BODY FLOR SHIELD
Valid Assembly Number Range: 0 - 42092
from £171.52
from £171.52
This part replaces part number 69290200
# 002
MPN: 67960100
UNDER FRAME SHIELD
from £106.34
from £106.34

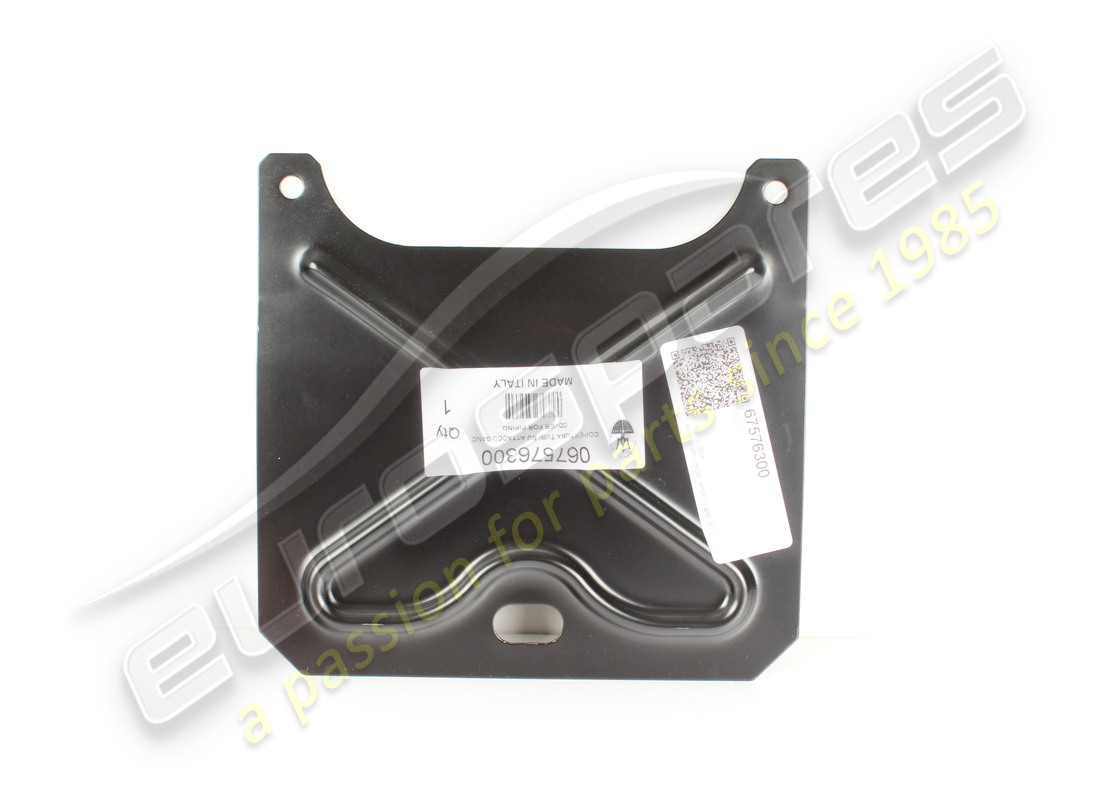

# 003
MPN: 67576300
COVER FOR PIPING
from £12.93
from £12.93

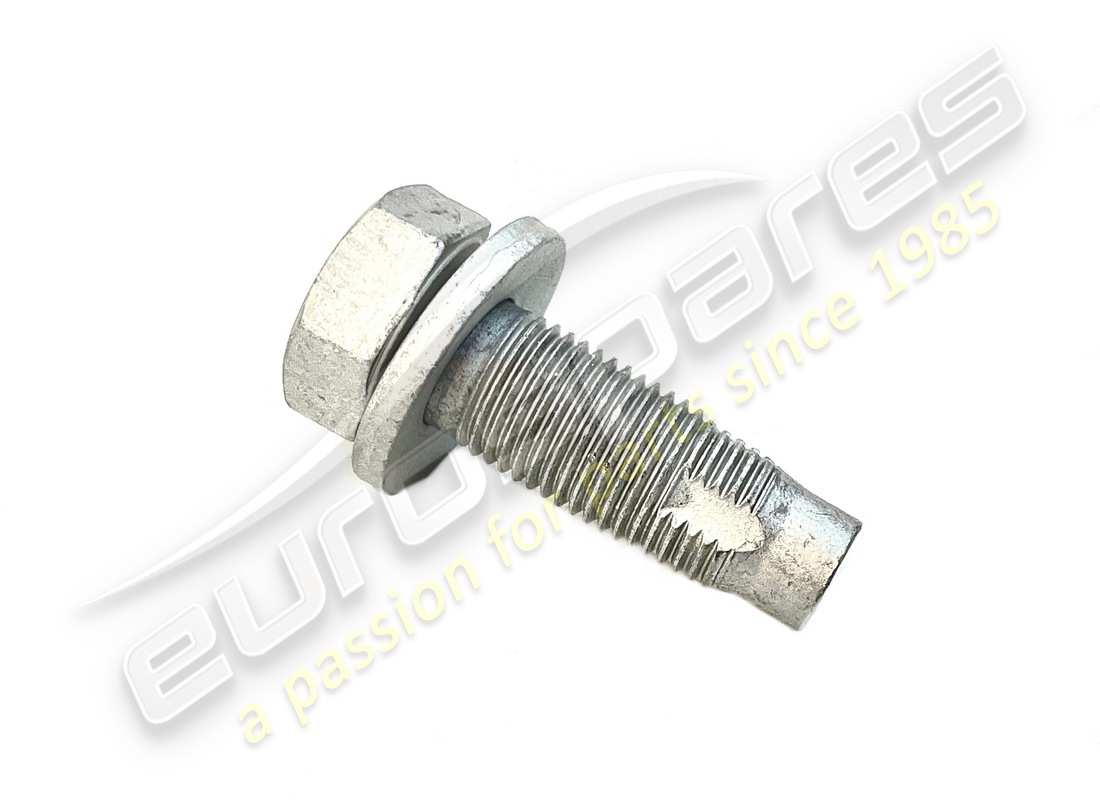

# 004
MPN: 67278600
SCREW
from £2.50
from £2.50
# 005
MPN: 67278700
BRACKET
from £2.34
from £2.34
# 006
MPN: 68479900
SCREW
from £2.50
from £2.50
# 007
MPN: 61789700
BRACKET
from £0.47
from £0.47
# 008
MPN: 13027024
SCREW
from £0.47
from £0.47
# 009
MPN: 14305124
SCREW
from £0.47
from £0.47
# 010
MPN: 67577400
CUP
from £5.14
from £5.14
# 011
MPN: 14783714
SCREW
from £3.19
from £3.19
# 012
MPN: 12601474
WASHER
from £0.54
from £0.54
# 013
MPN: 12646824
WASHER
from £0.53
from £0.53
# 014
MPN: 10902524
SCREW
from £0.47
from £0.47
# 015
MPN: 12601274
WASHER
from £0.47
from £0.47
This part replaces part number 12601270
# 016
MPN: 12640624
WASHER
from £0.47
from £0.47
# 017
MPN: 11617324
SCREW
from £1.87
from £1.87
# 018
MPN: 13217434
SCREW
from £4.91
from £4.91
# 019
MPN: 12646934
WASHER
from £1.40
from £1.40
