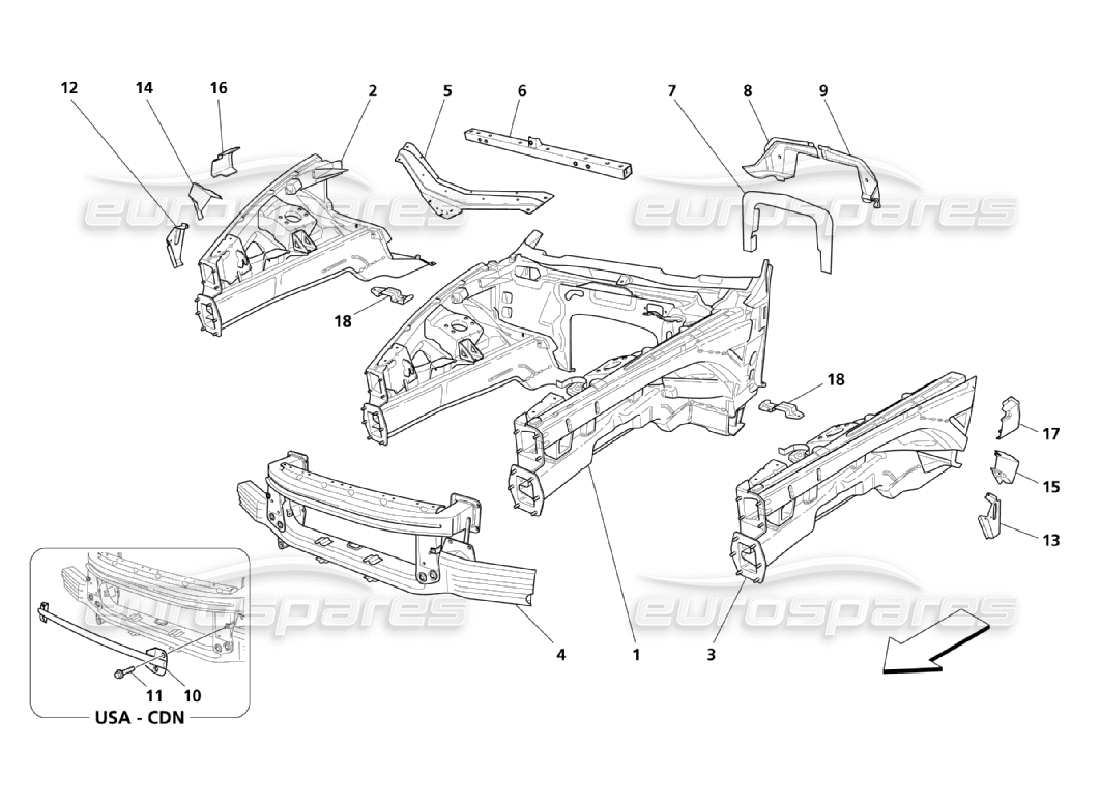

903 - Front Structural Parts
Maserati QTP. (2006) 4.2 Front Structural Parts Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 980139332
COMPLETE FRONT FRAME
Not for GD - Valid till car Ass. Nr. 24274
from £3,606.87
from £3,606.87
# 001
MPN: 980139463
COMPLETE FRONT FRAME
Valid for GD - Valid till car Ass. Nr. 24274
from £3,492.02
from £3,492.02
# 001
MPN: 980139542
COMPLETE FRONT FRAME
Not for GD - Valid from car Ass. Nr. 24275
from £4,112.30
from £4,112.30
# 001
MPN: 980139543
COMPLETE FRONT FRAME
Valid for GD - Valid from car Ass. Nr. 24275
from £4,112.30
from £4,112.30
# 002
MPN: 980139330
RH COMPLETE FRONT SPRAG
Not for GD
from £2,686.93
from £2,686.93
# 002
MPN: 980139464
RH COMPLETE FRONT SPRAG
Valid for GD
from £1,690.66
from £1,690.66
# 003
MPN: 980139331
LH COMPLETE FRONT SPRAG
Not for GD - Valid till car Ass. Nr. 24274
from £2,958.62
from £2,958.62
# 003
MPN: 980139465
LH COMPLETE FRONT SPRAG
Valid for GD - Valid till car Ass. Nr. 24274
from £1,615.20
from £1,615.20
# 003
MPN: 980139544
LH COMPLETE FRONT SPRAG
Not for GD - Valid from car Ass. Nr. 24275
from £4,030.35
from £4,030.35
# 003
MPN: 980139545
LH COMPLETE FRONT SPRAG
Valid for GD - Valid from car Ass. Nr. 24275
from £4,800.15
from £4,800.15
# 004
MPN: 980139329
FRONT BULL BAR
from £2,841.10
from £2,841.10
# 005
MPN: 980139333
COMPLETE FRONT CROSS MEMBER
from £92.66
from £92.66
# 006
MPN: 67275300
CROSS MEMBER
from £73.75
from £73.75
# 007
MPN: 66560000
CENTRAL CROSS MEMBER CARPET SHIELD
from £52.64
from £52.64
# 008
MPN: 67300800
RH CROSSMEMEBER
from £68.63
from £68.63
# 009
MPN: 67300900
LH CROSSMEMBER
from £63.14
from £63.14
# 010
MPN: 67999700
CROSS MEMBER
Valid for USA and CDN
from £450.32
from £450.32
# 011
MPN: 11617324
SCREW
Valid for USA and CDN
from £1.85
from £1.85
# 012
MPN: 67214600
RH SEAL
from £71.02
from £71.02
# 013
MPN: 67214700
LH SEAL
from £76.74
from £76.74
# 014
MPN: 67214400
RH INSERT
from £12.21
from £12.21
# 015
MPN: 67214500
LH INSERT
from £17.16
from £17.16
# 016
MPN: 67214800
RH REAR EXTENSION
from £44.25
from £44.25
# 017
MPN: 67214900
LH REAR EXTENSION
from £42.41
from £42.41
# 018
MPN: 67989300
BRACKET
from £19.39
from £19.39
