023.2 - Heater Matrix Series III

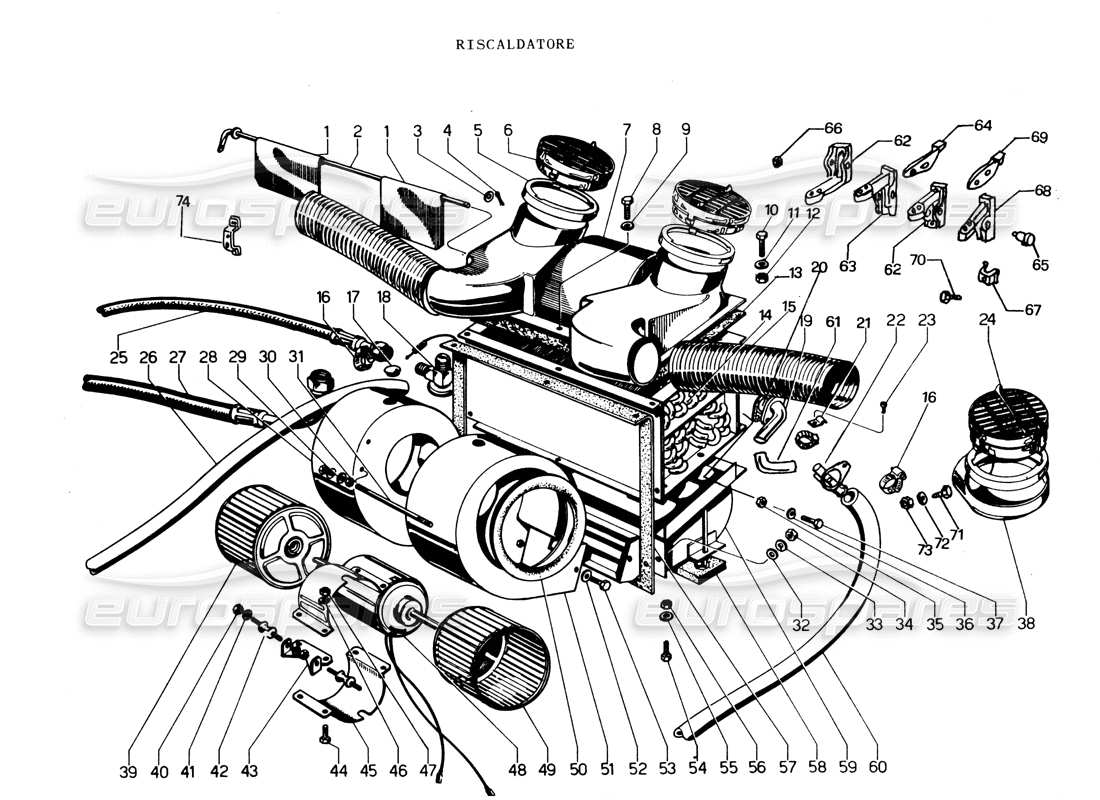

Lamborghini Espada Heater Matrix Series III Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
-
You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#

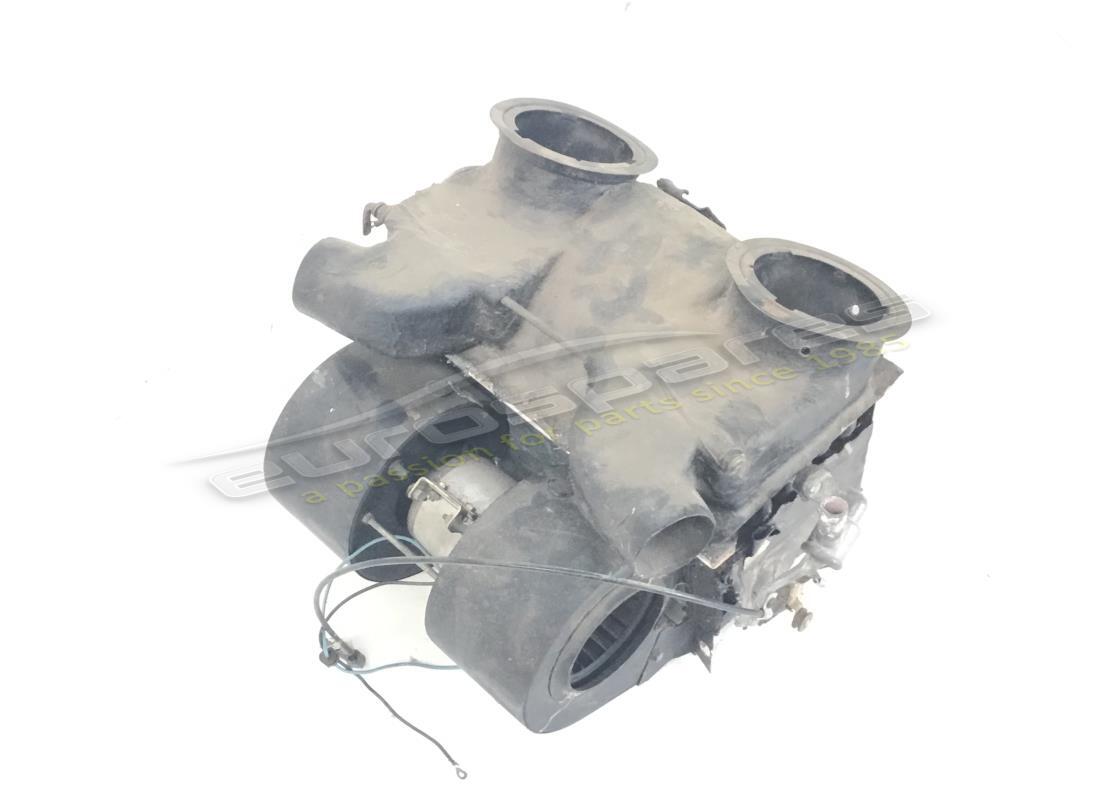

000
MPN:
004708778
HEATER METRIX ASSY
from
£1,569.75
from
£1,569.75
#
001
MPN:
004708794
PORTELLA COMANDO DEFROSTER
from
£30.91
from
£30.91
#
002
MPN:
004708793
PIVOT
from
£30.91
from
£30.91
#
003
MPN:
008400606
WASHER
Supersession
Supersession
#
004
MPN:
008820101
COPPIGLIA
from
£1.71
from
£1.71
#
005
MPN:
004708773
FERMO PER DIFFUSORE ARIA
from
£72.51
from
£72.51
#

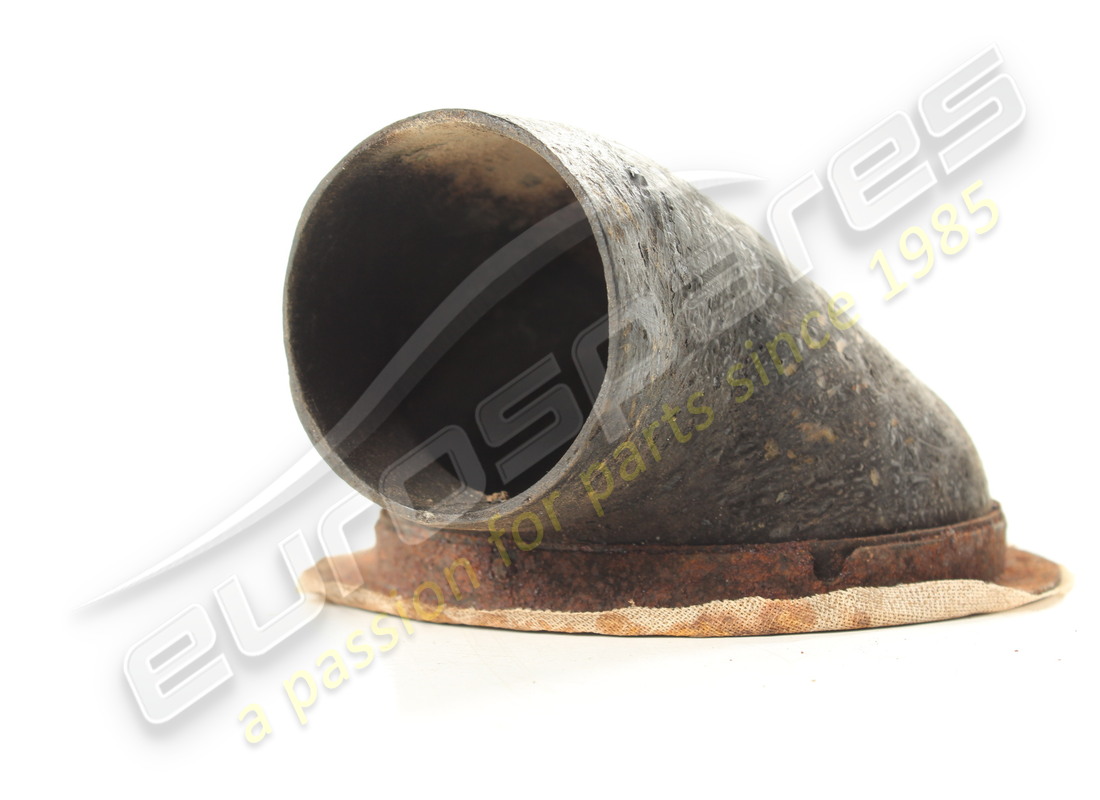

006
MPN:
004710260
DIFFUSER
#
007
MPN:
004708779
COVER
#
007
MPN:
004708781
INSIEME COPERCHIO PER BATTERIA
#
008
MPN:
008100502
BOLT
from
£0.53
from
£0.53
#
009
MPN:
008410503
WASHER
Supersession
Supersession
#
010
MPN:
N01020717
BOLT
from
£0.47
from
£0.47
This part replaces part number 008100504
#
011
MPN:
008410503
WASHER
Supersession
Supersession
#
012
MPN:
008200501
NUT
Supersession
Supersession
#
013
MPN:
004708776
RIPARO IN FELTRO PER BATTERIA
#
014
MPN:
004708459
BATTERIA DI CONDIZIONAMENTO
#
015
MPN:
004708787
TUBO PORTATA ARIA
from
£56.72
from
£56.72
#
016
MPN:
008830206
JUBILEE CLIP
from
£12.56
from
£12.56
#
017
MPN:
008931405
PLUG
from
£1.67
from
£1.67
#
018
MPN:
004506860
VALVOLA DI ESPANSIONE
from
£59.40
from
£59.40
#
019
MPN:
004710824
'RACCORDO
from
£46.01
from
£46.01
#
020
MPN:
004710091
GASKET
from
£8.78
from
£8.78
#

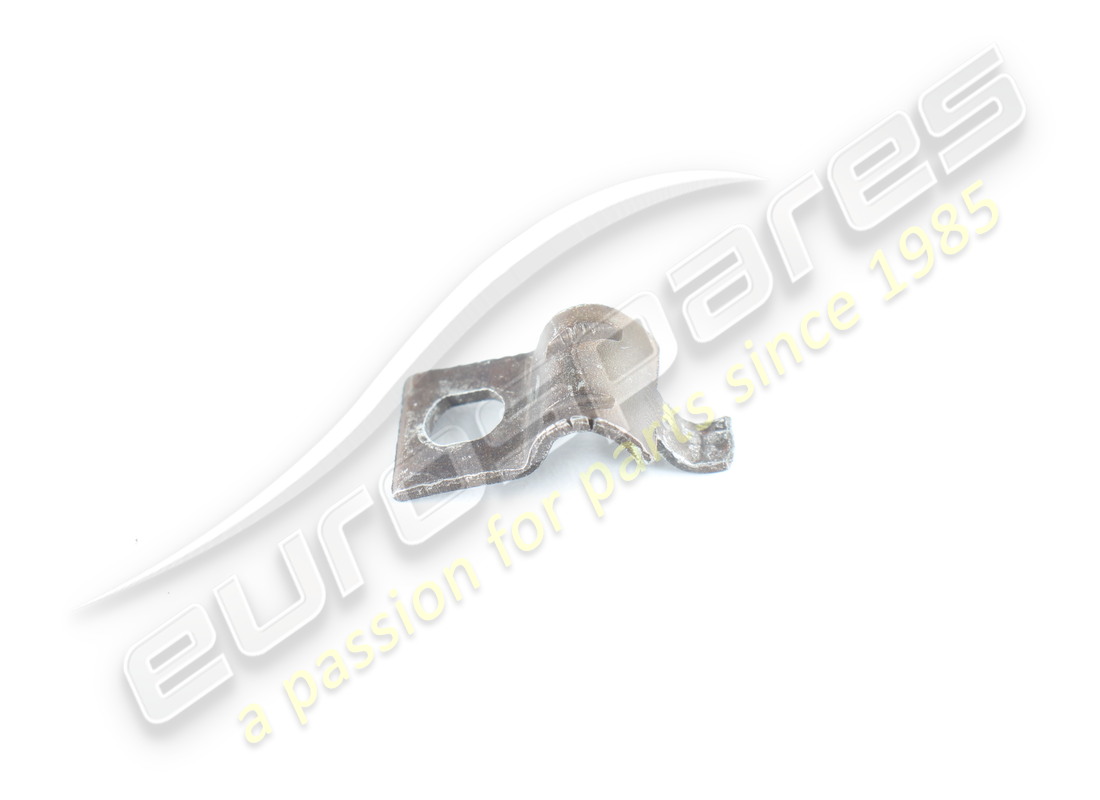

021
MPN:
006753080
FASCETTA FERMA GUAINA COMANDO RUBINETTO E DEFROSTER .
from
£1.48
from
£1.48
#
022
MPN:
004710876
RUBINETTO PER RISCALDATORE
#
023
MPN:
008700310
VITA
#

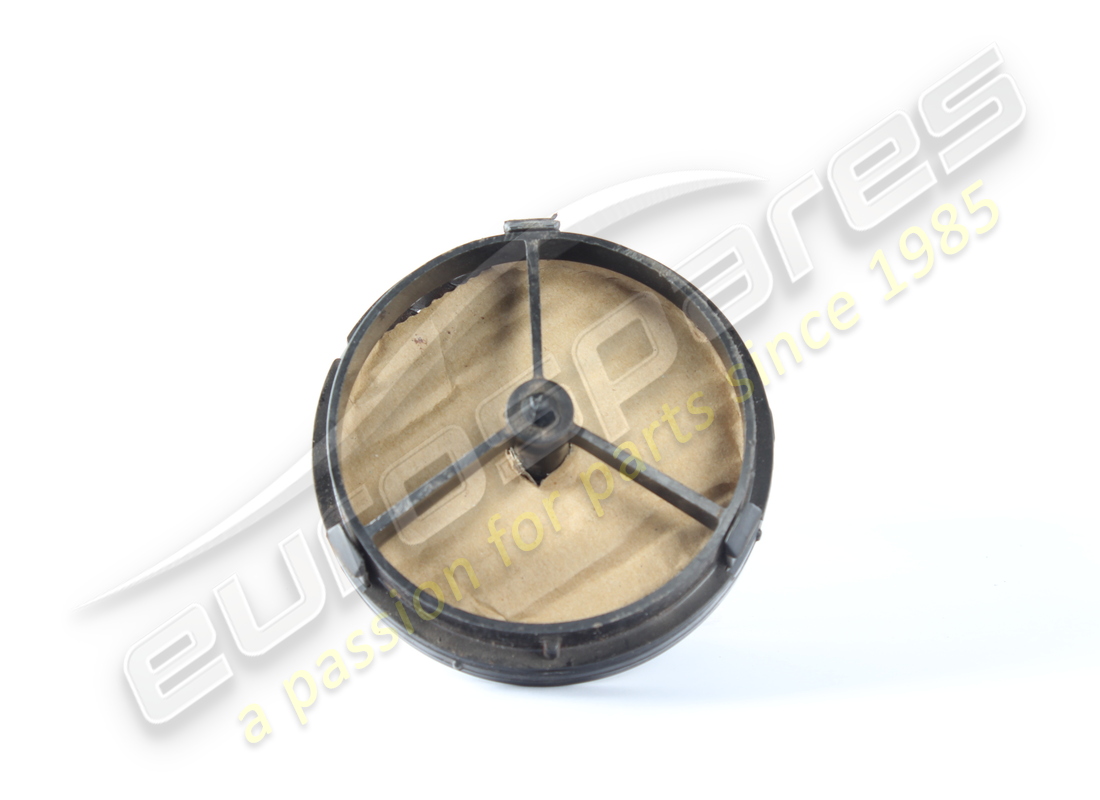

024
MPN:
004708760
DIFFUSER
from
£115.50
from
£115.50
#
025
MPN:
004508754
TUBO DALLA BATTERIA AL FILTRO
from
£31.20
from
£31.20
#
026
MPN:
004708791
TUBO DALLA BATTERIA ALLA POMPA
#
027
MPN:
004508753
TUBO DALLA BATTERIA ALLA VALVOLA ISOBARICA
from
£39.49
from
£39.49
#
028
MPN:
004708771
CHIOCCIOLA DESTRA
#
029
MPN:
008410503
WASHER
Supersession
Supersession
#
030
MPN:
008200501
NUT
Supersession
Supersession
#
031
MPN:
008300506
THREADED STUD
from
£51.07
from
£51.07
#
032
MPN:
008400501
WASHER
from
£0.53
from
£0.53
#
033
MPN:
008410503
WASHER
Supersession
Supersession
#
034
MPN:
008200501
NUT
Supersession
Supersession
#
035
MPN:
008200604
NUT
Supersession
Supersession
#
036
MPN:
008410603
WASHER
Supersession
Supersession
#
037
MPN:
008100630
BOLT
from
£0.53
from
£0.53
#
038
MPN:
004708784
INSIEME SUPPORTO DIFFUSORE ARIA
#
038
MPN:
004708785
SUPPORT
from
£25.49
from
£25.49
#
039
MPN:
004708770
VENTOLA DESTRA
from
£154.78
from
£154.78
#
040
MPN:
N01100412
NUT
from
£0.47
from
£0.47
#
041
MPN:
008410402
WASHER
Supersession
Supersession
#
042
MPN:
008921201
SUPPORT
from
£15.05
from
£15.05
#
043
MPN:
004708774
SUPPORT
from
£46.34
from
£46.34
#
044
MPN:
N01020717
BOLT
from
£0.47
from
£0.47
This part replaces part number 008100504
#
045
MPN:
006107032
FASCETTA PER MOTORINO RISCALDATORE
from
£12.27
from
£12.27
#
046
MPN:
008410502
WASHER
Supersession
Supersession
#
047
MPN:
008200501
NUT
Supersession
Supersession
#
048
MPN:
006107031
MOTORINO COMANDO VENTOLE
from
£73.05
from
£73.05
#
049
MPN:
004708916
VENTOLA SINISTRA
from
£154.78
from
£154.78
#
050
MPN:
004708775
GASKET OR SEAL
from
£21.94
from
£21.94
#
051
MPN:
004708772
CHIOCCIOLA SINISTRA
#
052
MPN:
008410502
WASHER
Supersession
Supersession
#
053
MPN:
N01020717
BOLT
from
£0.47
from
£0.47
This part replaces part number 008100504
#
054
MPN:
008100508
BOLT
from
£3.65
from
£3.65
#
055
MPN:
008410502
WASHER
Supersession
Supersession
#
056
MPN:
008200501
NUT
Supersession
Supersession
#
057
MPN:
004708782
GASKET
from
£29.74
from
£29.74
#
058
MPN:
004708783
GASKET
from
£29.74
from
£29.74
#
059
MPN:
004708777
CONVOGLIATORE ARIA
from
£732.35
from
£732.35
#
060
MPN:
004710820
TUBO DAL RUBINETTO ALLE TESTE
#
061
MPN:
004710823
PIPE / TUBE / HOSE
from
£18.75
from
£18.75
#
062
MPN:
004708604
SUPPORT
from
£244.70
from
£244.70
#
063
MPN:
004708792
SUPPORT
#
064
MPN:
004710055
LAVA
from
£77.30
from
£77.30
#
065
MPN:
006107228
PIVOT
from
£8.13
from
£8.13
#
066
MPN:
006107235
WASHER
from
£6.02
from
£6.02
#
067
MPN:
006110075
PLATE
#
068
MPN:
004710825
SUPPORT
from
£411.57
from
£411.57
#
069
MPN:
004710822
LE VA
from
£76.61
from
£76.61
#
070
MPN:
008700503
VITA
from
£0.51
from
£0.51
#
071
MPN:
008100508
VITA
from
£3.65
from
£3.65
#
072
MPN:
008410503
WASHER
Supersession
Supersession
#
073
MPN:
008200501
NUT
Supersession
Supersession
#
074
MPN:
004708780
PLATE
from
£15.47
from
£15.47
