Lamborghini Espada WATER PUMP (Alternative) Parts Diagram

007.1 - Water pump (Alternative)

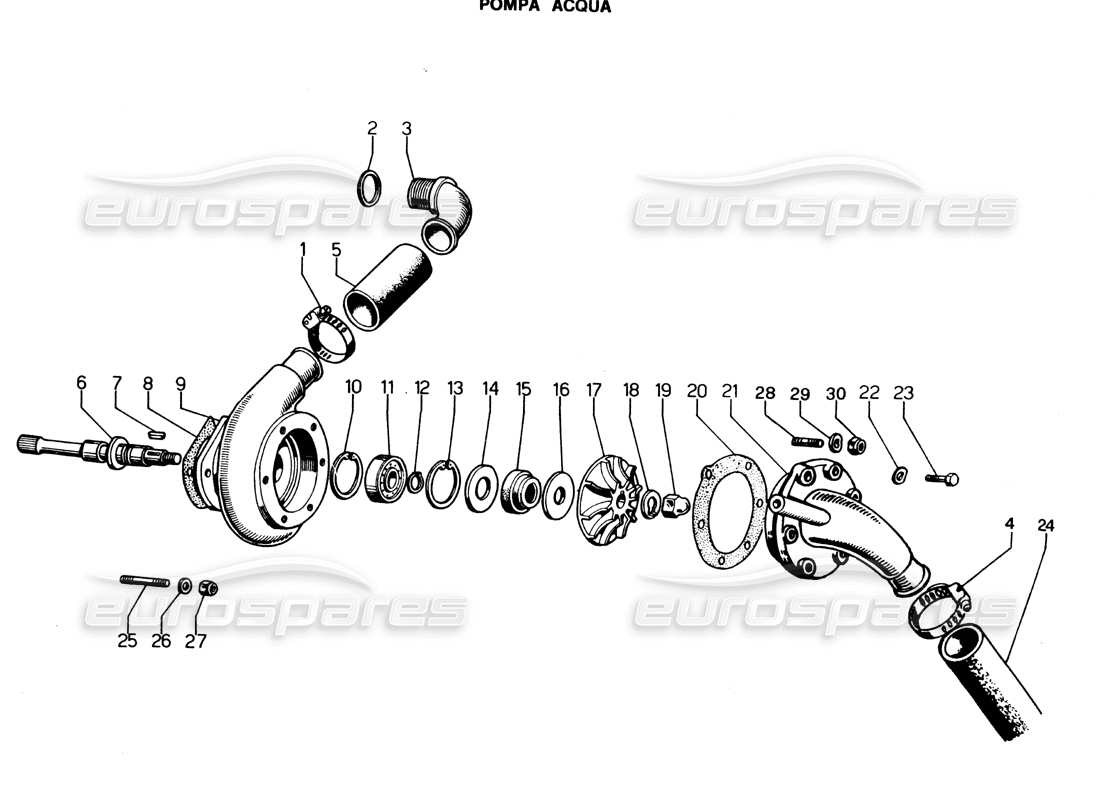

Lamborghini Espada Water pump (Alternative) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                              #
                                                              Part number
                                                              Description
                                                              Price
                                                              # 000
                                                              MPN: LAMWPK01
                                                              WATER PUMP REBUILD KIT
                                                              # 001
                                                              MPN: 008835004
                                                              JUBILEE CLIP
                                                              from £6.14
                                                              from £6.14
                                                              # 002
                                                              MPN: 001701783
                                                              GASKET
                                                              from £6.02
                                                              from £6.02
                                                              # 003
                                                              MPN: 001704506
                                                              TUBO ENTRATA ACQUA NEL BASAMENTO
                                                              from £732.35
                                                              from £732.35
                                                              # 004
                                                              MPN: 008835004
                                                              JUBILEE CLIP
                                                              from £6.14
                                                              from £6.14
                                                              # 005
                                                              MPN: 001701983
                                                              SLEEVE
                                                              from £38.78
                                                              from £38.78
                                                              # 006
                                                              MPN: 001700395
                                                              ALBERINO COMA NDO POMPA ACQUA
                                                              from £226.55
                                                              from £226.55
                                                              # 007
                                                              MPN: 008860401
                                                              Key
                                                              from £17.77
                                                              from £17.77
                                                              # 008
                                                              MPN: 001700391
                                                              GASKET
                                                              from £7.38
                                                              from £7.38
                                                              # 009
                                                              MPN: 001704498
                                                              WATER PUMP COVER (2 ALTERNATORI)
                                                              from £231.00
                                                              from £231.00
                                                              # 009
                                                              MPN: 001704498/A
                                                              Water Pump Complete
                                                              (series I)NOT SUPPLIED WITH GASKET, PART NUMBER 001700391 REQUIRED
                                                              from £1,143.40
                                                              from £1,143.40
                                                              # 010
                                                              MPN: 008574301
                                                              SEEGER RING
                                                              from £1.70
                                                              from £1.70
                                                              # 011
                                                              MPN: 008501705
                                                              BEARING
                                                              from £24.50
                                                              from £24.50
                                                              # 012
                                                              MPN: 008581501
                                                              SEEGER RING
                                                              from £0.54
                                                              from £0.54
                                                              # 013
                                                              MPN: 07M109381
                                                              SEEGER RING
                                                              from £1.16
                                                              from £1.16
                                                              This part replaces part number SGN-00491
                                                              # 014
                                                              MPN: 001712752
                                                              WASHER
                                                              from £20.75
                                                              from £20.75
                                                              This part replaces part number 001700397
                                                              # 015
                                                              MPN: 008611703
                                                              WATER PUMP SEAL
                                                              from £225.00
                                                              from £225.00
                                                              # 016
                                                              MPN: 001712753
                                                              WASHER
                                                              from £119.32
                                                              from £119.32
                                                              This part replaces part number 001700369 - and 1 more. Click to view details
                                                              # 017
                                                              MPN: 001712571
                                                              IMPELLER
                                                              # 018
                                                              MPN: WHT000768
                                                              WASHER
                                                              from £1.31
                                                              from £1.31
                                                              This part replaces part number 008410806 - and 1 more. Click to view details
                                                              # 019
                                                              MPN: 008201005
                                                              NUT
                                                              from £7.28
                                                              from £7.28
                                                              # 020
                                                              MPN: 001709225
                                                              GASKET
                                                              from £12.32
                                                              from £12.32
                                                              # 021
                                                              MPN: 001709999
                                                              COVER
                                                              from £249.89
                                                              from £249.89
                                                              # 022
                                                              MPN: 008410602
                                                              WASHER
                                                              from £28.09
                                                              from £28.09
                                                              # 023
                                                              MPN: 008100617
                                                              BOLT
                                                              from £3.65
                                                              from £3.65
                                                              # 024
                                                              MPN: 001710473

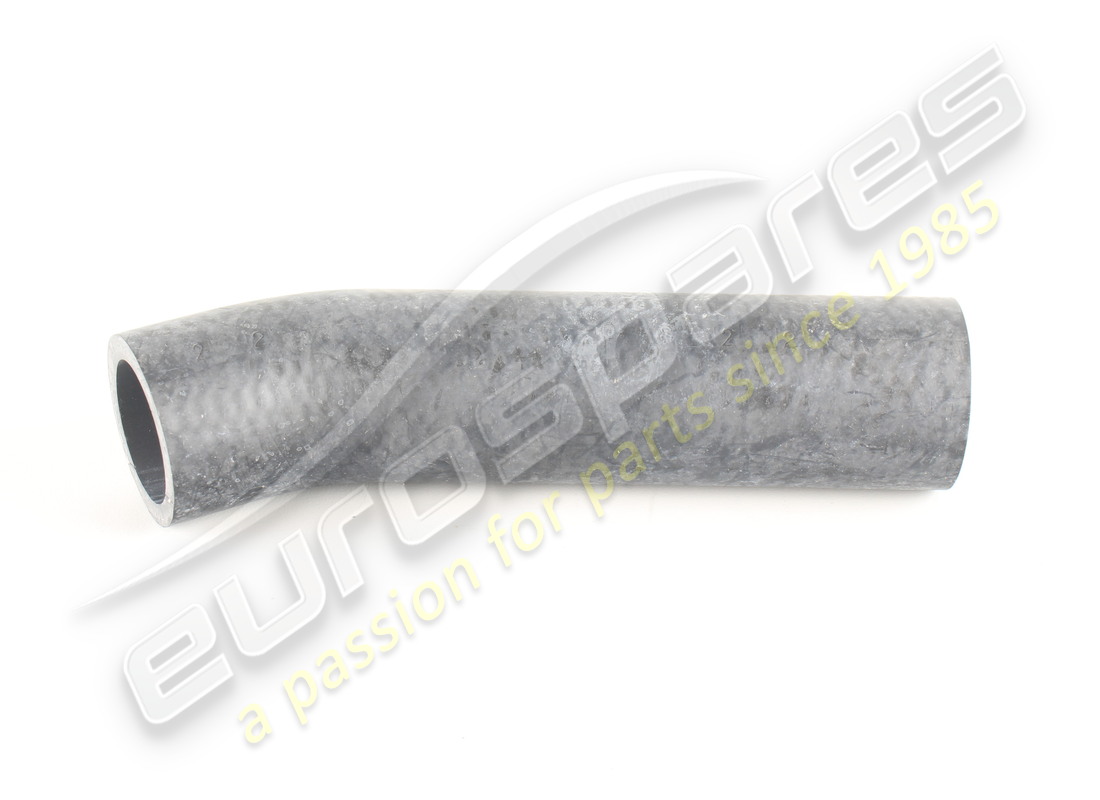

                                                              MANICOTTO DALLA POMPA AL RADIATORE (2 ALTERNATORI)
                                                              from £74.02
                                                              from £74.02
                                                              # 025
                                                              MPN: 008300608
                                                              STUD
                                                              from £0.66
                                                              from £0.66
                                                              # 026
                                                              MPN: 008400606
                                                              WASHER
                                                              Supersession
                                                              Supersession
                                                              # 027
                                                              MPN: 008200606
                                                              NUT
                                                              Supersession
                                                              Supersession
                                                              # 028
                                                              MPN: 008300838
                                                              THREADED STUD
                                                              from £8.25
                                                              from £8.25
                                                              # 029
                                                              MPN: WHT001514
                                                              WASHER
                                                              from £15.09
                                                              from £15.09
                                                              This part replaces part number 008410805
                                                              # 030
                                                              MPN: 008200806
                                                              NUT
                                                              Supersession
                                                              Supersession
                                                              Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
