006.3 - Alternators

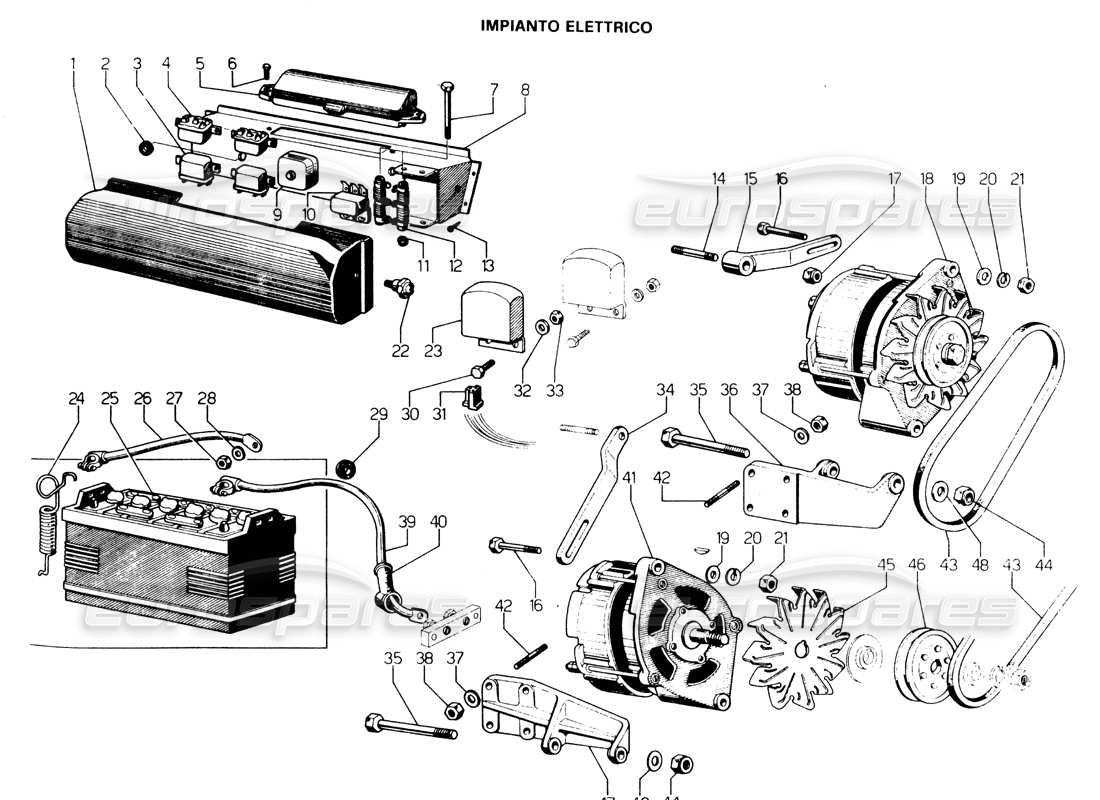

Lamborghini Espada Alternators Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
001
MPN:
001608038
COVER
from
£89.93
from
£89.93
#
002
MPN:
008611401
RUBBER GROMMET
from
£3.65
from
£3.65
#
003
MPN:
001605819
RELAIS PER POMPA ARIA (USA)
from
£24.09
from
£24.09
#
004
MPN:
001605819
RELAIS
from
£24.09
from
£24.09
#
005
MPN:
006775095

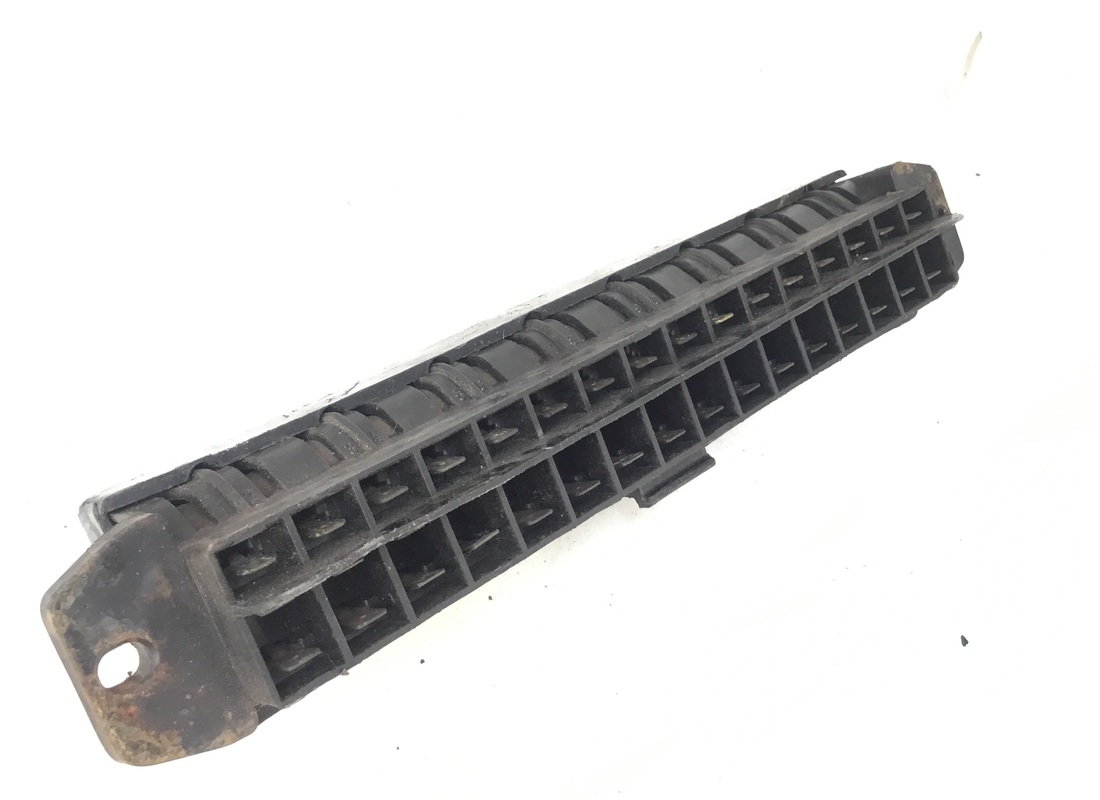

SCATOLA PORTA FUSIBILI
from
£126.00
from
£126.00
#
006
MPN:
008100502
BOLT
from
£0.53
from
£0.53
#
007
MPN:
008100824
BOLT
from
£0.93
from
£0.93
#
008
MPN:
006107528
SUPPORT
from
£53.81
from
£53.81
#
009
MPN:
001608165
SCATOLA PORTA FUSIBILI A 4 VIE
#
010
MPN:
006617030
RELAIS TROMBE
from
£20.54
from
£20.54
#
011
MPN:
008200811
NUT
from
£3.65
from
£3.65
#
012
MPN:
001619328
RESISTENZA
from
£86.04
from
£86.04
#
013
MPN:
008700506
SCREW
from
£0.53
from
£0.53
#
014
MPN:
008301004
THREADED STUD
from
£18.99
from
£18.99
#
015
MPN:
001604482
SUPPORT
from
£38.80
from
£38.80
#
016
MPN:
008100832
SCREW
from
£1.67
from
£1.67
#
017
MPN:
008201008
NUT
from
£0.57
from
£0.57
#
018
MPN:
001605520

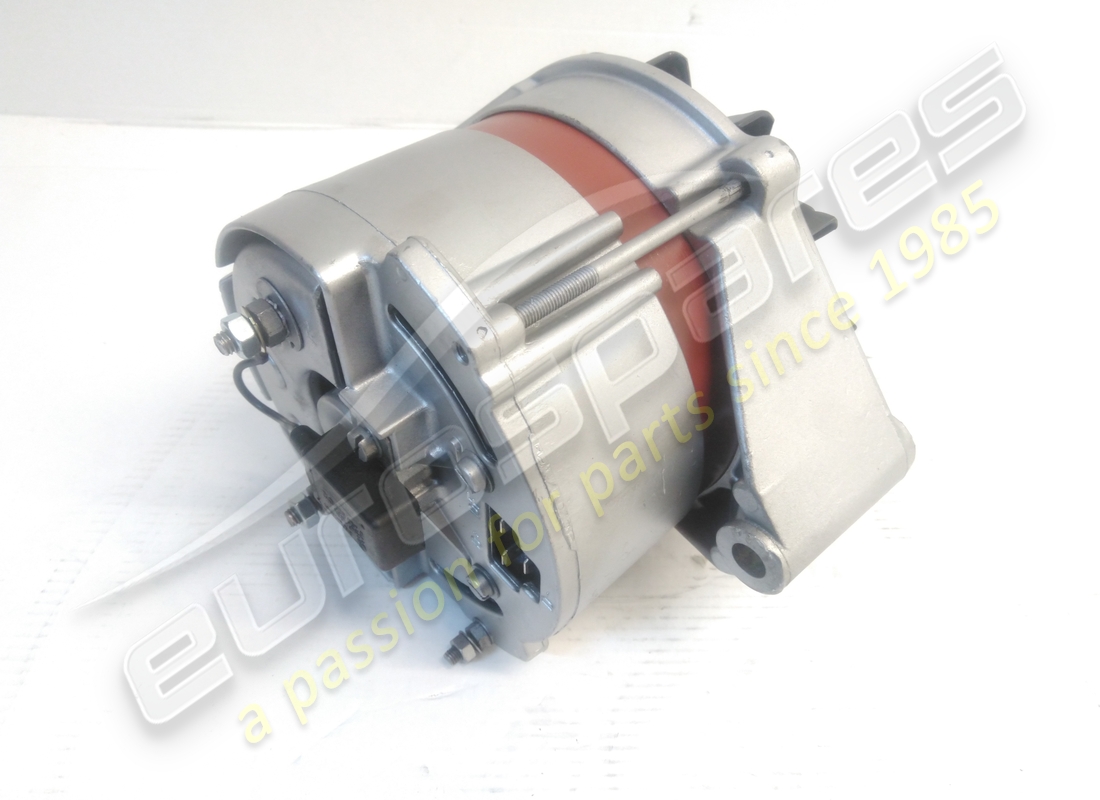

ALTERNATORE COMPLETO
from
£812.53
from
£812.53
#
019
MPN:
008400801
WASHER
Supersession
Supersession
#
020
MPN:
WHT001514
WASHER
from
£15.09
from
£15.09
This part replaces part number 008410805
#
021
MPN:
008200810
NUT
from
£0.53
from
£0.53
#
022
MPN:
001605758
POMELLO
from
£6.06
from
£6.06
#
023
MPN:
001606629
REGOLATORE DI CORRENTE
from
£47.92
from
£47.92
#
024
MPN:
001604956
MOILA FISSAGGIO BATTERIA
#
025
MPN:
001608456
Batteria
#
026
MPN:
001609214

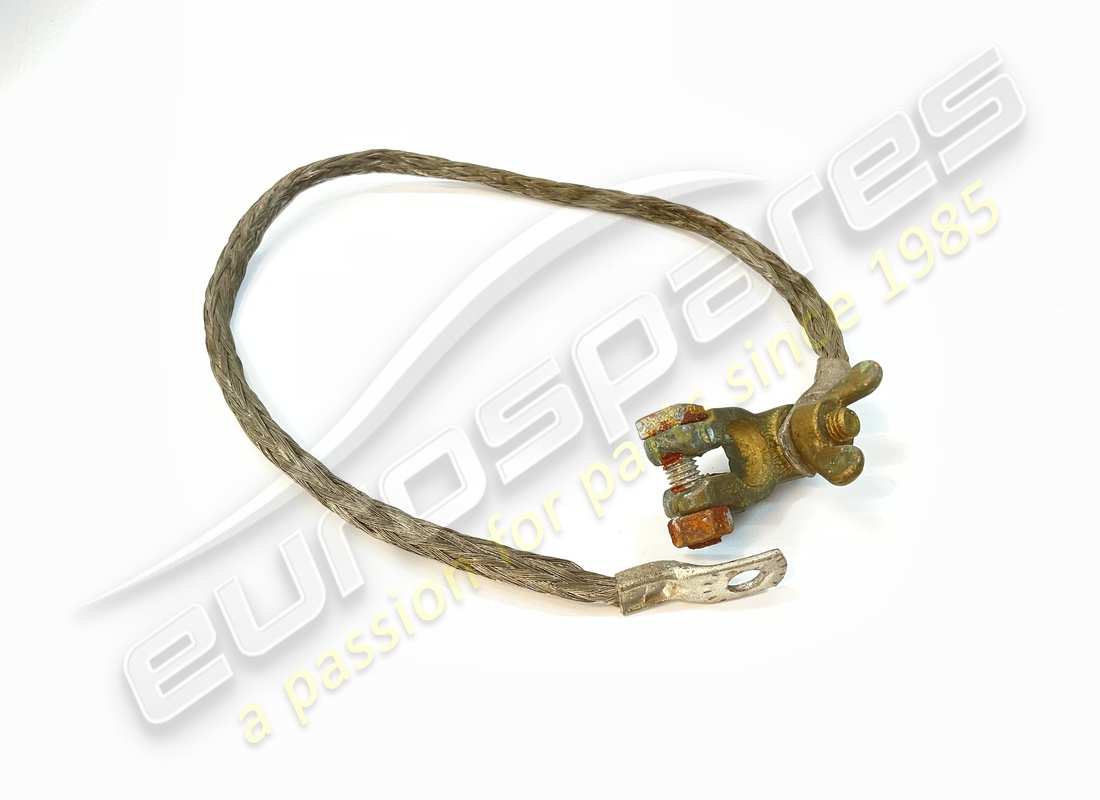

CAVO NEGATIVO BATTERIA
from
£18.89
from
£18.89
#
027
MPN:
008200809
NUT
Supersession
Supersession
#
028
MPN:
WHT001514
WASHER
from
£15.09
from
£15.09
This part replaces part number 008410805
#
029
MPN:
008611401
RUBBER GROMMET
from
£3.65
from
£3.65
#
030
MPN:
008100616
BOLT
from
£0.53
from
£0.53
#
031
MPN:
001602565
CONNETTORE PER ALTERNATORE
from
£95.98
from
£95.98
#
032
MPN:
008400606
WASHER
Supersession
Supersession
#
033
MPN:
008200606
NUT
Supersession
Supersession
#
034
MPN:
001607910
SUPPORT
from
£28.49
from
£28.49
#
035
MPN:
008101023
BOLT
#
036
MPN:
001604488
SUPPORT
from
£23.40
from
£23.40
#
037
MPN:
008410806
WASHER
Supersession
Supersession
#
038
MPN:
008200806
NUT
Supersession
Supersession
#
039
MPN:
001604958
CAVO DALLA BATTERIA AL CAVO MOTORINO AVVIAMENTO
from
£76.61
from
£76.61
#
040
MPN:
001606173
PIPETTA COPRI CAVO
from
£0.83
from
£0.83
#
041
MPN:
001604648
ALTERNATORE
from
£1,295.00
from
£1,295.00
#
042
MPN:
008300822
THREADED STUD
Supersession
Supersession
#
043
MPN:
001604645

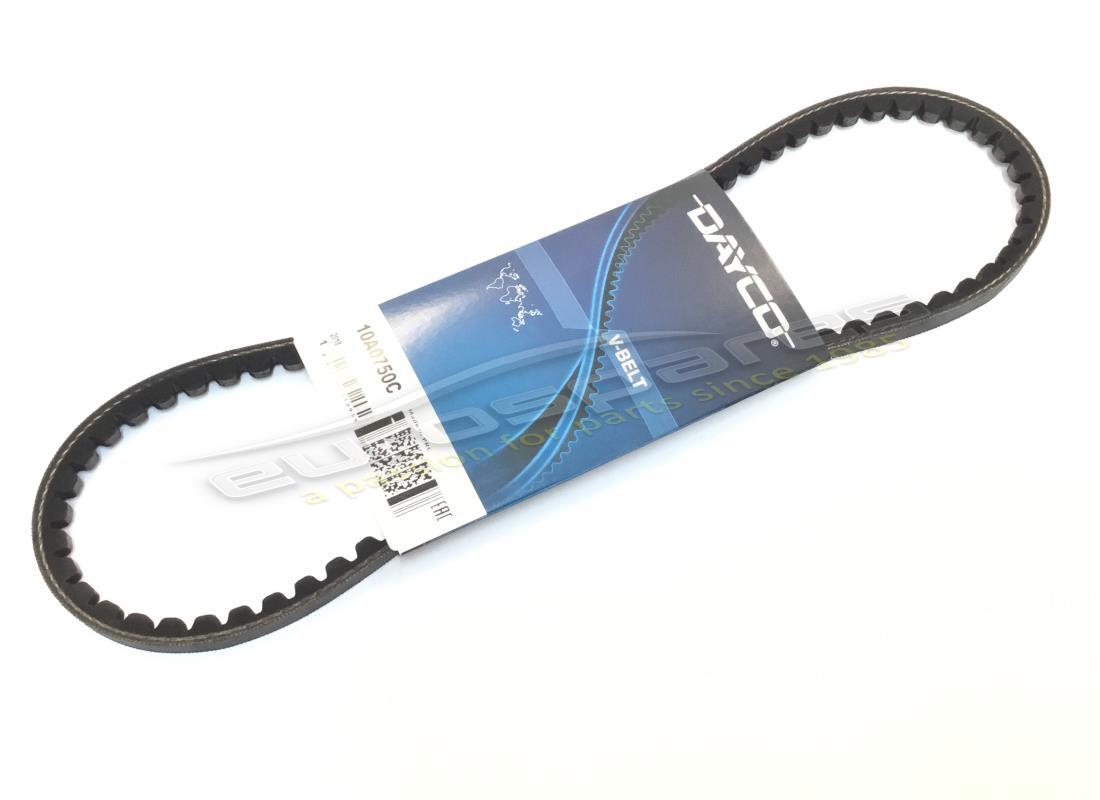

CINGHIA COMANDO ALTERNATORE
from
£13.35
from
£13.35
#
044
MPN:
008201008
NUT
from
£0.56
from
£0.56
#
045
MPN:
001604745
VENTOLA PER ALTERNATORE
from
£8.70
from
£8.70
#
046
MPN:
001604743
PULEGGIA PER ALTERNATORE
#
047
MPN:
001608406
SUPPORT
#
048
MPN:
008401006
WASHER
from
£0.53
from
£0.53
