lamborghini espada chassis mountings parts diagram

017.1 - Chassis Mountings

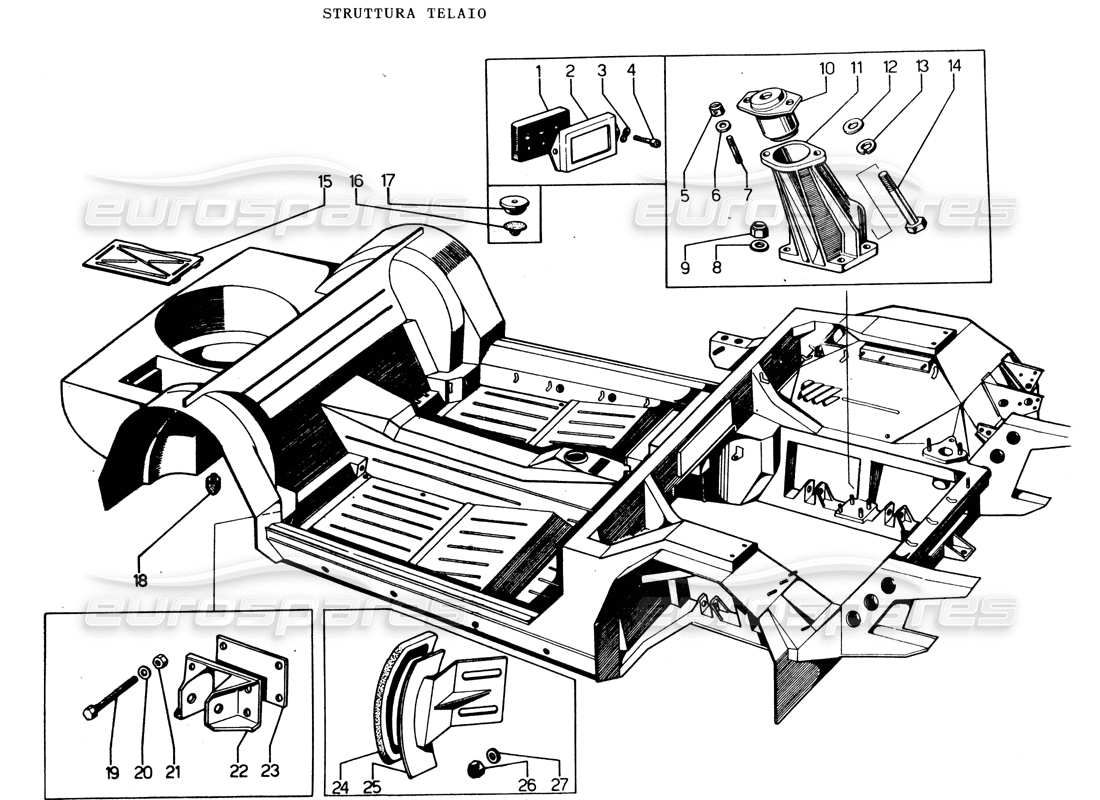

Lamborghini Espada Chassis Mountings Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 004204675
GOMMA DI PROTEZIONE TUBA FRENL
from £14.19
from £14.19
# 002
MPN: 004204677
CONTENITORE
# 003
MPN: 008410602
WASHER
from £28.66
from £28.66
# 004
MPN: 008700611
VITO
from £0.53
from £0.53
# 005
MPN: 008200804
NUT
from £0.71
from £0.71
# 006
MPN: 008400801
WASHER
Supersession
Supersession
# 007
MPN: 008300822
THREADED STUD
Supersession
Supersession
# 008
MPN: 008401007
WASHER
from £0.51
from £0.51
# 009
MPN: 008201008
NUT
from £0.52
from £0.52
# 011
MPN: 002404447
SUPPORT
from £378.08
from £378.08
# 012
MPN: 008401413
WASHER
from £0.63
from £0.63
# 013
MPN: 008411502
WASHER
from £1.58
from £1.58
# 014
MPN: 008101412
BOLT
from £13.69
from £13.69
# 016
MPN: 008930801
TAPPO CHIUSURA FORA DECAPPAGGLO
from £1.55
from £1.55
# 017
MPN: 008932001
TAPPO CHIUSURA FORA DECAPPAGGLO
from £4.73
from £4.73
# 018
MPN: 005205317
TAMPONS FINE CORSA
from £17.26
from £17.26
# 019
MPN: 008100908
BOLT
from £8.17
from £8.17
# 020
MPN: 008400901
WASHER
from £0.51
from £0.51
# 021
MPN: 008200904
NUT
from £4.73
from £4.73
# 022
MPN: 004107629
ATTACCO SOSPENSLONE POSTERIORS
from £18.91
from £18.91
# 023
MPN: 004107630
SPESSORE DI REGISTRO
from £11.36
from £11.36
# 024
MPN: 004201213
COPERTURA PER APPOGGIO PIEDE SINLATRO
from £10.70
from £10.70
# 025
MPN: 006102094

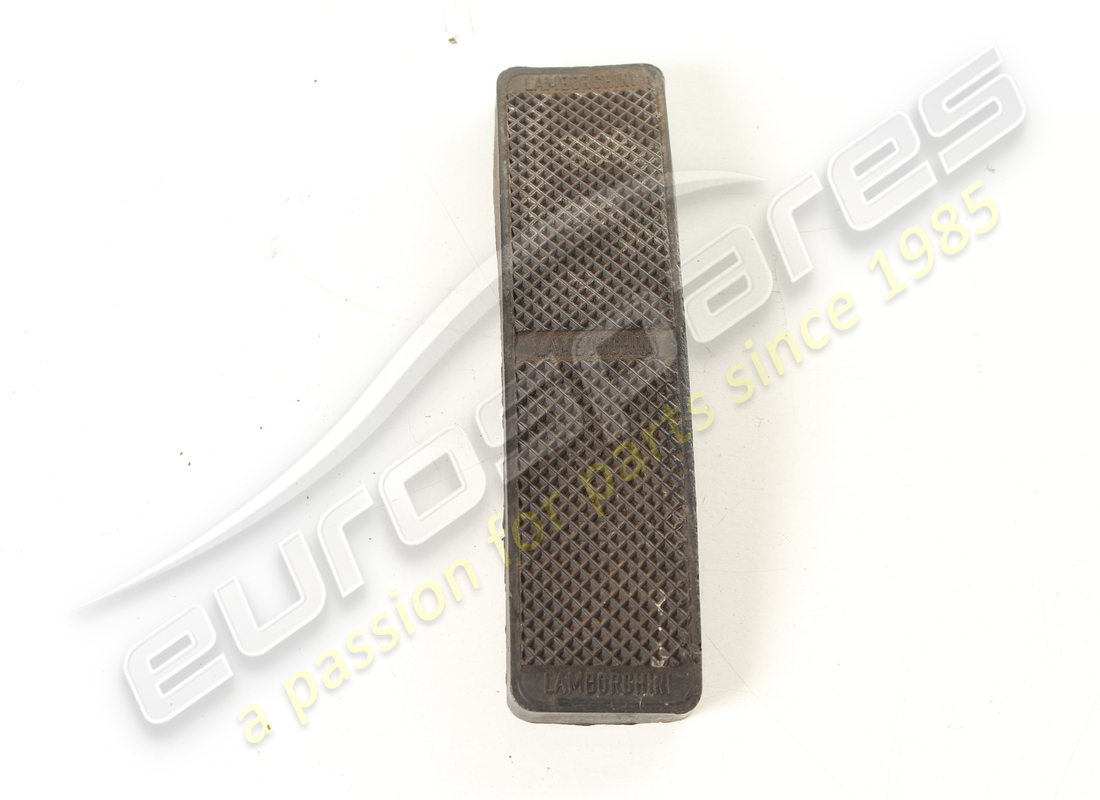

APPOGGLO RIEDE SINISTRO
from £26.11
from £26.11
# 026
MPN: 008200606
NUT
Supersession
Supersession
# 027
MPN: 008400607
WASHER
Supersession
Supersession
