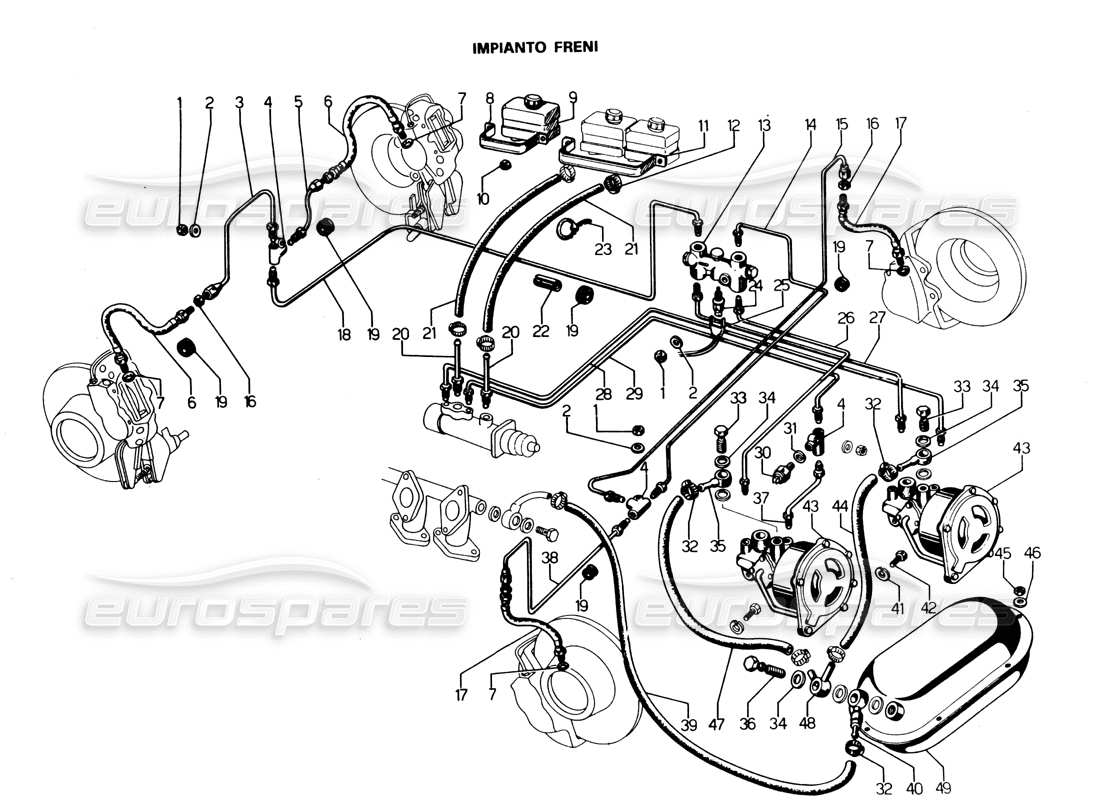

014.1 - Braking system
Lamborghini Espada Braking System Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
-
You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
001
MPN:
008200606
NUT
Supersession
Supersession
#
002
MPN:
008400606
WASHER
Supersession
Supersession
#
003
MPN:
003204603
TUBO DAL 3 VIE POSTERIORE AL FLESSIBILE DESTRO
from
£37.48
from
£37.48
#
004
MPN:
003101450
UNION 3-WAY
from
£31.33
from
£31.33
#
005
MPN:
003204602
TUBO DAL 3 VIE POSTERIORE AL FLESSIBILE SINISTRO
from
£37.48
from
£37.48
#
006
MPN:
003201483

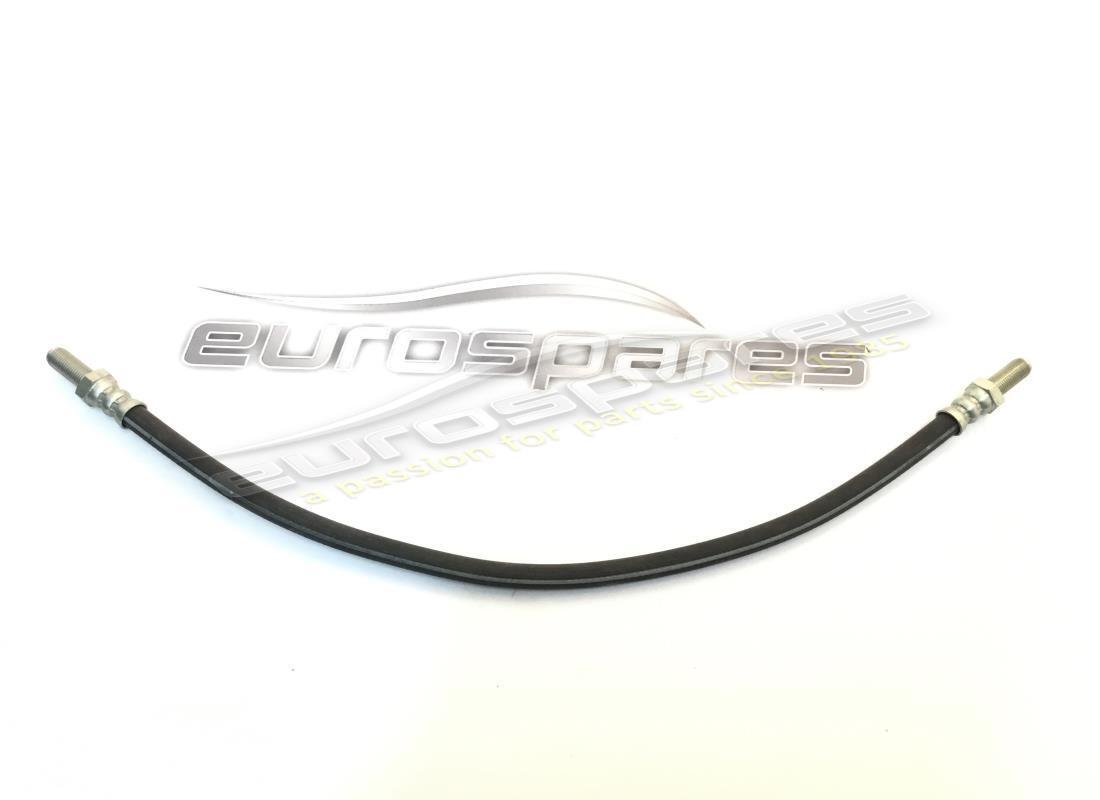

REAR BRAKE HOSE
from
£51.60
from
£51.60
#
007
MPN:
008411004
WASHER
from
£1.58
from
£1.58
#
008
MPN:
003107923

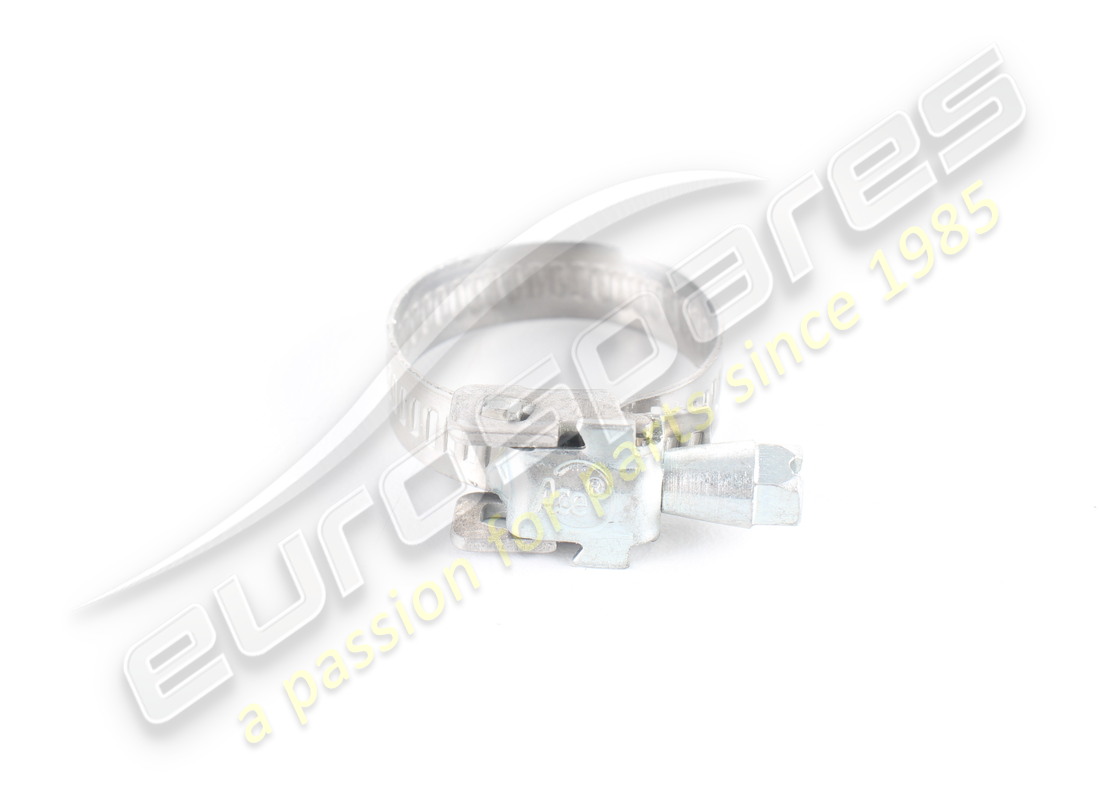

JUBILEE CLIP
from
£8.96
from
£8.96
#
009
MPN:
003103947
VASCHETTA
from
£32.87
from
£32.87
This part replaces part number 003103947 which we have in stock
- and 1 more. Click to view details
#
010
MPN:
N0211963
NUT
from
£0.52
from
£0.52
#
011
MPN:
003104597
JUBILEE CLIP
from
£24.00
from
£24.00
#
012
MPN:
008830204
JUBILEE CLIP
from
£5.43
from
£5.43
#

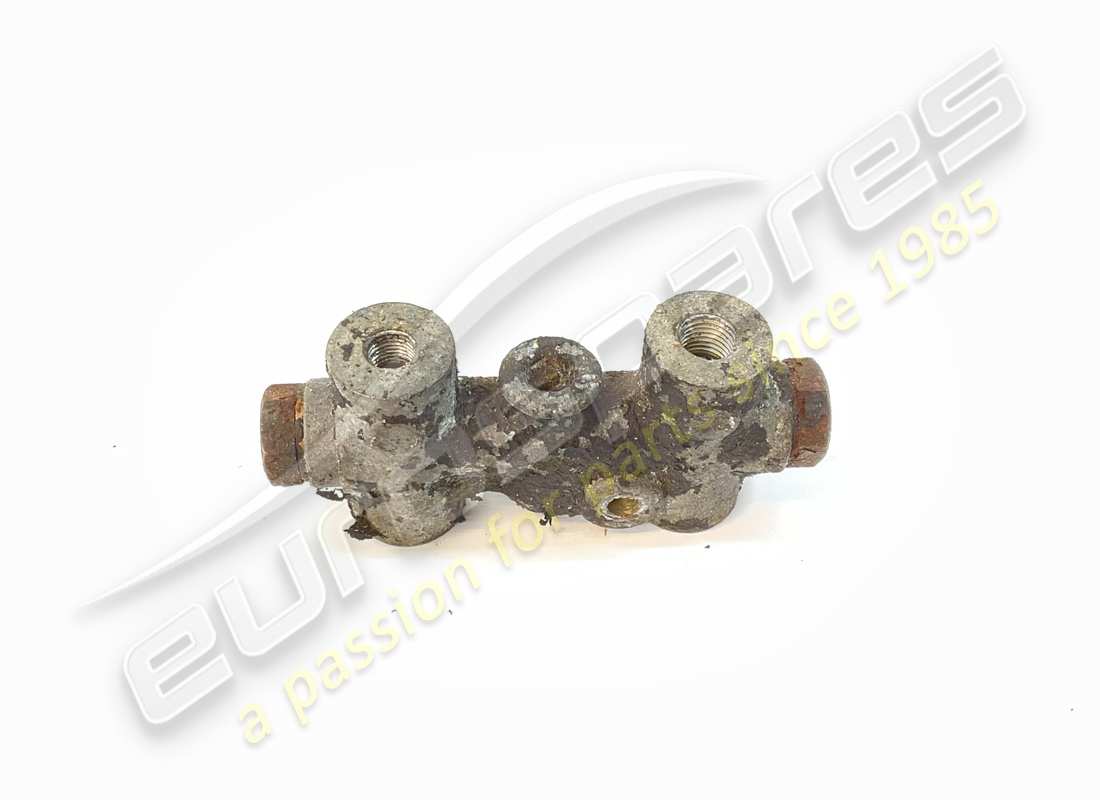

013
MPN:
003111854
DISPOSITIVO DI SICUREZZA
#
014
MPN:
003112856
TUBO DAL DISPOSITIVO AL 3 VIE ANTERIORE
#
015
MPN:
003104600

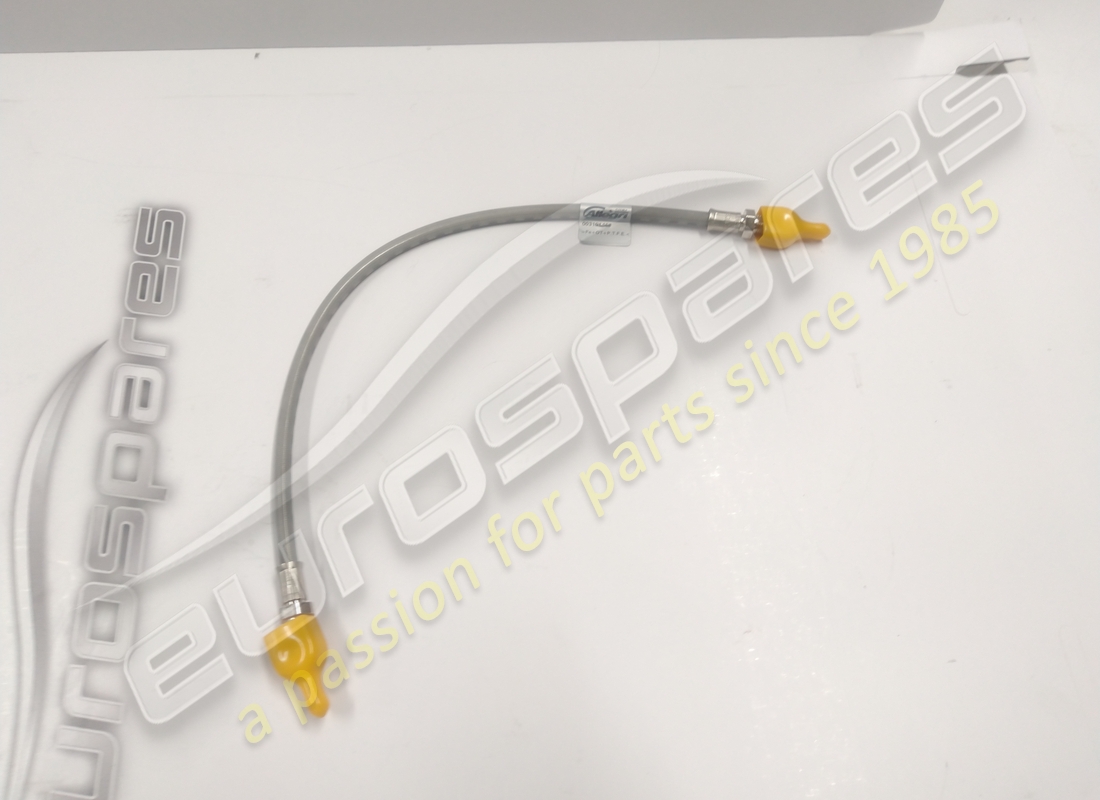

TUBO DAL 3 VIE ANTERIORE AL FLESSIBILE SINISTRO
from
£12.11
from
£12.11
#
016
MPN:
008200903
NUT
from
£3.70
from
£3.70
#
017
MPN:
003101453

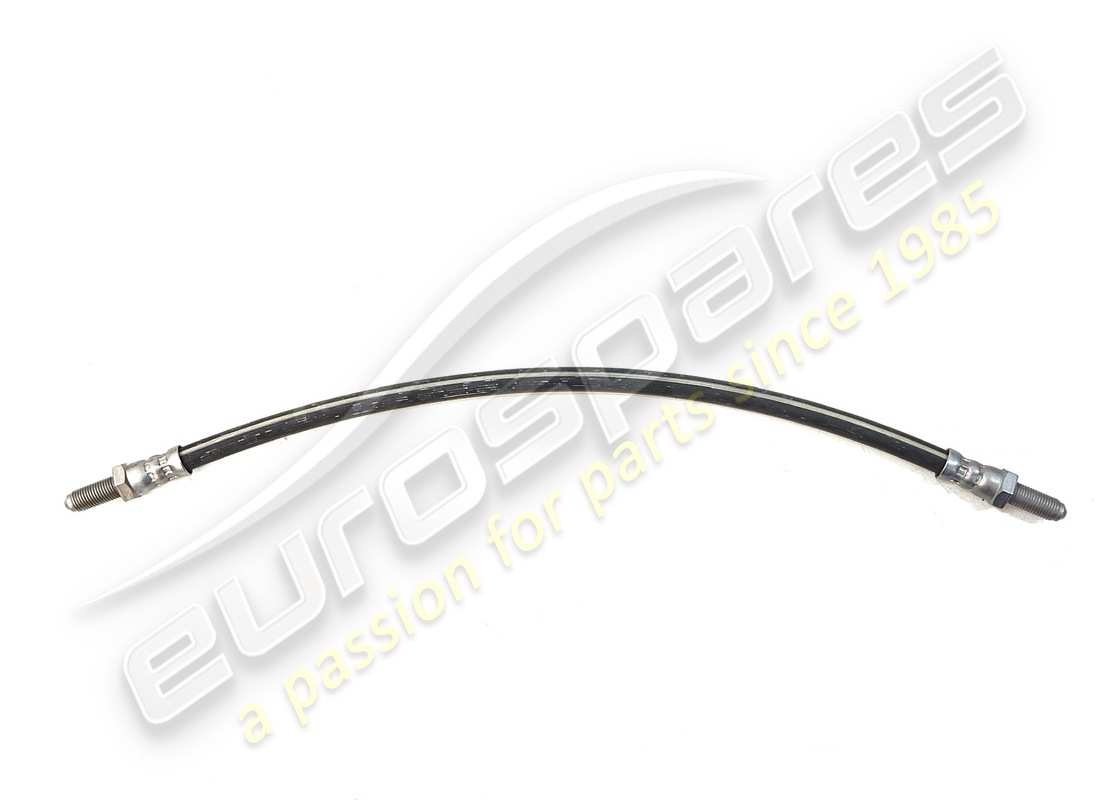

FLEXIBLE PIPE
from
£37.92
from
£37.92
#
018
MPN:
003212857
TUBO DAL DISPOSITIVO AL 3 VIE POSTERIORE
#
019
MPN:
008610802
RUBBER GROMMET
from
£5.28
from
£5.28
#
020
MPN:
003105399
TUBO DI CARICO
from
£6.84
from
£6.84
#
021
MPN:
003205031
TUBO DI PLASTICA
from
£20.06
from
£20.06
#
022
MPN:
003104639
GOMMINO DI PROTEZIONE
#
023
MPN:
008830401
JUBILEE CLIP
from
£1.67
from
£1.67
#
024
MPN:
003107781
UNION
#
025
MPN:
003107780
COLLEGAMENTO ELETTRICO
from
£9.74
from
£9.74
#
026
MPN:
003112855
TUBO DAL DISPOSITIVO AL SERVOFRENO ANTERIORE
#
027
MPN:
003212858
TUBO DAL DISPOSITIVO AL SERVOFRENO POSTERIORE
#
028
MPN:
003209506
TUBO DAL SERVOFRENO ALLA POMPA
#
029
MPN:
003109505
TUBO DALLA POMPA AL 3 VIE STOP
from
£37.48
from
£37.48
#
030
MPN:
003201449

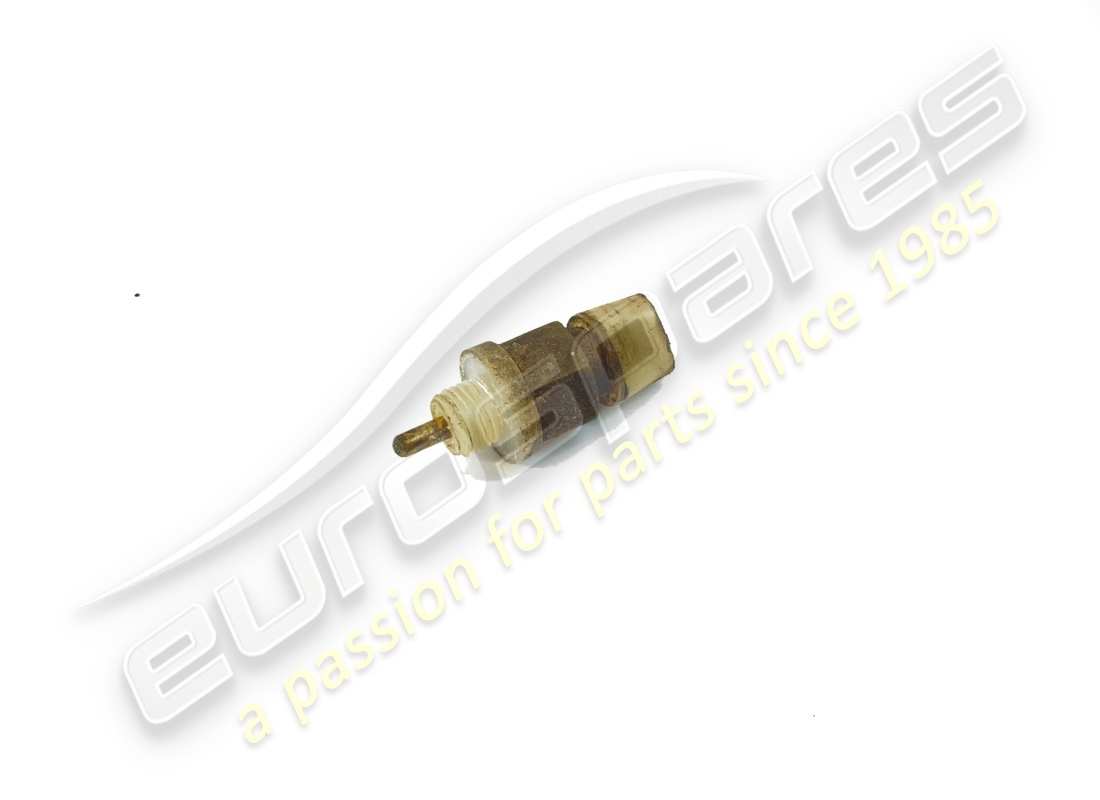

INTERRUTTORE IUCI STOP
from
£85.41
from
£85.41
#
031
MPN:
008401008
WASHER
Supersession
Supersession
#
032
MPN:
008830205
JUBILEE CLIP
from
£4.27
from
£4.27
#
033
MPN:
003201511

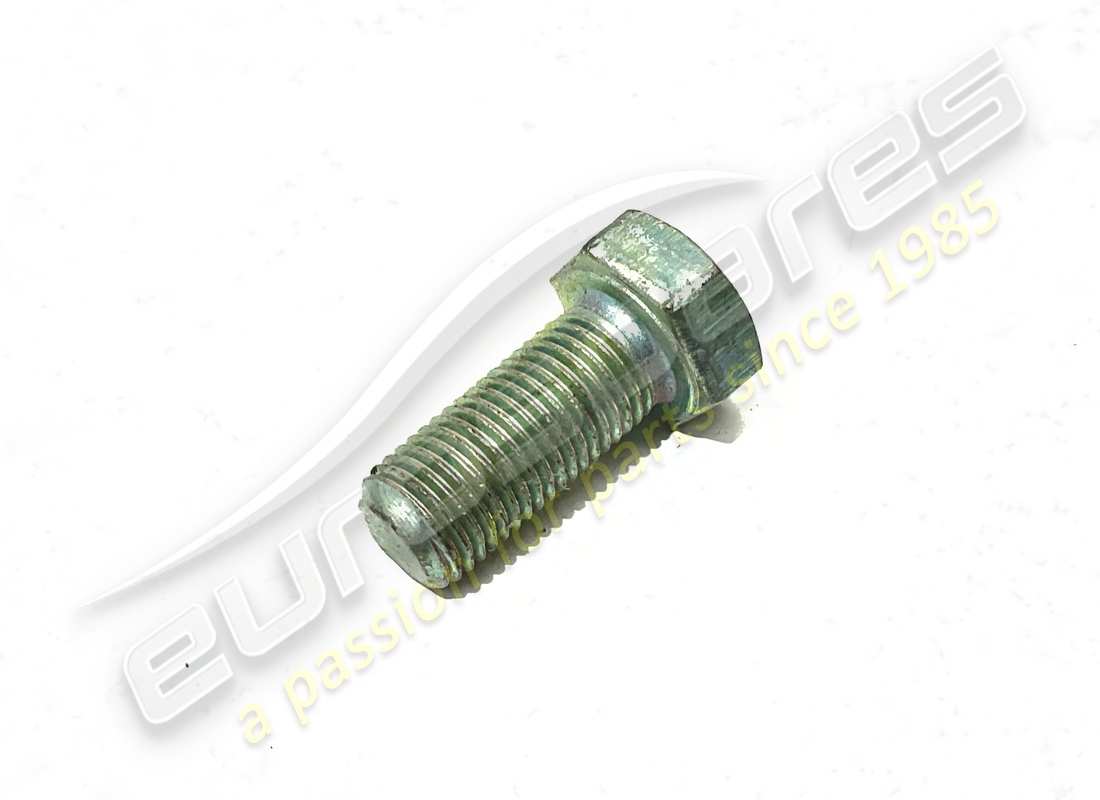

BOLT
from
£28.98
from
£28.98
#
034
MPN:
003101513
WASHER
from
£0.97
from
£0.97
#
037
MPN:
003109507
TUBO DAL SERVOFRENO ANTERIORE AL 3 VIE STOP
#
038
MPN:
003104601
TUBO DAL 3 VIE ANTERIORE AL FLESSIBILE DESTRO
from
£37.48
from
£37.48
#
039
MPN:
003209325
TUBO IN GOMMA
from
£16.72
from
£16.72
#
040
MPN:
003209326
VALVOLA NON RITORNO
from
£44.45
from
£44.45
#
041
MPN:
008411005
WASHER
from
£0.52
from
£0.52
#
042
MPN:
008100912
BOLT
from
£1.62
from
£1.62
#
043
MPN:
003208302
Brake Servo
#
043
MPN:
003208302K

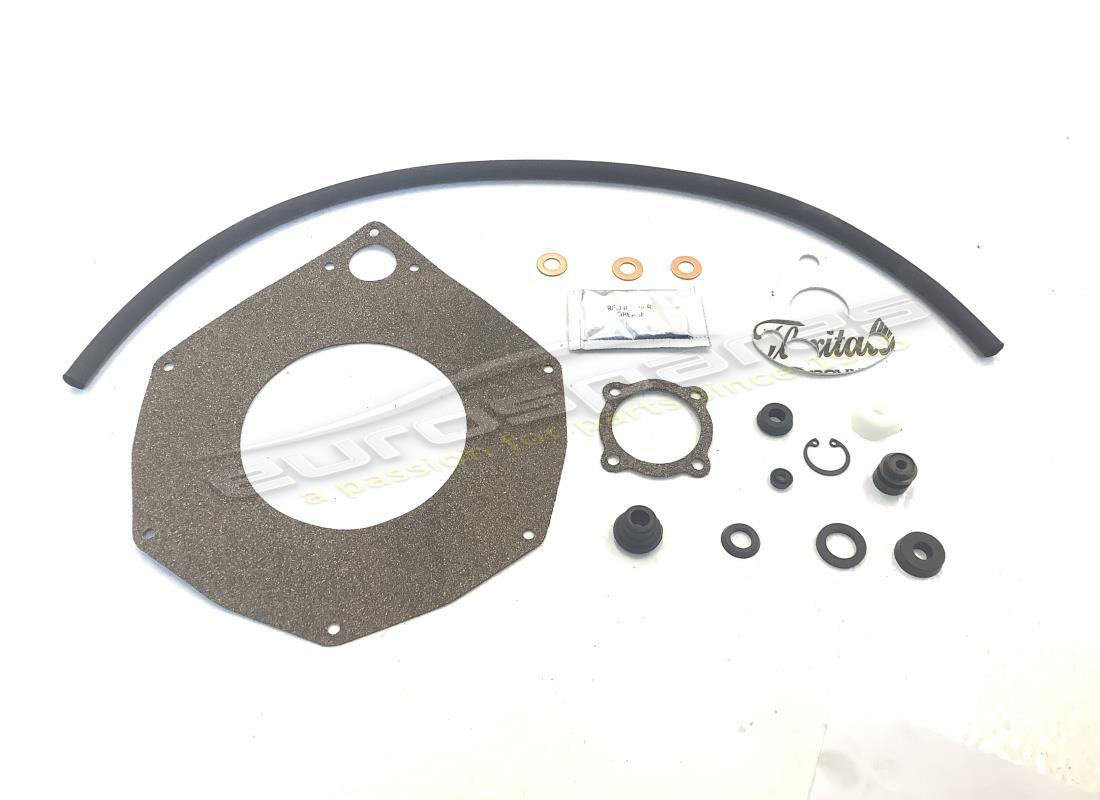

BRAKE SERVO REPAIR KIT
from
£131.25
from
£131.25
#
044
MPN:
003309330
TUBO IN GOMMA
#
045
MPN:
N0211963
NUT
from
£0.51
from
£0.51
#
046
MPN:
WHT001187
WASHER
from
£0.53
from
£0.53
This part replaces part number 008400502
#
047
MPN:
003206117
TUBO IN GOMMA
#
048
MPN:
003204975
UNION 3-WAY
from
£32.21
from
£32.21
#
049
MPN:
003204974
VACUM TANK
from
£303.49
from
£303.49
