014 - Braking system

Lamborghini Espada Braking System Parts Diagram

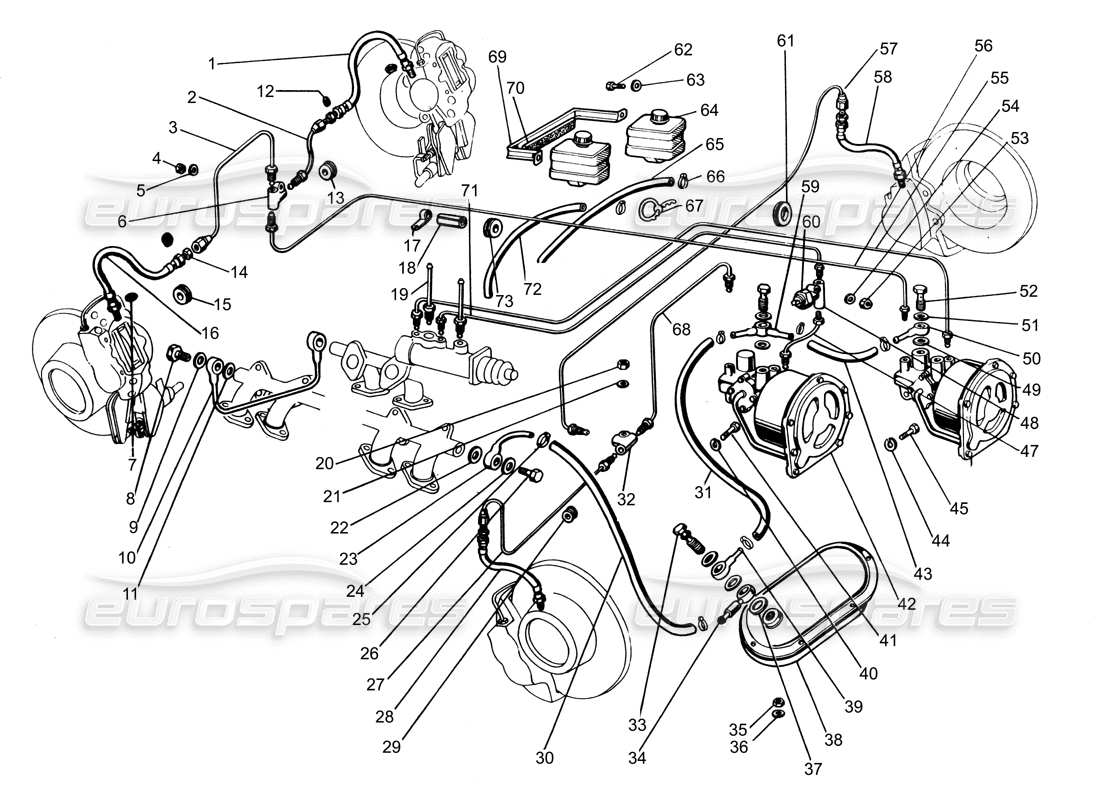

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 003201483
REAR BRAKE HOSE
from £51.60
from £51.60
# 002
MPN: 003204602
TUBO DAL 3 VIE AL FLESSIBILE SINISTRO
from £37.48
from £37.48
# 003
MPN: 003204603
TUBO DAL 3 VIE AL FLESSIBILE DESTRO
from £37.48
from £37.48
# 004
MPN: 008200606
BUSH
Supersession
Supersession
# 005
MPN: 008400606
WASHER
Supersession
Supersession
# 006
MPN: 009101450
N/A
# 007
MPN: 008411004
CORRUGATED WASHER
from £1.71
from £1.71
# 008
MPN: 003101941
BOLT
from £2.64
from £2.64
# 009
MPN: 008401610
WASHER
from £6.32
from £6.32
# 010
MPN: 001306092
RACCORDO
from £70.56
from £70.56
# 011
MPN: 008401610
WASHER
from £6.32
from £6.32
# 012
MPN: 008411004
CORRUGATED WASHER
from £1.71
from £1.71
# 013
MPN: 008610802
GROMMET 8X18X2 MM
from £5.28
from £5.28
# 014
MPN: 008200903
3/8'X24 'UNF' SPECIAL NUT
from £3.70
from £3.70
# 015
MPN: 008610802
GROMMET 8X18X2 MM
from £5.28
from £5.28
# 016
MPN: 003201483
REAR BRAKE HOSE
from £51.60
from £51.60
# 017
MPN: 008830112
PIPE CLAMP
from £68.07
from £68.07
# 018
MPN: 003104639
GOMMINO DI PROTEZIONE
# 019
MPN: 003105399
TUBO DI CARICO
from £6.84
from £6.84
# 020
MPN: 008200606
BUSH
Supersession
Supersession
# 021
MPN: 008400606
WASHER
Supersession
Supersession
# 022
MPN: 008401610
WASHER
from £6.32
from £6.32
# 023
MPN: 003204610
RACCORDO
from £89.49
from £89.49
# 024
MPN: 008401610
WASHER
from £6.32
from £6.32
# 025
MPN: 008830205
CLAMP RING
from £4.27
from £4.27
# 026
MPN: 008101941
N/A
# 027
MPN: 003104601
TUBO DAL 3 VIE ANTERIORE AL FLESSIBILE DESTRO
from £37.48
from £37.48
# 028
MPN: 003101453
FRONT BRAKE HOSE
from £37.92
from £37.92
# 029
MPN: 008610802
GROMMET 8X18X2 MM
from £5.28
from £5.28
# 030
MPN: 003206115
N/A
# 031
MPN: 003206116
TUBO (DA 0 A 750)
# 032
MPN: 003101450
THREE-WAY UNION
from £31.33
from £31.33
# 033
MPN: 003101486
BOLT
from £20.23
from £20.23
# 034
MPN: 003101518
CHECK VALVE
from £109.86
from £109.86
# 035
MPN: N0211963
M5 'UNI 7473 ZD' SELF-LOCKIN GNUT
from £0.53
from £0.53
# 036
MPN: 008400802
WASHER
from £1.03
from £1.03
# 037
MPN: 003101513
COPPER WASHER 16.2X24X1 (MONTATO DAL TELAIO N.4155)
from £0.97
from £0.97
# 038
MPN: 003204974
VACUM TANK
from £303.49
from £303.49
# 039
MPN: 003204607
RACCORDO *
from £64.35
from £64.35
# 040
MPN: 008411005
WASHER D.10.5 UNI 1751/F
from £0.54
from £0.54
# 041
MPN: 008100909
SCREW 3/8 24 FIL 1 8G
from £3.70
from £3.70
# 042
MPN: 003208302
Brake Servo
from £1,359.75
from £1,359.75
# 043
MPN: 003206117
TUBO IN GOMMA
# 044
MPN: 008411005
WASHER D.10.5 UNI 1751/F
from £0.54
from £0.54
# 045
MPN: 008100909
SCREW 3/8 24 FIL 1 8G
from £3.70
from £3.70
# 047
MPN: 003104604
TUBO DAL 3 VIE AL SERVOFRENO ANTERIORE
from £37.48
from £37.48
# 048
MPN: 003101450
THREE-WAY UNION
from £31.33
from £31.33
# 049
MPN: 003101513
COPPER WASHER 16.2X24X1 (MONTATO DAL TELAIO N.4155)
from £0.97
from £0.97
# 050
MPN: 003204607
RACCORDO *
from £64.35
from £64.35
# 051
MPN: 003101513
COPPER WASHER 16.2X24X1 (MONTATO DAL TELAIO N.4155)
from £0.97
from £0.97
# 052
MPN: 003201511
BOLT
from £28.98
from £28.98
# 053
MPN: 008200606
BUSH
Supersession
Supersession
# 054
MPN: 008400606
WASHER
Supersession
Supersession
# 055
MPN: 003204606
TUBO (DA 0 A 100)
# 056
MPN: 003204605
N/A
# 057
MPN: 003104600
TUBO DAL 3 VIE ANTERIORE AL FLESSIBILE SINISTRO
from £12.11
from £12.11
# 058
MPN: 003101453
BRAKE PIPE
from £37.92
from £37.92
# 059
MPN: 003204975
UNION 3-WAY
from £32.21
from £32.21
# 060
MPN: 003201449
BRAKE LIGHT CHECK
from £85.41
from £85.41
# 061
MPN: 003101453
BRAKE PIPE
from £37.92
from £37.92
# 062
MPN: 008100622
SCREW M6X12 UNI 5739/8G
from £3.65
from £3.65
# 063
MPN: 008410603
LOCK WASHER
Supersession
Supersession
# 064
MPN: 003103947
BRAKE OIL RESERVOIR
from £32.87
from £32.87
This part replaces part number 003103947 which we have in stock - and 1 more. Click to view details
