007.3 - Water circuit

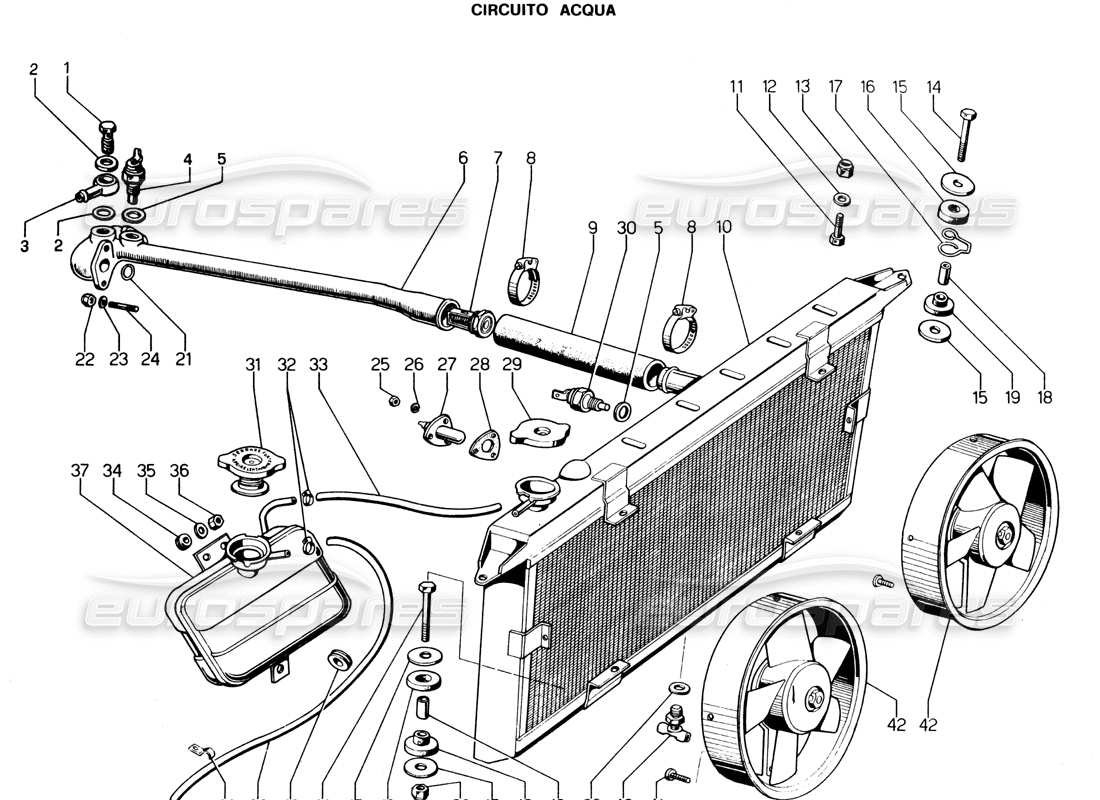

Lamborghini Espada Water circuit Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 003101941
BOLT
from £2.64
from £2.64
# 002
MPN: 008401610
WASHER
from £6.32
from £6.32
# 003
MPN: 001708903
UNION
from £210.11
from £210.11
# 004
MPN: 001701646
TERMOCONTATTO SPIA ACQUA
# 005
MPN: 008401610
WASHER
from £6.32
from £6.32

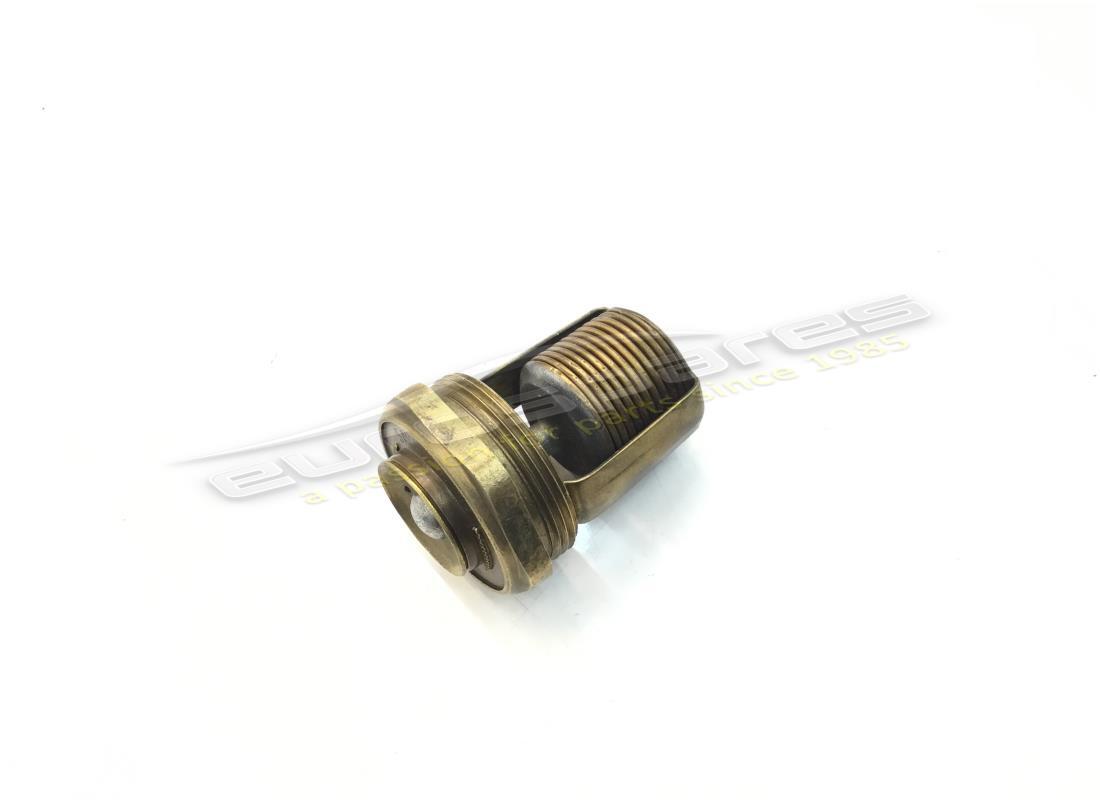

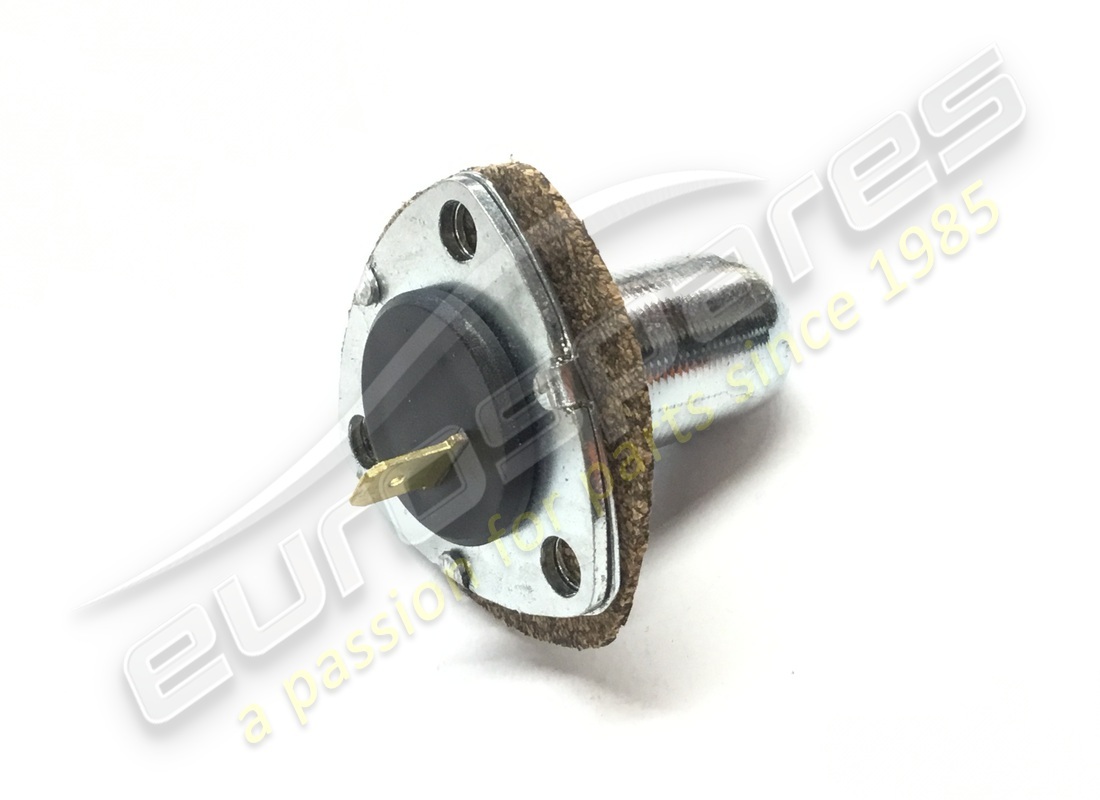

# 007
MPN: 001702817

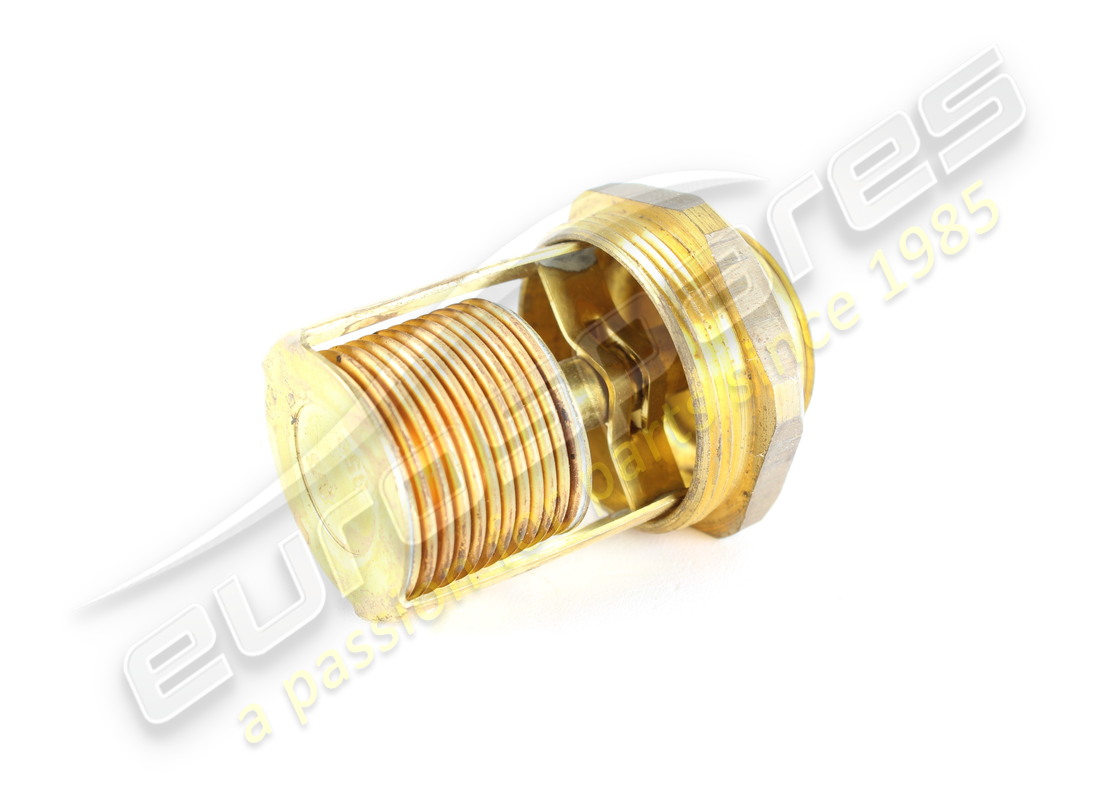

THERMOSTAT
from £228.58
from £228.58
# 008
MPN: 008835004
JUBILEE CLIP
from £6.14
from £6.14
This part replaces part number 008830201
# 009
MPN: 001710100
SLEEVE
from £16.00
from £16.00

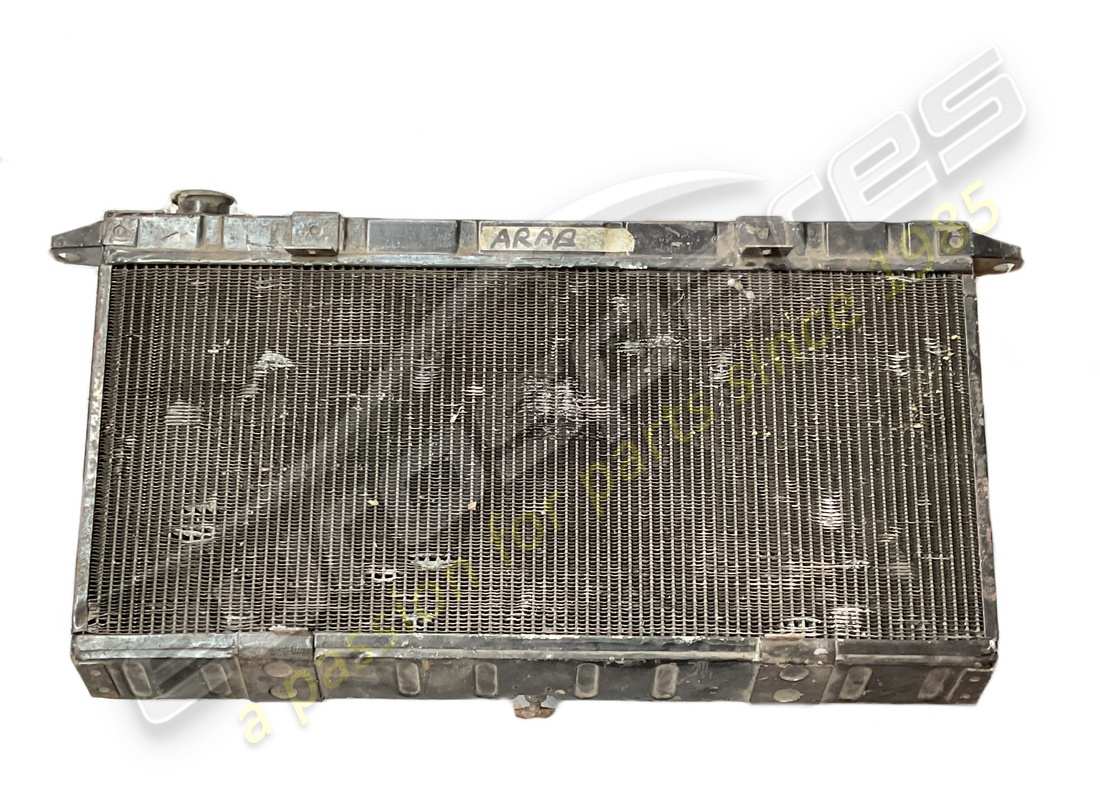

# 010
MPN: 001710466

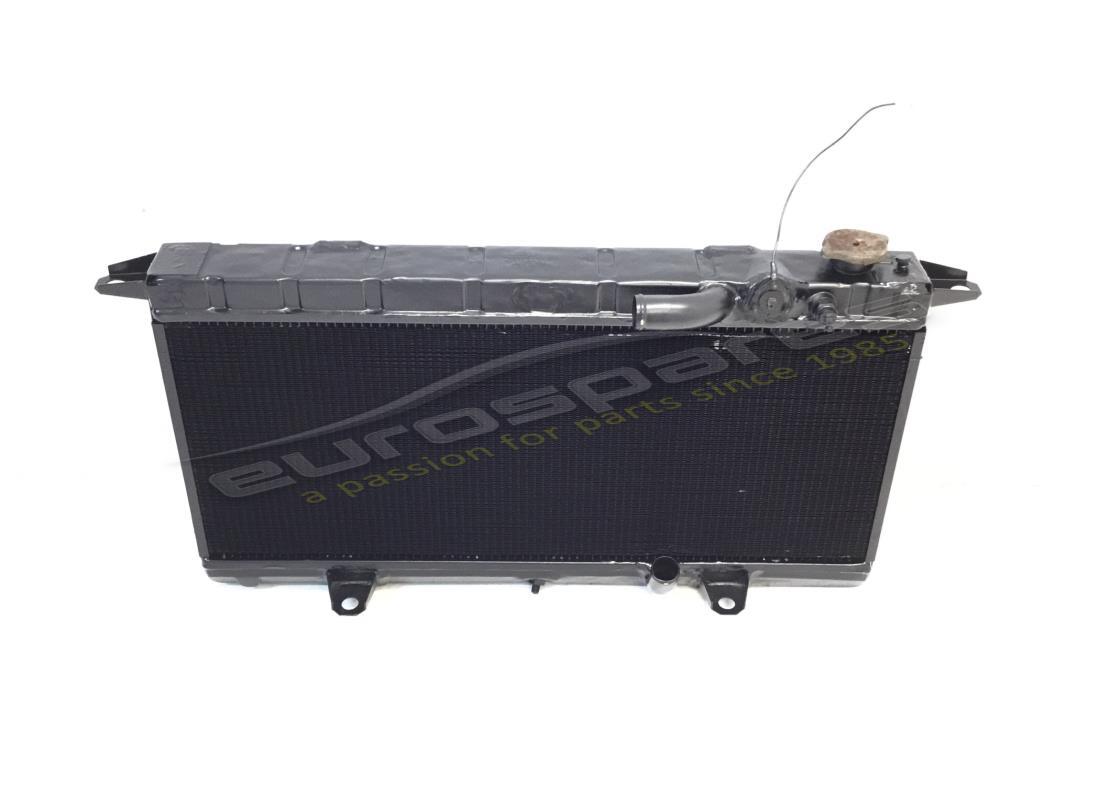

RADIATORE ACQUA
from £997.50
from £997.50
# 011
MPN: 008100617
BOLT
from £3.65
from £3.65
# 012
MPN: 008400606
WASHER
Supersession
Supersession
# 013
MPN: 008200606
NUT
Supersession
Supersession
# 014
MPN: 008100831
BOLT
from £0.53
from £0.53
# 015
MPN: WHT001942
WASHER
from £2.06
from £2.06
# 016
MPN: WHT001189
RUBBER RING
from £2.38
from £2.38
This part replaces part number 001707163
# 018
MPN: 001701592
SPACER
from £11.72
from £11.72
# 019
MPN: 001701495
RUBBER GROMMET
from £32.99
from £32.99
# 020
MPN: 008200804
NUT
from £0.73
from £0.73
# 021
MPN: 008602303

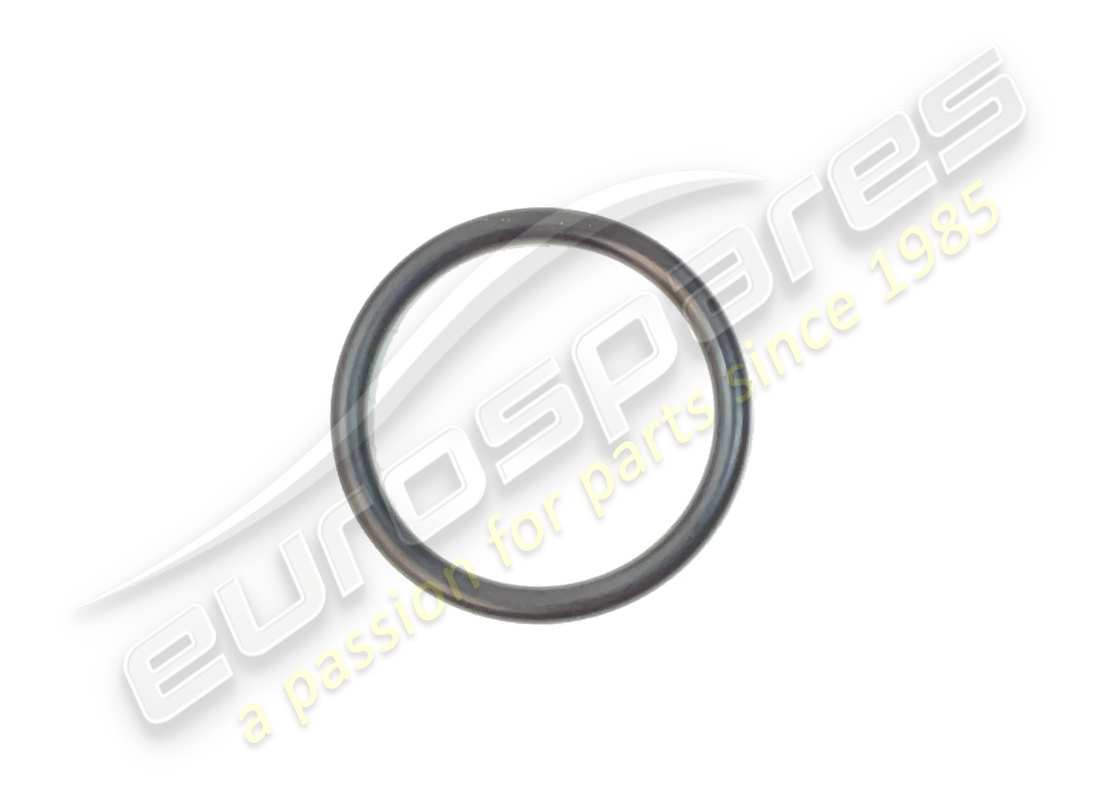

SEALING RING
from £0.53
from £0.53
This part replaces part number GN-01236
# 022
MPN: 008200606
NUT
Supersession
Supersession
# 023
MPN: 008400606
WASHER
Supersession
Supersession
# 024
MPN: 008300608
STUD
from £0.66
from £0.66
# 025
MPN: 008200402
NUT
from £1.62
from £1.62
# 026
MPN: 008410402
WASHER
Supersession
Supersession
# 027
MPN: 001724565
TEMPERATURE SENDER UNIT
(Single terminal)
from £122.50
from £122.50
# 028
MPN: 001705504

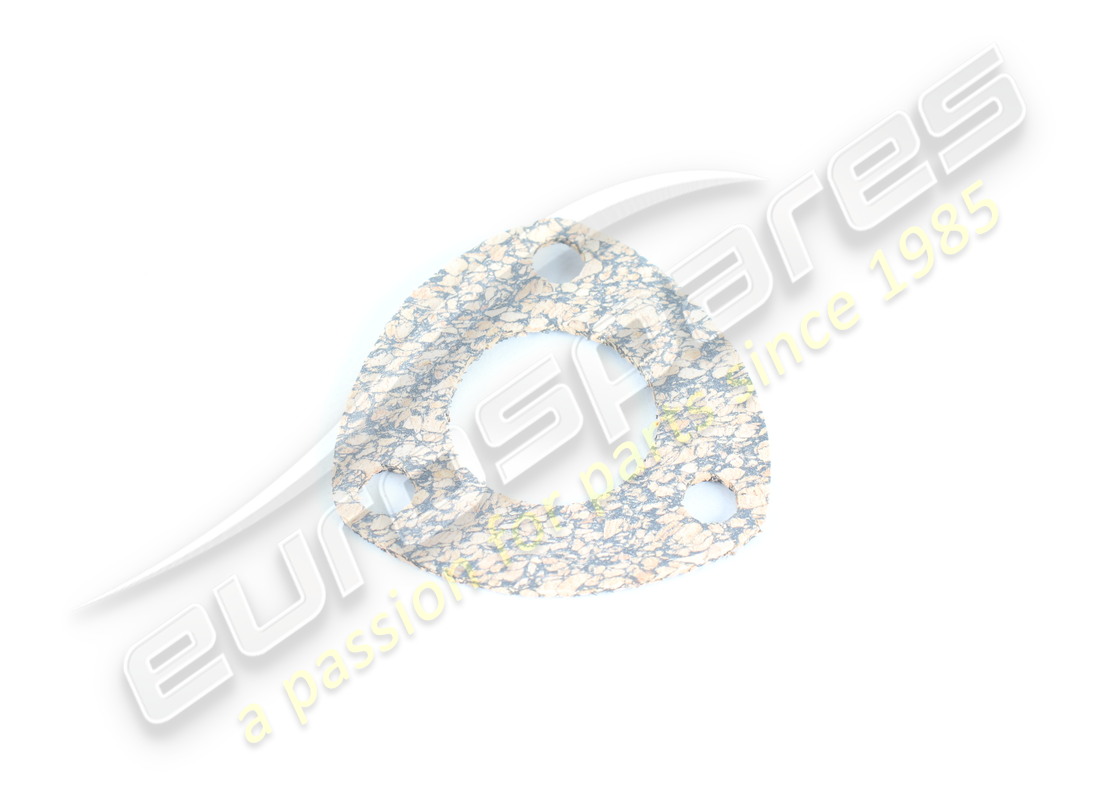

GASKET
from £16.41
from £16.41
# 029
MPN: 001704590
TAPPO RADIATORE
from £56.55
from £56.55

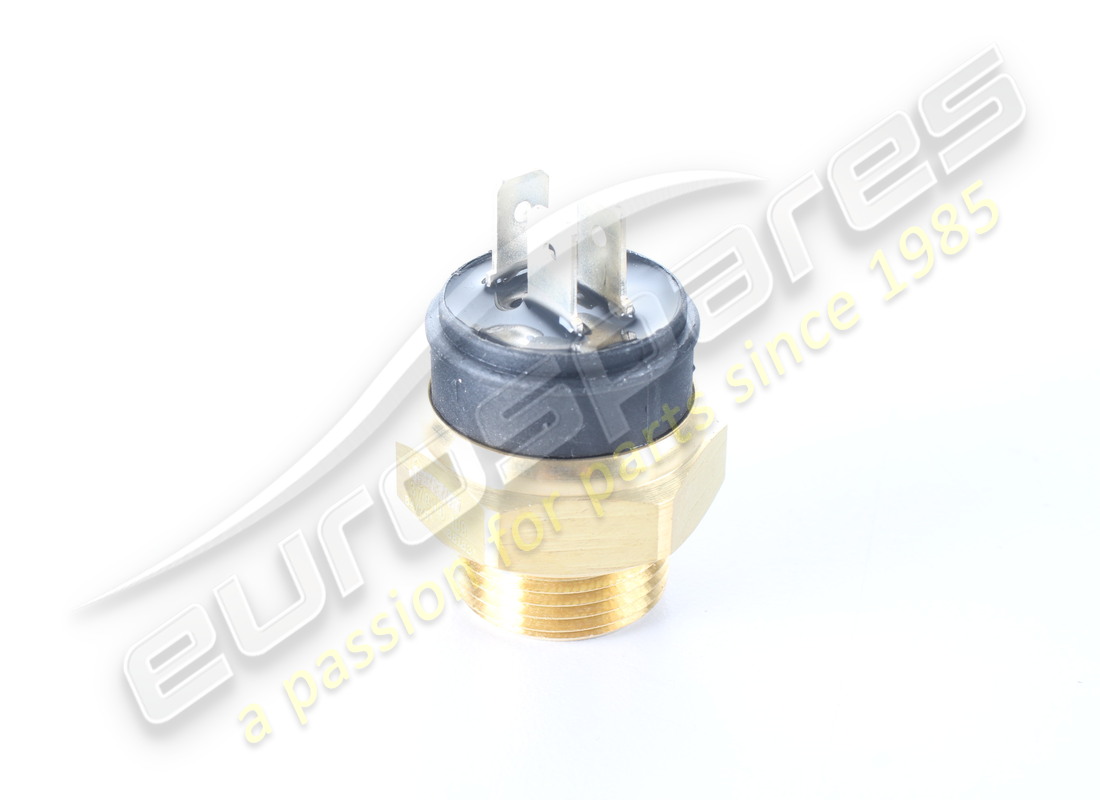

# 030
MPN: 001801333
TERMOCOPIA
from £126.99
from £126.99
# 031
MPN: 001704296

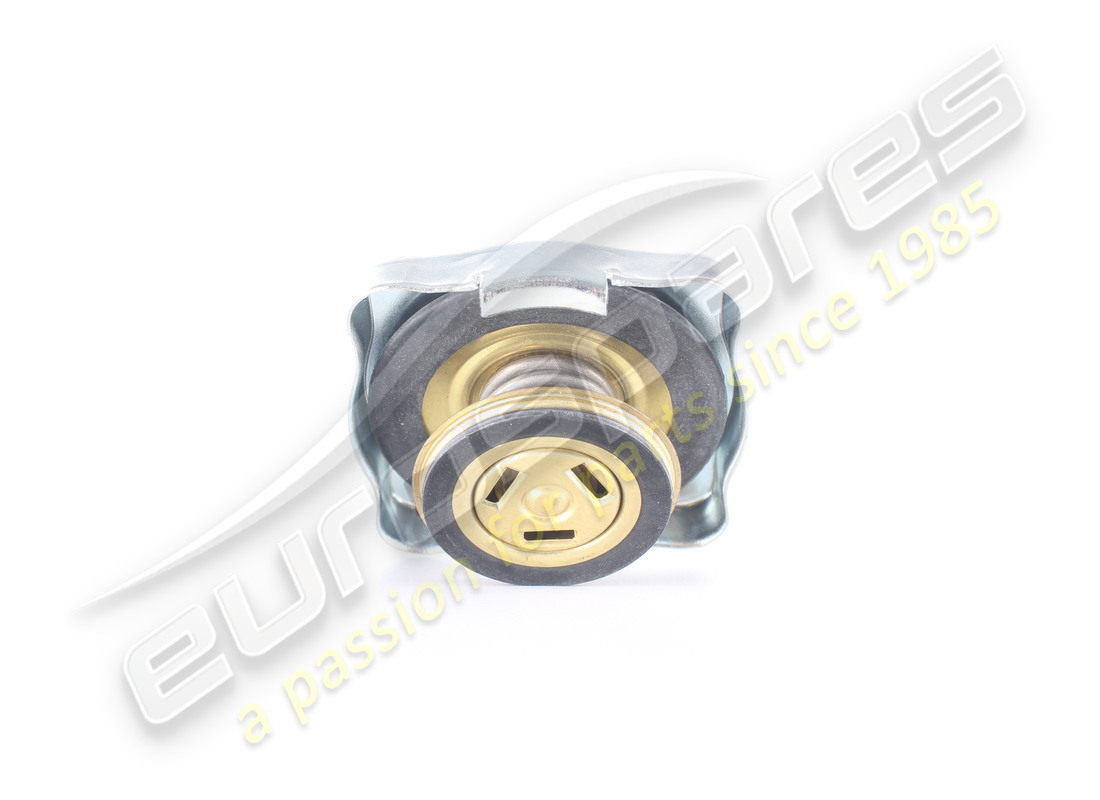

TANK CAP 1,0 BAR
from £87.32
from £87.32
# 032
MPN: 008830204
JUBILEE CLIP
from £5.43
from £5.43
# 033
MPN: 001710432
PIPE / TUBE / HOSE
# 034
MPN: 008610601
RUBBER GROMMET
from £3.16
from £3.16
# 035
MPN: 008400607
WASHER
Supersession
Supersession
# 036
MPN: 008200606
NUT
Supersession
Supersession
# 037
MPN: 001709974/A
SERBATOIO SUPPLEMENTARE ACQUA
SERIES 1
from £299.25
from £299.25
# 038
MPN: 001708139
TUBO SCARICO ACQUA
# 039
MPN: 001701906
WASHER
Supersession
Supersession
# 040
MPN: 001701905
RUBINETTO
from £65.54
from £65.54
# 041
MPN: 001705153
RUBBER GROMMET
from £2.16
from £2.16
# 042
MPN: 001704947
ELETTROVENTILATORE
# 043
MPN: 008611202
RUBBER GROMMET
# 044
MPN: 008830108
JUBILEE CLIP
from £3.70
from £3.70
