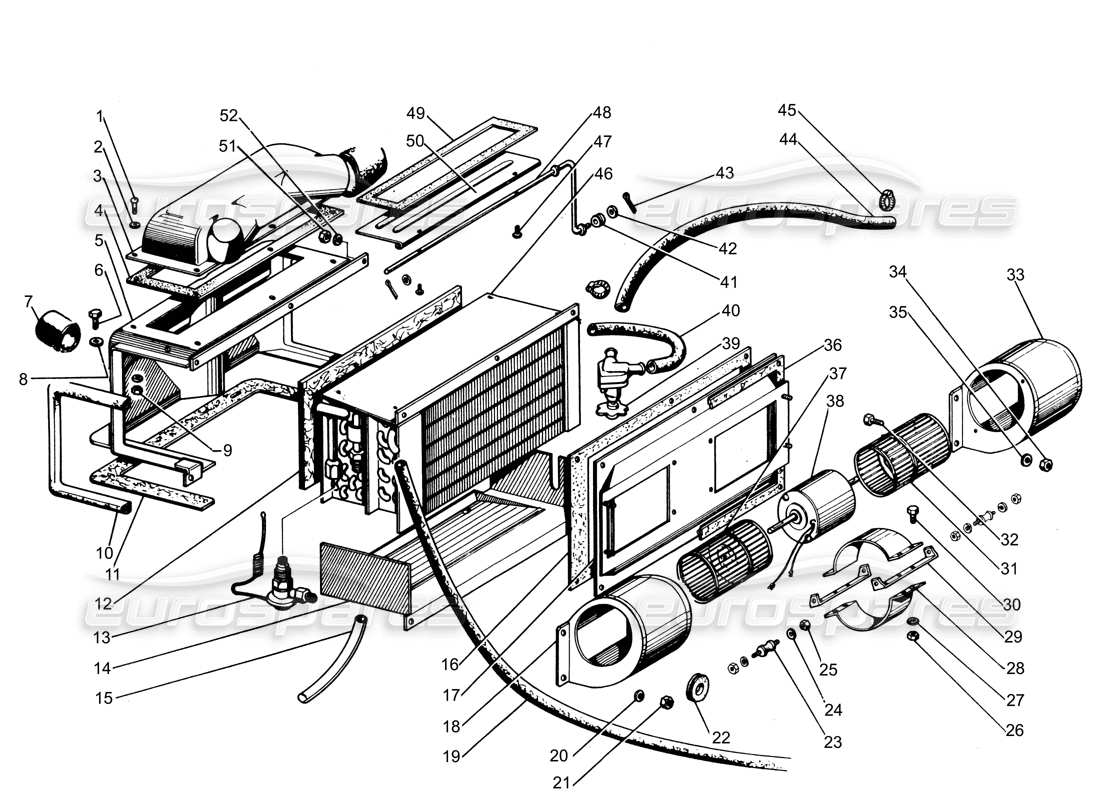

023.1 - Air-Con Matrix
Lamborghini Espada Air-Con Matrix Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
-
You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
001
MPN:
008700407
SCREW M4X14 UNI 6108/8G/Z
from
£1.71
from
£1.71
#
002
MPN:
008400401
WASHER
Supersession
Supersession
#
003
MPN:
006106817
CONVOGLIATORE ARIA
#
004
MPN:
006106823
N/A
#
005
MPN:
006105716
N/A
#
006
MPN:
N01020717
SCREW M5X12 UNI 5739/8G/Z
from
£0.47
from
£0.47
This part replaces part number 008100504
#
007
MPN:
006107278
N/A
from
£8.43
from
£8.43
#
008
MPN:
WHT001187
WASHER
from
£0.56
from
£0.56
This part replaces part number 008400502
#
009
MPN:
N01100412
M4 'UNI 5587/5S/Z' NUT
from
£0.47
from
£0.47
#
010
MPN:
006106852
Guarnizione
#
011
MPN:
006106824
Guarnizione
#
012
MPN:
005407150
N/A
#
013
MPN:
00450860
N/A
#
014
MPN:
006107017
N/A
#
015
MPN:
004506859
TUBO DI PLASTICA
#
016
MPN:
004506794
Guarnizione
from
£27.94
from
£27.94
#
017
MPN:
004506763
N/A
from
£32.21
from
£32.21
#
018
MPN:
006105426
CONVOGLIATORE DESTRO
from
£14.53
from
£14.53
#
019
MPN:
006104759
TUBO DAL RADIATORE ALLA POMPA
#
020
MPN:
WHT001187
WASHER
from
£0.56
from
£0.56
This part replaces part number 008400502
#
021
MPN:
N0211963
M5 'UNI 7473 ZD' SELF-LOCKIN GNUT
from
£0.53
from
£0.53
#
022
MPN:
008611002
GROMMET 22X38X10 MM
from
£13.87
from
£13.87
#
023
MPN:
008921201
SUPPORTO MOTORINO RISCALDATORE
from
£15.05
from
£15.05
#
024
MPN:
008410403
WASHER D.4.3 UNI 1751/Z
from
£4.11
from
£4.11
#
025
MPN:
N01100412
M4 'UNI 5587/5S/Z' NUT
from
£0.47
from
£0.47
#
026
MPN:
008200501
M5X0.8X4 'UNI 5588/6S/Z' NUT
Supersession
Supersession
#
027
MPN:
008410502
WASHER D.5.3 UNI 1751/ZD
Supersession
Supersession
#
028
MPN:
006107032
FASCETTA PER MOTORINO RISCALDATORE
from
£12.27
from
£12.27
#
029
MPN:
006107167
SUPPORTO MOTORINO
from
£2.29
from
£2.29
#
030
MPN:
N01020717
SCREW M5X12 UNI 5739/8G/Z
from
£0.47
from
£0.47
This part replaces part number 008100504
#
031
MPN:
006105599
VENTOLA SINISTRA
from
£17.09
from
£17.09
#
032
MPN:
N01020717
SCREW M5X12 UNI 5739/8G/Z
from
£0.47
from
£0.47
This part replaces part number 008100504
#
033
MPN:
006105439
CONVOGLIATORE SINISTRO
from
£14.53
from
£14.53
#
034
MPN:
N0211963
M5 'UNI 7473 ZD' SELF-LOCKIN GNUT
from
£0.53
from
£0.53
#
035
MPN:
WHT001187
WASHER
from
£0.56
from
£0.56
This part replaces part number 008400502
#
036
MPN:
006106793
Guarnizione
#
037
MPN:
006105474
VENTOLA DESTRA
from
£16.50
from
£16.50
#
038
MPN:
006107031
MOTORINO COMANDO VENTOLE
from
£73.05
from
£73.05
#
039
MPN:
006103239
HEATER VALVE
from
£237.32
from
£237.32
#
040
MPN:
006104758
TUBO DAL RUBINETTO AL RADIATORE
#
041
MPN:
006105639
N/A
from
£6.22
from
£6.22
#
042
MPN:
008400606
WASHER
Supersession
Supersession
#
043
MPN:
008820101
COPPIGLIA
from
£1.71
from
£1.71
#
044
MPN:
006104760
MANICOTTO DAL RUBINETTO ALLE TESTE
#
045
MPN:
008830205
CLAMP RING
from
£4.27
from
£4.27
#
046
MPN:
004507022
RADIATORE
#
047
MPN:
008700302
VITE
from
£1.71
from
£1.71
#
048
MPN:
006106847
N/A
#
049
MPN:
006107109
Guarnizione
#
050
MPN:
006106846
SPORTELLO CONVOGLIATORE
from
£5.19
from
£5.19
#
051
MPN:
N0211963
M5 'UNI 7473 ZD' SELF-LOCKIN GNUT
from
£0.53
from
£0.53
#
052
MPN:
WHT001187
WASHER
from
£0.56
from
£0.56
This part replaces part number 008400502
