lamborghini espada steering column (gran bret, irlanda, australia) parts diagram

019.3 - Steering Column (Gran Bret, Irlanda, Australia)

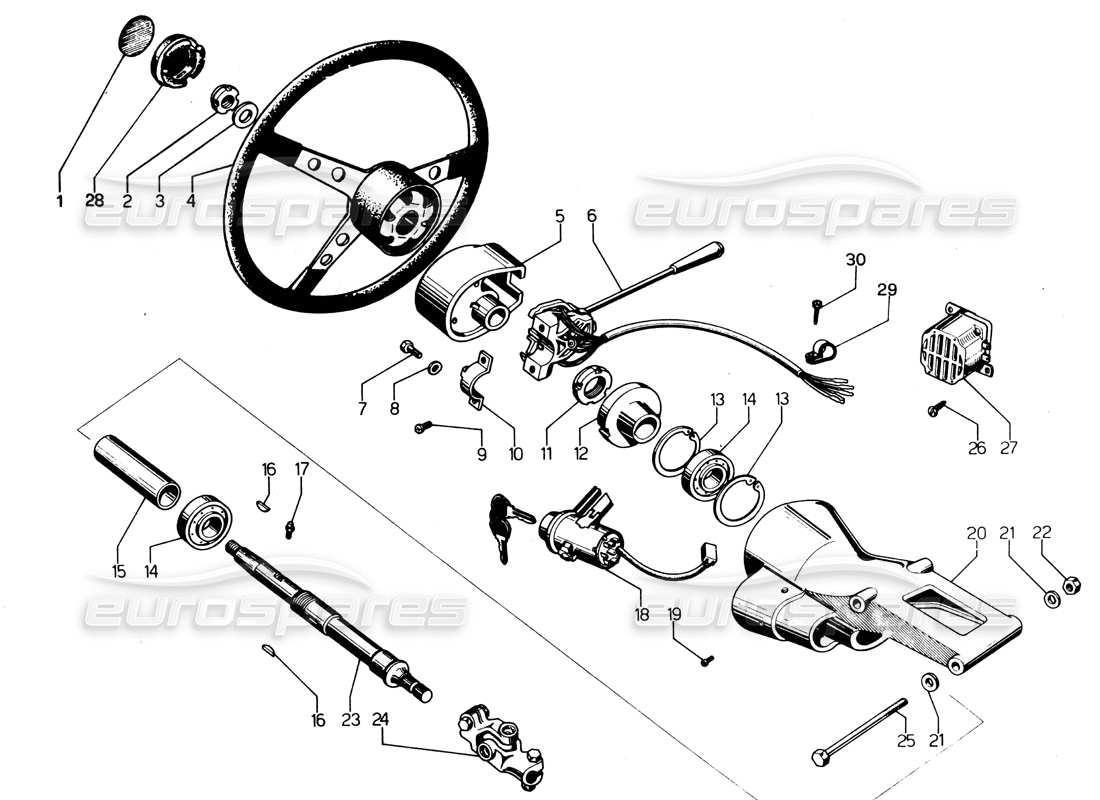

Lamborghini Espada Steering Column (Gran Bret, Irlanda, Australia) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 004301790
STEERING WHEEL BADGE
Badge
from £186.76
from £186.76
# 002
MPN: 008251801
GHIERA
Gran Bret - Irlanda - Australia
from £22.68
from £22.68
# 003
MPN: 008401807
WASHER
Gran Bret - Irlanda - Australia
from £12.90
from £12.90
# 004
MPN: 004309841
Volante
Gran Bret - Irlanda - Australia
# 004
MPN: 004309843
VOLANTE CAMPANATO (OPTIONAL) U . S.. A
Gran Bret - Irlanda - Australia
# 005
MPN: 004301383
SUPPORT
Gran Bret - Irlanda - Australia
from £495.00
from £495.00
# 006
MPN: 004313277
COLUMN SWITCH
from £295.00
from £295.00
# 007
MPN: 008100621
BOLT
Gran Bret - Irlanda - Australia
from £1.11
from £1.11
# 008
MPN: 008410602
WASHER
Gran Bret - Irlanda - Australia
from £27.90
from £27.90
# 009
MPN: 008700406
SCREW
Gran Bret - Irlanda - Australia
from £0.53
from £0.53
# 010
MPN: 004301408
JUBILEE CLIP
Gran Bret - Irlanda - Australia
# 011
MPN: 008252503
RING NUT
Gran Bret - Irlanda - Australia
Supersession
Supersession
# 012
MPN: 004308352
MANICOTTO PER CATENACCIO
Gran Bret - Irlanda - Australia
from £74.96
from £74.96
# 013
MPN: 008575001
SEEGER RING
Gran Bret - Irlanda - Australia
from £0.56
from £0.56
# 014
MPN: 008502503
BEARING
Gran Bret - Irlanda - Australia
from £76.48
from £76.48
# 015
MPN: 004307744
SPACER
Gran Bret - Irlanda - Australia
from £38.35
from £38.35
# 016
MPN: 008860701
Key
Gran Bret - Irlanda - Australia
from £4.73
from £4.73
# 017
MPN: 004301397
PIVOT
Gran Bret - Irlanda - Australia
from £15.01
from £15.01
# 018
MPN: 004308364
COMMUTATORE CON CHIAVE
Gran Bret - Irlanda - Australia
from £297.44
from £297.44
# 019
MPN: 008700408
SCREW
Gran Bret - Irlanda - Australia
from £0.53
from £0.53
# 020
MPN: 004308351
SUPPORT
Gran Bret - Irlanda - Australia
from £275.27
from £275.27
# 020
MPN: 004308351
SUPPORT
Gran Bret - Irlanda - Australia
from £275.27
from £275.27
# 021
MPN: 008401006
WASHER
Gran Bret - Irlanda - Australia
from £0.53
from £0.53
# 022
MPN: 008201008
NUT
Gran Bret - Irlanda - Australia
from £0.56
from £0.56
# 023
MPN: 004309845
PIANTONE
Gran Bret - Irlanda - Australia
from £73.05
from £73.05
# 023
MPN: 004309845
PIANTONE
Gran Bret - Irlanda - Australia
from £73.05
from £73.05
# 024
MPN: 004301424
GIUNTO
Gran Bret - Irlanda - Australia
from £2,961.40
from £2,961.40
# 025
MPN: 008101021
BOLT
Gran Bret - Irlanda - Australia
from £11.53
from £11.53
# 026
MPN: 008700506
SCREW
Gran Bret - Irlanda - Australia
from £0.53
from £0.53
# 027
MPN: 004308368
SUONERIA A RONZIO
Gran Bret - Irlanda - Australia
from £16.33
from £16.33
# 028
MPN: 004310191
HORN PUSH LEATHER COVER
# 029
MPN: 008831402
JUBILEE CLIP
Gran Bret - Irlanda - Australia
from £4.73
from £4.73
# 030
MPN: 008700306
SCREW
Gran Bret - Irlanda - Australia
from £1.71
from £1.71
